Winbond Electronics W25X40CLSNIG TR Flash +BOM

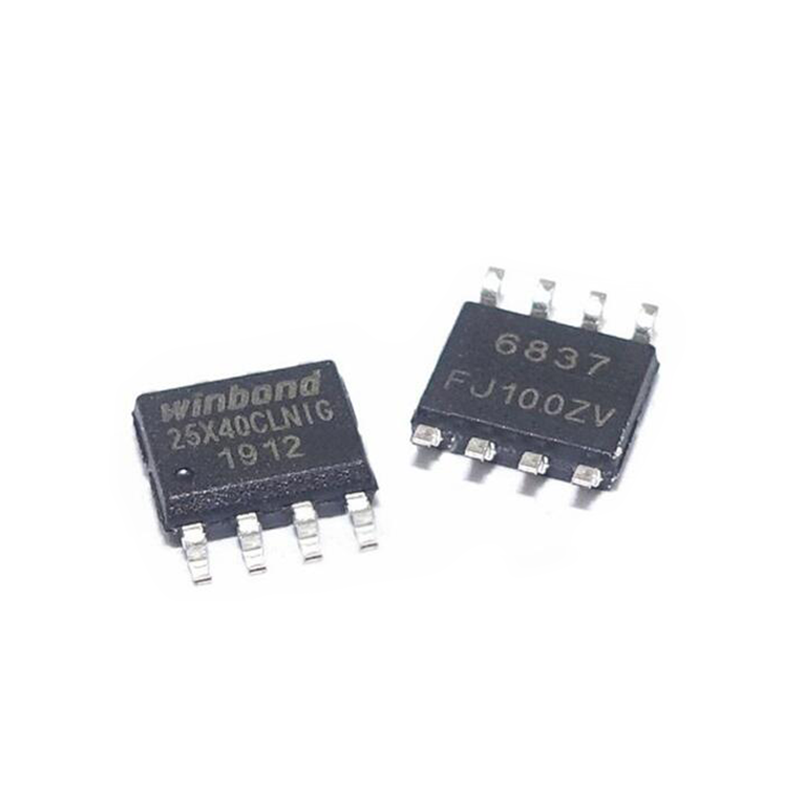

The Winbond Electronics W25X40CLSNIG TR is a high - performance serial NOR flash memory. With a 4M - bit storage capacity, it supports fast data transfer rates up to 208M - bits/second via SPI interfaces. Operating on a 2.3V - 3.6V supply, it offers low power consumption, high endurance, and long - term data retention. Ideal for embedded systems, automotive, and consumer electronics, its compact 8 - pin SOIC package suits space - constrained designs.
Winbond Electronics W25X40CLSNIG TR's Features
The Winbond Electronics W25X40CLSNIG TR is a remarkable serial flash memory component with several outstanding features. It ensures reliable performance, making it a trustworthy choice for data storage and retrieval across diverse applications. This is crucial as it guarantees the integrity of stored data, whether in consumer electronics or industrial control systems. One of its key features is the flexible voltage range of 2.3V to 3.6V (commonly operating at 2.5V/3V/3.3V). This allows for easy integration into various systems with different power supply requirements, providing great convenience in system design. The W25X40CLSNIG TR also offers secure data storage, protecting valuable information from potential threats. It has a compact 8 - pin SOIC package in tape and reel distribution, which is space - saving and suitable for modern, miniaturized circuit boards. With a clock frequency of up to 104 MHz, it enables relatively fast data transfer. Additionally, it has a write cycle time - word, page of 800µs and can operate in the temperature range of - 40°C to 85°C, showing good adaptability in different environments.
Winbond Electronics W25X40CLSNIG TR's Applications
The Winbond Electronics W25X40CLSNIG TR, a versatile NOR Flash Serial chip, finds extensive use across multiple industries. In consumer electronics, it plays a vital role. For instance, in smartphones and tablets, it stores the operating system, applications, and user data. The reliable performance and fast data transfer ensure smooth operation, quick app launches, and seamless user experiences. In smart TVs, it helps in storing channel information, user settings, and application data, enhancing the overall functionality and user - friendliness of the device. In the automotive industry, this chip is indispensable. In infotainment systems, it stores maps, music, and video content, providing entertainment for passengers. For navigation systems, it stores detailed map data, enabling accurate route planning and real - time navigation. Even in autonomous vehicles, the secure data storage feature is crucial for storing critical driving algorithms and sensor data, ensuring the safety and proper functioning of the vehicle. In the industrial sector, it is used in automation systems to store control programs and configuration data. In medical devices, it securely stores patient - related data and device operation software. Its wide - ranging applications demonstrate its importance as a reliable memory solution in modern electronics.
Winbond Electronics W25X40CLSNIG TR's Attributes
| Series | SpiFlash® | Package | Tape & Reel (TR) |
| Product Status | Active | Programmabe | Verified |
| Memory Type | Non-Volatile | Memory Format | FLASH |
| Technology | FLASH | Memory Size | 4Mbit |
| Memory Organization | 512K x 8 | Memory Interface | SPI |
| Clock Frequency | 104 MHz | Write Cycle Time - Word, Page | 800µs |
| Voltage - Supply | 2.3V ~ 3.6V | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | Base Product Number | W25X40 |
Winbond Electronics W25X40CLSNIG TR's Datasheet
Winbond Electronics W25X40CLSNIG TR's Category-Flash
Flash memory, a cornerstone of modern digital storage, has redefined how data is saved and accessed across countless devices. As a non - volatile memory technology, it retains information even when power is cut off, ensuring data integrity and availability. The two primary types, NAND and NOR Flash, have distinct architectures and use cases. NAND Flash arranges memory cells in a matrix, allowing for high - density storage. This makes it perfect for mass - storage applications like digital cameras, where large volumes of photos and videos need to be stored efficiently. Its sequential read - write operations are optimized, facilitating fast data transfer for large files. SSDs, which have replaced traditional hard disk drives in many computers, rely on NAND Flash for their speed, durability, and compact size, significantly enhancing system boot times and application loading. NOR Flash, conversely, excels in random access. It enables direct code execution, eliminating the need to transfer code to a separate RAM for processing. This feature makes it invaluable in embedded systems, where space and speed are critical. For example, in network routers, NOR Flash stores the operating system and routing tables, allowing the device to make quick decisions and route data packets efficiently. In the realm of consumer electronics, it powers the boot - up process of smart home devices, ensuring they start up rapidly and function smoothly. The evolution of Flash memory has been driven by the increasing demand for faster, more reliable, and higher - capacity storage. Technological advancements like 3D NAND, which stacks memory cells vertically, have further boosted storage density and performance.
Enter the Winbond Electronics W25X40CLSNIG TR, a top - tier NOR Flash solution. Its high - speed serial interface enables rapid data access, making it suitable for applications that require quick code execution. With a robust endurance rating and excellent data retention capabilities, it ensures long - term reliability. Whether it’s in industrial automation systems that demand consistent performance or in emerging technologies like edge computing devices where immediate data access is crucial, the W25X40CLSNIG TR proves itself as a reliable and efficient Flash memory option, embodying the cutting - edge qualities that drive the continued success of Flash memory technology.
W25X40CLSNIG TR vs W25Q40CLSNIG TR
| Part Number |
|  W25Q40CLSNIG TR +BOM |
| Category | General Memory | General Memory |
| Manufacturer | Winbond Electronics | Winbond Electronics |
| Description | IC FLASH 4MBIT SPI 104MHZ 8SOIC | IC FLASH 4MBIT SPI 104MHZ 8SOIC |
| Package | Bulk | Tape & Reel (TR) |
| Series | SpiFlash® | SpiFlash® |
| Voltage - Supply | 2.3V ~ 3.6V | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC |
| Memory Size | 4Mb (512K x 8) | 4Mb (512K x 8) |
| Technology | FLASH | FLASH - NOR |
| Memory Type | Non-Volatile | Non-Volatile |
| Clock Frequency | 104 MHz | 104 MHz |
| Access Time | - | - |
| Memory Format | FLASH | FLASH |
| Write Cycle Time - Word, Page | 800µs | 800µs |
| Memory Interface | SPI | SPI - Quad I/O |
