VS-MBR2045CT-M3 Vishay Semiconductors Schottky Diodes

Vishay Semiconductors VS-MBR2045CT-M3

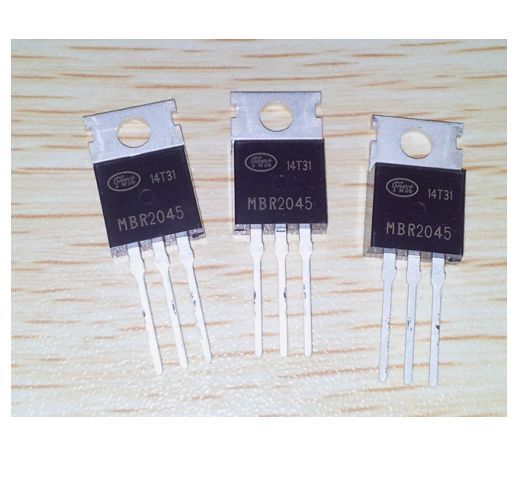

Vishay Semiconductors' VS-MBR2045CT-M3 is a high-performance Schottky rectifier.

Vishay Semiconductors VS-MBR2045CT-M3's Features

It is designed for high - frequency operation and can operate at a junction temperature () up to 150 °C.
It has a guard ring for enhanced ruggedness and long - term reliability.
The device is halogen - free, RoHS - compliant, and termination lead (Pb) - free. It also has a high - purity, high - temperature - compliant epoxy encapsulation that offers enhanced mechanical strength and moisture resistance.

Vishay Semiconductors VS-MBR2045CT-M3's Applications

It is optimized for low reverse leakage at high temperatures and is typically used in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

Vishay Semiconductors VS-MBR2045CT-M3's Attributes

Product Category	Schottky Diodes & Rectifiers	RoHS	True
REACH	Details	Product	Schottky Rectifiers
Mounting Style	Through Hole	Package / Case	TO-220AB-3
Configuration	Dual Anode Common Cathode	Technology	Si
If - Forward Current	10 A	Vrrm - Repetitive Reverse Voltage	45 V
Vf - Forward Voltage	840 mV	Ifsm - Forward Surge Current	1.06 kA
Ir - Reverse Current	100 uA	Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C	Brand	Vishay Semiconductors
Product Type	Schottky Diodes & Rectifiers	Factory Pack Quantity	50
Subcategory	Diodes & Rectifiers	Vr - Reverse Voltage	45 V
Unit Weight	0.130443 oz

Vishay Semiconductors VS-MBR2045CT-M3's Datasheet

Vishay Semiconductors VS-MBR2045CT-M3's Category - Schottky Diodes

In today's PCB circuit design and electronic manufacturing fields, the Schottky Diode, as a unique semiconductor electronic component, has always been a common presence on the production line thanks to its distinctive performance advantages. The Schottky Diode, also known as the Schottky barrier diode or hot carrier diode, is a device that utilizes the rectifying property formed by the contact between a metal and a semiconductor. Compared with traditional PN - junction diodes, Schottky diodes have a lower forward voltage drop and a faster switching speed, giving them broad application prospects in high - frequency and low - power - consumption fields. The characteristics of Schottky diodes are mainly reflected in the following aspects:

Low forward voltage drop: The forward voltage drop of a Schottky diode is usually only about 0.2V, much lower than the 0.7V of a PN - junction diode. This gives Schottky diodes a significant advantage in low - power - consumption applications.

Fast switching speed: Schottky diodes have an extremely fast switching speed and are suitable for high - frequency circuits. In high - speed digital circuits and radio - frequency circuits, Schottky diodes can effectively reduce signal distortion and noise.

High - temperature resistance: Schottky diodes have high - temperature resistance and can operate stably at high temperatures. Based on the above characteristics, Schottky diodes have the following advantages in PCB circuit design and SMT (Surface Mount Technology) patch production and manufacturing:

Improve circuit efficiency: The low forward voltage drop helps to reduce circuit power consumption and improve circuit efficiency.

Simplify circuit design: The fast switching speed simplifies circuit design, reducing the number of components in the circuit and its complexity.

Enhance reliability: The high - temperature resistance allows Schottky diodes to operate stably in harsh environments, improving the reliability of the circuit.

VS-MBR2045CT-M3 VS. MBRB30H50CTHE3_A/P

Part Number	MBRB30H50CTHE3_A/P	VS-MBR2045CT-1-M3
Category	Diodes - Rectifiers - Arrays	Diodes - Rectifiers - Arrays
Manufacturer	Vishay Semiconductor - Diodes Division	Vishay Semiconductor - Diodes Division
Description	DIODE ARRAY SCHOTTKY 50V TO263AB	DIODE SCHOTTKY 45V 10A TO262AA
Package	Tube	Tape & Reel (TR)
Series	Automotive, AEC-Q101	-
Mounting Type	Surface Mount	Through Hole
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	TO-263AB	TO-262AA
Diode Type	Schottky	Schottky
Voltage - Forward (Vf) (Max) @ If	680 mV @ 15 A	840 mV @ 10 A
Current - Reverse Leakage @ Vr	60 µA @ 50 V	100 µA @ 45 V
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	50 V	45 V
Current - Average Rectified (Io) (per Diode)	15A	10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-	-
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 150°C
