Headers, Plugs and Sockets(86784)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Color | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Contact Material | Housing Material | Material Flammability Rating | Number of Positions | Insulation Height | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Screw Size | Positions Per Level | Number of Levels | Header Orientation | Plug Wire Entry | Current - IEC | Current - UL | Voltage - UL | Contact Mating Finish | Torque - Screw | Wire Strip Length | Contact Tail Length | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OSTTS09515D | 3.7194 |  |
6391 | 0.00000000 | On Shore Technology Inc. | OSTTS | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTS09 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Brass | UL94 V-0 | 9 | - | 12-24 AWG | 0.34-2.5mm² | - | 9 | 1 | - | - | - | 300 V | - | 0.4 Nm (3.5 Lb-In) | 6-7mm | - | ||||
|
OSTTS11515D | 4.5373 | |
5558 | 0.00000000 | On Shore Technology Inc. | OSTTS | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTS11 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Brass | UL94 V-0 | 11 | - | 12-24 AWG | 0.34-2.5mm² | - | 11 | 1 | - | - | - | 300 V | - | 0.4 Nm (3.5 Lb-In) | 6-7mm | - | ||||
|
OSTTJ040152 | 1.9949 | |
4760 | 0.00000000 | On Shore Technology Inc. | OSTTJ | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTJ04 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.300" (7.62mm) | Brass | Brass | UL94 V-0 | 4 | - | 12-24 AWG | - | - | 4 | 1 | - | - | - | 300 V | - | 0.56 Nm (5.0 Lb-In) | 7-8mm | - | ||||
|
OSTTJ070152 | 3.3240 | |
7908 | 0.00000000 | On Shore Technology Inc. | OSTTJ | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTJ07 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.300" (7.62mm) | Brass | Brass | UL94 V-0 | 7 | - | 12-24 AWG | - | - | 7 | 1 | - | - | - | 300 V | - | 0.56 Nm (5.0 Lb-In) | 7-8mm | - | ||||
|
OSTTJ090152 | 4.2519 | |
6556 | 0.00000000 | On Shore Technology Inc. | OSTTJ | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTJ09 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.300" (7.62mm) | Brass | Brass | UL94 V-0 | 9 | - | 12-24 AWG | - | - | 9 | 1 | - | - | - | 300 V | - | 0.56 Nm (5.0 Lb-In) | 7-8mm | - | ||||
|
OSTTH032150 | 0.6915 | |
1278 | 0.00000000 | On Shore Technology Inc. | OSTTH | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | OSTTH03 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 3 | - | 16-28 AWG | - | - | 3 | 1 | - | - | - | 300 V | Nickel | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | ||||
|
OSTTH042150 | 0.9199 | |
4162 | 0.00000000 | On Shore Technology Inc. | OSTTH | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | OSTTH04 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 4 | - | 16-28 AWG | - | - | 4 | 1 | - | - | - | 300 V | Nickel | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | ||||
|
OSTTH102150 | 2.1073 | |
6090 | 0.00000000 | On Shore Technology Inc. | OSTTH | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | OSTTH10 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 10 | - | 16-28 AWG | - | - | 10 | 1 | - | - | - | 300 V | Nickel | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | ||||
|
OSTTH112150 | 2.3163 | |
3223 | 0.00000000 | On Shore Technology Inc. | OSTTH | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | OSTTH11 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 11 | - | 16-28 AWG | - | - | 11 | 1 | - | - | - | 300 V | Nickel | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | ||||
|
OSTTH122150 | 2.6540 | |
2749 | 0.00000000 | On Shore Technology Inc. | OSTTH | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | OSTTH12 | - | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 12 | - | 16-28 AWG | - | - | 12 | 1 | - | - | - | 300 V | Nickel | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | ||||
|
OSTOP102B01 | 0.6322 | |
5072 | 0.00000000 | On Shore Technology Inc. | OSTOP | Bulk | Active | - | Solder | Header, Male Pins, Unshrouded | - | OSTOP10 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | - | Brass | - | 10 | 0.138" (3.50mm) | - | - | - | 10 | 1 | Vertical | - | - | 150 V | Tin | - | - | 0.138" (3.50mm) | ||||
|
OSTOP032200 | 0.1870 | |
9396 | 0.00000000 | On Shore Technology Inc. | OSTOP | Bulk | Active | - | Solder | Header, Male Pins, Unshrouded | - | OSTOP03 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | - | Brass | - | 3 | 0.138" (3.50mm) | - | - | - | 3 | 1 | Vertical | - | - | 300 V | Tin | - | - | 0.138" (3.50mm) | ||||
|
OSTOP072200 | 0.4630 | |
4188 | 0.00000000 | On Shore Technology Inc. | OSTOP | Bulk | Active | - | Solder | Header, Male Pins, Unshrouded | - | OSTOP07 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | - | Brass | - | 7 | 0.138" (3.50mm) | - | - | - | 7 | 1 | Vertical | - | - | 300 V | Tin | - | - | 0.138" (3.50mm) | ||||
|
OSTOP082200 | 0.5287 | |
1007 | 0.00000000 | On Shore Technology Inc. | OSTOP | Bulk | Active | - | Solder | Header, Male Pins, Unshrouded | - | OSTOP08 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | - | Brass | - | 8 | 0.138" (3.50mm) | - | - | - | 8 | 1 | Vertical | - | - | 300 V | Tin | - | - | 0.138" (3.50mm) | ||||
|
OSTOP122200 | 0.7616 | |
3811 | 0.00000000 | On Shore Technology Inc. | OSTOP | Bulk | Active | - | Solder | Header, Male Pins, Unshrouded | - | OSTOP12 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | - | Brass | - | 12 | 0.138" (3.50mm) | - | - | - | 12 | 1 | Vertical | - | - | 300 V | Tin | - | - | 0.138" (3.50mm) | ||||
 |
1911059 | - | |
5840 | 0.00000000 | Phoenix Contact | COMBICON EMCV | Bulk | Obsolete | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Green | - | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | 0.138" (3.50mm) | - | Polybutylene Terephthalate (PBT) | UL94 V-0 | 6 | 0.362" (9.20mm) | - | - | - | 6 | 1 | Vertical | - | 8A | 8 A | 300 V | Tin | - | - | 0.150" (3.81mm) | 250 V | |||
 |

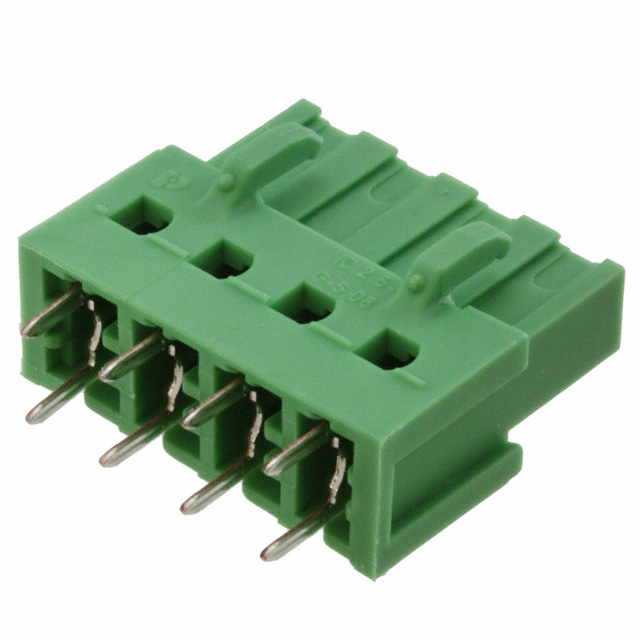

1785968 | 4.5800 | |
1 | 0.00000000 | Phoenix Contact | COMBICON ICV | Bulk | Active | - | Through Hole | Header, Female Sockets | Retention Latches | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | 0.200" (5.08mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 4 | 0.748" (19.00mm) | - | - | - | 4 | 1 | Vertical | - | 12A | 10 A | 300 V | Tin | - | - | 0.142" (3.60mm) | 630 V | |||
|
1843716 | 5.1612 | |
7380 | 0.00000000 | Phoenix Contact | COMBICON MCV | Bulk | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | 0.138" (3.50mm) | - | Polybutylene Terephthalate (PBT) | UL94 V-0 | 13 | 0.362" (9.20mm) | - | - | - | 13 | 1 | Vertical | - | 8A | 8 A | 300 V | Tin | - | - | 0.134" (3.40mm) | 250 V | ||||
|
2-284541-2 | - | |
3895 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | 284541 | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 22 | 0.285" (7.25mm) | - | - | - | 22 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | |||
|
2-284541-1 | - | |
5596 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 21 | 0.285" (7.25mm) | - | - | - | 21 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | ||||
|
1-284541-4 | - | |
7978 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | 284541 | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 14 | 0.285" (7.25mm) | - | - | - | 14 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | |||
|
2-284513-3 | 8.7297 | |
6827 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 284513 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | 2266-2-284513-3 | EAR99 | 8536.69.4040 | 200 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 23 | 0.287" (7.30mm) | - | - | - | 23 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | ||
|
2-284513-2 | 8.3501 | |
1108 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 284513 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | 2266-2-284513-2 | EAR99 | 8536.69.4040 | 200 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 22 | 0.287" (7.30mm) | - | - | - | 22 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | ||
|
2-284513-1 | - | |
1114 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 284513 | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.150" (3.81mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 21 | 0.287" (7.30mm) | - | - | - | 21 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | |||
|
2-284512-2 | - | |
6702 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 284512 | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.138" (3.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 22 | 0.287" (7.30mm) | - | - | - | 22 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | |||
|
1-284512-9 | - | |
9588 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.138" (3.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 19 | 0.287" (7.30mm) | - | - | - | 19 | 1 | 90°, Right Angle | - | - | 11 A | 300 V | Tin | - | - | 0.134" (3.40mm) | ||||
|
1-796638-9 | - | |
1827 | 0.00000000 | TE Connectivity AMP Connectors | Termi-Blok, Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 796638 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 19 | 0.329" (8.36mm) | - | - | - | 19 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
 |

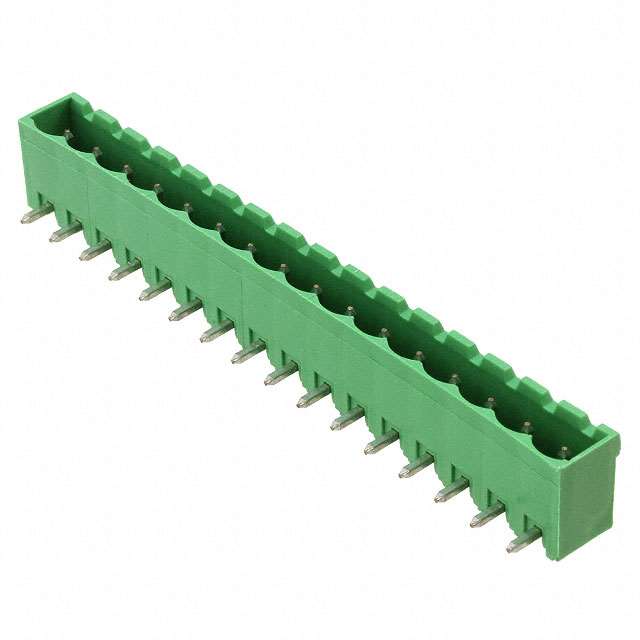

1-796638-6 | 7.3600 | |
196 | 0.00000000 | TE Connectivity AMP Connectors | Termi-Blok, Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 796638 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 16 | 0.329" (8.36mm) | - | - | - | 16 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
|
1-796644-4 | 3.4069 | |
5598 | 0.00000000 | TE Connectivity AMP Connectors | Termi-Blok, Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 796644 | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | 0.197" (5.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 14 | 0.329" (8.36mm) | - | - | - | 14 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
|
2-282812-1 | - | |
6372 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.197" (5.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 21 | 0.329" (8.36mm) | - | - | - | 21 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) |
