Card Edge Connectors(668067)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Housing Material | Material Flammability Rating | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Wire Gauge | Contact Termination | Pin or Socket | Adapter Type | Current Rating (Per Contact) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EBM22MMRN | 7.1300 |  |
9571 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | EBM22 | Blue | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | S7375 | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 44 | Male | Fits Female Edgecards | 22 | 0.062" (1.57mm) | Dual | - | Polybutylene Terephthalate (PBT) | |||||||||
 |
EBC35MMAD | 6.3540 | |
8038 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | EBC35 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 70 | Male | Fits Female Edgecards | 35 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC06MMJD | 3.3020 | |
9902 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | EBC06 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 12 | Male | Fits Female Edgecards | 6 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC18MMJD | 5.2440 | |
1810 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | EBC18 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 36 | Male | Fits Female Edgecards | 18 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC18MMND | 6.3710 | |
5173 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | EBC18 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 36 | Male | Fits Female Edgecards | 18 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC06MMRD | 4.1520 | |
9182 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | EBC06 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 12 | Male | Fits Female Edgecards | 6 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC15MMRD | 5.7500 | |
5736 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | EBC15 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 30 | Male | Fits Female Edgecards | 15 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC12MMSD | 3.8780 | |
4758 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | EBC12 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 24 | Male | Fits Female Edgecards | 12 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
|
EBC15MMSD | 5.6800 | |
2 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | EBC15 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 30 | Male | Fits Female Edgecards | 15 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||||||
 |
EBC18DTMN | 5.3540 | |
4806 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | EBC18 | Blue | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 10 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 36 | Female | Non Specified - Dual Edge | 18 | 0.062" (1.57mm) | Dual | - | Polybutylene Terephthalate (PBT) | ||||||||||
 |
0877159205 | 5.4500 | |
14 | 0.00000000 | Molex | 87715 | Tray | Active | -55°C ~ 85°C | Through Hole | Board Guide, Locking Ramp | 087715 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.039" (1.00mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 98 | Female | PCI Express™ | - | 0.062" (1.57mm) | Dual | - | Polyamide (PA46), Nylon 4/6 | ||||||||||
 |

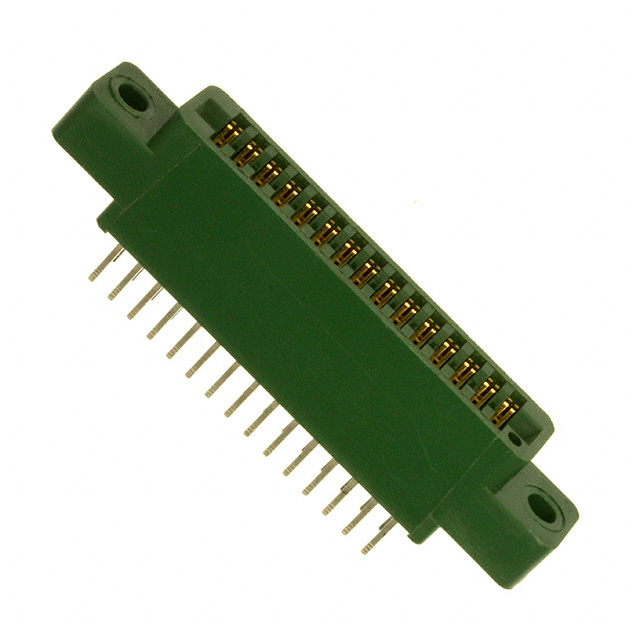

ACC15DRSH | 12.7140 | |
4074 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 150°C | Through Hole | - | ACC15 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | Q4302993 | EAR99 | 8536.69.4040 | 10 | 0.100" (2.54mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Loop Bellows | 30 | Female | Non Specified - Dual Edge | 15 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyphenylene Sulfide (PPS) | |||||||||
|
292204-3 | 2.9808 | |
9417 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | - | Panel Mount | 292204 | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 400 | Gold | 15.0µin (0.38µm) | Copper Alloy | Polybutylene Terephthalate (PBT), Glass Filled | 8 (4 Dual) | 0.062" (1.57mm) | Top Opening, Unthreaded, 0.138" (3.5mm) Dia - Panel | Card Slot to Male Pin Header | 2 A | |||||||||||||||||||
 |
1-5530844-8 | - | |
2912 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Obsolete | -55°C ~ 85°C | Through Hole | - | 5530844 | Black | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 270 | 0.125" (3.18mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 60 | Female | Non Specified - Dual Edge | - | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | ||||||||||
 |
2-5530844-2 | - | |
8324 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Active | -55°C ~ 85°C | Through Hole | - | 5530844 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | 2266-2-5530844-2 | EAR99 | 8536.69.4040 | 486 | 0.125" (3.18mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 100 | Female | Non Specified - Dual Edge | - | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | |||||||||
|
3-640133-6 | - | |
2085 | 0.00000000 | TE Connectivity AMP Connectors | Bifurcated Leaf | Tray | Obsolete | -55°C ~ 105°C | Through Hole | - | 640133 | Natural | Solder | download | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 816 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Brass | - | 6 | Female | Non Specified - Single Edge | 6 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | |||||||||||
 |
3-640861-9 | - | |
7380 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Active | -55°C ~ 105°C | Free Hanging (In-Line) | - | 640861 | Red | IDC | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Copper Alloy | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | ||||||||||
|
3-640862-9 | - | |
7796 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | - | 640862 | White | IDC | download | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Copper Alloy | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | |||||||||||
|
3-640864-9 | - | |
8412 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Obsolete | -55°C ~ 105°C | Panel Mount | - | 640864 | Orange | IDC | - | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyester Thermoplastic | |||||||||||
|
3-640865-9 | - | |
7409 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Obsolete | -55°C ~ 105°C | Panel Mount | - | 640865 | Yellow | IDC | - | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 2,500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyester Thermoplastic | |||||||||||
 |
3-640866-3 | - | |
2796 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Active | -55°C ~ 105°C | Panel Mount | - | 640866 | Red | IDC | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 3 | Female | Non Specified - Single Edge | 3 | 0.062" (1.57mm) | Single | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyester Thermoplastic | ||||||||||
 |
3-640866-9 | - | |
6754 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Active | -55°C ~ 105°C | Panel Mount | - | 640866 | Red | IDC | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyester Thermoplastic | ||||||||||
 |
3-641284-6 | - | |
2824 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Active | -55°C ~ 105°C | Free Hanging (In-Line) | - | 641284 | Yellow | IDC | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 6 | Female | Non Specified - Single Edge | 6 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | ||||||||||
|
3-641285-6 | - | |
8004 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Active | -55°C ~ 105°C | Free Hanging (In-Line) | - | 641285 | Red | IDC | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 500 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 6 | Female | Non Specified - Single Edge | 6 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | ||||||||||
|
3-641287-9 | - | |
4694 | 0.00000000 | TE Connectivity AMP Connectors | MTA-156 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | - | 641287 | Blue | IDC | download | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 1 | Tin | 80.0µin (2.03µm) | Phosphor Bronze | - | 9 | Female | Non Specified - Single Edge | 9 | 0.062" (1.57mm) | Single | - | Polyester Thermoplastic | |||||||||||
 |
GWE49DHHN-T911 | 1.5249 | |
2544 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -55°C ~ 85°C | Through Hole | Board Guide, Locking Ramp | GWE49 | Black | Solder, Staggered | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.039" (1.00mm) | 2 | Gold | Flash | Phosphor Bronze | Cantilever | 98 | Female | PCI Express™ | 38; 11 | 0.062" (1.57mm) | Dual | - | Polyamide (PA46), Nylon 4/6 | ||||||||||
 |
NWE82DHRQ-T941 | - | |
4127 | 0.00000000 | Sullins Connector Solutions | - | Tray | Obsolete | -55°C ~ 105°C | Board Edge, Straddle Mount | Board Guide, Card Extender, Clips, Locking Ramp | NWE82 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.039" (1.00mm) | 2 | Gold | Flash | Phosphor Bronze | Cantilever | 164 | Female | PCI Express™ | 82 | 0.062" (1.57mm) | Dual | Straddle Mount Opening, Unthreaded, 0.078" (1.98mm) | Polyamide (PA46), Nylon 4/6 | ||||||||||
 |
0009016038 | - | |
8275 | 0.00000000 | Molex | KK396, 2574 | Bulk | Obsolete | 0°C ~ 75°C | Free Hanging (In-Line) | - | 000901 | Natural | Contacts Not Included | - | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | 0.156" (3.96mm) | UL94 V-2 | 3 | Non Specified - Single Edge | 0.062" (1.57mm) | - | Polyamide (PA66), Nylon 6/6 | ||||||||||||||||||
|
0008030306 | - | |
4052 | 0.00000000 | Molex | KK 4573 | Bulk | Obsolete | 000803 | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.90.4000 | 5,000 | Tin | 100.0µin (2.54µm) | Brass | 24-30 AWG | Crimp | Socket | ||||||||||||||||||||||||
|
0009011096 | - | |
8941 | 0.00000000 | Molex | KK396, 6422 | Bulk | Obsolete | 0°C ~ 75°C | Free Hanging (In-Line) | - | 000901 | Natural | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | 0.156" (3.96mm) | UL94 V-2 | 9 | Non Specified - Single Edge | 0.062" (1.57mm) | - | Polyamide (PA), Nylon |
