Card Edge Connectors(668067)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Wire Gauge | Contact Termination | Pin or Socket | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
583715-1 | - |  |
1052 | 0.00000000 | TE Connectivity AMP Connectors | TWIN LEAF | Tray | Active | -55°C ~ 105°C | Through Hole | End Cap | 583715 | Black | Solder | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1,560 | 0.100" (2.54mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 6 | Female | Non Specified - Dual Edge | - | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | ||||||||
|
60215-5 | - | |
5341 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 60215 | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.90.4000 | 20,000 | Gold | 30.0µin (0.76µm) | - | 18-22 AWG | Crimp | Non-Gendered | |||||||||||||||||||||
|
531353-5 | - | |
7932 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | -40°C ~ 95°C | Panel Mount | - | 531353 | Natural | Solder | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4030 | 400 | 0.312" (7.92mm) | 2 | Tin | 15.0µin (0.38µm) | Copper Alloy | - | 6 (Power) | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester, Glass Filled | ||||||||
|
531355-3 | 2.1040 | |
6218 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | - | - | - | 531355 | - | - | - | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.90.4000 | 1,000 | - | - | - | - | - | - | - | - | - | - | - | - | - | |||||||||
|
531702-2 | - | |
8493 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | - | Panel Mount | Flange | 531702 | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4030 | 300 | 0.312" (7.92mm) | - | 10 | Non Specified - Dual Edge | - | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | - | |||||||||||||||
 |
5-531355-3 | 1.8600 | |
980 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 531355 | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 1,000 | Gold | - | - | 10-12 AWG | Crimp | Socket | |||||||||||||||||||||
|
4-119822-6 | - | |
1424 | 0.00000000 | TE Connectivity AMP Connectors | AMP PACE | Bulk | Active | - | Through Hole | - | 119822 | - | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 720 | 0.125" (3.18mm) | 2 | Gold | 30.0µin (0.76µm) | - | - | 120 | Female | Non Specified - Dual Edge | 60 | 0.054" ~ 0.071" (1.37mm ~ 1.80mm) | Dual | - | - | ||||||||
|
145410-2 | - | |
4760 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 0°C ~ 85°C | Through Hole | Board Lock | 145410 | Brown | Solder, Staggered | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 432 | 0.039" (1.00mm) | 2 | Gold | - | Phosphor Bronze | - | 132 | Female | AGP, Universal | - | 0.062" (1.57mm) | Dual | - | Thermoplastic | |||||||||
|
145542-2 | - | |
9098 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Active | -55°C ~ 85°C | Through Hole | - | 145542 | Black | Solder | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 70 | Female | Non Specified - Dual Edge | - | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | ||||||||
|
145275-3 | - | |
8872 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 0°C ~ 85°C | Through Hole | Board Lock | 145275 | Brown | Solder, Staggered | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 160 | 0.100" (2.54mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 340 | Female | NLX | 74; 48; 48 | 0.062" (1.57mm) | Dual | - | Thermoplastic | |||||||||
|
147885-1 | - | |
6476 | 0.00000000 | TE Connectivity AMP Connectors | AMP Pace | Bulk | Active | - | Through Hole | - | 147885 | - | Solder | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 800 | 0.100" (2.54mm) | 2 | Gold | 30.0µin (0.76µm) | - | Cantilever | 5 | Female | Non Specified - Dual Edge | 10 | - | Dual | - | - | 2 | |||||||
|
5145263-6 | - | |
8898 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 0°C ~ 85°C | Through Hole | Board Lock | 5145263 | Brown | Solder, Staggered | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 240 | 0.100" (2.54mm) | 2 | Gold | - | Phosphor Bronze | - | 124 | Female | AGP | 21; 41 | 0.062" (1.57mm) | Dual | - | Thermoplastic | |||||||||
|
6489898-1 | 4.2242 | |
3848 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge .050 | Bulk | Active | - | Surface Mount | Board Lock | 6489898 | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 160 | 0.050" (1.27mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 120 (96 Loaded) | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Polyphenylene Sulfide (PPS) | ||||||||
|
5145263-8 | - | |
6203 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | 0°C ~ 85°C | Through Hole | Board Lock | 5145263 | Brown | Solder, Staggered | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 240 | 0.100" (2.54mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 124 | Female | AGP | 21; 41 | 0.062" (1.57mm) | Dual | - | Thermoplastic | |||||||||
|
2110493-1 | - | |
3128 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Active | -55°C ~ 85°C | Through Hole, Right Angle | - | 2110493 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 336 | 0.100" (2.54mm) | 2 | Gold | 15.0µin (0.38µm) | Phosphor Bronze | - | 62 | Female | Non Specified - Dual Edge | 31 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | ||||||||
 |
10055293-10000TLF | 3.3944 | |
8784 | 0.00000000 | Amphenol ICC (FCI) | - | Tray | Active | -55°C ~ 85°C | Through Hole | Board Guide, Locking Ramp | 10055293 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 56 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 98 | Female | PCI Express™ | 11; 38 | 0.062" (1.57mm) | Dual | - | Polyamide (PA), Nylon, Glass Filled | |||||||||
 |
SPD08-080-RB-TR | 11.4900 | |
772 | 0.00000000 | 3M | SPD08 | Tape & Reel (TR) | Active | -55°C ~ 125°C | Surface Mount | Board Guide | SPD08 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 400 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 80 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP), Glass Filled | ||||||||
 |
5-530843-3 | - | |
6261 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Active | -55°C ~ 85°C | Through Hole | - | 530843 | Black | Solder | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 594 | 0.100" (2.54mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 34 | Female | Multibus I | - | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled | ||||||||
 |

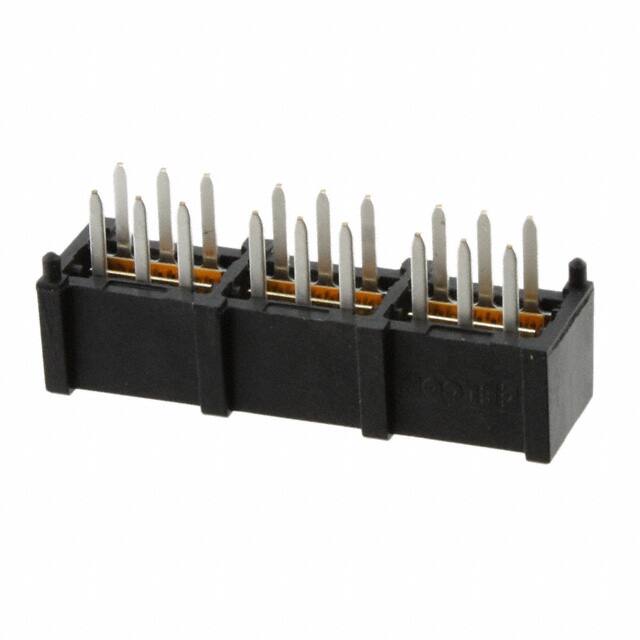

1766685-1 | 5.1462 | |
8880 | 0.00000000 | TE Connectivity AMP Connectors | Mini Crown Edge, Elcon | Tray | Active | -55°C ~ 105°C | Through Hole | Board Guide | 1766685 | Black | Solder | download | RoHS Compliant | 3 (168 Hours) | Vendor Undefined | EAR99 | 8536.69.4040 | 56 | - | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | - | 6 (Power) | Female | Non Specified - Dual Edge | 1; 1; 1 | - | Dual | - | Thermoplastic, Glass Filled | ||||||||
 |
MEC1-130-02-F-D-LC | 8.8600 | |
3245 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Lock | MEC1-130 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 16 | 0.039" (1.00mm) | 2 | Gold | 3.00µin (0.076µm) | Phosphor Bronze | Loop Bellows | 60 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
MEC1-170-02-S-D-A-K | 19.4043 | |
7032 | 0.00000000 | Samtec Inc. | MEC1 | Tube | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Pick and Place | MEC1-170 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 7 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Loop Bellows | 140 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
|
MEC6-150-02-S-D-RA1-TR | 11.4534 | |
2873 | 0.00000000 | Samtec Inc. | MEC6 - RA | Tape & Reel (TR) | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Guide | MEC6-150 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 225 | 0.025" (0.64mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 100 | Female | Non Specified - Dual Edge | 50 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
MEC8-110-02-L-DV-A-K | 6.4094 | |
2016 | 0.00000000 | Samtec Inc. | MEC8 - DV | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide | MEC8-110 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 104 | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Hairpin Bellows | 20 | Female | Non Specified - Dual Edge | 10 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
MEC8-130-02-L-D-RA1 | 11.5000 | |
42 | 0.00000000 | Samtec Inc. | MEC8 - RA | Tray | Active | -55°C ~ 125°C | Surface Mount, Right Angle | Board Guide | MEC8-130 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 21 | 0.031" (0.80mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | 60 | Female | Non Specified - Dual Edge | - | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
HSEC8-160-01-S-DV-A-K-TR | 8.1400 | |
763 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tape & Reel (TR) | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-160 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 275 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 120 | Female | Non Specified - Dual Edge | 60 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
HSEC8-180-01-S-DV-A | 8.9400 | |
488 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-180 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 42 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 160 | Female | Non Specified - Dual Edge | 80 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
|
HSEC8-180-01-S-DV-A-K | 12.1100 | |
1 | 0.00000000 | Samtec Inc. | Edge Rate™ HSEC8 | Tray | Active | -55°C ~ 125°C | Surface Mount | Board Guide, Locking Ramp | HSEC8-180 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 42 | 0.031" (0.80mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Cantilever | 160 | Female | Non Specified - Dual Edge | 80 | 0.062" (1.57mm) | Dual | - | Liquid Crystal Polymer (LCP) | ||||||||
 |
1761465-3 | 21.4100 | |
229 | 0.00000000 | TE Connectivity AMP Connectors | - | Tray | Active | -40°C ~ 85°C | Through Hole, Right Angle | Board Guide | 1761465 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | - | 98 | Female | PCI Express™ | - | 0.062" (1.57mm) | Dual | - | Thermoplastic | ||||||||
 |
1761465-4 | 30.8100 | |
752 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | -40°C ~ 85°C | Through Hole, Right Angle | Board Guide | 1761465 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | 0.039" (1.00mm) | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | - | 164 | Female | PCI Express™ | - | 0.062" (1.57mm) | Dual | - | Thermoplastic | ||||||||
 |
2-145459-5 | - | |
8238 | 0.00000000 | TE Connectivity AMP Connectors | Standard Edge II | Bulk | Obsolete | -55°C ~ 85°C | Through Hole | Latches | 145459 | Black | Solder | download | 1 (Unlimited) | Vendor Undefined | 21454595 | EAR99 | 8536.69.4040 | 5 | 0.100" (2.54mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | 70 (69 Loaded) | Female | Non Specified - Dual Edge | - | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester, Glass Filled |
