Switches(729)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Illumination | Illumination Voltage (Nominal) | Switch Function | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Panel Cutout Dimensions | Mechanical Life | Electrical Life | Contact Rating @ Voltage | Actuator Material | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Outline | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EVQ-P7C01K | - |  |
6595 | 0.00000000 | Panasonic Electronic Components | EVQP7 | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount, Right Angle | Board Guide | EVQ-P7 | - | Gull Wing | download | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 220gf | 4.70mm x 2.90mm | - | - | Side Actuated | 0.20mm | |||||||||||||||
 |
EVP-BK2A6B000 | 0.8400 | |
5 | 0.00000000 | Panasonic Electronic Components | EVPBK | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-BK | IP67 - Dust Tight, Waterproof | J Lead | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 10,000 | SPST-NO | Round Button | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 168gf | 4.90mm x 4.00mm | 0.70mm | - | Top Actuated | 0.20mm | |||||||||||||||
 |
EVQ-PBE07K | - | |
4668 | 0.00000000 | Panasonic Electronic Components | EVQPB | Bulk | Obsolete | -20°C ~ 70°C | Through Hole | Grounding Pin | EVQ-PB | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 160gf | 6.00mm x 6.00mm | 7.00mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-P0S02Q | 0.3800 | |
2 | 0.00000000 | Panasonic Electronic Components | EVQP0 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-P0 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 100gf | 6.50mm x 6.00mm | 2.50mm | - | Top Actuated | 0.30mm | |||||||||||||||
 |

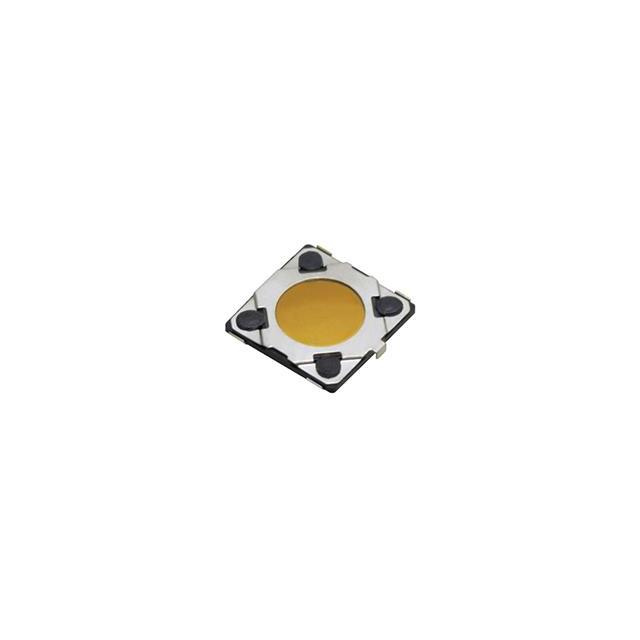

EVQ-7P6B40 | 0.1792 | |
4176 | 0.00000000 | Panasonic Electronic Components | EVQ-7P6 | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount | - | EVQ-7P | - | J Lead | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 10,000 | SPST-NO | Flush | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 102gf | 4.10mm x 4.10mm | 0.43mm | - | Top Actuated | 0.15mm | |||||||||||||||
 |
EVQ-11V07K | - | |
3495 | 0.00000000 | Panasonic Electronic Components | EVQ11 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-11 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.00mm x 6.00mm | 7.00mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-P9H02M | 0.8100 | |
8827 | 0.00000000 | Panasonic Electronic Components | EVQP9 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-P9 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 500gf | 4.70mm x 3.50mm | 2.10mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-22709K | - | |
3830 | 0.00000000 | Panasonic Electronic Components | EVQ2 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-22 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 50,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.00mm x 6.00mm | 9.50mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-11L04M | - | |
8836 | 0.00000000 | Panasonic Electronic Components | EVQ11 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-11 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 160gf | 6.00mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-PWAA15 | - | |
4121 | 0.00000000 | Panasonic Electronic Components | EVQPW | Bulk | Obsolete | -20°C ~ 70°C | Surface Mount | Board Guide | EVQ-PW | Dust Proof | Gull Wing | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO x 2 | Standard | Non-Illuminated | - | Off-Mom-Mom | - | 30,000 Cycles | 0.02A @ 15VDC | - | 100/260gf | 6.40mm x 6.20mm | 1.50mm | - | Top Actuated | 0.50mm, 0.70mm | ||||||||||||||||
 |
EVQ-PR7A10 | 0.7800 | |
3 | 0.00000000 | Panasonic Electronic Components | EVQPR | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount | Push Plate | EVQ-PR | - | J Lead | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO x 2 | Standard | Non-Illuminated | - | Off-Mom-Mom | - | 30,000 Cycles | 0.02A @ 15VDC | - | 70/260gf | 6.00mm x 6.00mm | 0.95mm | - | Top Actuated | 0.40mm, 0.60mm | ||||||||||||||||
 |
EVP-6AWD40 | 0.3300 | |
39 | 0.00000000 | Panasonic Electronic Components | EVPAW | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-6A | IP67 - Dust Tight, Waterproof | SMD (SMT) Tab | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 20,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 300,000 Cycles | 0.02A @ 15VDC | - | 306gf | 3.00mm x 2.00mm | 0.60mm | - | Top Actuated | 0.13mm | |||||||||||||||
|
EVQ-P9W02M | 0.6900 | |
8 | 0.00000000 | Panasonic Electronic Components | EVQP9 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P9 | - | J Lead | download | RoHS Compliant | Not Applicable | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 400gf | 4.70mm x 3.50mm | 2.10mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-11U04M | 0.2200 | |
3943 | 0.00000000 | Panasonic Electronic Components | EVQ11 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-11 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 50,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.00mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
ESB-92S21B | - | |
6876 | 0.00000000 | Panasonic Electronic Components | ESB92S | Bulk | Obsolete | - | Through Hole, Right Angle | Standard | - | ESB-92 | - | PC Pin | download | 1 (Unlimited) | EAR99 | 8536.50.9033 | 1,200 | SPST | 5A (AC) | 250 V | Plunger for Cap | - | Off-On | No Marking | Black | - | - | - | - | ||||||||||||||||||
 |
EVQ-P2402M | 0.6900 | |
21 | 0.00000000 | Panasonic Electronic Components | EVQP2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P2 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 500,000 Cycles | 0.02A @ 15VDC | - | 240gf | 4.70mm x 3.50mm | 2.10mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-QWP01W | - | |
9325 | 0.00000000 | Panasonic Electronic Components | EVQQW | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount | - | EVQ-QW | - | J Lead | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 130gf | 6.20mm x 6.20mm | 2.00mm | - | Top Actuated | 0.25mm | ||||||||||||||||
 |
EVQ-21404M | - | |
4368 | 0.00000000 | Panasonic Electronic Components | EVQ2 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-21 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 130gf | 6.00mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | |||||||||||||||
|
EVQ-21504M | - | |
9876 | 0.00000000 | Panasonic Electronic Components | EVQ2 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-21 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 160gf | 6.00mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-PAG04M | - | |
1309 | 0.00000000 | Panasonic Electronic Components | EVQPA | Bulk | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-PA | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 50,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.00mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-P6DB35 | 0.3600 | |
19 | 0.00000000 | Panasonic Electronic Components | EVQP6 | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount | - | EVQ-P6 | Dust Proof | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 10,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 160gf | 4.10mm x 4.10mm | 0.35mm | - | Top Actuated | 0.20mm | |||||||||||||||
 |
EVQ-PUA02K | 0.5400 | |
57 | 0.00000000 | Panasonic Electronic Components | EVQPU | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount, Right Angle | - | EVQ-PU | - | Gull Wing | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 220gf | 6.40mm x 3.50mm | - | - | Side Actuated | 0.30mm | |||||||||||||||
 |
ESE-11MH2T | 0.4400 | |
1 | 0.00000000 | Panasonic Electronic Components | ESE11 | Tape & Reel (TR) | Active | -10°C ~ 70°C | Surface Mount, Right Angle | - | ESE-11 | - | Gull Wing | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.7000 | 1,500 | SPST-NO | 10mA (DC) | 5 V | Overtravel Plunger | Off-Mom | 50,000 Cycles | 50,000 Cycles | 35gf | - | 0.132" (3.35mm) | - | - | - | |||||||||||||||||
 |
EVQ-P1Y05M | 0.4833 | |
8996 | 0.00000000 | Panasonic Electronic Components | EVQP1 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P1 | - | J Lead | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Round Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 255gf | 6.10mm x 6.00mm | 5.00mm | - | Top Actuated | 1.00mm | |||||||||||||||
 |
EVQ-PF003M | - | |
7507 | 0.00000000 | Panasonic Electronic Components | EVQPF | Bulk | Obsolete | -20°C ~ 70°C | Through Hole, Right Angle | - | EVQ-PF | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 100gf | 7.50mm x 7.10mm | - | 3.15mm | Side Actuated | 0.25mm | |||||||||||||||
 |
ESE-58R61A | 0.8200 | |
4 | 0.00000000 | Panasonic Electronic Components | ESE58 | Tape & Reel (TR) | Active | -10°C ~ 60°C | Surface Mount | - | ESE-58 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.7000 | 5,000 | SPST-NC | 10mA (DC) | 5 V | Angled Toggle (Detector) | On-Mom | 50,000 Cycles | 50,000 Cycles | 30gf | - | 0.061" (1.55mm) | - | - | - | |||||||||||||||||
 |
EVQ-PLDA15 | 0.5700 | |
18 | 0.00000000 | Panasonic Electronic Components | EVQPL | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount | Push Plate | EVQ-PL | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 500,000 Cycles | 0.02A @ 15VDC | - | 102gf | 4.90mm x 4.90mm | 1.50mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVQ-Q1D06M | 1.0700 | |
2 | 0.00000000 | Panasonic Electronic Components | EVQQ1 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-Q1 | Dust Proof | J Lead | download | RoHS Compliant | 3 (168 Hours) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 400gf | 9.90mm x 8.00mm | 6.50mm | - | Top Actuated | 1.00mm | |||||||||||||||
 |
EVQ-P3401K | 0.4800 | |
482 | 0.00000000 | Panasonic Electronic Components | EVQP3 | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount, Right Angle | - | EVQ-P3 | - | Gull Wing | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 220gf | 4.70mm x 2.90mm | - | - | Side Actuated | 0.20mm | ||||||||||||||||
 |
EVQ-3P202K | 1.0100 | |
5 | 0.00000000 | Panasonic Electronic Components | EVQ3P2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-3P | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 500gf | 4.70mm x 3.50mm | 2.50mm | - | Top Actuated | 0.70mm |
