Switches(729)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Circuit | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Illumination | Illumination Voltage (Nominal) | Switch Function | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Panel Cutout Dimensions | Mechanical Life | Electrical Life | Contact Rating @ Voltage | Actuator Material | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Outline | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ESE-18R11B | 0.5500 |  |
30 | 0.00000000 | Panasonic Electronic Components | ESE18 | Tape & Reel (TR) | Active | -10°C ~ 60°C | Surface Mount, Right Angle | Board Guide | ESE-18 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.7000 | 5,000 | SPST-NO | 10mA (DC) | 5 V | Angled Toggle (Detector) | Off-Mom | 50,000 Cycles | 50,000 Cycles | 30gf | - | 0.102" (2.6mm) | - | - | - | ||||||||||||||||
 |
EVQ-P7A01P | 0.2800 | |
222 | 0.00000000 | Panasonic Electronic Components | EVQP7 | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount, Right Angle | - | EVQ-P7 | - | Gull Wing | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 220gf | 4.70mm x 2.90mm | - | - | Side Actuated | 0.20mm | ||||||||||||||
 |
ESB-33153 | 1.3844 | |
6937 | 0.00000000 | Panasonic Electronic Components | ESB33 | Tape & Reel (TR) | Active | - | Through Hole | Standard | - | - | PC Pin | - | 100 | DPDT | 200mA (DC) | 14 V | Plunger for Cap | - | On-On | White | - | - | - | - | ||||||||||||||||||||||
 |
ESE-22MV21 | 0.4700 | |
311 | 0.00000000 | Panasonic Electronic Components | ESE22 | Bulk | Active | -10°C ~ 70°C | Surface Mount | Board Guide | ESE-22 | - | SMD (SMT) Tab | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9055 | 500 | SPST-NO | 10mA (DC) | 5 V | Angled Toggle (Detector) | Off-Mom | 50,000 Cycles | 50,000 Cycles | 30gf | - | 0.232" (5.9mm) | - | - | - | ||||||||||||||||
 |
EVP-BT6A4A000 | 0.2800 | |
3 | 0.00000000 | Panasonic Electronic Components | EVPBT | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-BT | - | SMD (SMT) Tab | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 265gf | 6.50mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
EVQ-P7K01P | 0.2900 | |
8141 | 0.00000000 | Panasonic Electronic Components | EVQP7 | Tape & Reel (TR) | Active | -20°C ~ 70°C | Surface Mount, Right Angle | - | EVQ-P7 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 160gf | 4.30mm x 2.90mm | - | - | Side Actuated | 0.20mm | ||||||||||||||
 |
EVQ-QXT02W | - | |
7419 | 0.00000000 | Panasonic Electronic Components | EVQQX | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount | - | EVQ-QX | - | J Lead | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.20mm x 6.20mm | 2.50mm | - | Top Actuated | 0.25mm | |||||||||||||||
 |
EVP-AKE31A | 0.5700 | |
45 | 0.00000000 | Panasonic Electronic Components | EVPAK | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount, Right Angle | - | EVP-AK | IP67 - Dust Tight, Waterproof | SMD (SMT) Tab | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.50.9031 | 5,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 500,000 Cycles | 0.02A @ 15VDC | - | 160gf | 3.90mm x 2.05mm | - | 2.90mm | Side Actuated | 0.12mm | |||||||||||||
|
EVP-BT5A4A000 | 0.2800 | |
303 | 0.00000000 | Panasonic Electronic Components | EVPBT | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-BT | - | SMD (SMT) Tab | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 163gf | 6.50mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
EVP-AJAC1A | 1.0300 | |
2 | 0.00000000 | Panasonic Electronic Components | EVPAJ | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount, Right Angle | Grounding Pin | EVP-AJ | - | Gull Wing | download | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.50.9031 | 5,000 | SPST-NO x 2 | Rectangular Button | Non-Illuminated | - | Off-Mom-Mom | - | 100,000 Cycles | 0.02A @ 15VDC | - | 160/260gf | 6.60mm x 3.50mm | - | - | Side Actuated | 0.15mm, 0.40mm | ||||||||||||||
 |
EVQ-11K09K | - | |
9271 | 0.00000000 | Panasonic Electronic Components | EVQ11 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-11 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 130gf | 6.00mm x 6.00mm | 9.50mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
ESB-33134 | 1.8600 | |
1 | 0.00000000 | Panasonic Electronic Components | ESB33 | Tray | Active | - | Through Hole | Standard | - | ESB-33 | - | PC Pin | download | Not Applicable | EAR99 | 8536.50.9033 | 100 | DPDT | 200mA (DC) | 14 V | Plunger for Cap | - | On-On | No Marking | White | - | - | 30,000 Cycles | 30,000 Cycles | |||||||||||||||||
 |

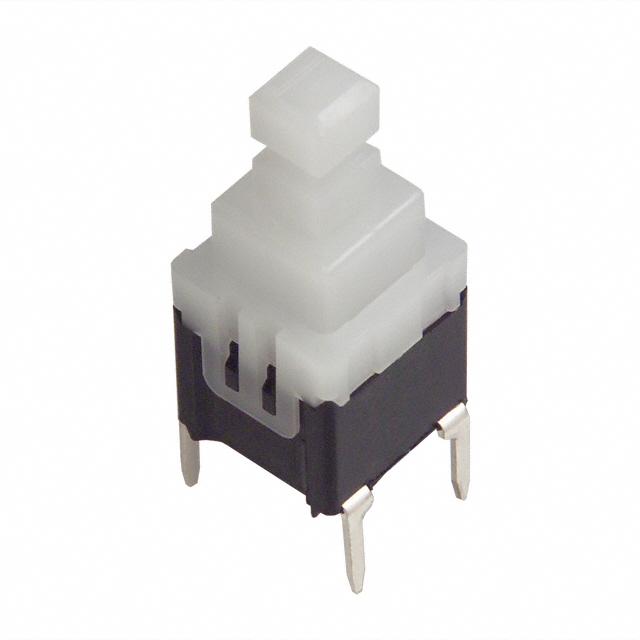

ESE-20C423 | 0.7400 | |
1279 | 0.00000000 | Panasonic Electronic Components | ESE20C | Bulk | Active | - | Through Hole | Standard | Tactile Feedback | ESE-20 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,200 | SPST-NO | 100mA (DC) | 14 V | Plunger for Cap | - | Off-Mom | No Marking | White | - | - | - | - | ||||||||||||||||
 |
EVQ-P1905M | 0.7600 | |
45 | 0.00000000 | Panasonic Electronic Components | EVQP1 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P1 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 160gf | 6.10mm x 6.00mm | 5.00mm | - | Top Actuated | 1.30mm | ||||||||||||||
 |
EVQ-P2H02B | 0.7800 | |
4 | 0.00000000 | Panasonic Electronic Components | EVQP2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P2 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 250gf | 4.70mm x 3.50mm | 2.50mm | - | Top Actuated | 0.70mm | ||||||||||||||
 |
EVP-ASDC1A | 0.5400 | |
2 | 0.00000000 | Panasonic Electronic Components | EVPAS | Tape & Reel (TR) | Active | -40°C ~ 90°C | Surface Mount | - | EVP-AS | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Round Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 250gf | 6.10mm x 6.00mm | 5.00mm | - | Top Actuated | 1.30mm | ||||||||||||||
 |
EVQ-Q2W01W | 0.2600 | |
12 | 0.00000000 | Panasonic Electronic Components | EVQQ2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-Q2 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 260gf | 6.50mm x 6.00mm | 2.00mm | - | Top Actuated | 0.25mm | ||||||||||||||
|
EVP-BT4A4A000 | 0.2800 | |
1 | 0.00000000 | Panasonic Electronic Components | EVPBT | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-BT | - | SMD (SMT) Tab | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 133gf | 6.50mm x 6.00mm | 4.30mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
EVP-BT1J4A000 | 0.3200 | |
1 | 0.00000000 | Panasonic Electronic Components | EVPBT | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-BT | - | J Lead | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 2,000,000 Cycles | 0.02A @ 15VDC | - | 50gf | 6.50mm x 6.00mm | 4.30mm | - | Top Actuated | 0.20mm | ||||||||||||||
 |
EVQ-P2R02W | 0.7800 | |
5 | 0.00000000 | Panasonic Electronic Components | EVQP2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-P2 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 160gf | 4.70mm x 3.50mm | 2.50mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
EVQ-P9H02W | 0.8200 | |
11 | 0.00000000 | Panasonic Electronic Components | EVQP9 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-P9 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Rectangular Button | Non-Illuminated | - | Off-Mom | - | 200,000 Cycles | 0.02A @ 15VDC | - | 500gf | 4.70mm x 3.50mm | 2.50mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
ESE-2101BT | - | |
4192 | 0.00000000 | Panasonic Electronic Components | ESE21 | Tape & Reel (TR) | Obsolete | - | Surface Mount | Board Guide | ESE-2101 | - | Gull Wing | download | 1 (Unlimited) | EAR99 | 8536.50.7000 | 2,000 | SPST-NO | 10mA (DC) | 5 V | Overtravel Plunger | Off-Mom | - | - | 31gf | - | 0.138" (3.5mm) | - | - | - | |||||||||||||||||
 |
EVP-AHCG6A | 0.5700 | |
5 | 0.00000000 | Panasonic Electronic Components | EVPAH | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount | Grounding Pin | EVP-AH | - | J Lead | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 8,000 | SPST-NO x 2 | Flush | Non-Illuminated | - | Off-Mom-Mom | - | 30,000 Cycles | 0.02A @ 15VDC | - | 100/260gf | 4.10mm x 4.00mm | 0.59mm | - | Top Actuated | 0.15mm, 0.30mm | |||||||||||||||
 |
EVQ-PE404Q | 0.4700 | |
12 | 0.00000000 | Panasonic Electronic Components | EVQPE | Bulk | Active | -30°C ~ 85°C | Through Hole | - | EVQ-PE | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 50,000 Cycles | 0.05A @ 12VDC | - | 100gf | 6.00mm x 3.50mm | 4.30mm | - | Top Actuated | 0.25mm | ||||||||||||||
 |
EVQ-P0405M | 0.3371 | |
3441 | 0.00000000 | Panasonic Electronic Components | EVQP0 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVQ-P0 | - | J Lead | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,000 | SPST-NO | Round Button | Non-Illuminated | - | Off-Mom | - | 100,000 Cycles | 0.05A @ 12VDC | - | 306gf | 6.10mm x 6.00mm | 5.00mm | - | Top Actuated | 1.30mm | ||||||||||||||
 |
EVQ-PJC05T | - | |
3263 | 0.00000000 | Panasonic Electronic Components | EVQPJ | Bulk | Obsolete | -30°C ~ 85°C | Through Hole | Tactile Feedback | EVQ-PJ | - | PC Pin | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 1,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 30,000 Cycles | 0.05A @ 12VDC | - | 240gf | 6.00mm x 3.50mm | 5.00mm | - | Top Actuated | 0.25mm | |||||||||||||||
|
EVQ-Q2H01W | 0.2800 | |
4 | 0.00000000 | Panasonic Electronic Components | EVQQ2 | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | Grounding Pin | EVQ-Q2 | - | J Lead | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 4,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 100gf | 6.50mm x 6.00mm | 2.00mm | - | Top Actuated | 0.20mm | ||||||||||||||
 |
EVQ-PRDA09 | - | |
8062 | 0.00000000 | Panasonic Electronic Components | EVQPR | Tape & Reel (TR) | Obsolete | -20°C ~ 70°C | Surface Mount | - | EVQ-PR | - | J Lead | download | 1 (Unlimited) | EAR99 | 8536.50.9031 | 5,000 | SPST-NO x 2 | Without | Non-Illuminated | - | Off-Mom-Mom | - | 30,000 Cycles | 0.02A @ 15VDC | - | 100/260gf | 6.00mm x 6.00mm | 0.90mm | - | Top Actuated | 0.40mm, 0.60mm | |||||||||||||||
|
EVQ-11D09K | - | |
3747 | 0.00000000 | Panasonic Electronic Components | EVQ11 | Cut Tape (CT) | Obsolete | -20°C ~ 70°C | Through Hole | - | EVQ-11 | - | PC Pin | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.50.9031 | 2,500 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 1,000,000 Cycles | 0.02A @ 15VDC | - | 100gf | 6.00mm x 6.00mm | 9.50mm | - | Top Actuated | 0.25mm | ||||||||||||||
|
EVP-AWED40 | 0.1504 | |
5776 | 0.00000000 | Panasonic Electronic Components | EVPAW | Tape & Reel (TR) | Active | -40°C ~ 85°C | Surface Mount | - | EVP-AW | IP67 - Dust Tight, Waterproof | SMD (SMT) Tab | - | EAR99 | 8536.50.9031 | 20,000 | SPST-NO | Standard | Non-Illuminated | - | Off-Mom | - | 300,000 Cycles | 0.02A @ 15VDC | - | 330gf | 3.00mm x 2.00mm | 0.60mm | - | Top Actuated | 0.15mm |
