Fixed Inductors(11631)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Tolerance Operating Temperature Ratings Size / Dimension Height - Seated (Max) Mounting Type Package / Case Type Features Base Product Number Frequency - Self Resonant Supplier Device Package DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Current Rating (Amps) Shielding Material - Core Inductance Current - Saturation (Isat) DC Resistance (DCR) Q @ Freq Inductance Frequency - Test
2200LL-3R9-H-RC Bourns Inc. 2200LL-3R9-H-RC 2.9191
RFQ
 ECAD 9663 0.00000000 Bourns Inc. 2200LL Bulk Active ±20% -55°C ~ 125°C - 1.100" Dia (27.94mm) 0.550" (13.97mm) Through Hole Radial, Horizontal (Open) Toroidal 2200LL - - download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8504.50.4000 108 18.5 A Unshielded Sendust 3.9 µH - 4mOhm Max - 1 kHz
SRR1280-680M Bourns Inc. SRR1280-680M 1.2700
RFQ
 ECAD 5 0.00000000 Bourns Inc. SRR1280 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.315" (8.00mm) Surface Mount Nonstandard Drum Core, Wirewound SRR1280 6.5MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 400 2.4 A Shielded Ferrite 68 µH 2.3A 120mOhm Max 20 @ 2.52MHz 100 kHz
1130-331K-RC Bourns Inc. 1130-331K-RC 9.9800
RFQ
 ECAD 2 0.00000000 Bourns Inc. 1130 Bulk Active ±10% -55°C ~ 105°C - 1.100" Dia (27.94mm) 0.840" (21.34mm) Through Hole Radial Drum Core, Wirewound 1130 - - download ROHS3 Compliant Not Applicable REACH Unaffected 1130331KRC EAR99 8504.50.8000 106 4.5 A Unshielded Ferrite 330 µH - 122mOhm Max - 1 kHz
PM518S-390-RC Bourns Inc. PM518S-390-RC 0.6606
RFQ
 ECAD 7527 0.00000000 Bourns Inc. PM518S Tape & Reel (TR) Active ±30% -40°C ~ 125°C - 0.228" L x 0.228" W (5.80mm x 5.80mm) 0.079" (2.00mm) Surface Mount Nonstandard Drum Core, Wirewound PM518S 17MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 550 mA Shielded Ferrite 39 µH 650mA 500mOhm Max 10.6 @ 2.52MHz 100 kHz
PM1608-1R0M Bourns Inc. PM1608-1R0M -
RFQ
 ECAD 2440 0.00000000 Bourns Inc. PM1608 Tape & Reel (TR) Obsolete ±20% -40°C ~ 85°C - 0.260" L x 0.175" W (6.60mm x 4.45mm) 0.115" (2.92mm) Surface Mount Nonstandard Drum Core, Wirewound PM1608 - - download RoHS non-compliant 1 (Unlimited) REACH Unaffected PM16081R0M EAR99 8504.50.8000 750 2.9 A Unshielded Ferrite 1 µH 2.9A 50mOhm Max - 100 kHz
SRP4020TA-R10Y Bourns Inc. SRP4020TA-R10Y 1.2600
RFQ
 ECAD 56 0.00000000 Bourns Inc. SRP4020TA Tape & Reel (TR) Active ±30% -40°C ~ 150°C AEC-Q200 0.175" L x 0.160" W (4.45mm x 4.06mm) 0.079" (2.00mm) Surface Mount 2-SMD Drum Core, Wirewound SRP4020TA 300MHz 2-SMD download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 3,000 12 A Shielded Carbonyl Powder 100 nH 35A 4mOhm Max 5 @ 100kHz 100 kHz
9250-124-RC Bourns Inc. 9250-124-RC -
RFQ
 ECAD 2155 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 9.7MHz - download ROHS3 Compliant Not Applicable REACH Unaffected M8233 EAR99 8504.50.8000 1,000 150 mA Shielded Ferrite 120 µH 95mA 3.6Ohm Max 55 @ 790kHz 790 kHz
6704 Bourns Inc. 6704 -
RFQ
 ECAD 5506 0.00000000 Bourns Inc. 6700 Bulk Obsolete ±15% -55°C ~ 105°C - 0.875" L x 0.425" W (22.22mm x 10.80mm) 1.000" (25.40mm) Through Hole Radial, Vertical, 4 Leads (Open) Toroidal 6700 - - download RoHS non-compliant Not Applicable REACH Unaffected M5735 EAR99 8504.50.4000 66 2 A Shielded Iron Powder 275 µH - 240mOhm Max - 1 kHz
CC322522A-2R2K Bourns Inc. CC322522A-2R2K 0.5200
RFQ
 ECAD 1694 0.00000000 Bourns Inc. CC322522A Tape & Reel (TR) Active ±10% -40°C ~ 150°C AEC-Q200 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.087" (2.20mm) Surface Mount 1210 (3225 Metric) - - 65MHz 3225 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 1.15 A Unshielded Ferrite 2.2 µH 1A 250mOhm Max 8 @ 7.96MHz 7.96 MHz

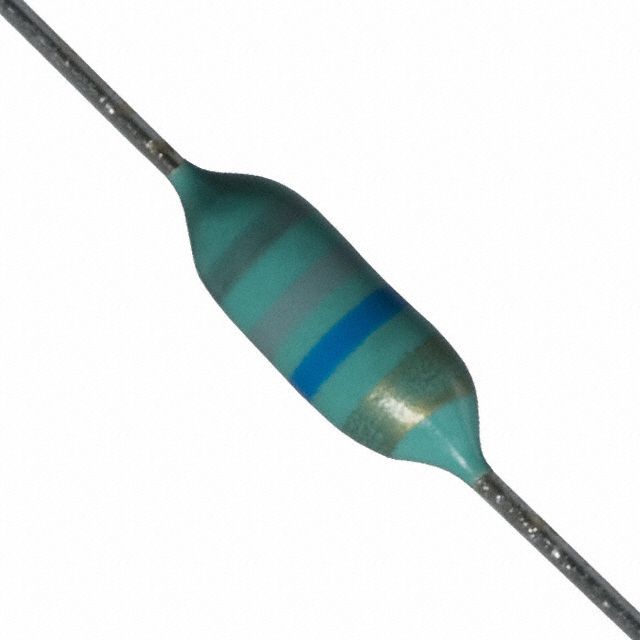

8230-16 Bourns Inc. 8230-16 -
RFQ
 ECAD 9120 0.00000000 Bourns Inc. 8230 Bulk Obsolete ±10% -55°C ~ 105°C - 0.120" Dia x 0.300" L (3.05mm x 7.62mm) - Through Hole Axial Wirewound 8230 275MHz - download RoHS non-compliant Not Applicable REACH Unaffected M8011 EAR99 8504.50.4000 1,000 450 mA Unshielded Phenolic 680 nH - 600mOhm Max 28 @ 25MHz 25 MHz
9250-393 Bourns Inc. 9250-393 -
RFQ
 ECAD 3274 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 29MHz - download RoHS non-compliant Not Applicable REACH Unaffected M9234 EAR99 8504.50.8000 1,000 205 mA Shielded Ferrite 39 µH 180mA 1.93Ohm Max 50 @ 2.5MHz 2.5 MHz
9250-101 Bourns Inc. 9250-101 -
RFQ
 ECAD 8685 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 250MHz - download RoHS non-compliant Not Applicable REACH Unaffected M9201 EAR99 8504.50.8000 1,000 1.79 A Shielded Ferrite 100 nH 1.79A 25mOhm Max 50 @ 25MHz 25 MHz
9130-68 Bourns Inc. 9130-68 -
RFQ
 ECAD 2777 0.00000000 Bourns Inc. 9130 Bulk Obsolete ±10% -55°C ~ 105°C - 0.095" Dia x 0.250" L (2.41mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 9130 13MHz - download RoHS non-compliant Not Applicable REACH Unaffected EAR99 8504.50.8000 1,000 84 mA Unshielded Ferrite 100 µH - 8Ohm Max 50 @ 2.5MHz 2.5 MHz
70F223AI Bourns Inc. 70F223AI -
RFQ
 ECAD 1371 0.00000000 Bourns Inc. 70F Bulk Obsolete ±5% -55°C ~ 105°C - 0.240" Dia x 0.250" L (6.10mm x 6.35mm) - Through Hole Axial Drum Core, Wirewound 70F 960kHz - download RoHS non-compliant Not Applicable REACH Unaffected M7222 EAR99 8504.50.8000 144 57 mA Unshielded Iron 2.2 mH - 45.6Ohm Max 40 @ 250kHz 250 kHz
PM0805-R33K-RC Bourns Inc. PM0805-R33K-RC 0.1505
RFQ
 ECAD 8993 0.00000000 Bourns Inc. PM0805 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.083" L x 0.059" W (2.10mm x 1.50mm) 0.059" (1.50mm) Surface Mount 0805 (2012 Metric) Drum Core, Wirewound PM0805 800MHz 0805 (2012 Metric) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 200 mA Unshielded Alumina 330 nH - 1.65Ohm 45 @ 250MHz 100 MHz
SRN8040-330M Bourns Inc. SRN8040-330M 0.7500
RFQ
 ECAD 24 0.00000000 Bourns Inc. SRN8040 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.315" L x 0.315" W (8.00mm x 8.00mm) 0.157" (4.00mm) Surface Mount Nonstandard Drum Core, Wirewound SRN8040 10MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.7 A Semi-Shielded Ferrite 33 µH 1.9A 145mOhm Max 20 @ 2.52MHz 100 kHz
SRN8040-470M Bourns Inc. SRN8040-470M 0.7500
RFQ
 ECAD 9 0.00000000 Bourns Inc. SRN8040 Tape & Reel (TR) Active ±20% -40°C ~ 125°C - 0.315" L x 0.315" W (8.00mm x 8.00mm) 0.157" (4.00mm) Surface Mount Nonstandard Drum Core, Wirewound SRN8040 9MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.4 A Semi-Shielded Ferrite 47 µH 1.5A 190mOhm Max 15 @ 2.52MHz 100 kHz
PM1812-680J-RC Bourns Inc. PM1812-680J-RC 0.1674
RFQ
 ECAD 9884 0.00000000 Bourns Inc. PM1812 Tape & Reel (TR) Active ±5% -40°C ~ 100°C - 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm) Surface Mount 1812 (4532 Metric) - PM1812 9MHz 1812 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 500 130 mA Unshielded Ferrite 68 µH - 6Ohm Max 50 @ 2.52MHz 2.52 MHz
CM453232-821KL Bourns Inc. CM453232-821KL 0.3900
RFQ
 ECAD 3 0.00000000 Bourns Inc. CM45 Tape & Reel (TR) Active ±10% -40°C ~ 125°C - 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm) Surface Mount 1812 (4532 Metric) Drum Core, Wirewound CM453232 2.5MHz 1812 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 500 30 mA Unshielded Ferrite 820 µH - 35Ohm Max 30 @ 796kHz 796 kHz
1130-5R6M Bourns Inc. 1130-5R6M -
RFQ
 ECAD 8027 0.00000000 Bourns Inc. 1130 Bulk Obsolete ±20% -55°C ~ 105°C - 1.100" Dia (27.94mm) 0.840" (21.34mm) Through Hole Radial, Vertical Cylinder Drum Core, Wirewound 1130 - - download RoHS non-compliant Not Applicable REACH Unaffected M6292 EAR99 8504.50.8000 42 21 A Unshielded Ferrite 5.6 µH - 3mOhm Max - 1 kHz
SRR3818A-6R8Y Bourns Inc. SRR3818A-6R8Y 0.9800
RFQ
 ECAD 1595 0.00000000 Bourns Inc. SRR3818A Tape & Reel (TR) Active ±30% -40°C ~ 150°C AEC-Q200 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.079" (2.00mm) Surface Mount Nonstandard Drum Core, Wirewound - SRR3818A 50MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.6 A Shielded Ferrite 6.8 µH 800mA 160mOhm Max - 100 kHz
SRR3818A-150M Bourns Inc. SRR3818A-150M 0.9900
RFQ
 ECAD 1 0.00000000 Bourns Inc. SRR3818A Tape & Reel (TR) Active ±20% -40°C ~ 150°C AEC-Q200 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.079" (2.00mm) Surface Mount Nonstandard Drum Core, Wirewound - SRR3818A 30MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 1,000 1.05 A Shielded Ferrite 15 µH 550mA 340mOhm Max - 100 kHz
SRP5015TA-R68M Bourns Inc. SRP5015TA-R68M 1.3200
RFQ
 ECAD 2 0.00000000 Bourns Inc. SRP5015TA Tape & Reel (TR) Active ±20% -55°C ~ 150°C AEC-Q200 0.224" L x 0.205" W (5.70mm x 5.20mm) 0.059" (1.50mm) Surface Mount Nonstandard Drum Core, Wirewound SRP5015TA 85MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.4000 3,500 7 A Shielded Carbonyl Powder 680 nH 13A 16.2mOhm Max 5 @ 100kHz 100 kHz
CM252016-R39KL Bourns Inc. CM252016-R39KL -
RFQ
 ECAD 6219 0.00000000 Bourns Inc. CM252016 Tape & Reel (TR) Obsolete ±10% -20°C ~ 100°C - 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.063" (1.60mm) Surface Mount Nonstandard Wirewound CM252016 175MHz - download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8504.50.8000 2,000 160 mA Unshielded Polymer 390 nH - 950mOhm Max 25 @ 25.2MHz 25.2 MHz
9250-393-RC Bourns Inc. 9250-393-RC -
RFQ
 ECAD 3909 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 29MHz - download ROHS3 Compliant Not Applicable REACH Unaffected M8227 EAR99 8504.50.8000 1,000 205 mA Shielded Ferrite 39 µH 180mA 1.93Ohm Max 50 @ 2.5MHz 2.5 MHz
3500-181K Bourns Inc. 3500-181K -
RFQ
 ECAD 4950 0.00000000 Bourns Inc. 3500 Bulk Obsolete ±10% -55°C ~ 105°C - 0.385" L x 0.150" W (9.78mm x 3.81mm) 0.300" (7.62mm) Through Hole Radial - 3500 - - download RoHS non-compliant Not Applicable REACH Unaffected 3500181K EAR99 8504.50.8000 1,000 250 mA Unshielded Ferrite 180 µH 560mA 2.07Ohm Max 75 @ 796kHz 796 kHz
9250-123 Bourns Inc. 9250-123 -
RFQ
 ECAD 3024 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 44MHz - download RoHS non-compliant Not Applicable REACH Unaffected M9228 EAR99 8504.50.8000 1,000 200 mA Shielded Ferrite 12 µH 200mA 2Ohm Max 55 @ 2.5MHz 2.5 MHz
5250 Bourns Inc. 5250 -
RFQ
 ECAD 4279 0.00000000 Bourns Inc. 5200 Bulk Obsolete ±20% -55°C ~ 105°C - 0.380" Dia x 1.250" L (9.65mm x 31.75mm) - Through Hole Axial Drum Core, Wirewound 5200 - - download RoHS non-compliant Not Applicable REACH Unaffected M5250 EAR99 8504.50.8000 50 2 A Unshielded Ferrite 100 µH - 216mOhm Max - 1 kHz
8230-14 Bourns Inc. 8230-14 -
RFQ
 ECAD 3723 0.00000000 Bourns Inc. 8230 Bulk Obsolete ±10% -55°C ~ 105°C - 0.120" Dia x 0.300" L (3.05mm x 7.62mm) - Through Hole Axial Wirewound 8230 300MHz - download RoHS non-compliant Not Applicable REACH Unaffected M8010 EAR99 8504.50.4000 1,000 495 mA Unshielded Phenolic 560 nH - 500mOhm Max 30 @ 25MHz 25 MHz
9250-561 Bourns Inc. 9250-561 -
RFQ
 ECAD 9543 0.00000000 Bourns Inc. 9250 Bulk Obsolete ±10% -55°C ~ 105°C - 0.162" Dia x 0.410" L (4.11mm x 10.41mm) - Through Hole Axial Drum Core, Wirewound 9250 210MHz - download RoHS non-compliant Not Applicable REACH Unaffected M9210 EAR99 8504.50.8000 1,000 490 mA Shielded Ferrite 560 nH 490mA 330mOhm Max 43 @ 25MHz 25 MHz
