Adesto Technologies RM25C64DS-LTAI-B Memory:A Comprehensive Guide

Adesto Technologies RM25C64DS-LTAI-B +BOM

The Adesto Technologies RM25C64DS-LTAI-B is a 64Kbit serial EEPROM leveraging CBRAM technology, offering SPI interface compatibility (modes 0/3) with 10MHz fast read capability. Operating on 1.65V–3.6V, it features ultra-low power: 0.20mA active read, 0.7mA write, and 0.5μA ultra-deep power-down. It enables direct byte writes (60μs typical) and 32-byte page programming (1.5ms), with 100,000 write cycles and >40-year data retention at 125°C. Including 64-byte OTP registers (32-byte factory-unique ID + 32-byte user-programmable), it comes in a compact 3x4.4mm TSSOP package, supporting industrial temperatures (-40°C to 85°C), hardware write protection, and ESD resistance. CBRAM technology delivers 10x lower byte-write energy and 4–6x faster page writes than traditional EEPROMs.

Adesto Technologies RM25C64DS-LTAI-B's Features

1. Memory and Interface Features

Memory Capacity: 64Kbit non-volatile serial EEPROM, supporting byte-level (1-byte) and page programming (1–32 bytes, 32-byte page size).

Interface Standards: Compatible with SPI interface (modes 0 and 3), supporting fast read (up to 10MHz clock frequency) and standard read (up to 1.6MHz).

2. Power Supply and Power Consumption

Power Voltage: Single supply voltage of 1.65V–3.6V, suitable for low-voltage applications.

Low-Power Modes

Active Mode: Typical read current of 0.20mA, typical write current of 0.7mA.

Ultra-Deep Power-Down Mode: Current as low as 0.5μA (typical), with automatic entry after write operations complete.

Standby Mode: Configurable low-power standby (LPSE) and automatic power-down (APDE) via status registers for further energy reduction.

3. Programming and Durability

Flexible Programming: Supports direct write (no pre-erase required), page erase (32 bytes), and chip erase with internal self-timed operations.

Byte write time: 60μs (typical); page write time: 1.5ms (32 bytes, typical).

OTP Security Registers: 64-byte one-time programmable (OTP) registers, including 32 bytes of factory-preprogrammed unique identifier and 32 bytes of user-programmable space for secure storage or device serialization.

Durability: 100,000 write cycles (applicable to both byte and page writes), data retention exceeding 40 years (at 125°C), with no performance degradation across temperature ranges.

4. Hardware and Package

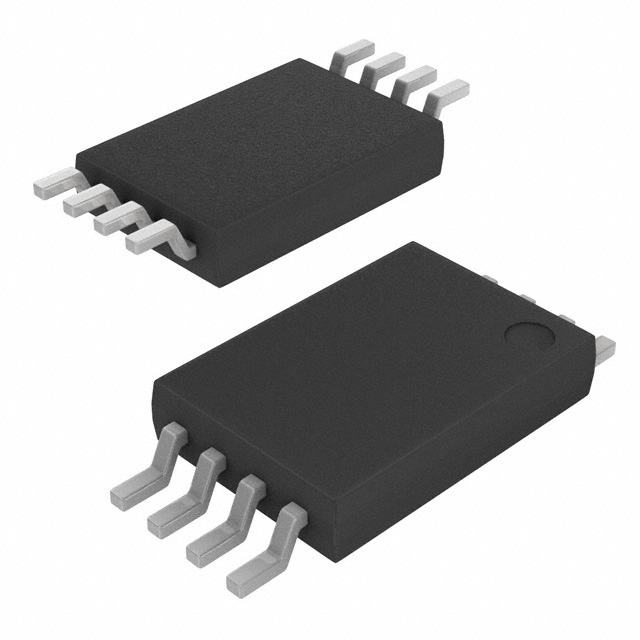

Package Type: 8-pin TSSOP (TA package, 3x4.4mm thin-shrink small outline package), RoHS-compliant and halogen-free.

Operating Temperature: Industrial temperature range of -40°C to +85°C; storage temperature of -65°C to +150°C.

Hardware Features: Supports hardware reset, write protection (via WP pin and status registers), compatibility with multiple SPI masters, and ESD protection (HBM >2kV) on I/O pins.

5. Additional Features

CBRAM Technology Advantages: Compared to traditional floating-gate EEPROMs, it supports independent byte-level writes (no full-page read-modify-write required), consumes 90% less energy for byte writes, and offers 4–6x faster page write speeds.

Status Registers: 2-byte status registers for real-time monitoring of write progress (WIP), write enable (WEL), block protection (BP0/BP1), and power mode configuration (LPSE/APDE).

Adesto Technologies RM25C64DS-LTAI-B's Applications

1. Industrial Control and Industrial Internet of Things (IIoT)

Device Configuration Storage: Stores critical data such as firmware versions, calibration parameters, and sensor configurations for industrial equipment, supporting high-temperature environments (-40°C to 85°C) and long-term stable operation.

Edge Sensor Nodes: Caches configuration information and real-time data for IoT sensors, leveraging its ultra-low power mode (ultra-deep power-down current as low as 0.5μA) to extend battery life.

Industrial Communication Modules: Stores communication addresses and protocol parameters in bus devices like RS-485 and CAN, with hardware write protection (WP pin) to prevent malicious tampering.

2. Consumer Electronics and Wearable Devices

Smart Home Appliances: Stores user settings and fault logs for devices like air conditioners and washing machines, with a compact TSSOP package (3x4.4mm) to save PCB space.

Wearable Devices: Saves configuration data (e.g., Bluetooth pairing information, user preferences) for smart bracelets and headphones, with low power consumption (active read current: 0.2mA) suitable for battery-powered scenarios.

Remote Controls and Peripherals: Stores custom button mappings and device pairing information, supporting fast reading (10MHz clock) for improved response speed.

3. Automotive Electronics

Body Control Modules (BCM): Stores personalized settings for vehicle lights, windows, and seats, withstanding temperature changes (-40°C to 85°C) and vibrations in automotive environments.

In-Vehicle Sensors: Stores calibration data for tire pressure monitoring (TPMS) and temperature sensors, with hardware reset functionality ensuring data consistency at system startup.

Entertainment Systems: Saves equalizer settings and user preferences for audio devices, supporting efficient communication with in-vehicle MCUs via the SPI interface.

4. Security and Identity Authentication

Secure Elements: Utilizes 32-byte user-programmable OTP registers to store encryption keys and digital certificates, with one-time programming characteristics to prevent tampering.

Device Serialization: Factory-preprogrammed 32-byte unique identifiers for device identity, suitable for anti-counterfeiting, asset management, and other scenarios.

Industrial IoT Security: Stores communication keys in edge devices, supporting secure boot and encrypted data transmission.

5. Medical Electronics

Portable Medical Devices: Stores user data (e.g., historical measurements, unit settings) for blood glucose meters and blood pressure monitors, with low power modes extending battery life.

Medical Instrument Configuration: Stores device calibration parameters and software version numbers, with a wide temperature range suitable for diverse environments (e.g., refrigerated equipment, outdoor medical kits)

6. Embedded Systems and MCU Peripherals

MCU Extended Storage: Serves as auxiliary memory for MCUs, storing firmware upgrade parameters and log data, with an SPI interface simplifying hardware design.

Embedded Device Configuration: Stores network configuration information for routers and gateways, supporting fast reading (10MHz clock) to accelerate system boot-up.

Summary: Target Application Scenarios

The RM25C64DS-LTAI-B, with its low power consumption, high durability, secure storage, and flexible interfaces, is core-suited for:

• Power-Sensitive Devices: IoT sensors, wearables, and portable electronics.

• Long-Term Reliable Storage Scenarios: Industrial control, automotive electronics, and medical devices.

• Security and Authentication Needs: Device serialization, key storage, and anti-counterfeiting systems.

• Space-Constrained Designs: The compact TSSOP package fits high-density PCB layouts.

Adesto Technologies RM25C64DS-LTAI-B's Attributes

Adesto Technologies RM25C64DS-LTAI-B's Datasheet

Adesto Technologies RM25C64DS-LTAI-B's Alternative parts:

1. RM25C32DS-LTAI-B: A 32kb version of the memory device for applications requiring lower storage capacity.
2. RM25C128DS-LTAI-B: A 128kb version of the memory device for applications needing higher storage capacity.
3. RM25C256DS-LTAI-B: A 256kb version of the memory device for applications demanding even higher storage capacity.

Adesto Technologies RM25C64DS-LTAI-B's Category- Memory

Memory is the fundamental backbone of modern electronics, enabling devices to store and retrieve data essential for operation. It comes in various forms, each tailored to specific needs: volatile memory (like RAM) provides fast, temporary storage for active processes, while non-volatile memory (such as ROM, flash, and EEPROM) retains data permanently, even without power. Non-volatile memory is particularly critical for embedded systems, industrial applications, and consumer electronics, where data persistence is paramount—think firmware storage in microcontrollers, configuration settings in routers, or user data in wearable devices. Key advancements in memory technology focus on density, speed, reliability, and power efficiency. For example, EEPROM (Electrically Erasable Programmable Read-Only Memory) offers the convenience of in-system reprogramming with long data retention, making it ideal for applications requiring frequent updates without compromising data integrity. Serial EEPROMs, in particular, simplify integration with microprocessors via standard interfaces like I²C or SPI, reducing component count and board complexity.
A standout solution in the non-volatile memory space is the Adesto Technologies RM25C64DS-LTAI-B, a 64-kbit Serial Quad I/O (SQI) EEPROM designed for robust, low-power data storage. Built on Adesto’s reliable ferroelectric technology, this memory device offers ultra-fast write speeds (no delay cycles), high endurance (up to 10¹² write cycles), and excellent data retention (over 10 years). Its compact 8-pin SOIC package and support for temperatures ranging from -40°C to +85°C make it suitable for harsh industrial environments, automotive systems, and portable electronics. The RM25C64DS-LTAI-B also features advanced security mechanisms, such as write protection and block locking, ensuring data integrity in mission-critical applications. By combining speed, durability, and ease of integration, Adesto’s EEPROMs like the RM25C64DS-LTAI-B exemplify how memory technology continues to evolve to meet the demands of modern embedded systems, where reliability and performance are non-negotiable.

RM25C64DS-LTAI-B's Manuafcturer-Adesto Technologies

Adesto Technologies holds a significant position and has achieved numerous remarkable accomplishments in the Memory ICs field. Since its establishment in 2006, the company has been dedicated to developing innovative non-volatile memory solutions, growing into a key player in the industry. In terms of technological innovation, Adesto is a leading developer of Conductive Bridge Random Access Memory (CBRAM) technology. As an ultra-low-power, CMOS-compatible non-volatile memory, CBRAM is tailored for a wide range of discrete and embedded markets. This technological advantage sets Adesto apart from many competitors. For example, its chips can reduce power consumption by up to 100 times compared to other products on the market and operate at 1.2 volts, one-third lower than the voltage used by similar products. Additionally, CBRAM technology boasts unique advantages, such as the ability to withstand threshold levels of gamma and electron beam sterilization without any measurable loss or damage to data, making it highly valuable in fields with extremely high data reliability requirements, such as medical devices. Adesto offers a diverse product portfolio, including DataFlash, Fusion Flash, Mavriq, and other series, catering to different application scenarios. Among them, DataFlash is an extremely successful data logging flash product in the industry, winning numerous design applications in smart meters, industrial control, and other fields. The Fusion series has gained attention for its novel design, wide operating voltage range, and ultra-low-power operation. The FusionHD, launched in 2019, provides significant system-level advantages for next-generation IoT edge applications, achieving up to 70% lower power consumption and up to 5 times faster system performance compared to competing non-volatile memory devices. It also won the ASPENCORE World Electronics Achievement Award. In terms of market performance, Adesto has shipped over 1 billion non-volatile memory products globally, with more than 5,000 customers across industrial, consumer, medical, and communications markets, demonstrating the broad application and market recognition of its products. In terms of serial flash revenue, Adesto's product line ranks among the top five globally. These achievements not only highlight Adesto's technical strength in the Memory ICs field but also solidify its important position in the industry, making it a vital force driving memory technology development and meeting diverse market needs.
