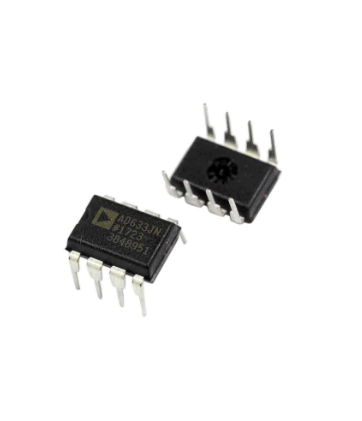

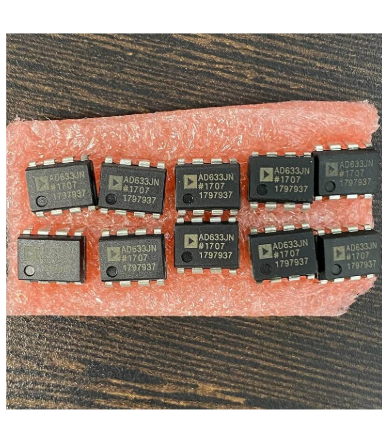

The Analog Devices AD633JNZ is a high - performance analog multiplier. Housed in an 8 - lead PDIP package, it features 4 - quadrant multiplication. Requiring no external components, it simplifies circuit design. Laser - trimmed for accuracy, it has low total error. With differential high impedance inputs, it suits various analog computational and signal processing applications.
Analog Devices AD633JNZ's Features
The AD633JNZ is a low-cost, high-performance analog multiplier. It offers 4-quadrant multiplication, enabling it to handle a wide range of input signals in various applications. This device comes in an 8-lead PDIP package, which is both cost-effective and easy to integrate into circuits. One of its key features is that it requires no external components, simplifying the design process. It is laser-trimmed for accuracy and stability, ensuring reliable performance. The total error is within 2% of full scale, and it has differential high impedance X and Y inputs, minimizing signal source loading. The high impedance unity-gain summing input (Z) provides flexibility for various analog computational functions. Additionally, it has a laser-trimmed 10 V scaling reference, and its power supply voltages can range from ±8 V to ±18 V, with multiplier accuracy being essentially supply insensitive.
Analog Devices AD633JNZ's Applications
The Analog Devices AD633JNZ is a versatile integrated circuit with a wide range of applications. In communication systems, it plays a crucial role in modulation and demodulation processes. For instance, in amplitude modulation (AM), it multiplies the carrier signal and the modulation signal to generate the modulated output, enabling efficient transmission of information. In control systems, the AD633JNZ is used in automatic gain control (AGC) circuits. It adjusts the gain of an amplifier based on the input signal level, ensuring a stable output amplitude. This is vital in audio systems, where it prevents distortion by maintaining a consistent volume. In signal processing, it can be employed for frequency doubling. By squaring a sinusoidal input signal, it effectively doubles the frequency, which is useful in applications such as radio frequency (RF) signal generation. Additionally, it serves as a building block for voltage - controlled filters. The break frequency of these filters can be adjusted by varying the input voltage, allowing for flexible signal filtering in different frequency bands. Overall, its diverse functionality makes the AD633JNZ an essential component in numerous electronic applications.
Analog Devices AD633JNZ's Attributes
| Product Category | Special Purpose Amplifiers | RoHS | Details |
| Series | AD633 | Amplifier Type | Analog Multiplier |
| Supply Voltage - Max | 18 V | Supply Voltage - Min | 8 V |
| Operating Supply Current | 4 mA | Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C | Mounting Style | Through Hole |
| Package / Case | PDIP-8 | Brand | Analog Devices |
| Development Kit | AD633-EVALZ | Height | 3.43 mm |
| Length | 9.27 mm | Operating Supply Voltage | 8 V to 18 V |
| Pd - Power Dissipation | 500 mW (1/2 W) | Product Type | Special Purpose Amplifiers |
| Factory Pack Quantity | 50 | Subcategory | Amplifier ICs |
| Width | 7.24 mm | Unit Weight | 0.032805 oz |
Analog Devices AD633JNZ's Datasheet
Analog Devices AD633JNZ's Category-Analog Multipliers, Dividers
On the other hand, analog dividers perform the division operation on two analog signals. Their output represents the ratio of the dividend to the divisor. Dividers are typically more complex to implement compared to multipliers. A common approach is to use a feedback mechanism with a multiplier. First, the reciprocal of the divisor is calculated, and then it is multiplied by the dividend. They are useful in applications such as frequency synthesis, where the ratio of frequencies needs to be precisely controlled, and in ratio - based measurements.
The Analog Devices AD633JNZ is a prime example of a high - performance analog multiplier. It offers 4 - quadrant multiplication, allowing it to handle input signals of various polarities. Housed in an 8 - lead PDIP package, it is convenient for circuit integration. With laser - trimmed accuracy and no need for external components, it simplifies the design process. Its differential high impedance inputs make it suitable for a wide range of analog computational tasks, further highlighting the importance and versatility of analog multipliers in modern electronics. Analog multipliers and dividers, with their unique capabilities, continue to be essential building blocks in numerous analog - based systems, and devices like the AD633JNZ play a crucial role in enabling advanced signal processing and circuit design.
AD633JNZ VS. AD633JN
| Parts |
| |
Pbfree Code | No | No |
Rohs CodeParts | Yes | No |
Part Life Cycle Code | Active | Obsolete |
Ihs Manufacturer | ANALOG DEVICES INC | ANALOG DEVICES INC |
Part Package Code | DIP | DIP |
Package Description | ROHS COMPLIANT, PLASTIC, MO-095AA, DIP-8 | PLASTIC, MO-095AA, DIP-8 |
Pin Count | 8 | 8 |
Manufacturer Package Code | N-8 | N-8 |
Reach Compliance Code | compliant | not_compliant |
ECCN Code | EAR99 | EAR99 |
HTS Code | 8542.39.00.01 | 8542.39.00.01 |
Samacsys Manufacturer | Analog Devices | Analog Devices |
Analog IC - Other Type | ANALOG MULTIPLIER OR DIVIDER | ANALOG MULTIPLIER OR DIVIDER |
Bandwidth-Nom | 1 MHz | 1 MHz |
JESD-30 Code | R-PDIP-T8 | R-PDIP-T8 |
JESD-609 Code | e3 | e0 |
Length | 9.27 mm | 9.27 mm |
Neg Supply Voltage-Max (Vsup) | -18 V | -18 V |
Neg Supply Voltage-Min (Vsup) | -8 V | -8 V |
Neg Supply Voltage-Nom (Vsup) | -15 V | -15 V |
Negative Input Voltage-Max | -10 V | -10 V |
Number of Functions | 1 | 1 |
Number of Terminals | 8 | 8 |
Operating Temperature-Max | 70 °C | 70 °C |
Operating Temperature-Min | ||
Package Body Material | PLASTIC/EPOXY | PLASTIC/EPOXY |
Package Code | DIP | DIP |
Package Equivalence Code | DIP8,.3 | DIP8,.3 |
Package Shape | RECTANGULAR | RECTANGULAR |
Package Style | IN-LINE | IN-LINE |
Positive Input Voltage-Max | 10 V | 10 V |
Qualification Status | Not Qualified | Not Qualified |
Seated Height-Max | 4.44 mm | 4.44 mm |
Supply Voltage-Max (Vsup) | 18 V | 18 V |
Supply Voltage-Min (Vsup) | 8 V | 8 V |
Supply Voltage-Nom (Vsup) | 15 V | 15 V |
Surface Mount | NO | NO |
Temperature Grade | COMMERCIAL | COMMERCIAL |
Terminal Finish | Matte Tin (Sn) | TIN LEAD |
Terminal Form | THROUGH-HOLE | THROUGH-HOLE |
Terminal Pitch | 2.54 mm | 2.54 mm |
Terminal Position | DUAL | DUAL |
Width | 7.62 mm | 7.62 mm |
Base Number Matches | 1 | 1 |
