The ACST610-8T is a high-performance power switch from the renowned ACST6 series, designed to meet the diverse needs of modern residential and industrial systems. Equipped with advanced A.S.D. technology, this device is capable of driving loads up to 6 A, making it an efficient solution for various applications. The inclusion of a Triac structure and high voltage clamping device enables the ACST610-8T to absorb inductive turn-off energy and withstand line transients, ensuring reliable operation in accordance with IEC 61000-4-5 standards. With its low gate current requirement and high noise immunity, this power switch offers exceptional performance and reliability, setting a new standard in power switch technology.
STMicroelectronics ACST610-8T's Features
The STMicroelectronics ACST610 - 8T comes with several notable features. It is a Triac integrated with overvoltage protection. The built - in high - voltage clamping device can absorb inductive turn - off energy and withstand line transients in accordance with IEC 61000 - 4 - 5 standards, ensuring stable operation in complex voltage environments without the need for external overvoltage protection.
The gate trigger current of ACST610 - 8T is low, with . This allows it to be easily activated by a weak current, facilitating direct connection to a microcontroller through a simple gate resistor, which simplifies the circuit design and reduces costs.

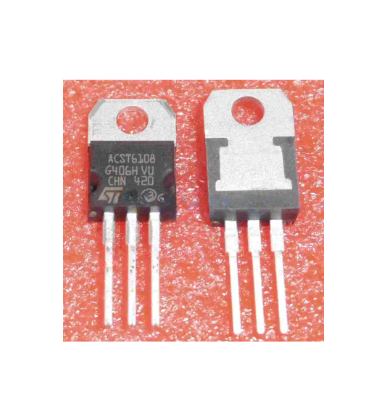

It is packaged in TO - 220AB. Although the insulation performance of this package is not elaborated in detail, the TO - 220FPAB insulated package in the same series complies with UL standards (file ref: E81734) with an insulation voltage of 2000 . Presumably, TO - 220AB can also meet certain electrical insulation requirements. Additionally, based on planar technology, it offers high off - state reliability and strong immunity against fast transients, conforming to IEC 61000 - 4 - 4 standards. It can also reduce the number of power passive components, enhancing the overall system performance.
STMicroelectronics ACST610-8T's Applications
The ACST610-8T from STMicroelectronics is a product in the ACST6 series. With its excellent performance, it is widely used in multiple fields.
In the field of household appliances, it can be used for the control of AC motors, such as the universal motors of the washing machine drum. It has good thermal performance and turn-off commutation performance. Without the need for additional turn-off snubbers, it can drive inductive loads of up to 6A, and it can also operate stably during motor startup and high-torque operation.
In industrial control systems, the ACST610-8T can be used to control the static switching of the AC power supply. For example, in the control of the compressors of refrigerators or air conditioners, it can effectively cope with the large current impact during the startup of the compressor to ensure the normal operation of the equipment.
In addition, due to its low gate trigger current characteristics, it can be directly driven by a microcontroller (MCU) through a simple gate resistor, which simplifies the design of the control circuit and improves the integration and reliability of the system.
As an important semiconductor component, the TRIAC (Bidirectional Triode Thyristor) plays a crucial role in numerous fields, thanks to its unique structure and performance. It can conduct current bidirectionally when triggered. It can be activated by applying a voltage to the gate terminal, and both positive and negative voltages can trigger it. Even if the gate power supply is removed after triggering, it can still continue to conduct.
In practical applications, TRIACs are mainly used for switching and power control in AC systems. In lighting dimmers, they precisely adjust the brightness by making full use of each half - cycle of the AC wave. In the fields of temperature control and liquid - level control, they can stably regulate equipment. In small - motor control and fan speed control, they also enable flexible speed adjustment.
ACST610 - 8T by STMicroelectronics is an outstanding TRIAC product. It belongs to the ACST6 series and is manufactured with advanced technology, specifically designed to control medium - power loads. The ACST610 - 8T has an over - voltage protection function, which can effectively resist line transients and ensure the stable operation of equipment. Its low gate - trigger current () makes it convenient to be directly connected to a microcontroller, simplifying the circuit design. Moreover, it can drive inductive loads of up to 6A and performs well in scenarios such as the control of compressors in refrigerators and air conditioners, and the universal motor control of washing machine drums. It provides reliable power - control solutions for various home appliances and industrial control systems, and is an ideal choice for those seeking efficient and stable power control.
Product information is from SIC Electronics Limited. If you are interested in the product or require product parameters, you can contact us online at any time or send us an email: sales@sic-components.com.
