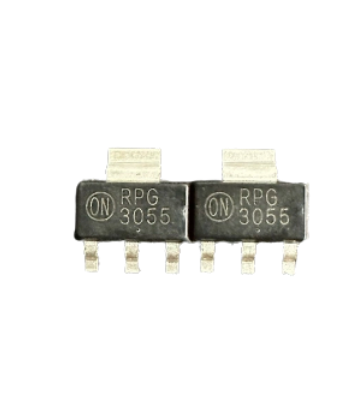

ONSemi's NTF3055-100T1G is an N-channel power MOSFET. Packaged in SOT-223, it's designed for low-voltage, high-speed switching applications. With a continuous drain current of 3.0 A at 25°C (1.4 A at 100°C) and a single - pulse current of 9.0 A, along with a 60V drain - source voltage and a low static drain - source on - resistance of 110mΩ, it reduces conduction losses effectively. It meets environmental standards like being lead - free and RoHS - compliant. Devices prefixed with NVF are suitable for automotive and special - requirement applications, having passed AEC - Q101 and with PPAP capabilities, ensuring high reliability.
ONSemi NTF3055-100T1G’s Features
ONSemi NTF3055-100T1G’s Applications
ONSemi's NTF3055-100T1G has a wide range of applications in numerous fields. In the power management field, its low on-resistance characteristic can significantly reduce energy losses during power conversion. It is suitable for various low-voltage power modules, ensuring efficient and stable power output. In terms of motor drive, relying on its excellent switching characteristics, it can precisely control the speed and direction of the motor. It can be applied to small power tools, automotive cooling fans and other devices that require high precision in motor control. In signal processing circuits, it can be used as a high-speed switching element, quickly responding to signal changes and achieving efficient signal switching and processing. It is often used in signal modulation and demodulation circuits of communication devices. In addition, due to its compliance with environmental protection standards, it can also play a role in the charging circuits of consumer electronics products such as smartphones and tablets, ensuring the safety and efficiency of the charging process. Whether it is a scenario with requirements for performance, environmental protection, or space layout, NTF3055-100T1G can provide reliable solutions.
ONSemi NTF3055-100T1G’s Attributes
| Status | Active | Compliance | PbAHP |
| Package Type | SOT-223-4 / TO-261-4D | Case Outline | 0.0318 |
| MSL Type | 1 | MSL Temp (°C) | 260 |
| Container Type | REEL | Container Qty. | 1000 |
| ON Target | N | Channel Polarity | N-Channel |
| Configuration | Single | V(BR)DSS Min (V) | 60 |
| VGS Max (V) | 20 | VGS(th) Max (V) | 4 |
| ID Max (A) | 3 | PD Max (W) | 2.1 |
| RDS(on) Max @ VGS = 10 V (mΩ) | 110 | Qg Typ @ VGS = 10 V (nC) | 11 |
| Ciss Typ (pF) | 324 | Pricing ($/Unit) | $0.3569 |
ONSemi NTF3055-100T1G’s Datasheet
ONSemi NTF3055-100T1G’s Category - MOSFETs
When considering the purchase of a MOSFET similar to NTF3055-100T1G, the characteristic of its N-channel determines that it is suitable for low-side switching scenarios. For example, in conventional power applications where it is grounded and the lead is connected to the main line voltage, it can meet the voltage transmission required for device switching. When evaluating the performance of NTF3055-100T1G, the general methods for testing MOSFETs described above can be adopted. When checking the diode voltage drop, if the value is outside the range of 0.4V - 0.9V, one should be vigilant that the device may be defective. When testing the resistance, a relatively large resistance should be presented between the drain and the source. If using a digital multimeter for testing, by following the steps such as connecting the source to the negative (-) lead of the multimeter, holding the device while avoiding contact with metal test probe components and terminals, connecting the positive lead of the multimeter to the gate, setting the probe to the drain, and applying a little pressure between the source and the gate, a preliminary evaluation of its performance can be carried out to ensure that the device can operate stably and reliably in practical applications.
NTF3055-100T1G vs NTF6P02T3G
Parts |
|
|
| Manufacturer | ON | Onsemi |
| Package | SOT223 - 4 | SOT - 223 - 4 |
| Description | Three - pin SOT - 223 N - channel MOSFET Transistor with a 3 A dc and 60 V dc capacity | P - channel MOSFET Transistorwith - 20V voltage rating, 8.4A current, and 3 - pin SOT - 223 |
| Stock | 1651 | 3875 |
| Part Status | Active | Active |
| Compliance | PbAHP | PbAHP |
| Case Outline | 0.0318 | 0.0318 |
| MSL Type | 1 | 1 |
| MSL Temp (°C) | 260 | 260 |
| Container Type | REEL | REEL |
| Container Qty. | 1000 | 4000 |
| ON Target | N | Y |
| Channel Polarity | N - Channel | P - Channel |
| Configuration | Single | Single |
| V(BR)DSS Min (V) | 60 | - 20 |
| VGS Max (V) | 20 | 8 |
| VGS(th) Max (V) | 4 | - 1 |
| ID Max (A) | 3 | - 10 |
| PD Max (W) | 2.1 | 1.8 |
| Qg Typ @ VGS = 10 V (nC) | 11 | 15 |
| Ciss Typ (pF) | 324 | 900 |
| Pricing ($/Unit) | $0.3599 | $0.5334 |
| RDS(on) Max @ VGS = 10 V (mΩ) | 110 | - |
| RDS(on) Max @ VGS = 2.5 V (mΩ) | - | 70 |
| RDS(on) Max @ VGS = 4.5 V (mΩ) | - | 50 |
