The TS94x op-amps are ideal for battery-powered systems, where very low supply current and output rail-to-rail are required. Their very low - 1 pA typical input bias current and constant supply current oversupply voltage enhance the devices' performance near the end of the battery charge or battery life.
STMicroelectronics TS942IN's Features
- Rail-to-rail output voltage swing
- Micropower consumption (1.2 μA)
- Single supply operation (2.5 V to 10 V)
- CMOS inputs
- Ultra-low input bias current (1 pA)
- ESD protection (2 kV)
- Latch-up immunity (class A)
- Available in SOT23-5 micro package
STMicroelectronics TS942IN's Applications
- Battery-powered systems (alarm)
- Portable communication systems (pagers)
- Smoke/gas/fire detectors
- Instrumentation and sensing
- PH meter
STMicroelectronics TS942IN's Attributes
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
| Mfr | STMicroelectronics |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.0045V/µs |
| Gain Bandwidth Product | 10 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 10 mV |
| Current - Supply | 1.2µA (x2 Channels) |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |

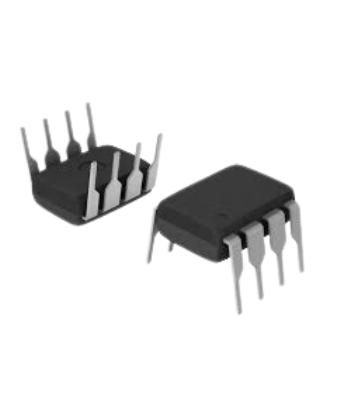

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-Mini DIP |
| Base Product Number | TS942 |
STMicroelectronics TS942IN's Datasheet
STMicroelectronics TS942IN's Category - Amplifiers
Operational amplifiers are a type of high-gain electronic component widely used in analog circuits. They possess the characteristics of high input impedance and low output impedance and are typically used in circuits such as signal amplification, filtering, integration, and differentiation. Common types of power amplifier chips include:
- BJT (Bipolar Junction Transistor) Power Amplifier Chips: Using bipolar junction transistors as the key components of the amplifier, they have relatively high power amplification capabilities and a wide frequency range.
- MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) Power Amplifier Chips: Employing MOSFETs as the key components of the amplifier, they feature low power consumption, high efficiency, and good linear characteristics.
- GaAs (Gallium Arsenide) Power Amplifier Chips: Power amplifier chips manufactured using gallium arsenide materials, which have the characteristics of high frequency, high power, and low noise, and are commonly used in radio frequency and microwave applications.
- CMOS (Complementary Metal-Oxide-Semiconductor) Power Amplifier Chips: Power amplifier chips fabricated using CMOS technology, which possesses low power consumption, low cost, and good integration.
- Class-D (D-Class) Power Amplifier Chips: Achieving high-efficiency power amplification using PWM (Pulse Width Modulation) technology, commonly used in audio amplifiers and audio systems.
- Class-AB (AB-Class) Power Amplifier Chips: Combining the characteristics of Class-A and Class-B, they have both relatively high linearity and relatively high efficiency and are commonly used in audio amplifiers and communication systems.
TS942IN's MAnufacturer - STMicroelectronics
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
