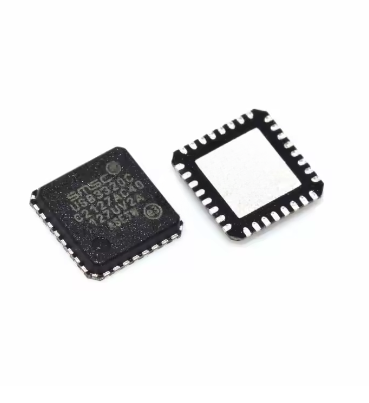

Microchip Technology USB3320C-EZK
The USB3320C-EZK is a 1/1 Transceiver Half USB 2.0, which is optimized for high-speed data transfer and low-voltage operations. It is from Microchip Technology. The USB3320C-EZK features integrated ESD protection circuits, capable of withstanding up to ±15kV IEC Air Discharge without the need for external devices.
It also has an over-voltage Protection circuit (OVP) that protects the VBUS pin from continuous DC voltages up to 30V. Moreover, it comes with an integrated USB Switch, ensuring no degradation of Hi-Speed electrical characteristics. This switch allows a single USB port of connection by providing switching functions for battery charging, stereo and mono/mic audio, and USB Full-Speed/Low-Speed data.
Additionally, it utilizes flexPWR Technology, which features a low current design ideal for battery-powered applications. In "Sleep" mode, it tri-states all ULPI pins and puts the part in a low current state. It has an I/O voltage range of 1.8V to 3.3V (±10%), an integrated battery to 3.3V regulator, a 2.2uF bypass capacitor, and a 100mV dropout voltage.
Microchip Technology USB3320C-EZK's Features
- Integrates termination resistors for easy impedance matching: This feature simplifies system design and reduces noise.
- Supports USB battery charging and data transfer protocols: The USB3320C-EZK supports high-speed data transfer, making it suitable for various applications.
- Compact design minimizes PCB space usage: This feature is ideal for devices with limited space constraints.
- Designed for seamless integration into various devices: The USB3320C-EZK is designed to work seamlessly with a wide range of devices, making it an excellent choice for diverse applications.
Built-in oscillator circuit simplifies system design: This feature eliminates the need for external components, reducing complexity and increasing reliability.
Microchip Technology USB3320C-EZK's Applications
The USB3320 is targeted for any application where a Hi-Speed USB connection is desired and when board space, power, and interface pins must be minimized.
Microchip Technology USB3320C-EZK's Attributes
The following are basic parameters of the part selected concerning the characteristics of the part and the categories it belongs to.
| Upstream Port | ULPI | Reference Clock Freq | Multi |
| IO Voltage | 1.8V-3.3V | ULPI Input Clock Mode | Yes |
| Crystal Support | Yes | Battery Charger Detection | Yes |
| Integrated USB Switch | Yes | OTG | Yes |
| Host Based I/F | No | Temp Range Min | -40 |
| Temp Range Max | 85 |
Microchip Technology USB3320C-EZK's Datasheet
Microchip Technology USB3320C-EZK's Category - Transceivers ICs
