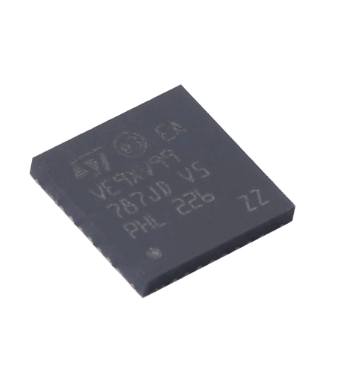

STMicroelectronics VN9D30Q100FTR
STMicroelectronics VN9D30Q100FTR's Features
AEC-Q100 qualified: Ensures compliance with automotive industry standards for quality and reliability.
General features: Extreme low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013), 24-bit ST-SPI for full diagnostic and digital current sense feedback, integrated 10-bit ADC for digital current sense, integrated PWM engine with independent phase shift and frequency generation (for each channel), programmable Bulb/LED mode for all channels, advanced limp home functions for robust fail-safe system, very low standby current, optimized electromagnetic emissions, very low electromagnetic susceptibility, control through direct inputs and / or SPI, compliant with European directive 2002/95/EC.
Diagnostic functions: Digital proportional load current sense, synchronous diagnostic of over load and short to GND, output shorted to VCC and OFF-state open-load, programmable case overtemperature warning.
Protection: Two levels load current limitation, self limiting of fast thermal transients, undervoltage shutdown, overvoltage clamp, latch-off or programmable time limited auto restart (power limitation and overtemperature shutdown), load dump protected, protection against loss of ground.
STMicroelectronics VN9D30Q100FTR's Attributes
| Type | Description |
|---|---|
| Category | Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers |
| Mfr | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) Cut Tape (CT) |
| Part Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 6 |
| Ratio - Input: Output | 1:6 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 4V ~ 29V |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Current - Output (Max) | 6.6A |
| Rds On (Typ) | 90mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 32-QFN (6x6) |
| Package / Case | 32-PowerVFQFN |
| Base Product Number | VN9D30Q100 |
STMicroelectronics VN9D30Q100FTR's Datasheet
STMicroelectronics VN9D30Q100FTR's Category - Power Managemen（PMIC
Power Management Integrated Circuits (PMIC) are a type of integrated circuits specifically used for managing and controlling power in electronic devices. Their main functions are to ensure that all components in electronic devices operate at the correct voltage and current levels while improving energy efficiency, reducing power consumption, extending battery life, and in some cases providing power conversion and distribution.
