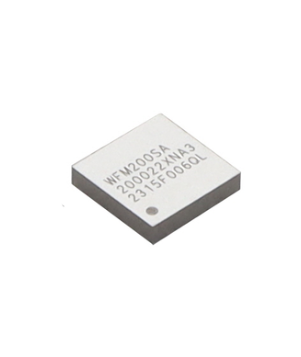

The Silicon Labs WFM200S is an Ultra Low Power Wi - Fi® transceiver or network co-processor (NCP) SiP module targeted for applications where optimal RF performance, low - power consumption, and secure end-to-end solution, together with fast time to market, are key requirements.
The very compact 6.5mm x 6.5mm WFM200S SiP module contains an embedded an - tenna, high frequency crystal, and shield. This all - inclusive module offer the fastest time to market.
The WFM200S integrates a balun, T/R switch, LNA and PA for the best possible RF performance. Co - existence with external 2.4GHz transceivers is supported via a PTA interface.
Silicon Labs WFM200S022XNA3's Features
Silicon Labs WFM200S022XNA3's Attributes
| Type | Description |
|---|---|
| Category | RF and Wireless RF Transceiver Modules and Modems |
| Mfr | Silicon Labs |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| RF Family/Standard | WiFi |
| Protocol | 802.11b/g/n |
| Modulation | DS |
| Frequency | 2.412GHz ~ 2.484GHz |
| Data Rate | 72.2Mbps |
| Power - Output | 15.1dBm |
| Sensitivity | -96.3dBm |
| Serial Interfaces | SDIO, SPI |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | WFM200S |
| Memory Size | - |
| Voltage - Supply | 1.62V ~ 3.6V |
| Current - Receiving | 42.3mA ~ 48.3mA |
| Current - Transmitting | 45.4mA ~ 99.4mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 58-SMD Module |
| Base Product Number | WFM200 |
Silicon Labs WFM200S022XNA3's Datasheet
Silicon Labs WFM200S022XNA3's Category - RF Transceiver
The most crucial part of a radio-frequency (RF) circuit is the RF transceiver chip. All RF transmission signals originate from the RF transceiver chip, and all RF reception signals also end within the RF transceiver chip. Therefore, the RF transceiver chip holds an absolute central position in the entire RF circuit. The RF transceiver chip is like a "translator" between radio waves and digital signals, similar to how the human senses convert light and sound into neural signals for the brain. It is a key component in 5G network equipment. RF transceiver chips can be widely applied in many fields such as 5G base stations, industrial Internet, Internet of Vehicles, antennas, and satellite Internet communications.
WFM200S022XNA3's Manufacturer - Silicon Labs
Silicon Labs (NASDAQ: SLAB) is a leader in secure, intelligent wireless technology for a more connected world. Their integrated hardware and software platform, intuitive development tools, unmatched ecosystem and robust support make us the ideal long-term partner in building advanced industrial, commercial, home and life applications. Silicon Labs make it easy for developers to solve complex wireless challenges throughout the product lifecycle and get to market quickly with innovative solutions that transform industries, grow economies and improve lives.
