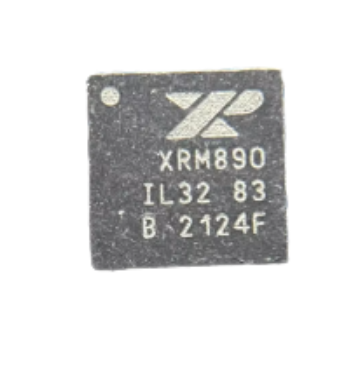

XR16M890IL32-F MaxLinear, Inc.

MaxLinear, Inc. XR16M890IL32-F

The XR16M890¹ (M890) is a single - channel universal Asynchronous Receiver and Transmitter (UART) with integrated level shifters and 128 bytes of transmit and receive FIFOs.

For flexibility in a mixed voltage environment, the M890 has 4 VCC pins. There is a VCC pin for the core, a VCC pin for the UART signals, a VCC pin for the CPU interface signals and a VCC pin for the GPIO signals. The VCC pins for the UART, GPIO and CPU interface signals allow for the M890 to interface with devices operating at different voltage levels eliminating the need for external voltage level shifters.

MaxLinear, Inc. XR16M890IL32-F's Features

• Integrated Level Shifters on CPU interface, UART and GPIO signals
• Intel/Motorola/VLIO Bus Interface select
• '0' ns address setup/hold times
• 24 Mbps maximum UART data rate
• Up to 16 GPIOs
• 128 - Bytes TX and RX FIFOs
• Programmable TX/RX trigger levels
• TX/RX FIFO Level Counters
• Independent TX/RX Baud Rate Generator
• Fractional Baud Rate Generator
• Auto RTS/CTS Hardware Flow Control
• Auto XON/XOFF Software Flow Control
• Auto RS - 485 Half - Duplex direction Control

MaxLinear, Inc. XR16M890IL32-F's Applications

• Personal Digital Assistants (PDA)
• Cellular Phones/Data Devices
• Battery - Operated Devices
• Global Positioning System (GPS)
• Bluetooth

MaxLinear, Inc. XR16M890IL32-F's Attributes

MaxLinear, Inc. XR16M890IL32-F's Datasheet

Category of MaxLinear, Inc. XR16M890IL32-F - Controller

A microcontroller (Microcontroller), often also known as a single - chip microcontroller (abbreviated as SCM), is a chip with integrated functional modules such as a microprocessor, memory, input/output interfaces, and timers. Therefore, a microcontroller is essentially a type of chip. Compared with general integrated circuits (abbreviated as ICs), microcontrollers are more integrated and functionally complete, capable of independently performing various control tasks, and have broad application prospects.

A microcontroller is a chip with integrated functional modules such as a microprocessor, memory, input/output interfaces, and timers. Therefore, a microcontroller is essentially a type of chip and is a form of integrated circuit.

Compared with general integrated circuits (abbreviated as ICs), microcontrollers are more integrated and functionally complete, capable of independently performing various control tasks. Microcontrollers typically integrate functional modules such as processors, memories, timers, and input/output interfaces, and can implement various control and processing tasks through programming. Therefore, microcontrollers are widely used in electronic control systems, such as industrial automation, smart home systems, medical devices, and automotive electronics.

Manufacturer of XR16M890IL32-F - MaxLinear, Inc.

MaxLinear, Inc. was incorporated in Delaware in September 2003. The company is a provider of highly - integrated mixed - signal semiconductor solutions for radio - frequency analog and broadband communication applications. The company decodes high - performance radio - frequency (or RF) receiver products for the acquisition and processing of digital and analog signals in various applications.

These products include RF receivers and system - on - a - chip (SoC) RF receivers, which include highly - integrated radio system architectures and the functions necessary for demodulating broadband signals. The company's current products enable the reception of broadband data and video content on a wide range of electronic devices, including cable and terrestrial set - top boxes, DOCSIS voice and data cable modems, digital televisions, mobile phones, personal computers, netbooks, and in - vehicle entertainment devices.
