Diodes(1560)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Mounting Type | Package / Case | Base Product Number | Technology | Supplier Device Package | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Speed | Diode Configuration | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Current - Average Rectified (Io) | Capacitance @ Vr, F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STTH5R06B-TR | 1.4800 |  |
2 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Active | Surface Mount | TO-252-3, DPak (2 Leads + Tab), SC-63 | STTH5 | Standard | DPAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 2,500 | Fast Recovery =< 500ns, > 200mA (Io) | 600 V | 2.9 V @ 5 A | 40 ns | 20 µA @ 600 V | 175°C (Max) | 5A | - | ||||
 |
STPS15L30CDJFTR | 1.2700 | |
6 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Active | Surface Mount | 8-PowerVDFN | STPS15 | Schottky | PowerFlat™ (5x6) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 3,000 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 30 V | 7.5A | 480 mV @ 7.5 A | 1 mA @ 30 V | 150°C (Max) | |||||
 |
STPS40170CG-TR | 2.8900 | |
85 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Active | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | STPS40170 | Schottky | D2PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 1,000 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 170 V | 20A | 920 mV @ 20 A | 30 µA @ 170 V | 175°C (Max) | |||||
 |
STPS20200CT | 3.8200 | |
40 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | TO-220-3 | STPS20200 | Schottky | TO-220 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-13731-5 | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 200 V | 10A | 860 mV @ 10 A | 15 µA @ 200 V | -40°C ~ 175°C | ||||
 |
STTH75S12W | 5.4100 | |
9993 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | DO-247-2 (Straight Leads) | STTH75 | Standard | DO-247 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-15572-5 | EAR99 | 8541.10.0080 | 30 | Fast Recovery =< 500ns, > 200mA (Io) | 1200 V | 3.2 V @ 75 A | 55 ns | 50 µA @ 1200 V | -40°C ~ 175°C | 75A | - | |||
|
STPS15L60CB | 1.9300 | |
8545 | 0.00000000 | STMicroelectronics | - | Tube | Active | Surface Mount | TO-252-3, DPak (2 Leads + Tab), SC-63 | STPS15 | Schottky | DPAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 75 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 60 V | 7.5A | 620 mV @ 7.5 A | 200 µA @ 60 V | 150°C (Max) | |||||
|
STPS30L60CT | 1.6000 | |
3365 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | TO-220-3 | STPS30 | Schottky | TO-220 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 60 V | 15A | 600 mV @ 15 A | 480 µA @ 60 V | 150°C (Max) | |||||
 |
STPS4S200UF | 0.6600 | |
9 | 0.00000000 | STMicroelectronics | ECOPACK® | Tape & Reel (TR) | Active | Surface Mount | DO-221AA, SMB Flat Leads | STPS4 | Schottky | SMBflat | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 5,000 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 870 mV @ 4 A | 5 µA @ 200 V | -40°C ~ 175°C | 4A | - | |||||
 |
STPSC12065G-TR | 4.1100 | |
7847 | 0.00000000 | STMicroelectronics | ECOPACK®2 | Tape & Reel (TR) | Active | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | STPSC12065 | SiC (Silicon Carbide) Schottky | D²PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 1,000 | No Recovery Time > 500mA (Io) | 650 V | 1.45 V @ 12 A | 0 ns | 150 µA @ 650 V | -40°C ~ 175°C | 12A | 750pF @ 0V, 1MHz | ||||
 |
STPS0520M | 0.4800 | |
6 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Obsolete | Surface Mount | DO-216AA | STPS0520 | Schottky | STmite | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0070 | 12,000 | Fast Recovery =< 500ns, > 200mA (Io) | 20 V | 385 mV @ 500 mA | 50 µA @ 20 V | 150°C (Max) | 500mA | - | |||||
|
STPS10170CT | 1.0400 | |
1 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Through Hole | TO-220-3 | STPS10170 | Schottky | TO-220 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 170 V | 5A | 920 mV @ 5 A | 10 µA @ 170 V | 175°C (Max) | |||||
 |
STPSC40H12CWL | 20.2100 | |
9594 | 0.00000000 | STMicroelectronics | ECOPACK® | Tube | Active | Through Hole | TO-247-3 | STPSC40 | SiC (Silicon Carbide) Schottky | TO-247-3 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-17248 | EAR99 | 8541.10.0080 | 600 | No Recovery Time > 500mA (Io) | 1 Pair Common Cathode | 1200 V | 38A | 1.5 V @ 20 A | 0 ns | 120 µA @ 1200 V | -40°C ~ 175°C | |||
 |
STPS30SM120SFP | 1.6100 | |
1 | 0.00000000 | STMicroelectronics | ECOPACK®2 | Tube | Active | Through Hole | TO-220-3 Full Pack | STPS30 | Schottky | TO-220FPAB | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-15564-5 | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 120 V | 950 mV @ 30 A | 275 µA @ 120 V | 150°C (Max) | 30A | - | ||||
|
FERD20U60DJFD-TR | 1.1700 | |
2 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Active | Surface Mount | 8-PowerVDFN | FERD20 | FERD (Field Effect Rectifier Diode) | PowerFlat™ (5x6) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 3,000 | Fast Recovery =< 500ns, > 200mA (Io) | 60 V | 510 mV @ 20 A | 800 µA @ 60 V | 150°C (Max) | 20A | - | |||||
 |
STTH802SFY | 0.8400 | |
22 | 0.00000000 | STMicroelectronics | Automotive, AEC-Q101, ECOPACK®2 | Tape & Reel (TR) | Active | Surface Mount | TO-277, 3-PowerDFN | STTH802 | Standard | TO-277A (SMPC) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 6,000 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 35 ns | 6 µA @ 200 V | -40°C ~ 175°C | 8A | - | |||||
 |
STTH20R04D | 1.6700 | |
2 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | TO-220-2 | STTH20 | Standard | TO-220AC | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 400 V | 1.7 V @ 20 A | 45 ns | 20 µA @ 400 V | 175°C (Max) | 20A | - | ||||
|
STTH802B | - | |
2616 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Surface Mount | TO-252-3, DPak (2 Leads + Tab), SC-63 | STTH802 | Standard | DPAK | download | ROHS3 Compliant | 3 (168 Hours) | REACH Unaffected | EAR99 | 8541.10.0080 | 75 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 1.05 V @ 8 A | 30 ns | 6 µA @ 200 V | 175°C (Max) | 8A | - | ||||
|
STTH3012W | 3.9700 | |
6420 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | DO-247-2 (Straight Leads) | STTH3012 | Standard | DO-247 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-5156-5 | EAR99 | 8541.10.0080 | 30 | Fast Recovery =< 500ns, > 200mA (Io) | 1200 V | 2.25 V @ 30 A | 115 ns | 20 µA @ 1200 V | 175°C (Max) | 30A | - | |||
 |
STTH8R04FP | - | |
1903 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Through Hole | TO-220-2 Full Pack, Isolated Tab | STTH8R04 | Standard | TO-220FPAC | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 400 V | 1.5 V @ 8 A | 50 ns | 10 µA @ 400 V | -40°C ~ 175°C | 8A | - | ||||
|
STPS20SM80CG-TR | - | |
8836 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Obsolete | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | STPS20 | Schottky | D²PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 1,000 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 80 V | 10A | 780 mV @ 10 A | 25 µA @ 80 V | 175°C (Max) | |||||
|
STPS40M60CT | 2.0300 | |
990 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | TO-220-3 | STPS40 | Schottky | TO-220 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 60 V | 20A | 595 mV @ 20 A | 110 µA @ 60 V | 150°C (Max) | |||||
|
STPS4045CT | 2.2700 | |
833 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Through Hole | TO-220-3 | STPS404 | Schottky | TO-220 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 45 V | 20A | 760 mV @ 20 A | 200 µA @ 45 V | 175°C (Max) | |||||
|
STTH1302CG-TR | - | |
3403 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Obsolete | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | STTH1302 | Standard | D2PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 1,000 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 200 V | 6.5A | 1.1 V @ 6.5 A | 25 ns | 6 µA @ 200 V | 175°C (Max) | ||||
 |
STTH4R02FP | - | |
1996 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Through Hole | TO-220-2 Full Pack | STTH4R02 | Standard | TO-220FPAC | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 497-5282-5 | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 200 V | 1.05 V @ 4 A | 30 ns | 3 µA @ 200 V | 175°C (Max) | 4A | - | |||
 |
STPS30L120CR | 1.6300 | |
4 | 0.00000000 | STMicroelectronics | - | Tube | Active | Through Hole | TO-262-3 Long Leads, I²Pak, TO-262AA | STPS30 | Schottky | I2PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Common Cathode | 120 V | 15A | 880 mV @ 15 A | 200 µA @ 120 V | 150°C (Max) | |||||
 |
BAS69-09P6FILM | - | |
1580 | 0.00000000 | STMicroelectronics | - | Tape & Reel (TR) | Obsolete | Surface Mount | SOT-563, SOT-666 | BAS69 | Schottky | SOT-666 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0070 | 3,000 | Small Signal =< 200mA (Io), Any Speed | 2 Independent | 15 V | 10mA (DC) | 570 mV @ 10 mA | 230 nA @ 15 V | 150°C (Max) | |||||
|
STPS20SM120SR | 1.5800 | |
1 | 0.00000000 | STMicroelectronics | ECOPACK®2 | Tube | Obsolete | Through Hole | TO-262-3 Long Leads, I²Pak, TO-262AA | STPS20 | Schottky | I2PAK | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 120 V | 890 mV @ 20 A | 210 µA @ 120 V | 150°C (Max) | 20A | - | |||||
|
STPSC20H12GY-TR | 11.2500 | |
6872 | 0.00000000 | STMicroelectronics | Automotive, AEC-Q101, ECOPACK®2 | Tape & Reel (TR) | Active | Surface Mount | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | STPSC20 | SiC (Silicon Carbide) Schottky | D²PAK | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 1,000 | No Recovery Time > 500mA (Io) | 1200 V | 1.5 V @ 20 A | 0 ns | 120 µA @ 1200 V | -40°C ~ 175°C | 20A | 1650pF @ 0V, 1MHz | ||||
 |
STPS30M120STN | - | |
9531 | 0.00000000 | STMicroelectronics | - | Tube | Obsolete | Through Hole | TO-220-3 | STPS30 | Schottky | TO-220AB Narrow Leads | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 120 V | 900 mV @ 30 A | 345 µA @ 120 V | 150°C (Max) | 30A | - | |||||
 |

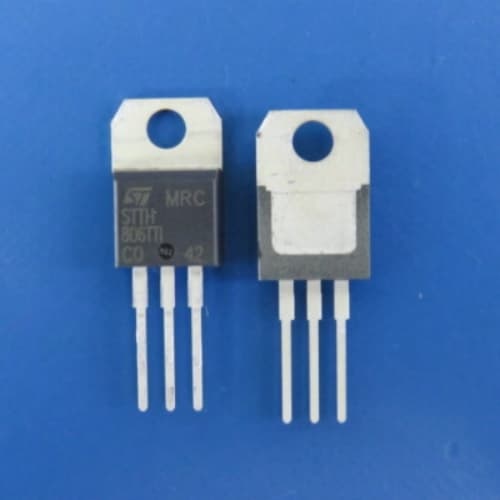

STTH806TTI | 5.2200 | |
9291 | 0.00000000 | STMicroelectronics | TURBOSWITCH™ | Tube | Active | Through Hole | TO-220-3 | STTH806 | Standard | TO-220AB Insulated | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8541.10.0080 | 50 | Fast Recovery =< 500ns, > 200mA (Io) | 1 Pair Series Connection | 600 V | 8A | 3.6 V @ 8 A | 30 ns | 10 µA @ 600 V | 150°C (Max) |
