Connectors, Interconnects(3320)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | Style | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Pin or Socket | Cable Termination | Cable Pitch | Board-Side Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BM14B-SRSS-TBT(LF)(SN) | 1.9100 |  |
7505 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM14B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 14 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | |||||||||||||||||
 |
BM12B-XASS-TF(LF)(SN) | 1.7600 | |
89 | 0.00000000 | JST Sales America Inc. | XA | Bulk | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM12B-XA | Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | 455-4133 | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 12 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.370" (9.40mm) | Circular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 250V | 11.9mm | - | ||||||||||||||||
 |
B4B-EH-A | - | |
6001 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | - | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1016 | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 4 | - | All | Shrouded - 3 Wall | Friction Lock | 0.130" (3.30mm) | 0.126" (3.20mm) | - | 0.236" (6.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 250V | 8.1mm | - | |||||||||||||||||
 |
100P-JMDSS-G-1-TF(LF)(SN) | 3.6200 | |
1 | 0.00000000 | JST Sales America Inc. | JMD | Tape & Reel (TR) | Active | Surface Mount | Solder Retention | 100P-JMD | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Plug, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | - | 100 | 4.5mm | |||||||||||||||||||||||||||||||||||||||
 |
S8B-ZR(LF)(SN) | 0.4600 | |
20 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S8B-ZR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 8 | - | All | Shrouded - 4 Wall | Detent Lock | 0.094" (2.40mm) | 0.106" (2.69mm) | - | 0.146" (3.70mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 50V | - | - | |||||||||||||||||
 |
BM08B-GVHS-TB(LF)(SN) | 0.3282 | |
5006 | 0.00000000 | JST Sales America Inc. | GVH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM08B-GV | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 8 | - | All | Shrouded - 4 Wall | Latch Holder | - | - | - | 0.159" (4.05mm) | Rectangular | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 50V | 8.8mm | - | |||||||||||||||||
 |
SM08B-GHS-TB(LF)(SN) | 0.6300 | |
4282 | 0.00000000 | JST Sales America Inc. | GH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM08B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 8 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.167" (4.25mm) | Rectangular | Tin | - | Tin | Polyamide (PA9T), Nylon 9T | Natural | 50V | - | - | |||||||||||||||||
 |
60P6.0-JMDSS-G-1-TF | - | |
8826 | 0.00000000 | JST Sales America Inc. | JMD | Tape & Reel (TR) | Obsolete | Surface Mount | Solder Retention | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Plug, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | - | 60 | 6mm | ||||||||||||||||||||||||||||||||||||||||
|
S11B-ZESK-2D(T)(LF)(SN) | - | |
2806 | 0.00000000 | JST Sales America Inc. | ZE | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S11B-ZES | Kinked Pin, Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 576 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 11 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.248" (6.30mm) | Rectangular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 100V | - | - | |||||||||||||||||
 |
SM05B-NSHSS-TB(LF)(SN) | 0.8500 | |
4 | 0.00000000 | JST Sales America Inc. | NSH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM05B-NS | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 5 | - | All | Shrouded - 4 Wall | Latch Holder | - | - | - | 0.173" (4.40mm) | - | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | - | - | |||||||||||||||||
 |
S7B-PH-K-S(LF)(SN) | 0.3600 | |
5 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S7B-PH-K | Press-Fit, Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 500 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 7 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | - | - | ||||||||||||||||
 |
B34B-PUDSS-1(LF)(SN) | 1.3600 | |
1 | 0.00000000 | JST Sales America Inc. | PUD | Tray | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B34B-PUD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 880 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 34 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Latch Holder | - | 0.122" (3.10mm) | - | 0.378" (9.60mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 11mm | - | |||||||||||||||||
 |
S5B-EH(LF)(SN) | 0.2700 | |
3 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S5B-EH(L | Press-Fit, Solder | - | Board to Cable/Wire | download | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 5 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||||||
 |
XADRP-20V | 0.3900 | |
9 | 0.00000000 | JST Sales America Inc. | XAD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | XADR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.098" (2.50mm) | 2 | 0.098" (2.50mm) | Female Socket | 20 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||||||
 |
HILR-02VF-2-R | 0.2207 | |
2571 | 0.00000000 | JST Sales America Inc. | HIL | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | HILR-02V | Red | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.130" (3.30mm) | 1 | - | Male Pin | 2 | Latch Holder | Polyamide (PA66), Nylon 6/6 | Crimp | |||||||||||||||||||||||||||||||||||
|
SHR-001T-P0.6 | 0.0202 | |
3907 | 0.00000000 | JST Sales America Inc. | HR | Tape & Reel (TR) | Active | Stamped | SHR-001 | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.90.4000 | 9,000 | Tin | - | 22-26 AWG | Crimp | Socket | |||||||||||||||||||||||||||||||||||||||||||
 |
S28B-PHDSS | - | |
1369 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1351 | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 28 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | |||||||||||||||||
 |
ZHR-9 | 0.1800 | |
19 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | ZHR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Female Socket | 9 | - | Polyamide (PA66), Nylon 6/6 | Crimp | |||||||||||||||||||||||||||||||||||
 |
BM05B-AUHKS-GA-TB(LF)(SN) | 0.6300 | |
14 | 0.00000000 | JST Sales America Inc. | AUH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | BM05B-AU | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 5,000 | Header | 1 | - | Copper Alloy | UL94 V-0 | Male Blade | - | 5 | - | All | Shrouded - 3 Wall | Detent Lock | - | - | - | 0.073" (1.85mm) | Rectangular | Gold | - | - | Thermoplastic | Black | 30V | - | - | |||||||||||||||||
|
B08B-ZESK-1D(LF)(SN) | - | |
8589 | 0.00000000 | JST Sales America Inc. | ZE | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B08B-ZES | Kinked Pin, Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 960 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 8 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.335" (8.51mm) | Rectangular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 100V | - | - | |||||||||||||||||
|
BHSR-02VS-1(N) | 0.2500 | |
2 | 0.00000000 | JST Sales America Inc. | BHS | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | BHSR-02V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | - | 0.138" (3.50mm) | 1 | - | Female Socket | 2 | Friction Lock | Crimp | ||||||||||||||||||||||||||||||||||||
|
B15B-XH-2(LF)(SN) | - | |
8723 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B15B-XH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 15 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.276" (7.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | - | - | |||||||||||||||||
 |
BHR-03VS-1 | 0.2600 | |
25 | 0.00000000 | JST Sales America Inc. | BH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | BHR-03 | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.157" (4.00mm) | 1 | - | Female Socket | 3 | - | Polyamide (PA66), Nylon 6/6 | Crimp | ||||||||||||||||||||||||||||||||||
 |
06DB-8M(LF) | 0.3462 | |
2333 | 0.00000000 | JST Sales America Inc. | DB | Bulk | Active | Through Hole, Press-Fit | Closed End | 06DB | Green | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Individual Wires | 1 | - | Tin-Lead | - | 6 | All | 24-28 AWG, Stranded | IDC | 0.098" (2.50mm) | 0.098" (2.50mm) | |||||||||||||||||||||||||||||||||||
 |
B10B-ZR-SM3-TF | - | |
3575 | 0.00000000 | JST Sales America Inc. | ZH | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount | Solder Retention | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.197" (5.00mm) | Circular | Tin-Lead | - | Tin-Lead | Polyamide (PA46), Nylon 4/6, Glass Filled | Natural | 50V | - | - | ||||||||||||||||||
 |
30PS-JMDSS-G-1-TF(LF)(SN) | 1.4900 | |
7 | 0.00000000 | JST Sales America Inc. | JMD | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Solder Retention | 30PS-JMD | 0.189" (4.80mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Plug, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | - | 30 | - | |||||||||||||||||||||||||||||||||||||||
|
BM32B-GHDS-G-TF(LF)(SN) | 1.4101 | |
2479 | 0.00000000 | JST Sales America Inc. | GHD | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM32B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,250 | Header | 2 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 32 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.197" (5.00mm) | - | Gold | - | - | Polybutylene Terephthalate (PBT) | Natural | 50V | 8.5mm | - | |||||||||||||||||
 |

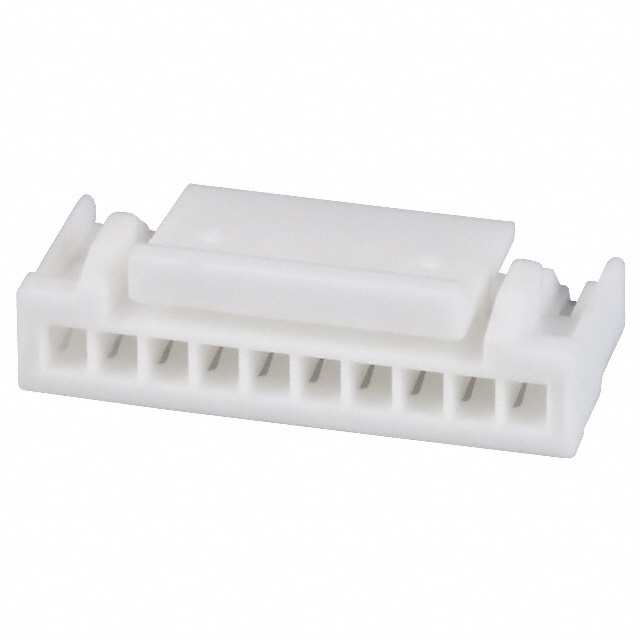

GHR-10V-S | 0.2000 | |
16 | 0.00000000 | JST Sales America Inc. | GH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | GHR-10V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 3,000 | Receptacle | 0.049" (1.25mm) | 1 | - | Female Socket | 10 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||||||
 |
B10B-PH-K-S | - | |
2176 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | - | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1271 | EAR99 | 8536.69.4040 | 500 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | 0.333" (8.45mm) | 0.236" (6.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 100V | 8mm | - | |||||||||||||||||
|
S9B-PH-KL(LF)(SN) | 0.2974 | |
6621 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S9B-PH-K | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | (D)S9B-PH-KL(LF)(SN) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 9 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Gray | 100V | - | - |
