Connectors, Interconnects(30501)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Type Features Color Ingress Protection Termination Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status ECCN HTSUS Standard Package Pitch Contact Material Housing Material Material Flammability Rating Number of Positions Insulation Height Wire Gauge or Range - AWG Current Voltage Wire Gauge Wire Gauge or Range - mm² Contact Material - Plating Screw Size Positions Per Level Number of Levels Header Orientation Plug Wire Entry Current - IEC Current - UL Voltage - UL Contact Mating Finish Torque - Screw Wire Strip Length Contact Tail Length Voltage - IEC Mating Orientation Wire Termination Clamp Material - Plating Screw Material - Plating Screw Thread

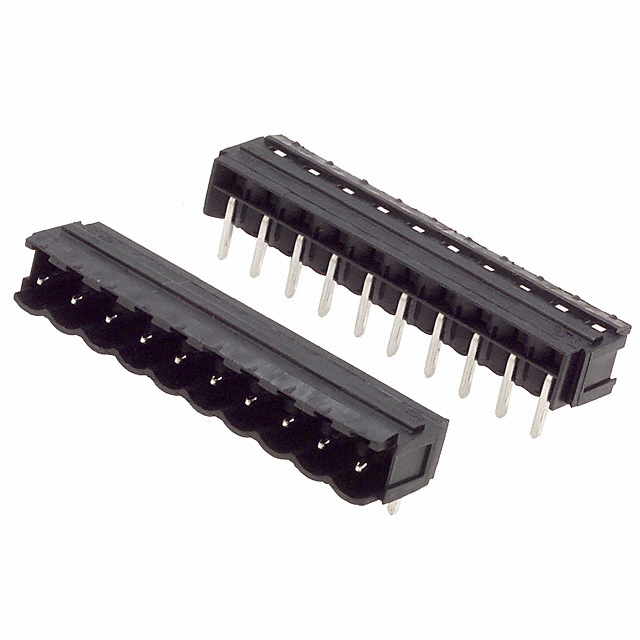

1775062001 Weidmüller 1775062001 2.0250
RFQ
 ECAD 4083 0.00000000 Weidmüller Omnimate SL Bulk Active -50°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) - Black - Solder download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 50 0.200" (5.08mm) Copper Alloy Liquid Crystal Polymer (LCP), Glass Filled UL94 V-0 8 0.335" (8.51mm) - - - 8 1 90°, Right Angle - 27.5A 18.5 A 300 V Tin - - 0.059" (1.50mm) 400 V
1775102001 Weidmüller 1775102001 3.0376
RFQ
 ECAD 5620 0.00000000 Weidmüller Omnimate SL Bulk Active -50°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) - Black - Solder download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 50 0.200" (5.08mm) Copper Alloy Liquid Crystal Polymer (LCP), Glass Filled UL94 V-0 12 0.335" (8.51mm) - - - 12 1 90°, Right Angle - 27.5A 18.5 A 300 V Tin - - 0.059" (1.50mm) 400 V
1720000000 Weidmüller 1720000000 3.4300
RFQ
 ECAD 34 0.00000000 Weidmüller Omnimate LM Bulk Active -20°C ~ 100°C Through Hole - Black download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 100 0.138" (3.50mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-22 AWG Copper Tin Alloy - Tin Plated 2 2 0.2-0.25 Nm (1.7-2.2 Lb-In) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve - - M2
1720040000 Weidmüller 1720040000 -
RFQ
 ECAD 4030 0.00000000 Weidmüller Omnimate LM Bulk Obsolete -20°C ~ 100°C Through Hole - Black download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 50 0.138" (3.50mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-22 AWG Copper Tin Alloy - Tin Plated 6 2 0.2-0.25 Nm (1.7-2.2 Lb-In) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve - - M2
1720060000 Weidmüller 1720060000 7.9934
RFQ
 ECAD 5308 0.00000000 Weidmüller Omnimate LM Bulk Active -20°C ~ 100°C Through Hole - Black download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 50 0.138" (3.50mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-22 AWG Copper Tin Alloy - Tin Plated 8 2 0.2-0.25 Nm (1.7-2.2 Lb-In) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve - - M2
1734220000 Weidmüller 1734220000 -
RFQ
 ECAD 3669 0.00000000 Weidmüller Omnimate LMZF Bulk Obsolete -20°C ~ 100°C Through Hole - Black download Not Applicable REACH Unaffected EAR99 8536.69.4040 100 0.200" (5.08mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-26 AWG Copper Tin Alloy - Tin Plated 2 1 - 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp - - -
1734230000 Weidmüller 1734230000 -
RFQ
 ECAD 7843 0.00000000 Weidmüller Omnimate LMZF Bulk Obsolete -20°C ~ 100°C Through Hole - Black download Not Applicable REACH Unaffected EAR99 8536.69.4040 100 0.200" (5.08mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-26 AWG Copper Tin Alloy - Tin Plated 3 1 - 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp - - -
1734260000 Weidmüller 1734260000 -
RFQ
 ECAD 2014 0.00000000 Weidmüller Omnimate LMZF Bulk Obsolete -20°C ~ 100°C Through Hole - Black download Not Applicable REACH Unaffected EAR99 8536.69.4040 50 0.200" (5.08mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-26 AWG Copper Tin Alloy - Tin Plated 6 1 - 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp - - -
1734320000 Weidmüller 1734320000 -
RFQ
 ECAD 6209 0.00000000 Weidmüller Omnimate LMZF Bulk Obsolete -20°C ~ 100°C Through Hole - Black download Not Applicable REACH Unaffected EAR99 8536.69.4040 25 0.200" (5.08mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-26 AWG Copper Tin Alloy - Tin Plated 12 1 - 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp - - -
1722400000 Weidmüller 1722400000 -
RFQ
 ECAD 9775 0.00000000 Weidmüller Omnimate LMZF Bulk Obsolete -20°C ~ 100°C Through Hole - Black download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 100 0.200" (5.08mm) Polyamide (PA66), Nylon 6/6 10 A 300 V 14-26 AWG Electrolytic Copper - Tin Plated 2 1 - Vertical with Board Screwless - Spring Cage, Tension Clamp - - -
1771020000 Weidmüller 1771020000 -
RFQ
 ECAD 8121 0.00000000 Weidmüller Omnimate BL Bulk Obsolete - Free Hanging (In-Line) Plug, Female Sockets - Black - IDC - Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 10 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 10 1 - 180° 6A 7 A 300 V Tin - - - 250 V
1771040000 Weidmüller 1771040000 -
RFQ
 ECAD 7335 0.00000000 Weidmüller Omnimate BL Bulk Obsolete - Free Hanging (In-Line) Plug, Female Sockets - Black - IDC download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 50 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 12 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 12 1 - 180° 6A 7 A 300 V Tin - - - 250 V
1771110000 Weidmüller 1771110000 -
RFQ
 ECAD 4410 0.00000000 Weidmüller Omnimate BL Bulk Obsolete - Free Hanging (In-Line) Plug, Female Sockets Mating Flange Black - IDC download Not Applicable REACH Unaffected EAR99 8536.90.4000 100 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 4 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 4 1 - 180° 6A 7 A 300 V Tin - - - 250 V
1771150000 Weidmüller 1771150000 -
RFQ
 ECAD 6517 0.00000000 Weidmüller Omnimate BL Bulk Obsolete - Free Hanging (In-Line) Plug, Female Sockets Mating Flange Black - IDC download Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 8 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 8 1 - 180° 6A 7 A 300 V Tin - - - 250 V
1770740000 Weidmüller 1770740000 -
RFQ
 ECAD 3520 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -50°C ~ 80°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange Black IP20 IDC download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 10 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 2 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 2 1 - 90° and 270° 6A 7 A 300 V Tin - - - 250 V
1770750000 Weidmüller 1770750000 -
RFQ
 ECAD 6943 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -50°C ~ 80°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange Black IP20 IDC download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 10 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 3 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 3 1 - 90° and 270° 6A 7 A 300 V Tin - - - 250 V
1770760000 Weidmüller 1770760000 5.2490
RFQ
 ECAD 6847 0.00000000 Weidmüller Omnimate BL Bulk Last Time Buy -50°C ~ 80°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange Black IP20 IDC download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 10 0.138" (3.50mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 4 0.492" (12.50mm) 20-22 AWG 0.35-0.5mm² - 4 1 - 90° and 270° 6A 7 A 300 V Tin - - - 250 V
1759470000 Weidmüller 1759470000 -
RFQ
 ECAD 7977 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -50°C ~ 100°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) Black IP20 IDC - Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 10 0.551" (14.00mm) 20-22 AWG 0.5-0.75mm² - 10 1 - 180° 11A 5 A 300 V Tin - - - 400 V
1759490000 Weidmüller 1759490000 -
RFQ
 ECAD 3504 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -50°C ~ 100°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) Black IP20 IDC - RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 12 0.551" (14.00mm) 20-22 AWG 0.5-0.75mm² - 12 1 - 180° 11A 5 A 300 V Tin - - - 400 V
1755190000 Weidmüller 1755190000 4.8934
RFQ
 ECAD 8501 0.00000000 Weidmüller Omnimate LP Bulk Active -50°C ~ 100°C Through Hole Knife Disconnect Black download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 100 - Polyamide (PA), Nylon 15 A 300 V 12-26 AWG Copper Alloy - Tin Plated 1 1 0.5-0.6 Nm (4.4-5.3 Lb-In) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve - - M3
1646070000 Weidmüller 1646070000 -
RFQ
 ECAD 1092 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder - Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 6 0.406" (10.31mm) - - - 6 1 90°, Right Angle - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1646090000 Weidmüller 1646090000 -
RFQ
 ECAD 2671 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder download Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 8 0.406" (10.31mm) - - - 8 1 90°, Right Angle - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1646270000 Weidmüller 1646270000 -
RFQ
 ECAD 7139 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder download Not Applicable REACH Unaffected EAR99 8536.90.4000 100 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 4 0.797" (20.24mm) - - - 4 1 Vertical - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1646310000 Weidmüller 1646310000 3.9100
RFQ
 ECAD 25 0.00000000 Weidmüller Omnimate BL Bulk Active -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.90.4000 42 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 8 0.797" (20.24mm) - - - 8 1 Vertical - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1646350000 Weidmüller 1646350000 -
RFQ
 ECAD 9150 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder download Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 12 0.797" (20.24mm) - - - 12 1 Vertical - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1649170000 Weidmüller 1649170000 -
RFQ
 ECAD 4091 0.00000000 Weidmüller Omnimate BL Bulk Obsolete -20°C ~ 100°C Through Hole Header, Female Sockets Retention Latches Black - Solder - RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 50 0.200" (5.08mm) Copper Alloy Polybutylene Terephthalate (PBT) UL94 V-0 16 0.797" (20.24mm) - - - 16 1 Vertical - 12A 15 A 300 V Tin - - 0.177" (4.50mm) 250 V
1761602001 Weidmüller 1761602001 3.5100
RFQ
 ECAD 4268 0.00000000 Weidmüller Omnimate SL Bulk Active -50°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) - Black IP10 Solder download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.90.4000 50 0.138" (3.50mm) Copper Alloy Liquid Crystal Polymer (LCP), Glass Filled UL94 V-0 8 0.293" (7.44mm) - - - 8 1 90°, Right Angle - 15A 10 A 300 V Tin - - 0.059" (1.50mm) 320 V
1761762001 Weidmüller 1761762001 7.1615
RFQ
 ECAD 5693 0.00000000 Weidmüller Omnimate SL Bulk Active -50°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) - Black IP10 Solder download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.90.4000 20 0.138" (3.50mm) Copper Alloy Liquid Crystal Polymer (LCP), Glass Filled UL94 V-0 24 0.293" (7.44mm) - - - 24 1 90°, Right Angle - 15A 10 A 300 V Tin - - 0.059" (1.50mm) 320 V
1762002001 Weidmüller 1762002001 1.2467
RFQ
 ECAD 4431 0.00000000 Weidmüller Omnimate SL Bulk Active -20°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) Mating and Mounting Flange Black - Solder download RoHS Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 132 0.138" (3.50mm) Copper Alloy Liquid Crystal Polymer (LCP), Halogen Free UL94 V-0 2 0.295" (7.50mm) - - - 2 1 90°, Right Angle - 13A 10 A 300 V Tin - - 0.059" (1.50mm) 125 V
1762022001 Weidmüller 1762022001 1.8527
RFQ
 ECAD 1468 0.00000000 Weidmüller Omnimate SL Bulk Active -20°C ~ 100°C Through Hole Header, Male Pins, Shrouded (4 Side) Mating and Mounting Flange Black - Solder download RoHS Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 84 0.138" (3.50mm) Copper Alloy Liquid Crystal Polymer (LCP), Halogen Free UL94 V-0 4 0.295" (7.50mm) - - - 4 1 90°, Right Angle - 13A 10 A 300 V Tin - - 0.059" (1.50mm) 125 V
