Headers, Plugs and Sockets(86784)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Color | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS | Standard Package | Pitch | Contact Material | Housing Material | Material Flammability Rating | Number of Positions | Insulation Height | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Screw Size | Positions Per Level | Number of Levels | Header Orientation | Plug Wire Entry | Current - IEC | Current - UL | Voltage - UL | Contact Mating Finish | Torque - Screw | Wire Strip Length | Contact Tail Length | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

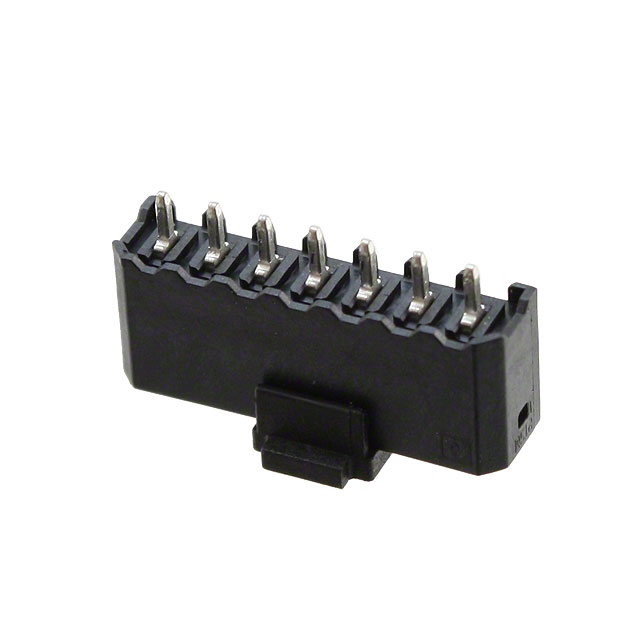

1778609 | 1.8300 |  |
290 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Pick and Place Cap | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 330 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 7 | 0.295" (7.50mm) | - | - | - | 7 | 1 | Vertical | - | 6A | Tin | - | - | 0.083" (2.10mm) | 160 V | ||||
 |

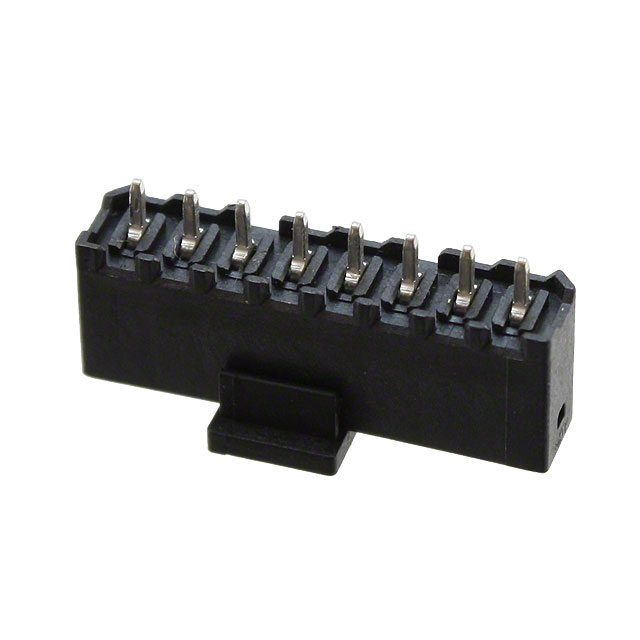

1778612 | 2.0200 | |
180 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Pick and Place Cap | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 330 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 8 | 0.295" (7.50mm) | - | - | - | 8 | 1 | Vertical | - | 6A | Tin | - | - | 0.083" (2.10mm) | 160 V | ||||
 |

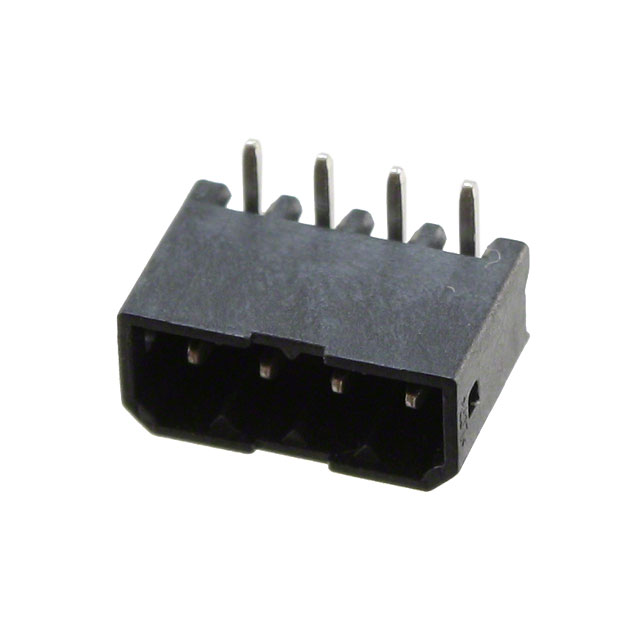

1778641 | 1.0500 | |
885 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Pick and Place Cap | Black | - | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 4 | 0.197" (5.00mm) | - | - | - | 4 | 1 | 90°, Right Angle | - | 6A | Tin | - | - | 0.083" (2.10mm) | 160 V | |||||
 |
1778670 | 1.7900 | |
846 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Pick and Place Cap | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 500 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 7 | 0.197" (5.00mm) | - | - | - | 7 | 1 | 90°, Right Angle | - | 6A | Tin | - | - | 0.083" (2.10mm) | 160 V | ||||
 |
1778764 | 0.7800 | |
3 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Surface Mount | Header, Male Pins, Shrouded (4 Side) | Board Guide, Pick and Place Cap, Solder Retention | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 600 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 2 | 0.197" (5.00mm) | - | - | - | 2 | 1 | 90°, Right Angle | - | 6A | Tin | - | - | - | 160 V | ||||
 |

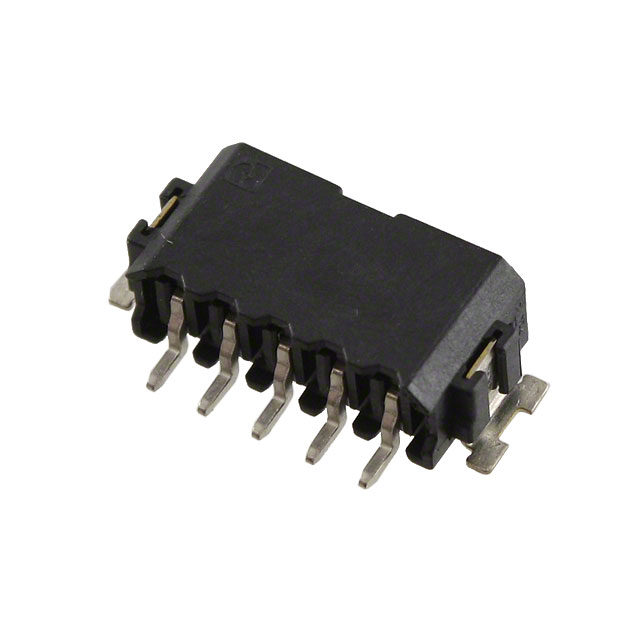

1778793 | 1.8100 | |
197 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Tape & Reel (TR) | Active | - | Surface Mount | Header, Male Pins, Shrouded (4 Side) | Board Guide, Pick and Place Cap, Solder Retention | Black | - | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 600 | 0.098" (2.50mm) | - | Liquid Crystal Polymer (LCP) | UL94 V-0 | 5 | 0.197" (5.00mm) | - | - | - | 5 | 1 | 90°, Right Angle | - | 6A | Tin | - | - | - | 160 V | |||||
 |

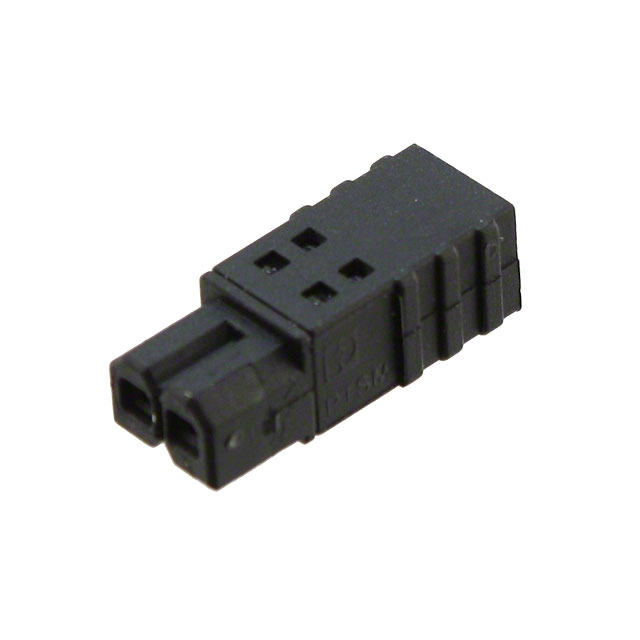

1778832 | 0.9800 | |
14 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Bulk | Active | - | Free Hanging (In-Line) | Plug, Female Sockets | - | Black | - | Screwless - Spring Cage, Tension Clamp | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 250 | 0.098" (2.50mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 2 | 0.197" (5.00mm) | 20-26 AWG | 0.14-0.5mm² | - | 2 | 1 | - | 180° | 6A | 5 A | 150 V | Tin | - | 6mm | - | 320 V | |||
 |

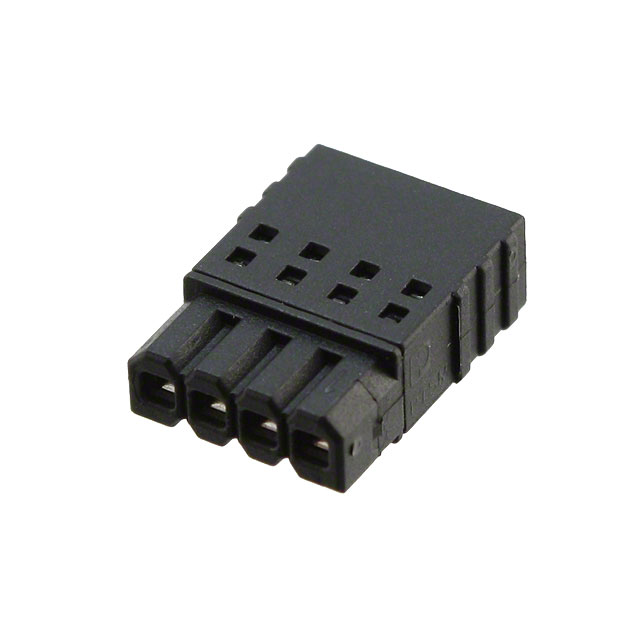

1778858 | 1.9100 | |
3 | 0.00000000 | Phoenix Contact | COMBICON PTSM | Bulk | Active | - | Free Hanging (In-Line) | Plug, Female Sockets | - | Black | - | Screwless - Spring Cage, Tension Clamp | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 250 | 0.098" (2.50mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 4 | 0.197" (5.00mm) | 20-26 AWG | 0.14-0.5mm² | - | 4 | 1 | - | 180° | 6A | 5 A | 150 V | Tin | - | 6mm | - | 320 V | |||
 |
1780558 | - | |
1041 | 0.00000000 | Phoenix Contact | COMBICON HD | Bulk | Obsolete | - | Free Hanging (In-Line) | Plug, Female Sockets | - | Black | IDC | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 100 | 0.098" (2.50mm) | 8 | 22-24 AWG | 0.25-0.34mm² | 8 | 1 | - | 180° | 4A | Tin | 125 V | ||||||||||||||
 |
OSTVR235153 | 8.8000 | |
5091 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR23 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 23 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 23 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR165152 | 5.2777 | |
9166 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR16 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 16 | 0.394" (10.00mm) | 14-30 AWG | - | M2 | 16 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR245150 | 6.5680 | |
6262 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTVR24 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 24 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 24 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR225153 | 7.2110 | |
6783 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR22 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 22 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 22 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVW121000 | 5.2608 | |
2574 | 0.00000000 | On Shore Technology Inc. | OSTVW | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTVW | Black | - | Screwless - Leg Spring, Push-In Spring | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Phosphor Bronze | Thermoplastic | UL94 V-0 | 12 | 0.614" (15.60mm) | 18-28 AWG | - | - | 6 | 2 | - | 180° | - | 7 A | 150 V | Tin | - | 7-8mm | - | ||
|
OSTVX241201 | 5.4109 | |
8387 | 0.00000000 | On Shore Technology Inc. | OSTVX | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mounting and Mating Flange | OSTVX | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Copper | Thermoplastic | UL94 V-0 | 24 | 0.413" (10.49mm) | - | - | - | 12 | 2 | 90°, Right Angle | - | - | 7 A | 150 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVX181201 | 4.2564 | |
3743 | 0.00000000 | On Shore Technology Inc. | OSTVX | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mounting and Mating Flange | OSTVX | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Copper | Thermoplastic | UL94 V-0 | 18 | 0.413" (10.49mm) | - | - | - | 9 | 2 | 90°, Right Angle | - | - | 7 A | 150 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVR205153 | 6.8200 | |
7403 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR20 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 20 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 20 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR195153 | 5.7482 | |
5436 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR19 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 19 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 19 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR175153 | 5.1433 | |
7035 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR17 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 17 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 17 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVO221251 | 4.4733 | |
4454 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO22 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Brass | Thermoplastic | UL94 V-0 | 22 | 0.894" (22.71mm) | - | - | - | 11 | 2 | 90°, Right Angle | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO201250 | 4.1369 | |
2329 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO20 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Brass | Thermoplastic | UL94 V-0 | 20 | 0.862" (21.89mm) | - | - | - | 10 | 2 | Vertical | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO243250 | 4.8093 | |
3829 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO24 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.150" (3.81mm) | Brass | Thermoplastic | UL94 V-0 | 24 | 0.862" (21.89mm) | - | - | - | 12 | 2 | Vertical | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVX161201 | 3.7838 | |
8938 | 0.00000000 | On Shore Technology Inc. | OSTVX | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mounting and Mating Flange | OSTVX | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Copper | Thermoplastic | UL94 V-0 | 16 | 0.413" (10.49mm) | - | - | - | 8 | 2 | 90°, Right Angle | - | - | 7 A | 150 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO243251 | 4.8093 | |
2271 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO24 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.150" (3.81mm) | Brass | Thermoplastic | UL94 V-0 | 24 | 0.894" (22.71mm) | - | - | - | 12 | 2 | 90°, Right Angle | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO223251 | 4.4733 | |
5380 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO22 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.150" (3.81mm) | Brass | Thermoplastic | UL94 V-0 | 22 | 0.894" (22.71mm) | - | - | - | 11 | 2 | 90°, Right Angle | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO241150 | 3.0655 | |
7907 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | OSTVO24 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Brass | Thermoplastic | UL94 V-0 | 24 | 0.862" (21.89mm) | - | - | - | 12 | 2 | Vertical | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVO183250 | 3.8011 | |
5459 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | OSTVO18 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.150" (3.81mm) | Brass | Thermoplastic | UL94 V-0 | 18 | 0.862" (21.89mm) | - | - | - | 9 | 2 | Vertical | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
OSTVR085152 | 2.8288 | |
3240 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -30°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | Mating Flange | OSTVR08 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 8 | 0.394" (10.00mm) | 14-30 AWG | - | M2 | 8 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVR115151 | 2.9039 | |
9686 | 0.00000000 | On Shore Technology Inc. | OSTVR | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTVR11 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | Brass | Thermoplastic | UL94 V-0 | 11 | 0.437" (11.10mm) | 14-30 AWG | - | M2 | 11 | 1 | - | 180° | - | 10 A | 300 V | Tin | 0.23 Nm (2.0 Lb-In) | 7-8mm | - | ||
|
OSTVO221151 | 2.8088 | |
7413 | 0.00000000 | On Shore Technology Inc. | OSTVO | Bulk | Active | -30°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | OSTVO22 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.138" (3.50mm) | Brass | Thermoplastic | UL94 V-0 | 22 | 0.894" (22.71mm) | - | - | - | 11 | 2 | 90°, Right Angle | - | - | 10 A | 300 V | Tin | - | - | 0.138" (3.50mm) |
