Headers, Plugs and Sockets(86784)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Color | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Contact Material | Housing Material | Material Flammability Rating | Number of Positions | Insulation Height | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Screw Size | Positions Per Level | Number of Levels | Header Orientation | Plug Wire Entry | Current - IEC | Current - UL | Voltage - UL | Contact Mating Finish | Torque - Screw | Wire Strip Length | Contact Tail Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1776167-5 | 5.0608 |  |
3683 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Interlocking (Side) | 1776167 | Black | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA), Nylon | UL94 V-0 | 10 | 0.902" (22.90mm) | - | - | - | 5 | 2 | 90°, Right Angle | - | - | 12 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
3-1776474-6 | - | |
2744 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Obsolete | - | Free Hanging (In-Line) | Plug, Female Sockets | Positions Stamped, Retention Latches (Non-Wire Side) | 1776474 | Black | - | Screw | - | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 1 | 0.200" (5.08mm) | - | - | - | 16 | - | 12-30 AWG | - | - | 16 | 1 | - | 180° | - | 15 A | 300 V | - | - | - | - | ||
 |
1776708-2 | - | |
1935 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | - | Through Hole | Header, Male Pins, Unshrouded | Side Stacking | 1776708 | Blue | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.197" (5.00mm) | Brass | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 2 | 0.079" (2.00mm) | - | - | - | 2 | 1 | Vertical | - | - | Tin | - | - | 0.138" (3.50mm) | ||||
 |
1776708-3 | - | |
3612 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | - | Through Hole | Header, Male Pins, Unshrouded | Side Stacking | Blue | - | Solder | download | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 1 | 0.197" (5.00mm) | Brass | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 3 | 0.079" (2.00mm) | - | - | - | 3 | 1 | Vertical | - | - | Tin | - | - | 0.138" (3.50mm) | ||||||
|
5-1776910-6 | - | |
9949 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Obsolete | -40°C ~ 105°C | Free Hanging (In-Line) | Plug, Female Sockets | Positions Stamped, Retention Latches (Non-Wire Side) | 1776910 | Green | - | Screw - Rising Cage Clamp | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 2,500 | 0.200" (5.08mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 12 | 0.594" (15.09mm) | 12-28 AWG | - | M2.5 | 12 | 1 | - | 180° | - | 15 A | 300 V | Nickel | 0.4 Nm (3.5 Lb-In) | - | - | ||
 |

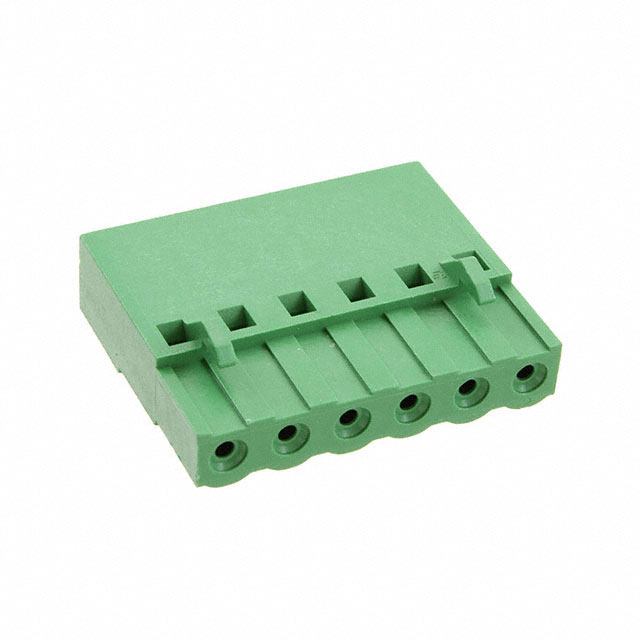

1986160-6 | - | |
2743 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Obsolete | - | Free Hanging (In-Line) | Plug Housing for Female Sockets | Retention Latches (Non-Wire Side) | 1986160 | Green | - | - | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 3,000 | 0.200" (5.08mm) | - | Polyester | UL94 V-0 | 6 | 0.295" (7.50mm) | - | - | - | 6 | 1 | - | 180° | - | - | - | - | - | ||||
|
1-1986160-6 | - | |
2273 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | - | Free Hanging (In-Line) | Plug Housing for Female Sockets | Retention Latches (Non-Wire Side) | 1986160 | Gray | - | - | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 1,000 | 0.200" (5.08mm) | - | Polyester | UL94 V-0 | 6 | 0.295" (7.50mm) | - | - | - | 6 | 1 | - | 180° | - | - | - | - | - | ||||
 |

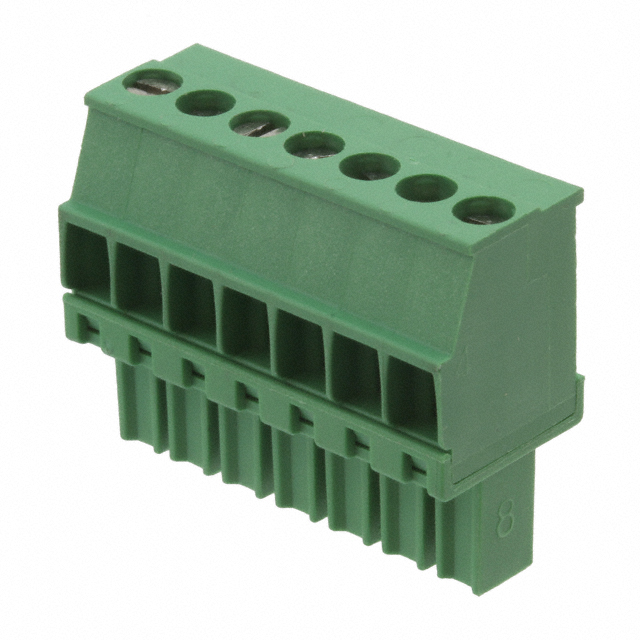

1986371-7 | 8.4976 | |
6934 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Side Stacking | 1986371 | Green | - | Screw - Rising Cage Clamp | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.8000 | 400 | 0.138" (3.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 7 | 0.756" (19.20mm) | 14-30 AWG | 0.05-2mm² | M2 | 7 | 1 | - | 270° | - | 11 A | 300 V | Tin | - | - | - | ||
 |
1-1986371-0 | 11.9691 | |
6128 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Side Stacking | 1986371 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.8000 | 400 | 0.138" (3.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 10 | 0.756" (19.20mm) | 14-30 AWG | 0.05-2mm² | M2 | 10 | 1 | - | 270° | - | 11 A | 300 V | Tin | - | - | - | ||
|
1-1986371-1 | 13.1647 | |
7312 | 0.00000000 | TE Connectivity AMP Connectors | - | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Side Stacking | 1986371 | Green | - | Screw - Rising Cage Clamp | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.8000 | 100 | 0.138" (3.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 11 | 0.756" (19.20mm) | 14-30 AWG | 0.05-2mm² | M2 | 11 | 1 | - | 270° | - | 11 A | 300 V | Tin | - | - | - | ||
|
2-1986486-3 | - | |
7271 | 0.00000000 | TE Connectivity AMP Connectors | - | Tape & Reel (TR) | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | 1986486 | Gray | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 3,200 | 0.200" (5.08mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 3 | 0.472" (12.00mm) | - | - | - | 3 | 1 | Vertical | - | - | Tin | - | - | 0.102" (2.60mm) | ||||
 |

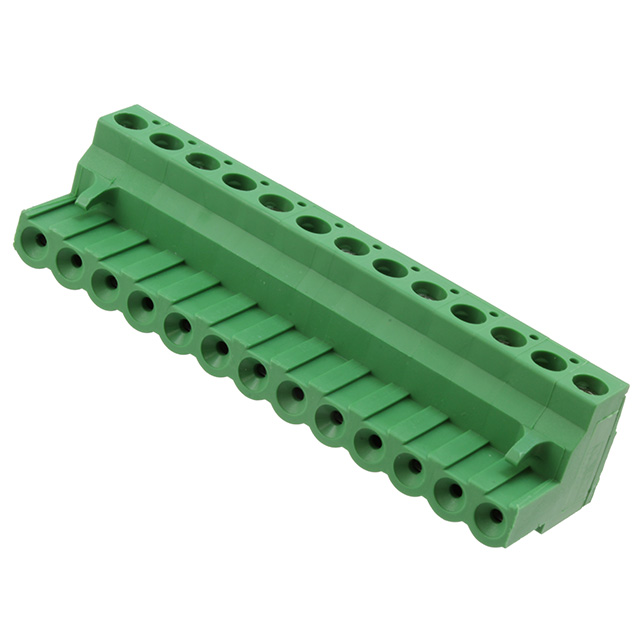

282809-7 | 6.6404 | |
9053 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | 282809 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 200 | 0.400" (10.16mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 7 | 0.610" (15.49mm) | 12-30 AWG | 0.05-3mm² | M3 | 7 | 1 | - | 180° | - | 15 A | 600 V | Tin | 0.79 Nm (7.0 Lb-In) | 6-7.5mm | - | ||
|
1-282809-2 | 10.9084 | |
8672 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | 282809 | Green | - | Screw - Rising Cage Clamp | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 25 | 0.400" (10.16mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 12 | 0.610" (15.49mm) | 12-30 AWG | 0.05-3mm² | M3 | 12 | 1 | - | 180° | - | 15 A | 600 V | Tin | 0.79 Nm (7.0 Lb-In) | 6-7.5mm | - | ||
|
1-282815-5 | - | |
4301 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 15 | 0.329" (8.36mm) | - | - | - | 15 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
|
1-282815-6 | - | |
4504 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 16 | 0.329" (8.36mm) | - | - | - | 16 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
|
1-282815-8 | 5.9614 | |
9473 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | 282815 | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 18 | 0.329" (8.36mm) | - | - | - | 18 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
2-282815-3 | - | |
2983 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | 282815 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 23 | 0.329" (8.36mm) | - | - | - | 23 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | ||
|
2-282815-4 | - | |
2996 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | Side Stacking | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 24 | 0.329" (8.36mm) | - | - | - | 24 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
|
282816-2 | - | |
7610 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282816 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 800 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 2 | 0.329" (8.36mm) | - | - | - | 2 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
282816-4 | - | |
7144 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282816 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | 2266-282816-4 | EAR99 | 8536.69.4040 | 400 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 4 | 0.329" (8.36mm) | - | - | - | 4 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | |
|
1-282816-0 | - | |
7996 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282816 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 10 | 0.329" (8.36mm) | - | - | - | 10 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
1-282816-2 | - | |
1863 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282816 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 12 | 0.329" (8.36mm) | - | - | - | 12 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
282817-6 | 2.2299 | |
9543 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | 282817 | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 6 | - | - | - | - | 6 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
 |

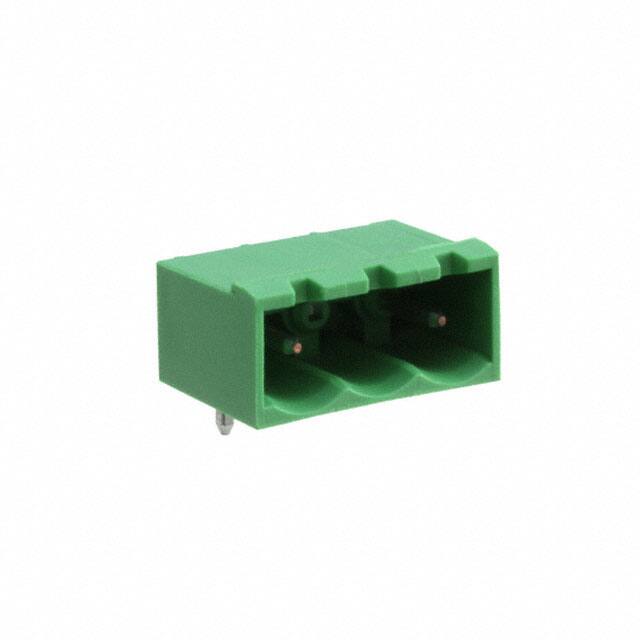

282818-2 | 0.6200 | |
2939 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282818 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | -282818-2-SI | EAR99 | 8536.69.4040 | 200 | 0.400" (10.16mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 2 | 0.329" (8.36mm) | - | - | - | 2 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
1-282818-0 | - | |
9668 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 282818 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.400" (10.16mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 10 | 0.329" (8.36mm) | - | - | - | 10 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
282819-4 | - | |
6127 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | 282819 | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 400 | 0.400" (10.16mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 4 | 0.329" (8.36mm) | - | - | - | 4 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
282819-7 | - | |
1668 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 200 | 0.400" (10.16mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 7 | 0.329" (8.36mm) | - | - | - | 7 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | |||
|
1-282819-1 | - | |
9635 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | Green | - | Solder | download | Not applicable | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 100 | 0.400" (10.16mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 11 | 0.329" (8.36mm) | - | - | - | 11 | 1 | 90°, Right Angle | - | - | 15 A | 600 V | Tin | - | - | 0.138" (3.50mm) | |||
|
282827-4 | - | |
1540 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Obsolete | -40°C ~ 110°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | 282827 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 400 | 0.394" (10.00mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 4 | 0.472" (12.00mm) | - | - | - | 4 | 1 | Vertical | - | - | 24 A | 600 V | Tin | - | - | 0.138" (3.50mm) | ||
|
282959-7 | 7.1944 | |
9023 | 0.00000000 | TE Connectivity AMP Connectors | Buchanan | Bulk | Active | -40°C ~ 110°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | 282959 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 50 | 0.295" (7.50mm) | Phosphor Bronze | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 7 | 0.610" (15.49mm) | 12-30 AWG | 0.05-2mm² | M3 | 7 | 1 | - | 180° | - | 15 A | 300 V | Tin | 0.79 Nm (7.0 Lb-In) | 6-7.5mm | - |
