Headers, Plugs and Sockets(86784)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Color | Ingress Protection | Termination Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Contact Material | Housing Material | Material Flammability Rating | Number of Positions | Insulation Height | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Screw Size | Positions Per Level | Number of Levels | Header Orientation | Plug Wire Entry | Current - IEC | Current - UL | Voltage - UL | Contact Mating Finish | Torque - Screw | Wire Strip Length | Contact Tail Length | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

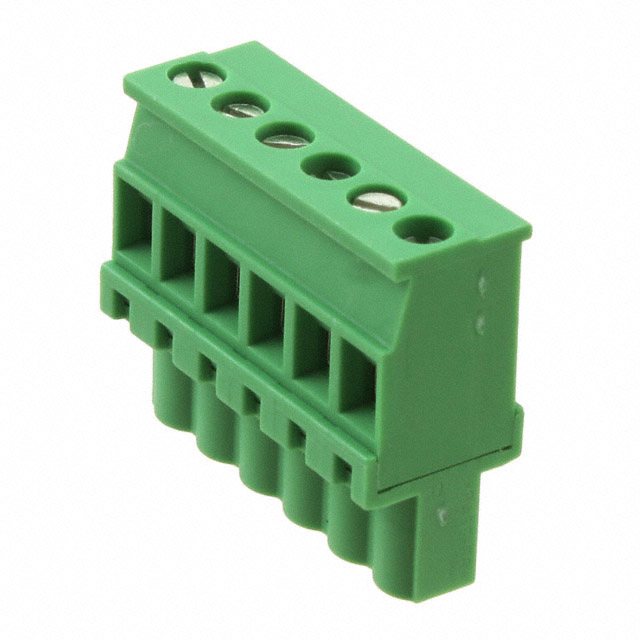

1792799 | 6.7100 |  |
1 | 0.00000000 | Phoenix Contact | COMBICON MVSTBW | Bulk | Active | - | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | Green | - | Screw - Rising Cage Clamp | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 50 | 0.200" (5.08mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 6 | 1.024" (26.01mm) | 12-30 AWG | 0.2-2.5mm² | M3 | 6 | 1 | - | 270° | 12A | 15 A | 300 V | Tin | 0.5-0.6 Nm (4.4-5.3 Lb-In) | 7mm | - | 630 V | ||||
 |
1690420000 | 2.8100 | |
97 | 0.00000000 | Weidmüller | Omnimate BL | Bulk | Active | -50°C ~ 100°C | Free Hanging (In-Line) | Plug, Female Sockets | - | Black | IP20 | Screwless - Spring Cage, Tension Clamp | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 100 | 0.138" (3.50mm) | Copper Alloy | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 | 0.512" (13.00mm) | 14-26 AWG | 0.2-1.5mm² | - | 2 | 1 | - | 180° | 14.5A | 10 A | 300 V | Tin | - | 10mm | - | 320 V | |||
 |
1643120000 | - | |
8792 | 0.00000000 | Weidmüller | Omnimate SL | Bulk | Obsolete | -20°C ~ 100°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating and Mounting Flange | Black | - | Solder | - | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | 0.138" (3.50mm) | Copper Alloy | Polybutylene Terephthalate (PBT) | UL94 V-0 | 12 | 0.866" (22.00mm) | - | - | - | 6 | 2 | 90°, Right Angle | - | 8A | 10 A | 300 V | Tin | - | - | 0.177" (4.50mm) | 125 V | ||||
|
1762868 | 23.8664 | |
4233 | 0.00000000 | Phoenix Contact | COMBICON MDSTB | Bulk | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | 0.197" (5.00mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 38 | 1.122" (28.50mm) | - | - | - | 19 | 2 | 90°, Right Angle | - | 10A | 15 A | 300 V | Tin | - | - | 0.138" (3.50mm) | 630 V | ||||
 |
1826995 | 4.7900 | |
1 | 0.00000000 | Phoenix Contact | COMBICON MCVW | Bulk | Active | - | Free Hanging (In-Line) | Plug, Female Sockets | - | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 250 | 0.150" (3.81mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 4 | 0.752" (19.10mm) | 14-30 AWG | 0.14-1.5mm² | M2 | 4 | 1 | - | 270° | 8A | 8 A | 300 V | Tin | 0.22-0.25 Nm (1.9-2.2 Lb-In) | 7mm | - | 320 V | |||
|
1637890000 | - | |
3538 | 0.00000000 | Weidmüller | Omnimate BL | Bulk | Obsolete | -50°C ~ 100°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | Black | IP20 | Screw - Clamping Yoke (Tension Sleeve) | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 36 | 0.197" (5.00mm) | Copper Alloy | Polybutylene Terephthalate (PBT) | UL94 V-0 | 10 | 1.059" (26.90mm) | 12-26 AWG | 0.5-2.5mm² | M2.5 | 10 | 1 | - | 270° | 15A | 10 A | 300 V | Tin | 0.4-0.5 Nm (3.5-4.4 Lb-In) | 7mm | - | 400 V | |||
 |
1642870000 | 3.4456 | |
1347 | 0.00000000 | Weidmüller | Omnimate SL | Bulk | Active | -20°C ~ 100°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Black | - | Solder | - | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | 0.138" (3.50mm) | Copper Alloy | Polybutylene Terephthalate (PBT) | UL94 V-0 | 8 | 0.866" (22.00mm) | - | - | - | 4 | 2 | 90°, Right Angle | - | 8A | 10 A | 300 V | Tin | - | - | 0.177" (4.50mm) | 125 V | |||
|
TT0941500000G | 0.9040 | |
7844 | 0.00000000 | Amphenol Anytek | TT | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | TT09 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1,980 | 0.150" (3.81mm) | Phosphor Bronze | Thermoplastic | UL94 V-0 | 9 | 0.441" (11.20mm) | 16-28 AWG | - | M2 | 9 | 1 | - | 90° | - | 10 A | 300 V | Tin | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | |||
|
0395305516 | 8.0959 | |
5456 | 0.00000000 | Molex | Eurostyle ESE 39530 | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | 039530 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 120 | 0.200" (5.08mm) | Copper Alloy | Polyamide (PA), Nylon | - | 16 | 0.591" (15.00mm) | 12-26 AWG | - | M3 | 16 | 1 | - | 180° | - | 15 A | 300 V | Gold | 0.56 Nm (5.0 Lb-In) | 5mm | - | ||||
|
TT0541500000G | 0.5389 | |
6400 | 0.00000000 | Amphenol Anytek | TT | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug for Unshrouded Header | Interlocking (Side) | TT05 | Green | - | Screw - Rising Cage Clamp | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1,920 | 0.150" (3.81mm) | Phosphor Bronze | Thermoplastic | UL94 V-0 | 5 | 0.441" (11.20mm) | 16-28 AWG | - | M2 | 5 | 1 | - | 90° | - | 10 A | 300 V | Tin | 0.2 Nm (1.7 Lb-In) | 5-6mm | - | |||
|
HN0650500000G | 1.3944 | |
3042 | 0.00000000 | Amphenol Anytek | HN | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | HN06 | Green | - | Screwless - Leg Spring, Push-In Spring | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1,980 | 0.200" (5.08mm) | Phosphor Bronze | Thermoplastic | UL94 V-0 | 6 | 0.598" (15.19mm) | 12-26 AWG | - | - | 6 | 1 | - | 180° | - | 10 A | 300 V | Tin | - | 9-10mm | - | |||
|
ET0902500000G | 3.2720 | |
7619 | 0.00000000 | Amphenol Anytek | ET | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | ET | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 2,000 | 0.300" (7.62mm) | Copper | Thermoplastic | UL94 V-0 | 9 | 0.902" (22.90mm) | 8-24 AWG | - | M3.5 | 9 | 1 | - | 180° | - | 41 A | 600 V | Tin | 0.79 Nm (7.0 Lb-In) | 10-11mm | - | |||
|
OSTTS07115C | 2.9039 | |
5333 | 0.00000000 | On Shore Technology Inc. | OSTTS | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | - | OSTTS07 | Green | - | Screw | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | 0.138" (3.50mm) | Brass | Brass | UL94 V-0 | 7 | - | 16-28 AWG | 1.5mm² | - | 7 | 1 | - | - | - | 300 V | - | 0.2 Nm (1.7 Lb-In) | 6-7mm | - | ||||
 |
691311700002 | 0.4400 | |
373 | 0.00000000 | Würth Elektronik | WR-TBL Series 3117 | Bulk | Active | -40°C ~ 105°C | Through Hole | Header, Male Pins, Shrouded (2 Side) | - | Green | - | Solder | download | ROHS3 Compliant | Not Applicable | REACH Affected | EAR99 | 8536.69.4040 | 600 | 0.197" (5.00mm) | Brass | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 | 0.472" (12.00mm) | - | - | - | 2 | 1 | Vertical | - | - | 20 A | 300 V | Tin | - | - | 0.157" (4.00mm) | ||||
|
OQ0771810000G | 0.3136 | |
1729 | 0.00000000 | Amphenol Anytek | OQ | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | OQ07 | Gray | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 3,220 | 0.197" (5.00mm) | Copper | Thermoplastic | UL94 V-0 | 7 | 0.335" (8.51mm) | - | - | - | 7 | 1 | 90°, Right Angle | - | - | 20 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
 |

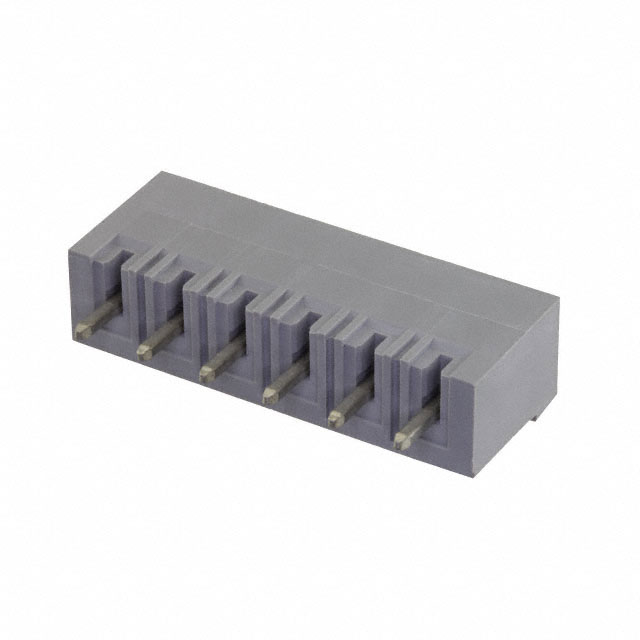

5433053 | 1.0500 | |
2713 | 0.00000000 | Phoenix Contact | BCH | Bulk | Active | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Gray | - | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 100 | 0.197" (5.00mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 6 | 0.472" (12.00mm) | - | - | - | 6 | 1 | Vertical | - | 12A | 15 A | 300 V | Tin | - | - | 0.154" (3.90mm) | 400 V | ||||
|
OQ0671000300G | 0.2727 | |
6259 | 0.00000000 | Amphenol Anytek | OQ | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | Locking Ramp | OQ06 | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 3,120 | 0.197" (5.00mm) | Copper | Thermoplastic | UL94 V-0 | 6 | 0.472" (12.00mm) | - | - | - | 6 | 1 | Vertical | - | - | 20 A | 300 V | Tin | - | - | 0.157" (4.00mm) | |||
 |
734-114 | 14.7400 | |
13 | 0.00000000 | WAGO Corporation | MCSMINI | Box | Active | -60°C ~ 100°C | Free Hanging (In-Line) | Plug, Female Sockets | Retention Latches (Non-Wire Side) | Gray | - | Screwless - Leg Spring, Push-In Spring | download | ROHS3 Compliant | Not Applicable | EAR99 | 8536.90.4000 | 1 | 0.138" (3.50mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 14 | 0.528" (13.40mm) | 14-28 AWG | 0.08-1.5mm² | - | 14 | 1 | - | 180° | 10A | 10 A | 300 V | Tin | - | 6-7mm | - | 320 V | ||||
 |
OQ0454510000G | 0.6900 | |
2 | 0.00000000 | Amphenol Anytek | 06-508 | Bulk | Active | -40°C ~ 115°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | OQ04 | Green | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 2,100 | 0.200" (5.08mm) | Copper Alloy | Thermoplastic Resin | UL94 V-0 | 4 | 0.335" (8.51mm) | - | - | - | 4 | 1 | 90°, Right Angle | - | - | 12 A | 300 V | Tin | - | - | 0.138" (3.50mm) | |||
 |
31166106-09 | 4.3700 | |
490 | 0.00000000 | METZ CONNECT USA Inc. | - | Bulk | Active | -40°C ~ 105°C | Free Hanging (In-Line) | Plug for Unshrouded Header | - | Black | - | Screw - Leaf Spring, Wire Guard | - | RoHS Compliant | Not Applicable | REACH Unaffected | 1849-1333 | EAR99 | 8536.69.8000 | 100 | 0.138" (3.50mm) | Copper Alloy | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 6 | 0.394" (10.00mm) | 16-28 AWG | 0.08-0.75mm² | M2 | 6 | 1 | - | 90° | - | 8 A | 125 V | - | 0.34 Nm (3.0 Lb-In) | - | - | |||
 |
31027103 | 0.8500 | |
1 | 0.00000000 | METZ CONNECT USA Inc. | - | Bulk | Active | -40°C ~ 105°C | Through Hole | Header, Male Pins, Unshrouded | - | Black | - | Solder | - | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | 1849-1311 | EAR99 | 8536.69.4040 | 1,000 | 0.197" (5.00mm) | - | - | - | 3 | 0.073" (1.85mm) | - | - | - | 3 | 1 | Vertical | - | - | 15 A | 300 V | - | - | - | 0.134" (3.40mm) | |||
|
1036290000 | - | |
4785 | 0.00000000 | Weidmüller | Omnimate SC | Bulk | Obsolete | - | Through Hole | Header, Male Pins, Shrouded (4 Side) | Mating Flange | Green | - | Solder | - | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | SCDV-THR 3.81/30/180F 1.5 GN | EAR99 | 8536.69.4040 | 20 | 0.150" (3.81mm) | - | - | - | 30 | 0.862" (21.89mm) | - | - | - | 15 | 2 | Vertical | - | - | - | - | - | 0.059" (1.50mm) | |||||
|
0399400321 | 17.6745 | |
7879 | 0.00000000 | Molex | EuroMate 39940 | Bulk | Active | -40°C ~ 90°C | Free Hanging (In-Line) | Plug, Barrier Strip | - | 039940 | Black | - | Screw with Captive Plate | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 10 | 0.200" (5.08mm) | Phosphor Bronze | Thermoplastic | - | 21 | 1.070" (27.18mm) | 12-22 AWG | 0.3-3.3mm² | M3.5 | 21 (Mate), 10,11 (Input) | 1 (Mate), 2 (Input) | - | 270° | - | 15 A | 300 V | Tin | 0.79 Nm (7.0 Lb-In) | 6.4mm | - | ||||
|
0395224006 | 0.9882 | |
9584 | 0.00000000 | Molex | Eurostyle ESE 39522 | Bulk | Active | -40°C ~ 140°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | 039522 | Black | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 480 | 0.197" (5.00mm) | Brass | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | 6 | 0.330" (8.38mm) | - | - | - | 6 | 1 | 90°, Right Angle | - | - | 15 A | 300 V | Tin | - | - | 0.170" (4.32mm) | |||
 |

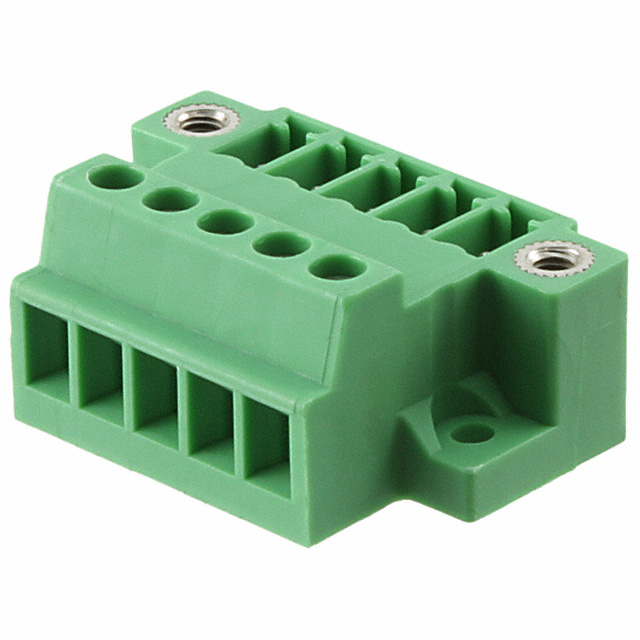

1833056 | 11.5000 | |
11 | 0.00000000 | Phoenix Contact | COMBICON MCVU | Bulk | Active | - | Board Mount | Receptacle, Male Pins | Mating and Mounting Flange | Green | - | Screw - Rising Cage Clamp | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | 0.150" (3.81mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 5 | 0.492" (12.50mm) | 14-30 AWG | 0.14-1.5mm² | M2 | 5 | 1 | - | - | 8A | 8 A | 300 V | Tin | 0.22-0.25 Nm (1.9-2.2 Lb-In) | 7mm | - | 320 V | ||||
|
1889010000 | - | |
2727 | 0.00000000 | Weidmüller | * | Bulk | Obsolete | - | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 30 | |||||||||||||||||||||||||||||||
 |
1625250000 | 0.7851 | |
2379 | 0.00000000 | Weidmüller | Omnimate SL | Bulk | Active | -50°C ~ 100°C | Through Hole | Header, Male Pins, Shrouded (4 Side) | - | Orange | - | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | 0.300" (7.62mm) | Copper Alloy | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 | 0.472" (12.00mm) | - | - | - | 2 | 1 | Vertical | - | 18.5A | 15 A | 300 V | Tin | - | - | 0.126" (3.20mm) | 800 V | |||
|
OSTOQ173250 | 1.7215 | |
8270 | 0.00000000 | On Shore Technology Inc. | OSTOQ | Bulk | Active | -30°C ~ 105°C | Solder | Header, Male Pins, Shrouded (4 Side) | - | OSTOQ17 | - | - | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.150" (3.81mm) | Brass | Thermoplastic | - | 17 | 0.138" (3.50mm) | - | - | - | 17 | 1 | Vertical | - | - | 300 V | Tin | - | - | 0.138" (3.50mm) | ||||
|
HW1470800000G | 2.3398 | |
2215 | 0.00000000 | Amphenol Anytek | HW | Bulk | Active | -40°C ~ 115°C | Free Hanging (In-Line) | Plug, Female Sockets | - | HW14 | Gray | - | Screwless - Leg Spring, Push-In Spring | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 3,000 | 0.197" (5.00mm) | Phosphor Bronze | Thermoplastic | UL94 V-0 | 14 | 0.591" (15.00mm) | 12-26 AWG | - | - | 14 | 1 | - | 180° | - | 10 A | 300 V | Tin | - | 8-9mm | - | |||
|
5443030 | - | |
2808 | 0.00000000 | Phoenix Contact | BCDH | Bulk | Obsolete | - | Through Hole | Header, Male Pins, Shrouded (2 Side) | Interlocking (Side) | Green | - | Solder | download | RoHS Compliant | 1 (Unlimited) | BCDH-500H- 7 GN | EAR99 | 8536.69.4040 | 100 | 0.197" (5.00mm) | - | Polyamide (PA), Nylon | UL94 V-0 | 14 | 0.933" (23.70mm) | - | - | - | 7 | 2 | 90°, Right Angle | - | 10A | 12 A | 300 V | Tin | - | - | 0.126" (3.20mm) | 400 V |
