Headers, Plugs and Sockets(86764)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Type Features Base Product Number Color Ingress Protection Termination Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status ECCN HTSUS Standard Package Pitch Contact Material Housing Material Material Flammability Rating Number of Positions Insulation Height Wire Gauge or Range - AWG Wire Gauge or Range - mm² Screw Size Positions Per Level Number of Levels Header Orientation Plug Wire Entry Current - IEC Current - UL Voltage - UL Contact Mating Finish Torque - Screw Wire Strip Length Contact Tail Length
0395250003 Molex 0395250003 0.4265
RFQ
 ECAD 9642 0.00000000 Molex Eurostyle ESE 39525 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (4 Side) Mating Flange 039525 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 480 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 3 0.470" (11.94mm) - - - 3 1 Vertical - - 15 A 300 V Tin - - 0.150" (3.81mm)
0395260006 Molex 0395260006 0.9782
RFQ
 ECAD 6374 0.00000000 Molex Eurostyle ESE 39526 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (4 Side) Mating Flange 039526 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 320 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 6 0.330" (8.38mm) - - - 6 1 90°, Right Angle - - 15 A 300 V Tin - - 0.150" (3.81mm)
0395260015 Molex 0395260015 2.7437
RFQ
 ECAD 4100 0.00000000 Molex Eurostyle ESE 39526 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (4 Side) Mating Flange 039526 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 120 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 15 0.330" (8.38mm) - - - 15 1 90°, Right Angle - - 15 A 300 V Tin - - 0.150" (3.81mm)
0395272006 Molex 0395272006 2.1800
RFQ
 ECAD 5892 0.00000000 Molex Eurostyle ESE 39527 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange, Retention Latches (Non-Wire Side) 039527 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 320 0.197" (5.00mm) Copper Alloy Polyamide (PA66), Nylon 6/6 UL94 V-0 6 1.020" (25.91mm) 12-26 AWG - M3 6 1 - 270° - 10 A 300 V Tin 0.34 Nm (3.0 Lb-In) 5mm -
0395273012 Molex 0395273012 4.8329
RFQ
 ECAD 7564 0.00000000 Molex Eurostyle ESE 39527 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange, Retention Latches (Wire Side) 039527 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 160 0.197" (5.00mm) Phosphor Bronze Polyamide (PA66), Nylon 6/6 UL94 V-0 12 1.020" (25.91mm) 12-26 AWG - - 12 1 - 90° - 10 A 300 V Tin 0.34 Nm (3.0 Lb-In) 5mm -
0395277322 Molex 0395277322 6.6496
RFQ
 ECAD 9296 0.00000000 Molex Eurostyle ESE 39527 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange, Positions Stamped, Retention Latches (Non-Wire Side) 039527 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 80 0.197" (5.00mm) Copper Alloy Polyamide (PA66), Nylon 6/6 UL94 V-0 22 1.020" (25.91mm) 12-26 AWG - M3 22 1 - 270° - 10 A 300 V Tin 0.34 Nm (3.0 Lb-In) 5mm -
0395278002 Molex 0395278002 1.4600
RFQ
 ECAD 1 0.00000000 Molex Eurostyle ESE 39527 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) Plug, Female Sockets Mating Flange, Retention Latches (Wire Side) 039527 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 720 0.197" (5.00mm) Phosphor Bronze Polyamide (PA66), Nylon 6/6 UL94 V-0 2 1.020" (25.91mm) 12-26 AWG - - 2 1 - 90° - 10 A 300 V Tin 0.34 Nm (3.0 Lb-In) 5mm -
0395280008 Molex 0395280008 1.1865
RFQ
 ECAD 2348 0.00000000 Molex Eurostyle ESE 39528 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (2 Side) Interlocking (Side) 039528 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 330 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 8 0.930" (23.62mm) - - - 4 2 90°, Right Angle - - 15 A 300 V Tin - - 0.138" (3.50mm)
0395281004 Molex 0395281004 0.5294
RFQ
 ECAD 8023 0.00000000 Molex Eurostyle ESE 39528 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (4 Side) - 039528 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 600 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 4 0.930" (23.62mm) - - - 2 2 90°, Right Angle - - 15 A 300 V Tin - - 0.138" (3.50mm)
0395281010 Molex 0395281010 1.4387
RFQ
 ECAD 3082 0.00000000 Molex Eurostyle ESE 39528 Bulk Active -40°C ~ 105°C Through Hole Header, Male Pins, Shrouded (4 Side) - 039528 Black - Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 240 0.197" (5.00mm) Brass Polyamide (PA66), Nylon 6/6 UL94 V-0 10 0.930" (23.62mm) - - - 5 2 90°, Right Angle - - 15 A 300 V Tin - - 0.138" (3.50mm)
0395300007 Molex 0395300007 4.9900
RFQ
 ECAD 13 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.8000 360 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 7 0.591" (15.00mm) 12-26 AWG - M3 7 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300024 Molex 0395300024 8.3566
RFQ
 ECAD 7755 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.8000 80 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 24 0.591" (15.00mm) 12-26 AWG - M3 24 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300108 Molex 0395300108 2.8751
RFQ
 ECAD 3609 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 320 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 8 0.591" (15.00mm) 12-26 AWG - M3 8 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300123 Molex 0395300123 9.1719
RFQ
 ECAD 4391 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 80 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 23 0.591" (15.00mm) 12-26 AWG - M3 23 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300216 Molex 0395300216 6.4203
RFQ
 ECAD 2066 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 16 0.591" (15.00mm) 12-26 AWG - M3 16 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300218 Molex 0395300218 6.9299
RFQ
 ECAD 1591 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 18 0.591" (15.00mm) 12-26 AWG - M3 18 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300219 Molex 0395300219 7.3545
RFQ
 ECAD 5065 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 19 0.591" (15.00mm) 12-26 AWG - M3 19 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300221 Molex 0395300221 8.1188
RFQ
 ECAD 3958 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 80 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 21 0.591" (15.00mm) 12-26 AWG - M3 21 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395300518 Molex 0395300518 9.1014
RFQ
 ECAD 1221 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 18 0.591" (15.00mm) 12-26 AWG - M3 18 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300520 Molex 0395300520 10.1067
RFQ
 ECAD 4867 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 20 0.591" (15.00mm) 12-26 AWG - M3 20 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300521 Molex 0395300521 10.2079
RFQ
 ECAD 6726 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 80 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 21 0.591" (15.00mm) 12-26 AWG - M3 21 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300606 Molex 0395300606 2.9699
RFQ
 ECAD 1391 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 360 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 6 0.591" (15.00mm) 12-26 AWG - M3 6 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300618 Molex 0395300618 9.9304
RFQ
 ECAD 6350 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 18 0.591" (15.00mm) 12-26 AWG - M3 18 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300720 Molex 0395300720 10.6326
RFQ
 ECAD 4643 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 20 0.591" (15.00mm) 12-26 AWG - M3 20 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395300724 Molex 0395300724 12.6368
RFQ
 ECAD 3986 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Black - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 80 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 24 0.591" (15.00mm) 12-26 AWG - M3 24 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -

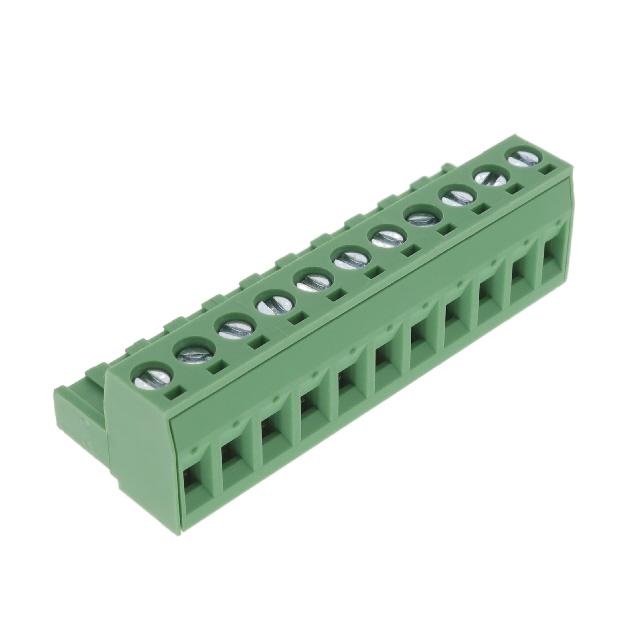

0395305011 Molex 0395305011 4.8900
RFQ
 ECAD 299 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 240 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 11 0.591" (15.00mm) 12-26 AWG - M3 11 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395305114 Molex 0395305114 9.5600
RFQ
 ECAD 364 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Positions Stamped, Retention Latches (Non-Wire Side) 039530 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 48 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 14 0.591" (15.00mm) 12-26 AWG - M3 14 1 - 180° - 15 A 300 V Tin 0.56 Nm (5.0 Lb-In) 5mm -
0395305502 Molex 0395305502 0.8493
RFQ
 ECAD 2882 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 1,240 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 2 0.591" (15.00mm) 12-26 AWG - M3 2 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395305503 Molex 0395305503 1.2816
RFQ
 ECAD 1877 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 840 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 3 0.591" (15.00mm) 12-26 AWG - M3 3 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
0395305516 Molex 0395305516 8.0959
RFQ
 ECAD 5456 0.00000000 Molex Eurostyle ESE 39530 Bulk Active -40°C ~ 115°C Free Hanging (In-Line) Plug, Female Sockets Retention Latches (Non-Wire Side) 039530 Green - Screw - Rising Cage Clamp download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 120 0.200" (5.08mm) Copper Alloy Polyamide (PA), Nylon - 16 0.591" (15.00mm) 12-26 AWG - M3 16 1 - 180° - 15 A 300 V Gold 0.56 Nm (5.0 Lb-In) 5mm -
