Rectangular Connectors(1164373)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating)
PZC15SFEN Sullins Connector Solutions PZC15SFEN -
RFQ
 ECAD 9209 0.00000000 Sullins Connector Solutions - Bulk Obsolete - - Through Hole - PZC15 Solder - Board to Board or Cable download RoHS non-compliant Not Applicable REACH Unaffected S1251-15 EAR99 8536.69.4040 1 Header 1 3A Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 15 - All Unshrouded Push-Pull 0.318" (8.08mm) 0.520" (13.21mm) 0.938" (23.83mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Thermoplastic, Polyester Black - - 100.0µin (2.54µm)
MTSW-120-07-F-S-165 Samtec Inc. MTSW-120-07-F-S-165 2.6100
RFQ
 ECAD 3344 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-120 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 20 - All Unshrouded Push-Pull 0.165" (4.20mm) 0.165" (4.19mm) 0.430" (10.92mm) 0.100" (2.54mm) Square Gold 3.00µin (0.076µm) Tin Polyester, Glass Filled Black - - -
MTSW-107-11-G-D-740 Samtec Inc. MTSW-107-11-G-D-740 2.9300
RFQ
 ECAD 9093 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-107 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 14 0.100" (2.54mm) All Unshrouded Push-Pull 0.740" (18.80mm) 0.090" (2.29mm) 0.930" (23.62mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Gold Polyester, Glass Filled Black - - 3.00µin (0.076µm)
1-316130-5 TE Connectivity AMP Connectors 1-316130-5 2.1100
RFQ
 ECAD 5 0.00000000 TE Connectivity AMP Connectors Dynamic D-3200 Bulk Active -55°C ~ 105°C General Purpose, Industrial Through Hole, Right Angle Board Lock 316130 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) Vendor Undefined EAR99 8536.69.4040 14 Header 1 - Copper Alloy UL94 V-0 Tab 0.200" (5.08mm) 5 - All Shrouded - 4 Wall Detent Lock - 0.150" (3.81mm) - 0.368" (9.35mm) Rectangular Tin 78.7µin (2.00µm) Tin Thermoplastic, Polyester, Glass Filled Black 600V - -
DW-07-15-T-S-396 Samtec Inc. DW-07-15-T-S-396 0.8800
RFQ
 ECAD 1019 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-07-15 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 7 0.630" (16.002mm) 0.124" (3.150mm) 0.396" (10.058mm) 0.110" (2.794mm) Tin -
SSW-111-22-S-Q Samtec Inc. SSW-111-22-S-Q -
RFQ
 ECAD 4981 0.00000000 Samtec Inc. SSW Bulk Active -55°C ~ 125°C - Through Hole - SSW-111 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 3 4.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 33 0.100" (2.54mm) 22 Push-Pull 0.194" (4.93mm) 0.335" (8.51mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
BBS-131-T-A Samtec Inc. BBS-131-T-A -
RFQ
 ECAD 5456 0.00000000 Samtec Inc. BBS Bulk Discontinued at SIC -55°C ~ 125°C - Through Hole - BBS-131 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected SAM1005-31 EAR99 8536.69.4040 1 Header 1 - - - Male Pin 0.100" (2.54mm) 31 - All Unshrouded Push-Pull 0.125" (3.18mm) 0.125" (3.18mm) 0.460" (11.68mm) 0.211" (5.35mm) Circular Tin - Nickel Polyester, Glass Filled Black - - 50.0µin (1.27µm)
DW-25-10-T-D-225 Samtec Inc. DW-25-10-T-D-225 -
RFQ
 ECAD 7332 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-25-10 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 50 0.830" (21.082mm) 0.495" (12.573mm) 0.225" (5.715mm) 0.110" (2.794mm) Tin -
MTSW-107-09-F-D-061 Samtec Inc. MTSW-107-09-F-D-061 -
RFQ
 ECAD 9020 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-107 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 14 0.100" (2.54mm) All Unshrouded Push-Pull 0.061" (1.55mm) 0.569" (14.45mm) 0.730" (18.54mm) 0.100" (2.54mm) Square Gold 3.00µin (0.076µm) Tin Polyester, Glass Filled Black - - -
MTLW-113-07-G-S-277 Samtec Inc. MTLW-113-07-G-S-277 3.4100
RFQ
 ECAD 5539 0.00000000 Samtec Inc. Flex Stack, MTLW Bulk Active -55°C ~ 125°C - Through Hole - MTLW-113 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 5.2A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 13 - All Unshrouded Push-Pull 0.277" (7.04mm) 0.093" (2.35mm) 0.430" (10.92mm) 0.060" (1.52mm) Square Gold 10.0µin (0.25µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
6-87348-0 TE Connectivity AMP Connectors 6-87348-0 1.2624
RFQ
 ECAD 4279 0.00000000 TE Connectivity AMP Connectors AMPMODU Mod II Bulk Active - - Through Hole - 87348 Solder - Board to Board or Cable download RoHS Compliant 1 (Unlimited) 2266-6-87348-0 EAR99 8536.69.4040 200 Header 1 - Phosphor Bronze - Male Pin 0.100" (2.54mm) 10 - All Unshrouded Push-Pull 0.318" (8.08mm) 0.125" (3.18mm) - 0.090" (2.29mm) Square Tin 100.0µin (2.54µm) Tin - Black - - 100.0µin (2.54µm)
FW-43-05-L-D-400-120 Samtec Inc. FW-43-05-L-D-400-120 -
RFQ
 ECAD 2231 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Surface Mount FW-43-05 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 86 0.520" (13.208mm) 0.120" (3.048mm) 0.400" (10.160mm) - Gold 10.0µin (0.25µm)
3-644762-8 TE Connectivity AMP Connectors 3-644762-8 -
RFQ
 ECAD 1781 0.00000000 TE Connectivity AMP Connectors MTA-156 Bulk Obsolete -55°C ~ 105°C General Purpose, Industrial Through Hole, Right Angle - 644762 Solder - Board to Cable/Wire download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 Header 1 Varies by Wire Gauge Copper Alloy UL94 V-0 Male Pin 0.156" (3.96mm) 8 - All Shrouded - 1 Wall Friction Lock 0.400" (10.16mm) 0.175" (4.45mm) - 0.300" (7.62mm) Square Gold 30.0µin (0.76µm) Tin Thermoplastic, Glass Filled Natural 600VAC - -
PZC24DFEN Sullins Connector Solutions PZC24DFEN -
RFQ
 ECAD 4985 0.00000000 Sullins Connector Solutions - Bulk Obsolete - - Through Hole - PZC24 Solder - Board to Board or Cable download RoHS non-compliant Not Applicable REACH Unaffected S2251-24 EAR99 8536.69.4040 1 Header 2 3A Copper Alloy UL94 V-0 Male Pin 0.100" (2.54mm) 48 0.100" (2.54mm) All Unshrouded Push-Pull 0.318" (8.08mm) 0.520" (13.21mm) 0.938" (23.83mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Thermoplastic, Polyester Black - - 100.0µin (2.54µm)

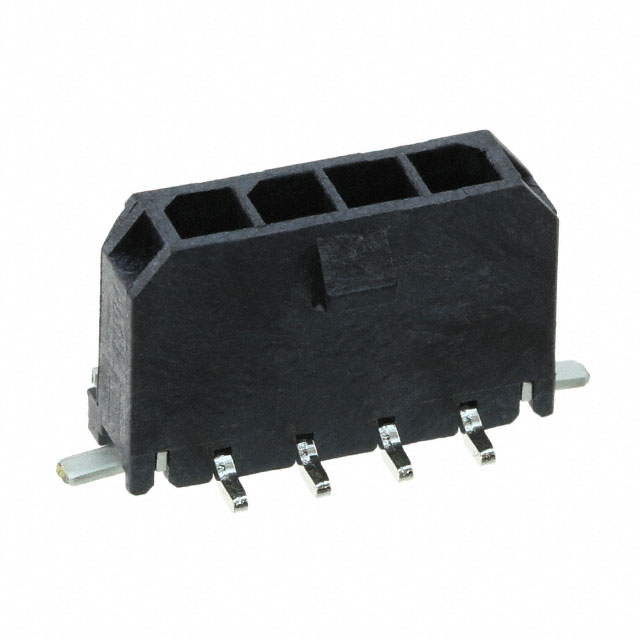

0436500424 Molex 0436500424 3.0500
RFQ
 ECAD 27 0.00000000 Molex Micro-Fit 3.0 43650 Tape & Reel (TR) Active - General Purpose, Medical, Military, Telecommunications Surface Mount Solder Retention 043650 Solder - Board to Cable/Wire download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 200 Header 1 - Brass UL94 V-0 Male Pin 0.118" (3.00mm) 4 - All Shrouded - 4 Wall Locking Ramp - - - 0.390" (9.91mm) Square Tin 100.0µin (2.54µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black - 17.56mm -
HLE-116-02-S-DV-A-K-TR Samtec Inc. HLE-116-02-S-DV-A-K-TR 5.8237
RFQ
 ECAD 8161 0.00000000 Samtec Inc. HLE Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount Board Guide, Pick and Place HLE-116 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 700 Receptacle 2 4.1A per Contact Beryllium Copper - Female Socket 0.100" (2.54mm) 32 0.100" (2.54mm) All Push-Pull - 0.144" (3.66mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black 400VAC - -
MTSW-209-11-L-Q-225-RA Samtec Inc. MTSW-209-11-L-Q-225-RA -
RFQ
 ECAD 9605 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - MTSW-209 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 18 0.200" (5.08mm) All Unshrouded Push-Pull 0.225" (5.72mm) 0.090" (2.29mm) - 0.320" (8.13mm) Square Gold 10.0µin (0.25µm) Tin Polyester, Glass Filled Black - - -
ESQT-126-02-F-Q-310 Samtec Inc. ESQT-126-02-F-Q-310 -
RFQ
 ECAD 1502 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-126 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 4 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 104 0.079" (2.00mm) All Push-Pull 0.540" (13.72mm) 0.310" (7.87mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HW-04-09-T-D-393-SM Samtec Inc. HW-04-09-T-D-393-SM 1.3500
RFQ
 ECAD 9874 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Surface Mount HW-04-09 Black Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 8 0.665" (16.891mm) 0.272" (6.909mm) 0.393" (9.982mm) - Tin -
EW-05-13-L-D-630 Samtec Inc. EW-05-13-L-D-630 2.3700
RFQ
 ECAD 6944 0.00000000 Samtec Inc. Flex Stack, EW Bulk Active Through Hole EW-05-13 Black Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 10 1.230" (31.242mm) 0.270" (6.858mm) 0.630" (16.002mm) 0.330" (8.382mm) Gold 10.0µin (0.25µm)
DW-07-11-G-Q-200 Samtec Inc. DW-07-11-G-Q-200 -
RFQ
 ECAD 8064 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-07-11 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 3 0.100" (2.54mm) 14 0.930" (23.622mm) 0.620" (15.748mm) 0.200" (5.080mm) 0.110" (2.794mm) Gold 10.0µin (0.25µm)
TMM-134-01-L-D-RA-023 Samtec Inc. TMM-134-01-L-D-RA-023 -
RFQ
 ECAD 4437 0.00000000 Samtec Inc. TMM Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - TMM-134 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 68 0.079" (2.00mm) 67 Unshrouded Push-Pull 0.126" (3.20mm) 0.120" (3.05mm) - 0.155" (3.94mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MTMM-106-12-T-D-050 Samtec Inc. MTMM-106-12-T-D-050 -
RFQ
 ECAD 1360 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 105°C - Through Hole - MTMM-106 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 12 0.079" (2.00mm) All Unshrouded Push-Pull 0.050" (1.27mm) 0.614" (15.60mm) 0.059" (1.50mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MMS-111-02-F-SH-TR Samtec Inc. MMS-111-02-F-SH-TR -
RFQ
 ECAD 7294 0.00000000 Samtec Inc. MMS Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount, Right Angle - MMS-111 Solder - Board to Board or Cable - 1 (Unlimited) EAR99 8536.69.4040 125 Receptacle 1 3.9A per Contact Phosphor Bronze - Female Socket 0.079" (2.00mm) 11 - All Push-Pull - 0.085" (2.15mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
57202-S52-03A Amphenol ICC (FCI) 57202-S52-03A -
RFQ
 ECAD 4917 0.00000000 Amphenol ICC (FCI) Minitek® 2.00mm Tape & Reel (TR) Obsolete - - Surface Mount Pick and Place 57202 Solder - Board to Board download RoHS non-compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 750 Header 2 2A (AC/DC) Copper Alloy UL94 V-0 Male Pin 0.079" (2.00mm) 6 0.079" (2.00mm) All Unshrouded Push-Pull 0.157" (4.00mm) - - - Square Gold, GXT™ 15.0µin (0.38µm) Tin Thermoplastic Black 200V (AC/DC) - 78.7µin (2.00µm)
ESQT-132-02-M-S-309 Samtec Inc. ESQT-132-02-M-S-309 -
RFQ
 ECAD 2246 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-132 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 1 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 32 - All Push-Pull 0.541" (13.74mm) 0.309" (7.85mm) Square Gold 20.0µin (0.51µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HMTSW-108-08-TM-S-300 Samtec Inc. HMTSW-108-08-TM-S-300 -
RFQ
 ECAD 5716 0.00000000 Samtec Inc. Flex Stack, HMTSW Bulk Active -55°C ~ 105°C - Through Hole - HMTSW-108 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 8 - All Unshrouded Push-Pull 0.300" (7.62mm) 0.130" (3.30mm) 0.530" (13.46mm) 0.100" (2.54mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Natural - - -
HTSW-104-27-T-D Samtec Inc. HTSW-104-27-T-D -
RFQ
 ECAD 9252 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 105°C - Through Hole - HTSW-104 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 8 0.100" (2.54mm) All Unshrouded Push-Pull 0.230" (5.84mm) 1.000" (25.40mm) 1.330" (33.78mm) 0.100" (2.54mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Natural - - -
ESQT-118-03-L-Q-400 Samtec Inc. ESQT-118-03-L-Q-400 -
RFQ
 ECAD 5906 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-118 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 4 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 72 0.079" (2.00mm) All Push-Pull 0.058" (1.47mm) 0.400" (10.16mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TMM-132-01-TM-D-RA-004 Samtec Inc. TMM-132-01-TM-D-RA-004 -
RFQ
 ECAD 7400 0.00000000 Samtec Inc. TMM Bulk Active -55°C ~ 105°C - Through Hole, Right Angle - TMM-132 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 64 0.079" (2.00mm) 63 Unshrouded Push-Pull 0.126" (3.20mm) 0.120" (3.05mm) - 0.155" (3.94mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
