Rectangular Connectors(2778)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | Style | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Pin or Socket | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SM50B-SRDS-G-TF | - |  |
8427 | 0.00000000 | JST Sales America Inc. | SHD | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount, Right Angle | Pick and Place, Solder Retention | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,250 | Header | 2 | 1A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 50 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.217" (5.51mm) | Square | Gold | - | - | Polyamide (PA), Nylon, Glass Filled | Natural | 50V | - | - | |||||||||||||||||
 |

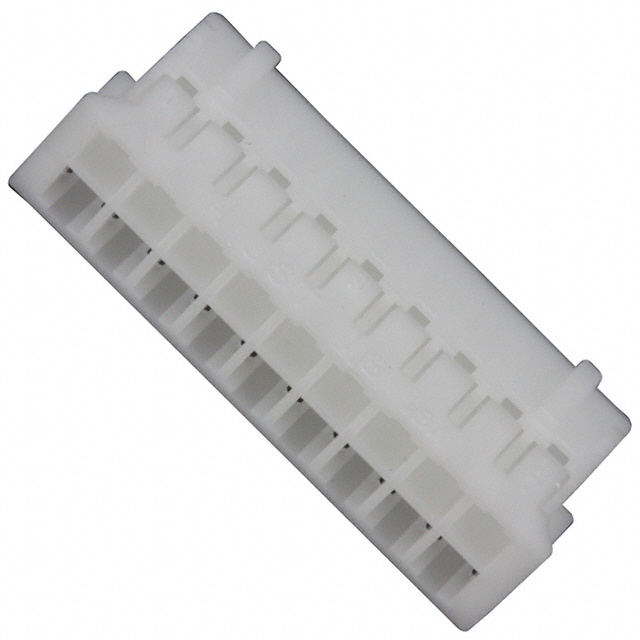

PHDR-18VS | 0.3900 | |
9 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PHDR-18V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Female Socket | 18 | - | Crimp | |||||||||||||||||||||||||||||||||||
 |

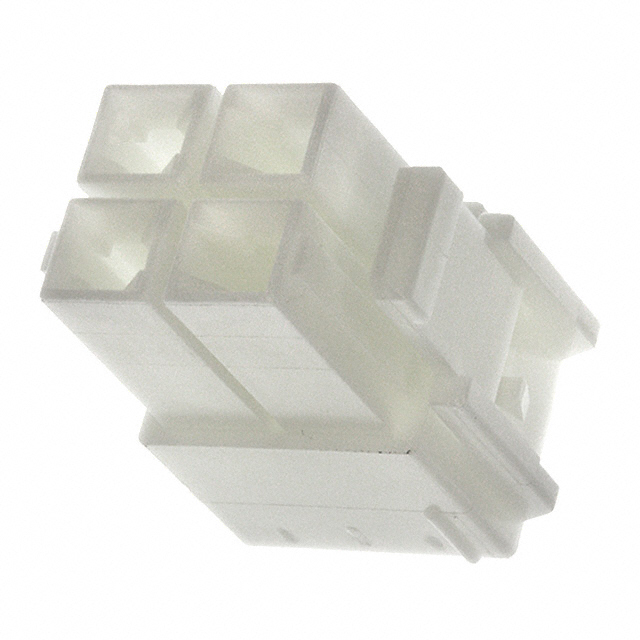

VLP-04V-1 | 0.5100 | |
2 | 0.00000000 | JST Sales America Inc. | VL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | VLP | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Plug | 0.244" (6.20mm) | 2 | - | Female Socket | 4 | Latch Lock | Polyamide (PA66), Nylon 6/6 | Crimp | ||||||||||||||||||||||||||||||||||
|
PHR-4-R | - | |
9400 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PHR | Red | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.079" (2.00mm) | 1 | - | Female Socket | 4 | Detent Lock | Crimp | |||||||||||||||||||||||||||||||||||
 |
B9PS-VH | - | |
4593 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1229 | EAR99 | 8536.69.4040 | 200 | Header | 1 | 10A | Brass | UL94 V-0 | Male Pin | 0.156" (3.96mm) | 9 | - | All | Shrouded - 1 Wall | Locking Ramp | 0.303" (7.70mm) | 0.142" (3.60mm) | - | 0.335" (8.51mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
 |
HLP-04V | 0.2500 | |
21 | 0.00000000 | JST Sales America Inc. | HL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | HLP | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Plug | 0.156" (3.96mm) | 2 | 0.156" (3.96mm) | Female Socket | 4 | Latch Lock | Crimp | |||||||||||||||||||||||||||||||||||
 |
B3P-VH-B(LF)(SN) | 0.2900 | |
5 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B3P-VH | Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 10A | Brass | UL94 V-0 | Male Pin | 0.156" (3.96mm) | 3 | - | All | Shrouded - 1 Wall | Locking Ramp | 0.303" (7.70mm) | 0.146" (3.70mm) | 0.575" (14.60mm) | 0.370" (9.40mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | - | - | ||||||||||||||||
|
BM16B-SURS-TF(LF)(SN) | 0.7377 | |
8156 | 0.00000000 | JST Sales America Inc. | SUR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM16B-SU | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 0.2A, 0.5A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.031" (0.80mm) | 16 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.106" (2.70mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 30V | 3.95mm | - | ||||||||||||||||
 |
S6P-VH(LF)(SN) | 0.6400 | |
1 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S6P-VH(L | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | (D)S6P-VH(LF)(SN)(P) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 10A | Brass | UL94 V-0 | Male Pin | 0.156" (3.96mm) | 6 | - | All | Shrouded - 1 Wall | Locking Ramp | 0.303" (7.70mm) | 0.142" (3.60mm) | - | 0.335" (8.51mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||||
 |
HLP-12V | 0.5300 | |
524 | 0.00000000 | JST Sales America Inc. | HL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | HLP | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Plug | 0.156" (3.96mm) | 2 | 0.156" (3.96mm) | Female Socket | 12 | Latch Lock | Polyamide (PA66), Nylon 6/6 | Crimp | ||||||||||||||||||||||||||||||||||
|
17SUR-32S | 0.9333 | |
5949 | 0.00000000 | JST Sales America Inc. | SUR | Bulk | Active | Free Hanging (In-Line) | Closed End | 17SUR | Natural | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 2,000 | Receptacle | 0.031" (0.80mm) | 1 | - | Tin | - | Female Socket | 17 | - | 32 AWG | IDC | Discrete | |||||||||||||||||||||||||||||||||
|
S12B-PH-KL(LF)(SN) | 0.3942 | |
1348 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S12B-PH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 12 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Gray | 100V | - | - | ||||||||||||||||
|
BM04B-ACHKS-A-GAN-TF (HF) | 0.4936 | |
9142 | 0.00000000 | JST Sales America Inc. | ACH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | BM04B-AC | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 4,500 | Header | 1 | 1.5A | Copper Alloy | UL94 V-0 | Male Blade | 0.047" (1.20mm) | 4 | - | All | Shrouded - 3 Wall | Detent Lock | - | - | - | 0.055" (1.40mm) | Rectangular | Gold | - | - | Thermoplastic | Black | 50V | - | - | ||||||||||||||||
 |

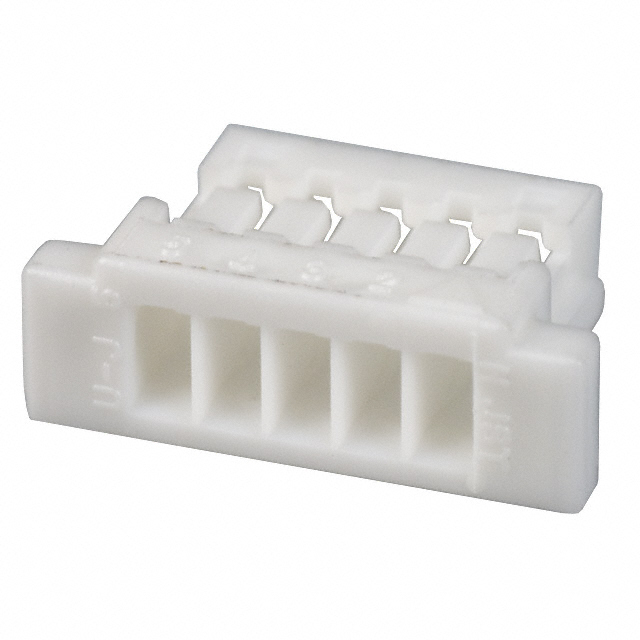

SHR-05V-S-B | 0.1800 | |
52 | 0.00000000 | JST Sales America Inc. | SH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | SHR-05V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 2,000 | Receptacle | 0.039" (1.00mm) | 1 | - | Female Socket | 5 | - | Crimp | |||||||||||||||||||||||||||||||||||
 |

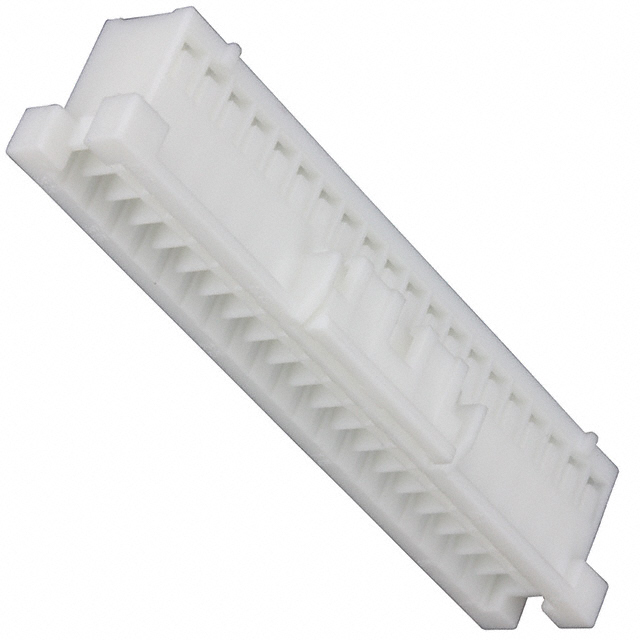

XADRP-40V | 0.4600 | |
1003 | 0.00000000 | JST Sales America Inc. | XAD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | XADR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 250 | Receptacle | 0.098" (2.50mm) | 2 | 0.098" (2.50mm) | Female Socket | 40 | Latch Lock | Crimp | |||||||||||||||||||||||||||||||||||
 |
S2B-EH(LF)(SN) | 0.1800 | |
68 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S2B-EH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 2 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
|
SXF-01T-P0.7 | 0.0438 | |
4013 | 0.00000000 | JST Sales America Inc. | XL | Tape & Reel (TR) | Active | - | SXF-01 | download | RoHS Compliant | 1 (Unlimited) | Q12302055 | EAR99 | 8536.90.4000 | 3,000 | - | - | - | Crimp | Socket | |||||||||||||||||||||||||||||||||||||||||
 |

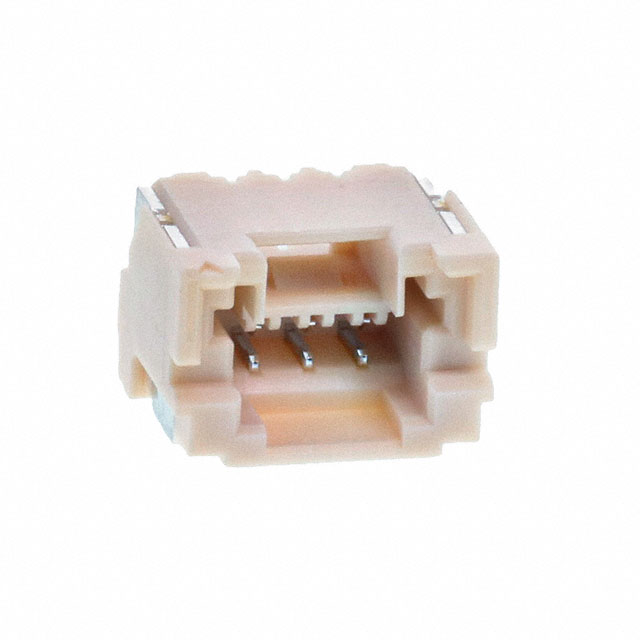

BM03B-ZESS-TBT(LF)(SN) | 0.7100 | |
24 | 0.00000000 | JST Sales America Inc. | ZE | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM03B-ZE | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 800 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 3 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.295" (7.50mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 100V | 9.4mm | - | ||||||||||||||||
 |

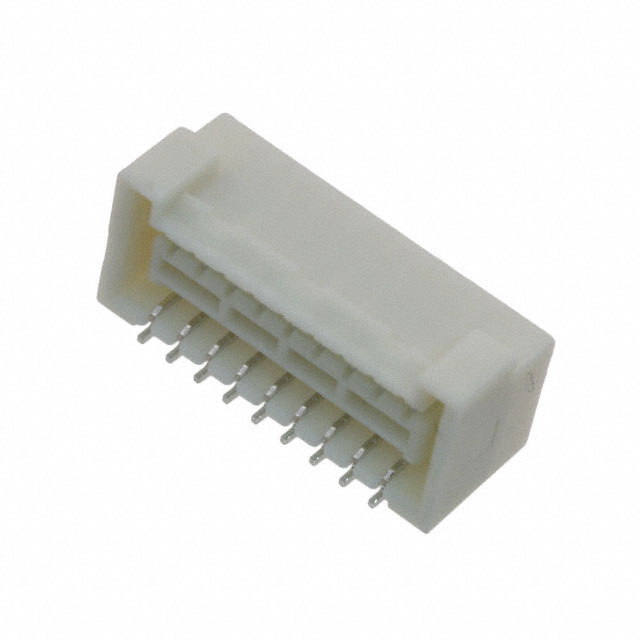

SM18B-ZPDSS-TF | 1.8000 | |
260 | 0.00000000 | JST Sales America Inc. | ZPD | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | - | SM18B-ZP | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 700 | Header | 2 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 18 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.309" (7.85mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 100V | - | - | ||||||||||||||||
 |

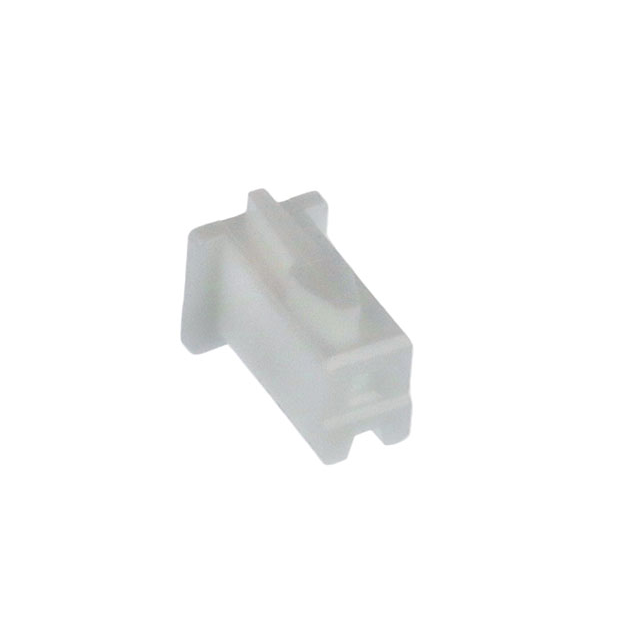

XHP-1 | 0.2900 | |
20 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | XHP | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | - | 1 | - | Female Socket | 1 | - | Polyamide (PA6), Nylon 6 | Crimp | ||||||||||||||||||||||||||||||||||
|
B15B-PASK-1(LF)(SN) | 0.6422 | |
8542 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B15B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 455-1845 | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 15 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - | |||||||||||||||
 |

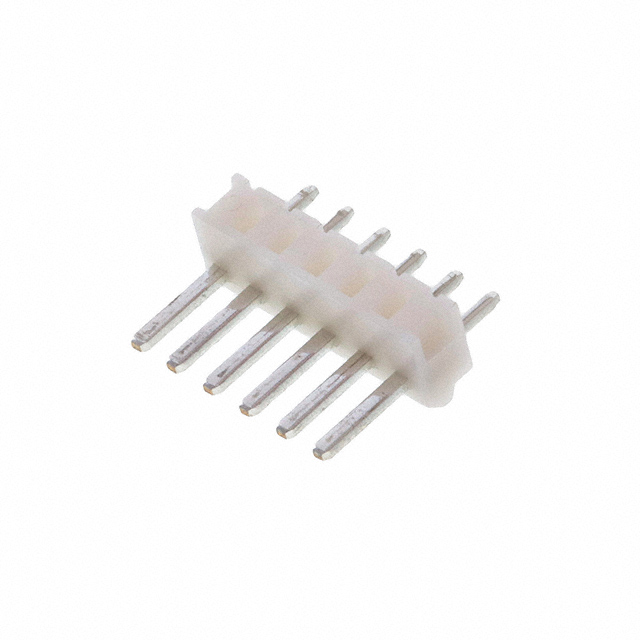

B6P-SHF-1AA(LF)(SN) | 0.4600 | |
9296 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B6P-SHF | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 6 | - | All | Unshrouded | Friction Lock | 0.236" (6.00mm) | 0.134" (3.40mm) | 0.496" (12.60mm) | 0.126" (3.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | 14.9mm | - | ||||||||||||||||
|
B15B-PASK-1 | - | |
6221 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | Board Guide | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1529 | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 15 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin-Lead | - | Tin-Lead | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - | ||||||||||||||||
 |
YLR-16V | 0.7700 | |
200 | 0.00000000 | JST Sales America Inc. | YL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | YLR | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | 455-3793 | EAR99 | 8538.90.6000 | 100 | Receptacle | 0.177" (4.50mm) | 2 | - | Male Pin | 16 | Latch Holder | Crimp | ||||||||||||||||||||||||||||||||||
 |

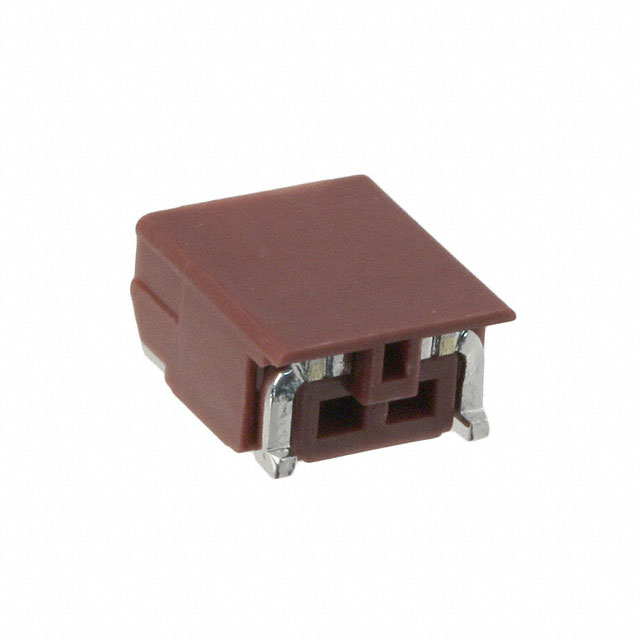

SM02B-SFHRS-TF(LF)(SN) | 0.6800 | |
39 | 0.00000000 | JST Sales America Inc. | SFH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM02B-SF | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,000 | Header | 1 | 4A | Copper Alloy | UL94 V-0 | Male Pin | 0.071" (1.80mm) | 2 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.118" (3.00mm) | Square | Tin | - | Tin | Thermoplastic | Red | 350V | - | - | ||||||||||||||||
|
S11B-ZR-SM2-TF(LF)(SN)(P) | 0.4378 | |
8003 | 0.00000000 | JST Sales America Inc. | ZH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Board Guide | S11B-ZR | Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 11 | - | All | Shrouded - 4 Wall | Detent Lock | 0.094" (2.40mm) | - | - | 0.146" (3.70mm) | Circular | Tin | - | Tin | Polyamide (PA46), Nylon 4/6, Glass Filled | Natural | 50V | - | - | ||||||||||||||||
 |

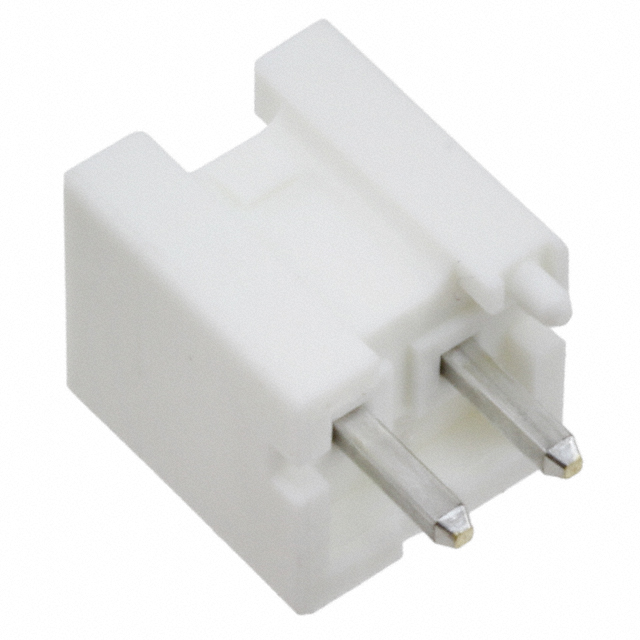

B2P-VH-FB-B(LF)(SN) | 0.2800 | |
84 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B2P-VH | Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 250 | Header | 1 | 10A | Copper Alloy | UL94 V-0 | Male Pin | 0.156" (3.96mm) | 2 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.146" (3.70mm) | - | 0.433" (11.00mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | - | - | |||||||||||||||
 |
60R-JMCS-G-B-TF(NSA) | - | |
9433 | 0.00000000 | JST Sales America Inc. | JMC | Tape & Reel (TR) | Obsolete | Surface Mount | Board Guide | 60R-JMCS | 0.091" (2.30mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Receptacle, Center Strip Contacts | 0.020" (0.50mm) | 2 | Gold | - | 60 | - | ||||||||||||||||||||||||||||||||||||||
|
BM06B-XASS-TF | - | |
5782 | 0.00000000 | JST Sales America Inc. | XA | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount | Solder Retention | Solder | - | Board to Cable/Wire | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 6 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.370" (9.40mm) | Circular | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon | Natural | 250V | 11.9mm | - | |||||||||||||||||
 |
PNIRP-05V-S | 0.1800 | |
2 | 0.00000000 | JST Sales America Inc. | PNI | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PNIRP-05 | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Socket | 0.079" (2.00mm) | 1 | - | Female Socket | 5 | Latch Holder | Crimp |
