Rectangular Connectors(2778)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B10B-PH-SM3-TB | - |  |
5177 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount | Solder Retention | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA46), Nylon 4/6 | Natural | 100V | 8.6mm | - | ||||||||||||||
 |
BM04B-GHS-TBT(LF)(SN)(N) | 0.5000 | |
35 | 0.00000000 | JST Sales America Inc. | GH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM04B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 4 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.159" (4.05mm) | Rectangular | Tin | - | Tin | Polyamide (PA9T), Nylon 9T | Natural | 50V | 7.3mm | - | ||||||||||||
 |
S3B-PH-K-S(LF)(SN) | 0.1900 | |
243 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S3B-PH-K | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 3 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | - | - | |||||||||||||
 |
BM40B-GHDS-G-TF(LF)(SN) | 1.5913 | |
5996 | 0.00000000 | JST Sales America Inc. | GHD | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM40B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,250 | Header | 2 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 40 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.197" (5.00mm) | - | Gold | - | - | Polybutylene Terephthalate (PBT) | Natural | 50V | 8.5mm | - | |||||||||||||
 |
PNIRR-05V | 0.4200 | |
2357 | 0.00000000 | JST Sales America Inc. | PNI | Bulk | Active | -25°C ~ 85°C | Panel Mount | Panel Lock | PNIRR-05 | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.079" (2.00mm) | 1 | - | Male Pin | 5 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||
|
BS8P-SHF-1AA(LF)(SN) | 0.4695 | |
5923 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | BS8P-SHF | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 8 | - | All | Unshrouded | Friction Lock | 0.217" (5.50mm) | 0.118" (3.00mm) | - | 0.220" (5.60mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||
 |

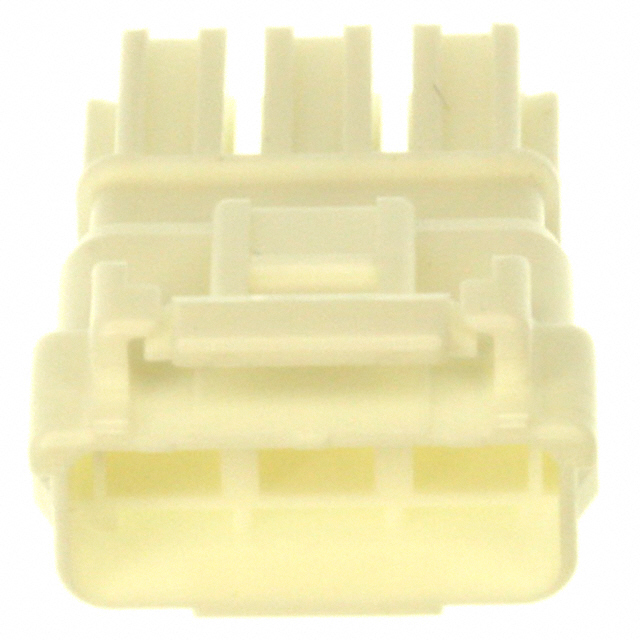

WPJR-03V-1-S(NN) | 0.1753 | |
9414 | 0.00000000 | JST Sales America Inc. | WPJ | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | WPJR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.197" (5.00mm) | 1 | - | Female Socket | 3 | Latch Lock | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | |||||||||||||||||||||||||||||||
 |

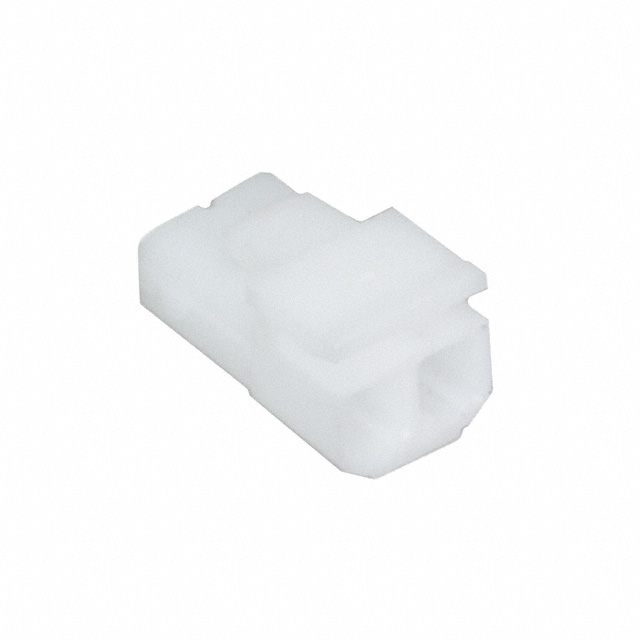

SFKR-02V-S | 0.2700 | |
56 | 0.00000000 | JST Sales America Inc. | SFK | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | SFKR-02V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 2,000 | Receptacle | 0.071" (1.80mm) | 1 | - | Female Socket | 2 | Latch Holder | Polyamide (PA66), Nylon 6/6 | Crimp | |||||||||||||||||||||||||||||||
 |
B11B-PASK(LF)(SN) | 0.5120 | |
3335 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B11B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 455-1826 | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 11 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - | ||||||||||||
 |
BM07B-SRSS-TBT(LF)(SN) | 1.0900 | |
2 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM07B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 7 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | |||||||||||||
|
ZHR-2-E | - | |
5930 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | ZHR | Blue | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Female Socket | 2 | - | Crimp | ||||||||||||||||||||||||||||||||
 |

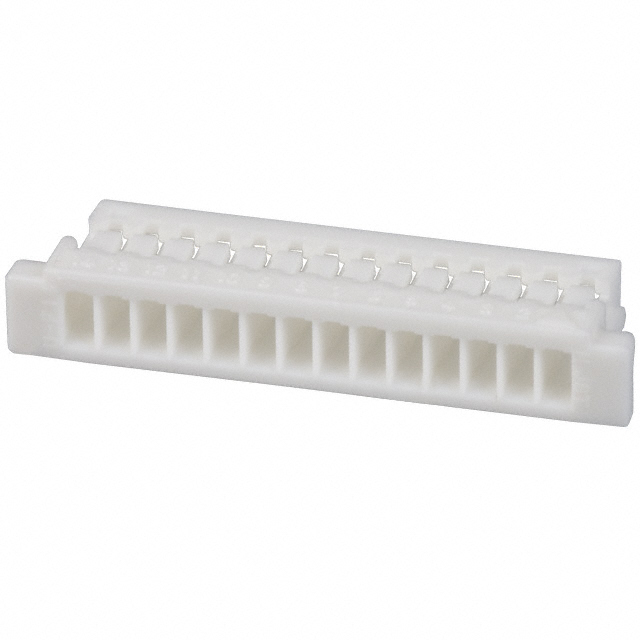

SHR-14V-S-B | 0.2800 | |
31 | 0.00000000 | JST Sales America Inc. | SH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | SHR-14V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 2,000 | Receptacle | 0.039" (1.00mm) | 1 | - | Female Socket | 14 | - | Crimp | ||||||||||||||||||||||||||||||||
 |

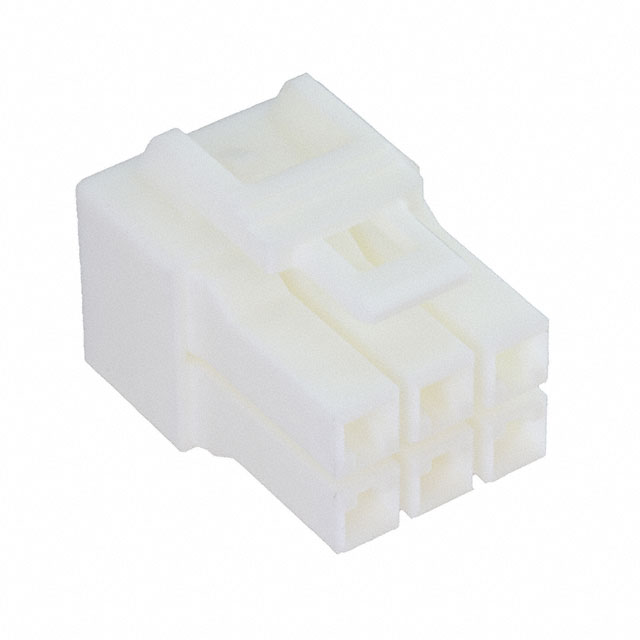

YLP-06V | 0.3900 | |
500 | 0.00000000 | JST Sales America Inc. | YL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | YLP | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Plug | 0.177" (4.50mm) | 2 | - | Female Socket | 6 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||
|
B14B-PADSS-1 | - | |
4358 | 0.00000000 | JST Sales America Inc. | PAD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | Board Guide | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 300 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.402" (10.20mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 12.4mm | - | ||||||||||||||
|
B16B-PADSS-1 | - | |
2976 | 0.00000000 | JST Sales America Inc. | PAD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | Board Guide | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 16 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.402" (10.20mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 12.4mm | - | ||||||||||||||
 |
04SUR-32S | 0.7800 | |
1 | 0.00000000 | JST Sales America Inc. | SUR | Bulk | Active | Free Hanging (In-Line) | Closed End | 04SUR | Natural | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 2,000 | Receptacle | 0.031" (0.80mm) | 1 | - | Tin | - | Female Socket | 4 | - | 32 AWG | IDC | Discrete | ||||||||||||||||||||||||||||||
 |

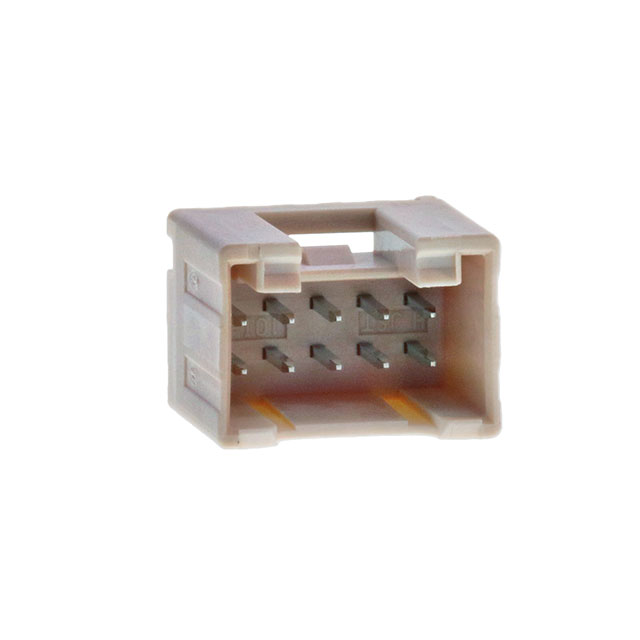

B10B-PUDSS-1(LF)(SN) | 0.4800 | |
116 | 0.00000000 | JST Sales America Inc. | PUD | Tray | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B10B-PUD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,750 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Latch Holder | - | 0.122" (3.10mm) | - | 0.378" (9.60mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 11mm | - | |||||||||||||
 |

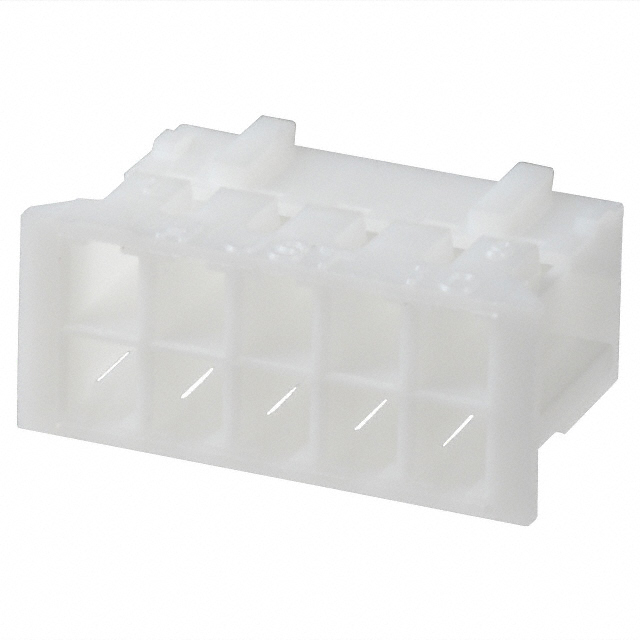

PHDR-10VS | 0.3500 | |
1 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PHDR-10V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Female Socket | 10 | - | Crimp | |||||||||||||||||||||||||||||||
|
BM04B-GHS-GJ-TBT(LF)(SN)(N) | 0.7816 | |
7325 | 0.00000000 | JST Sales America Inc. | GH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM04B-GH | Solder | - | Board to Cable/Wire | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 4 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.159" (4.05mm) | Rectangular | - | - | - | Polyamide (PA9T), Nylon 9T | Natural | 50VAC/DC | 7.3mm | - | |||||||||||||
 |

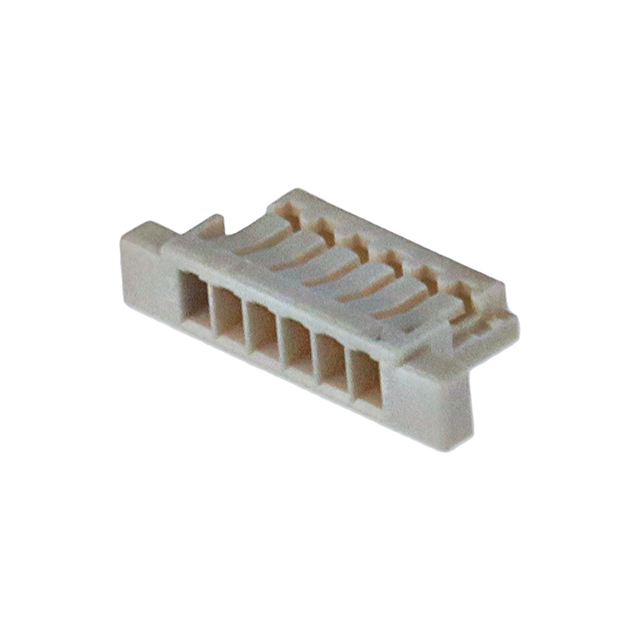

SUHR-06V-S-B | 0.4900 | |
2 | 0.00000000 | JST Sales America Inc. | SUH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | SUHR-06V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | 455-3571 | EAR99 | 8538.90.6000 | 2,000 | Receptacle | 0.031" (0.80mm) | 1 | - | Female Socket | 6 | Friction Lock | Crimp | |||||||||||||||||||||||||||||||
 |
B2B-XH-AM(LF)(SN) | 0.1800 | |
90 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B2B-XH-A | Press-Fit, Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 2 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.276" (7.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | 9.8mm | - | |||||||||||||
 |
B12B-PHDSS(LF)(SN) | 0.5600 | |
7792 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B12B-PH | Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 500 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 12 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | 0.291" (7.40mm) | 0.256" (6.50mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | 8.8mm | - | ||||||||||||
 |

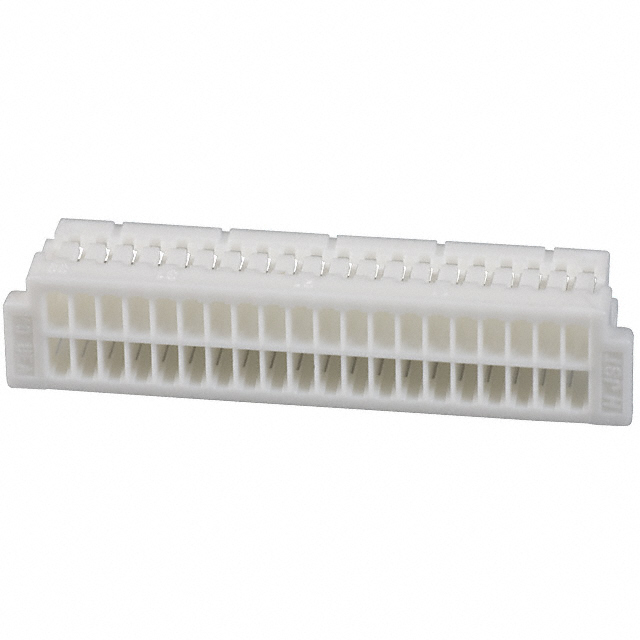

SHDR-40V-S-B | 0.3200 | |
20 | 0.00000000 | JST Sales America Inc. | SHD | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | Pick and Place | SHDR-40V | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8538.90.6000 | 2,000 | Receptacle | 0.039" (1.00mm) | 2 | 0.039" (1.00mm) | Female Socket | 40 | - | Polybutylene Terephthalate (PBT) | Crimp | ||||||||||||||||||||||||||||||
 |
BH10B-XH-2 | 0.7700 | |
121 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | BH10B-XH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 150 | Header | 1 | 3A (AC/DC) | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.559" (14.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250VAC/DC | - | - | |||||||||||||
 |
SM07B-GHS-TB(LF)(SN) | 0.6000 | |
2 | 0.00000000 | JST Sales America Inc. | GH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM07B-GH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 2,500 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Outer Shroud Contact | 0.049" (1.25mm) | 7 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.167" (4.25mm) | Rectangular | Tin | - | Tin | Polyamide (PA9T), Nylon 9T | Natural | 50V | - | - | |||||||||||||
 |

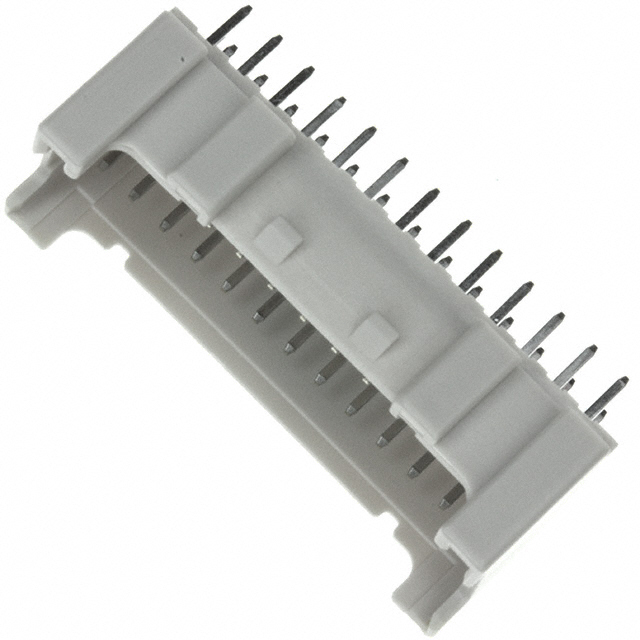

B26B-PNDZS-1(T)(LF)(SN) | 1.0400 | |
163 | 0.00000000 | JST Sales America Inc. | PND | Tray | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B26B-PND | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 256 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 26 | 0.197" (5.00mm) | All | Shrouded - 4 Wall | Locking Ramp | - | 0.126" (3.20mm) | - | 0.390" (9.91mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Ivory | 250V | 12.9mm | - | |||||||||||||
 |

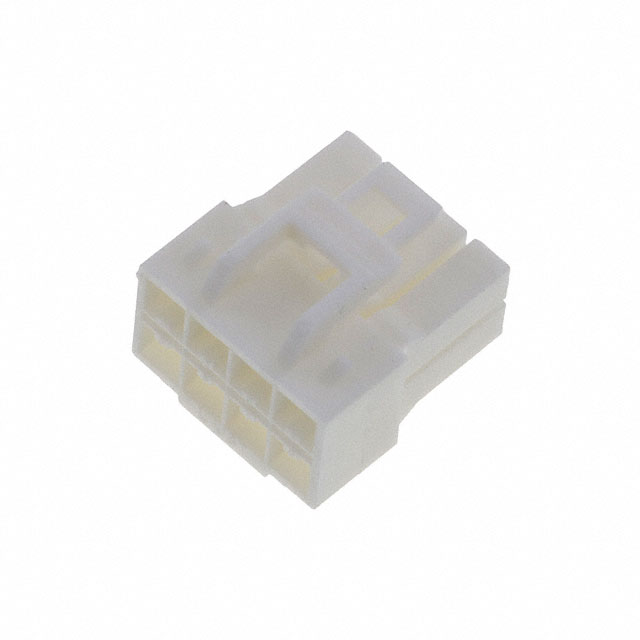

YLP-08V | 0.4500 | |
1 | 0.00000000 | JST Sales America Inc. | YL | Bulk | Active | -25°C ~ 90°C | Free Hanging (In-Line) | - | YLP | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Plug | 0.177" (4.50mm) | 2 | - | Female Socket | 8 | Latch Lock | Crimp | ||||||||||||||||||||||||||||||||
 |

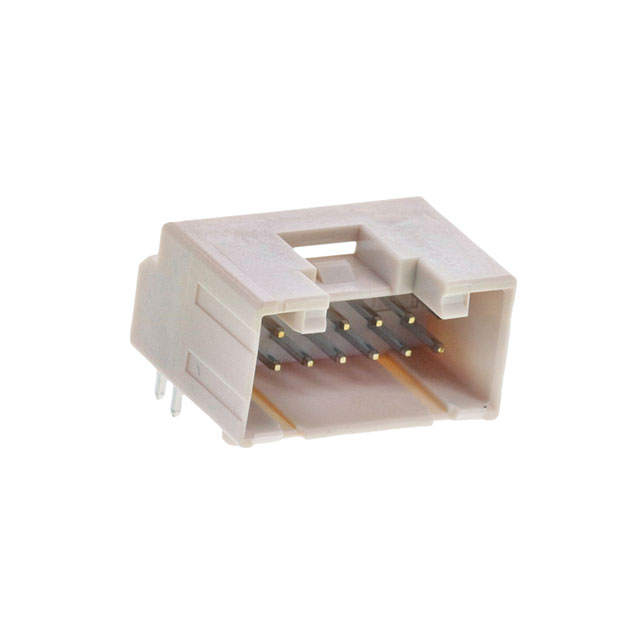

S14B-PUDSS-1(LF)(SN) | 0.7700 | |
4 | 0.00000000 | JST Sales America Inc. | PUD | Tray | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S14B-PUD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,980 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Latch Holder | - | 0.118" (3.00mm) | - | 0.335" (8.51mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | - | - | |||||||||||||
 |
S15B-EH | - | |
9167 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1041 | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 15 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | |||||||||||||
 |
SM09B-PASS-TBT(LF)(SN) | 1.2100 | |
13 | 0.00000000 | JST Sales America Inc. | PA | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Pick and Place, Solder Retention | SM09B-PA | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 9 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.224" (5.69mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 250V | - | - |
