Rectangular Connectors(2778)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Features | Base Product Number | Termination | Ingress Protection | Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

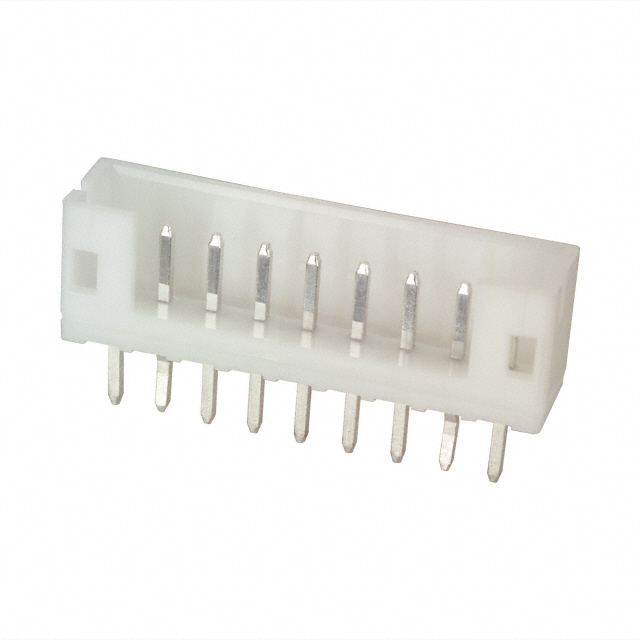

B9B-PH-K-S(LF)(SN) | 0.4800 |  |
98 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B9B-PH-K | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 9 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | 0.333" (8.45mm) | 0.236" (6.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | 8mm | - | |||
 |
B13B-PH-K-S(LF)(SN) | 0.6300 | |
2 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B13B-PH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 13 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | 0.333" (8.45mm) | 0.236" (6.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | 8mm | - | |||
 |

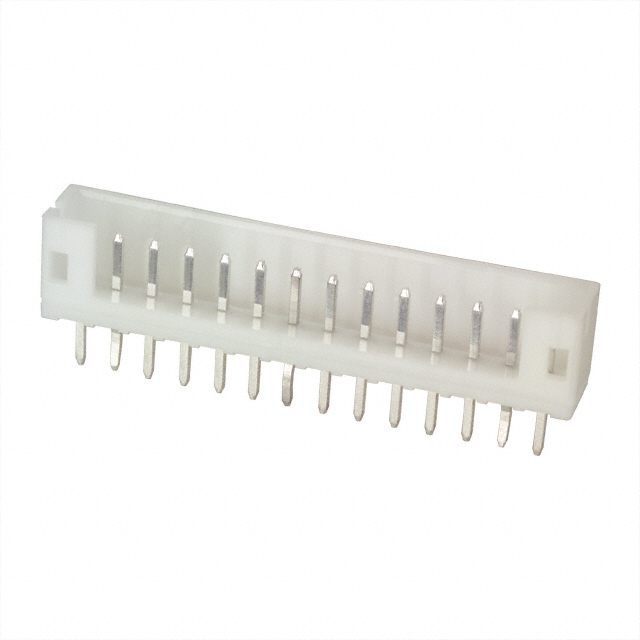

B14B-PH-K-S(LF)(SN) | 0.6300 | |
581 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B14B-PH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | 0.333" (8.45mm) | 0.236" (6.00mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | 8mm | - | |||
 |
S7B-PH-K-S(LF)(SN) | 0.3600 | |
5 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S7B-PH-K | Press-Fit, Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 500 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 7 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | - | - | ||
 |
S10B-PH-K-S(LF)(SN) | - | |
4540 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S10B-PH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | - | - | |||
 |
S11B-PH-K-S(LF)(SN) | - | |
1500 | 0.00000000 | JST Sales America Inc. | PH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S11B-PH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 11 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | 0.134" (3.40mm) | - | 0.189" (4.80mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 100V | - | - | |||
 |
B3B-PH-SM4-TB(LF)(SN) | 0.6200 | |
79 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B3B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 3 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |
B4B-PH-SM4-TB(LF)(SN) | 0.7800 | |
5 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B4B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 4 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |

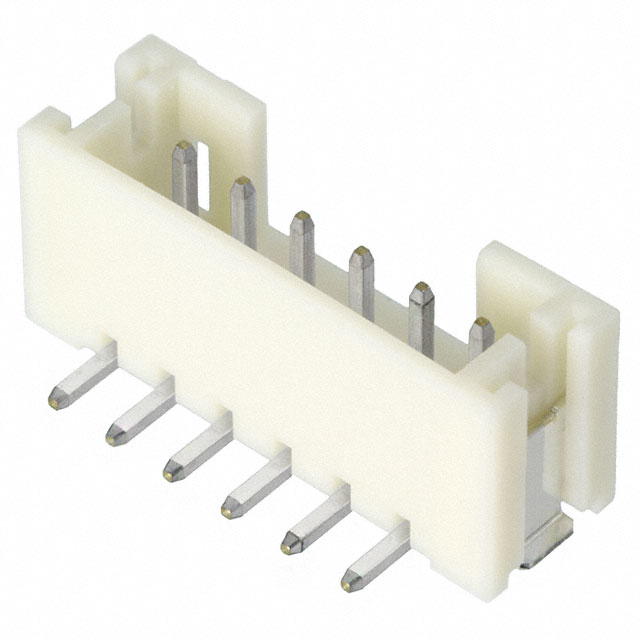

B6B-PH-SM4-TB(LF)(SN) | 0.8300 | |
22 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B6B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 6 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |
B8B-PH-SM4-TB | 0.9800 | |
27 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B8B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 8 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |
B13B-PH-SM4-TB | 1.4400 | |
3 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B13B-PH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 13 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |
B15B-PH-SM4-TB(LF)(SN) | 1.4200 | |
3 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | B15B-PH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 15 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | 8.6mm | - | |||
 |
S4B-PH-SM4-TB(LF)(SN) | 0.7700 | |
113 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | S4B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 4 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.217" (5.51mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | - | - | ||
 |
S7B-PH-SM4-TB(LF)(SN) | 0.8900 | |
45 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | S7B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 7 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.217" (5.51mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | - | - | |||
 |
S14B-PH-SM4-TB | 1.4800 | |
7 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | S14B-PH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.217" (5.51mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | - | - | |||
 |
B22B-PHDSS(LF)(SN) | 0.9400 | |
21 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B22B-PHD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 22 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | 0.291" (7.40mm) | 0.256" (6.50mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | 8.8mm | - | |||
 |
S26B-PHDSS(LF)(SN) | 1.1600 | |
14 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S26B-PHD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 26 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | |||
 |
S30B-PHDSS(LF)(SN) | 1.2400 | |
1 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S30B-PHD | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 30 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | |||
 |
BM05B-SRSS-TB(LF)(SN) | 0.7100 | |
272 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM05B-SR | Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 5 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | |||
 |
BM06B-SRSS-TB(LF)(SN) | 0.7900 | |
6673 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM06B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 6 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | |||
 |
BM10B-SRSS-TB(LF)(SN) | 1.0400 | |
47 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM10B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 10 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | |||
 |
BM15B-SRSS-TB(LF)(SN) | 1.4300 | |
18 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM15B-SR | Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 15 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | ||
 |
SM03B-SRSS-TB(LF)(SN) | 0.5200 | |
33 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM03B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 3,000 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 3 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.114" (2.90mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | - | - | |||
 |
SM11B-SRSS-TB(LF)(SN) | 1.1100 | |
10 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | SM11B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 3,000 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 11 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.114" (2.90mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | - | - | |||
 |
B06B-PASK(LF)(SN) | 0.5000 | |
7 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B06B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 6 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - | ||
 |
B09B-PASK(LF)(SN) | 0.5900 | |
10 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B09B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 455-1824 | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 9 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - | ||
 |

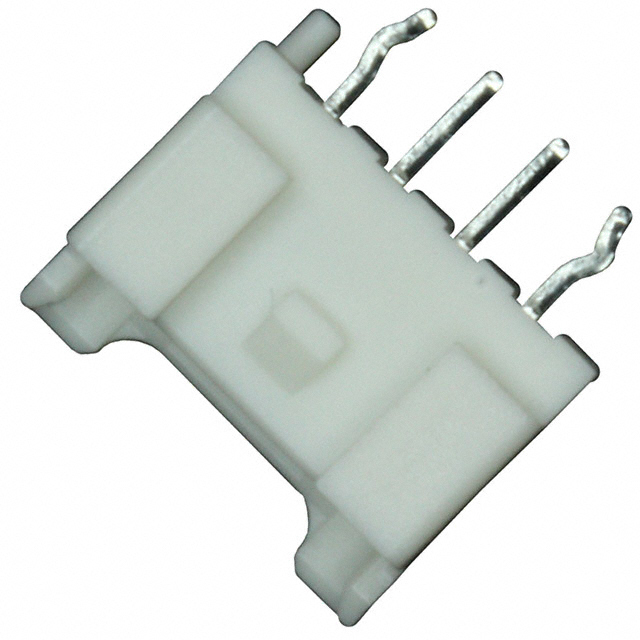

B04B-PASK-1(LF)(SN) | 0.3600 | |
14 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | Board Guide | B04B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 4 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.118" (3.00mm) | 0.319" (8.10mm) | 0.303" (7.70mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | 9.9mm, 14.7mm, 14.9mm | - |
