Rectangular Connectors(2778)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | Style | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Pin or Socket | Cable Termination | Cable Pitch | Board-Side Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VHR-8N | 0.2700 |  |
36 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | VHR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.156" (3.96mm) | 1 | - | Female Socket | 8 | Latch Lock | Polyamide (PA6), Nylon 6 | Crimp | ||||||||||||||||||||||||||||||||||
 |
H5P-SHF-AA | 0.1700 | |
2 | 0.00000000 | JST Sales America Inc. | NH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | H5P-SHF | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.098" (2.50mm) | 1 | - | Female Socket | 5 | Latch Lock | Polyamide (PA6), Nylon 6 | Crimp | ||||||||||||||||||||||||||||||||||
 |
BM08B-SRSS-TB(LF)(SN) | 0.9100 | |
67 | 0.00000000 | JST Sales America Inc. | SH/SR | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Solder Retention | BM08B-SR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Header | 1 | 1A | Copper Alloy | UL94 V-0 | Male Pin | 0.039" (1.00mm) | 8 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 50V | 4.9mm | - | ||||||||||||||||
 |
EHR-11 | 0.2000 | |
6830 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | EHR | Natural | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.098" (2.50mm) | 1 | - | Female Socket | 11 | - | Polyamide (PA66), Nylon 6/6 | Crimp | ||||||||||||||||||||||||||||||||||
 |
S10B-EH(LF)(SN) | 0.4800 | |
8 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S10B-EH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 10 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
 |
S3B-PH-SM4-TB(LF)(SN) | 0.6700 | |
93 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | S3B-PH-S | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 3 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.217" (5.51mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | - | - | ||||||||||||||||
 |
B4P-VH-B | 0.3500 | |
17 | 0.00000000 | JST Sales America Inc. | VH | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B4P-VH | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Header | 1 | 10A | Brass | UL94 V-0 | Male Pin | 0.156" (3.96mm) | 4 | - | All | Shrouded - 1 Wall | Locking Ramp | 0.303" (7.70mm) | 0.146" (3.70mm) | 0.575" (14.60mm) | 0.370" (9.40mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | - | - | ||||||||||||||||
 |
LJ5M-81GF-M6.5 | - | |
4081 | 0.00000000 | JST Sales America Inc. | JFA | Bulk | Active | Stamped | LJ5M | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.90.4000 | 150 | Gold | - | 10-12 AWG | Crimp | Tab | ||||||||||||||||||||||||||||||||||||||||||
 |
40PS-JMDSS-G-1-TF(LF)(SN) | 1.7600 | |
3 | 0.00000000 | JST Sales America Inc. | JMD | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Solder Retention | 40PS-JMD | 0.189" (4.80mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,500 | Plug, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | - | 40 | - | ||||||||||||||||||||||||||||||||||||||
|
B6B-PH-SM3-TB | - | |
8880 | 0.00000000 | JST Sales America Inc. | PH | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount | Solder Retention | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 6 | - | All | Shrouded - 4 Wall | Detent Lock | 0.130" (3.30mm) | - | - | 0.260" (6.60mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA46), Nylon 4/6 | Natural | 100V | 8.6mm | - | |||||||||||||||||
 |
S7B-ZR-SM4A-TF(LF)(SN) | 0.7900 | |
20 | 0.00000000 | JST Sales America Inc. | ZH | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | S7B-ZR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 7 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.146" (3.70mm) | Circular | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 50V | - | - | ||||||||||||||||
 |
S5B-EH | - | |
2098 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1031 | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 5 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
 |
06JQ-BT | 0.5100 | |
18 | 0.00000000 | JST Sales America Inc. | JQ | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | 06JQ | Press-Fit, Solder | - | Board to Board | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Receptacle | 1 | 3A | Phosphor Bronze | UL94 V-0 | Female Socket | 0.098" (2.50mm) | 6 | - | All | Friction Lock | - | 0.374" (9.50mm) | Square | Tin | - | - | Polyamide (PA66), Nylon 6/6 | Natural | 250V | 11.8mm | - | |||||||||||||||||||
 |
PNDP-16V-Z | 0.2800 | |
679 | 0.00000000 | JST Sales America Inc. | PND | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PNDP-16V | Ivory | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 300 | Receptacle | 0.079" (2.00mm) | 2 | 0.197" (5.00mm) | Female Socket | 16 | Latch Lock | Crimp | |||||||||||||||||||||||||||||||||||
 |
HILR-06VF-3-E | 0.3110 | |
6448 | 0.00000000 | JST Sales America Inc. | HIL | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | HILR-06V | Blue | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.130" (3.30mm) | 2 | 0.130" (3.30mm) | Male Pin | 6 | Latch Holder | Polyamide (PA66), Nylon 6/6 | Crimp | ||||||||||||||||||||||||||||||||||
|
S8B-JL-R(LF)(SN) | 0.3200 | |
3835 | 0.00000000 | JST Sales America Inc. | JL | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S8B-JL-R | Kinked Pin, Solder | - | Board to Board | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 100 | Header | 1 | 3A (AC/DC) | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 8 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.240" (6.10mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Red | 250VAC/DC | - | - | ||||||||||||||||
 |
ZHR-7 | 0.2000 | |
227 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | ZHR | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 1,000 | Receptacle | 0.059" (1.50mm) | 1 | - | Female Socket | 7 | - | Crimp | |||||||||||||||||||||||||||||||||||
 |
S5B-ZR-SM3A-TF | - | |
6708 | 0.00000000 | JST Sales America Inc. | ZH | Tape & Reel (TR) | Obsolete | -25°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 5 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.146" (3.70mm) | Circular | Tin-Lead | - | Tin-Lead | Polyamide (PA46), Nylon 4/6, Glass Filled | Natural | 50V | - | - | |||||||||||||||||
 |
S10B-ZR(LF)(SN) | 0.4900 | |
3 | 0.00000000 | JST Sales America Inc. | ZH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S10B-ZR | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.059" (1.50mm) | 10 | - | All | Shrouded - 4 Wall | Detent Lock | 0.094" (2.40mm) | 0.106" (2.69mm) | - | 0.146" (3.70mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 50V | - | - | ||||||||||||||||
 |
S12B-EH(LF)(SN) | 0.5700 | |
5 | 0.00000000 | JST Sales America Inc. | EH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S12B-EH | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 12 | - | All | Shrouded - 3 Wall | Latch Lock | 0.157" (4.00mm) | 0.126" (3.20mm) | - | 0.165" (4.20mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
 |
08T-JWPF-VSLE-D | 2.1900 | |
12 | 0.00000000 | JST Sales America Inc. | JWPF | Bulk | Active | -55°C ~ 85°C | Free Hanging (In-Line) | JIS C 0920 Grade Level 7 | 08T-JWPF | Natural | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 1,000 | Plug | 0.079" (2.00mm) | 2 | - | Male Pin | 8 | Latch Holder | Crimp | |||||||||||||||||||||||||||||||||||
 |
05DB-6S(LF) | 0.2567 | |
9476 | 0.00000000 | JST Sales America Inc. | DB | Bulk | Active | Through Hole, Press-Fit | Closed End | 05DB | White | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 500 | Individual Wires | 1 | - | Tin-Lead | - | 5 | All | 24-28 AWG, Stranded | IDC | 0.098" (2.50mm) | 0.098" (2.50mm) | ||||||||||||||||||||||||||||||||||
 |
S10B-PHDSS | - | |
7372 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1360 | EAR99 | 8536.69.4040 | 500 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | ||||||||||||||||
 |
B07B-XASK-1(LF)(SN) | 0.4700 | |
28 | 0.00000000 | JST Sales America Inc. | XA | Bulk | Active | -25°C ~ 85°C | - | Through Hole | - | B07B-XAS | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 7 | - | All | Shrouded - 4 Wall | Locking Ramp | - | 0.134" (3.40mm) | - | 0.346" (8.80mm) | Circular | Tin | - | Tin | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 11.3mm | - | ||||||||||||||||
 |
B08B-XADSS-N | 0.4500 | |
16 | 0.00000000 | JST Sales America Inc. | XAD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 8 | 0.098" (2.50mm) | All | Shrouded - 4 Wall | Locking Ramp | - | 0.138" (3.50mm) | - | 0.398" (10.11mm) | Circular | Tin-Lead | - | Tin-Lead | Polyamide (PA66), Nylon 6/6, Glass Filled | Natural | 250V | 13.8mm | - | |||||||||||||||||
 |
S24B-PHDSS | - | |
5937 | 0.00000000 | JST Sales America Inc. | PHD | Bulk | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Solder | - | Board to Cable/Wire | download | RoHS non-compliant | 1 (Unlimited) | 455-1353 | EAR99 | 8536.69.4040 | 200 | Header | 2 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 24 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.114" (2.90mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Tin-Lead | - | Tin-Lead | Polyamide (PA), Nylon, Glass Filled | Natural | 250V | - | - | ||||||||||||||||
 |
BM10B-ZESS-TBT(LF)(SN) | 1.2500 | |
10 | 0.00000000 | JST Sales America Inc. | ZE | Tape & Reel (TR) | Active | -25°C ~ 85°C | - | Surface Mount | Pick and Place, Solder Retention | BM10B-ZE | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 800 | Header | 1 | 2A | Copper Alloy | UL94 V-0 | Outer Shroud Contact | 0.059" (1.50mm) | 10 | - | All | Shrouded - 4 Wall | Locking Ramp | - | - | - | 0.295" (7.50mm) | Rectangular | Tin | - | Tin | Polyamide (PA), Nylon | Natural | 100V | 9.4mm | - | ||||||||||||||||
 |
S14B-PASK-2(LF)(SN) | 0.6794 | |
9788 | 0.00000000 | JST Sales America Inc. | PA | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | Board Guide | S14B-PAS | Kinked Pin, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 455-1859 | EAR99 | 8536.69.4040 | 200 | Header | 1 | 3A | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | - | All | Shrouded - 4 Wall | Locking Ramp | 0.126" (3.20mm) | 0.134" (3.40mm) | - | 0.256" (6.50mm) | Square | Tin | - | Tin | Polybutylene Terephthalate (PBT), Glass Filled | Natural | 250V | - | - | |||||||||||||||
 |
S9B-XH-A(LF)(SN) | 0.5300 | |
15 | 0.00000000 | JST Sales America Inc. | XH | Bulk | Active | -25°C ~ 85°C | - | Through Hole, Right Angle | - | S9B-XH-A | Press-Fit, Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 250 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 9 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.240" (6.10mm) | Square | Tin | - | Tin | Polyamide (PA66), Nylon 6/6 | Natural | 250V | - | - | ||||||||||||||||
 |

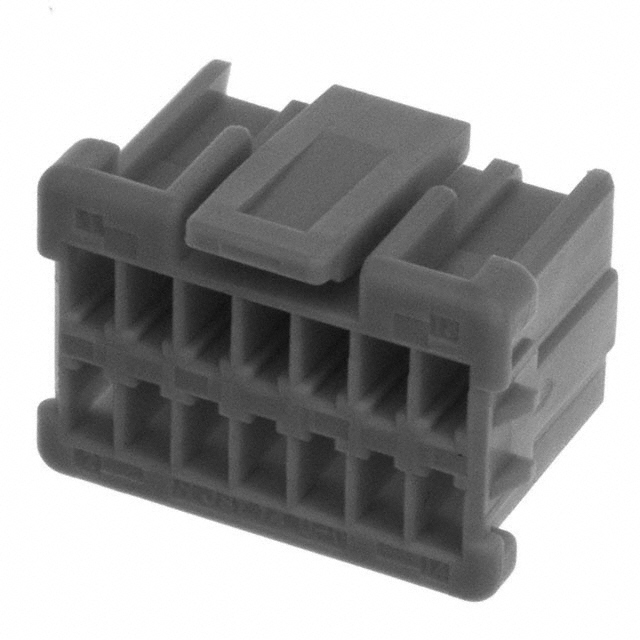

PNDP-14V-Z | 0.2700 | |
276 | 0.00000000 | JST Sales America Inc. | PND | Bulk | Active | -25°C ~ 85°C | Free Hanging (In-Line) | - | PNDP-14V | Ivory | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.6000 | 500 | Receptacle | 0.079" (2.00mm) | 2 | 0.197" (5.00mm) | Female Socket | 14 | Latch Lock | Crimp |
