Rectangular Connectors(819835)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Note Style Height Above Board DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Contact Finish Contact Finish Thickness Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Contact Termination Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating)

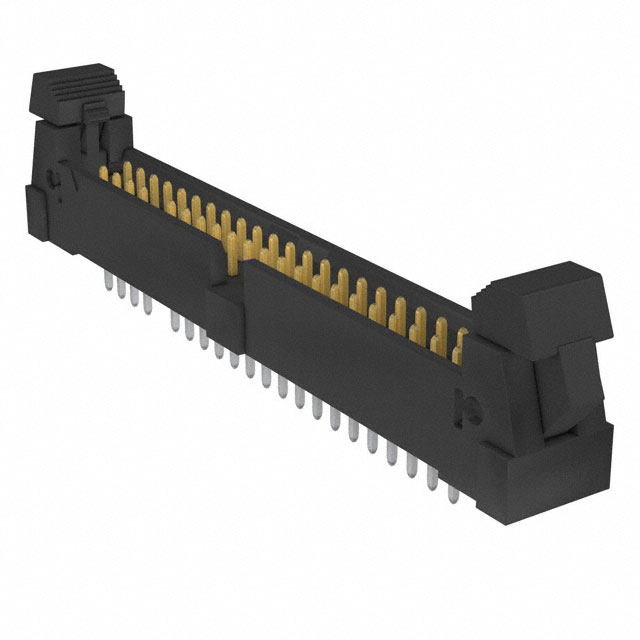

EHT-122-01-S-D-09 Samtec Inc. EHT-122-01-S-D-09 -
RFQ
 ECAD 8173 0.00000000 Samtec Inc. EHT Tube Active -55°C ~ 125°C - Through Hole Keying Slot EHT-122 Solder - Board to Cable/Wire - ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 44 0.079" (2.00mm) 43 Shrouded - 4 Wall Latch Lock/Eject Hooks 0.120" (3.05mm) 0.114" (2.90mm) - 0.370" (9.40mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TMM-143-01-F-S-RA-024 Samtec Inc. TMM-143-01-F-S-RA-024 -
RFQ
 ECAD 5193 0.00000000 Samtec Inc. TMM Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - TMM-143 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 43 - 42 Unshrouded Push-Pull 0.126" (3.20mm) 0.120" (3.05mm) - 0.079" (2.00mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
ESQT-108-03-F-D-314-011 Samtec Inc. ESQT-108-03-F-D-314-011 5.2500
RFQ
 ECAD 4248 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-108 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 2 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 16 0.079" (2.00mm) 15 Push-Pull 0.144" (3.66mm) 0.314" (7.98mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
SFMC-104-T2-S-D Samtec Inc. SFMC-104-T2-S-D 4.0200
RFQ
 ECAD 7256 0.00000000 Samtec Inc. Tiger Eye™ SFMC Tube Active -55°C ~ 125°C - Surface Mount - SFMC-104 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 104 Receptacle 2 2.9A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.050" (1.27mm) 8 0.050" (1.27mm) All Push-Pull - 0.185" (4.70mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
DW-04-12-T-S-785 Samtec Inc. DW-04-12-T-S-785 -
RFQ
 ECAD 3617 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-04-12 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 4 1.030" (26.162mm) 0.135" (3.429mm) 0.785" (19.939mm) 0.110" (2.794mm) Tin -
MTMM-102-08-G-D-040 Samtec Inc. MTMM-102-08-G-D-040 1.3500
RFQ
 ECAD 9388 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 125°C - Through Hole - MTMM-102 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 4 0.079" (2.00mm) All Unshrouded Push-Pull 0.040" (1.02mm) 0.476" (12.09mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
FTS-113-02-F-DV-SA Samtec Inc. FTS-113-02-F-DV-SA 6.7065
RFQ
 ECAD 2847 0.00000000 Samtec Inc. FTS Tube Active -55°C ~ 125°C - Surface Mount Board Guide, End Shrouds FTS-113 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 23 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 26 0.050" (1.27mm) All Unshrouded Push-Pull 0.075" (1.90mm) - - 0.034" (0.86mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HW-08-12-F-S-790-SM Samtec Inc. HW-08-12-F-S-790-SM -
RFQ
 ECAD 8626 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Surface Mount HW-08-12 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 8 0.965" (24.511mm) 0.175" (4.445mm) 0.790" (20.066mm) - Gold 3.00µin (0.076µm)
MMT-118-02-S-DH-LC-K-TR Samtec Inc. MMT-118-02-S-DH-LC-K-TR 9.0652
RFQ
 ECAD 9026 0.00000000 Samtec Inc. MMT Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount, Right Angle Board Lock, Pick and Place MMT-118 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 275 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 36 0.079" (2.00mm) All Unshrouded Push-Pull 0.175" (4.45mm) - - 0.157" (4.00mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
SFMC-108-03-L-D-K Samtec Inc. SFMC-108-03-L-D-K -
RFQ
 ECAD 7115 0.00000000 Samtec Inc. Tiger Eye™ SFMC Tube Active -55°C ~ 125°C - Through Hole Pick and Place SFMC-108 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 2 2.9A per Contact Beryllium Copper UL94 V-0 Female Socket 0.050" (1.27mm) 16 0.050" (1.27mm) All Push-Pull 0.075" (1.91mm) 0.180" (4.57mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HTSW-212-22-L-S-RE Samtec Inc. HTSW-212-22-L-S-RE -
RFQ
 ECAD 7265 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - HTSW-212 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 1 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 12 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.090" (2.29mm) - 0.122" (3.10mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
HMTSW-150-12-G-Q-730 Samtec Inc. HMTSW-150-12-G-Q-730 -
RFQ
 ECAD 6148 0.00000000 Samtec Inc. Flex Stack, HMTSW Bulk Active -55°C ~ 125°C - Through Hole - HMTSW-150 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 100 0.200" (5.08mm) All Unshrouded Push-Pull 0.730" (18.54mm) 0.200" (5.08mm) 1.030" (26.16mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Gold Liquid Crystal Polymer (LCP) Natural - - 3.00µin (0.076µm)
ESW-112-12-G-D-LL Samtec Inc. ESW-112-12-G-D-LL -
RFQ
 ECAD 4759 0.00000000 Samtec Inc. ESW Bulk Active -55°C ~ 125°C - Through Hole - ESW-112 Kinked Pin, Solder - Board to Board download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 2 5.2A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 24 0.100" (2.54mm) All Push-Pull 0.090" (2.29mm) 0.435" (11.05mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black 550VAC - 3.00µin (0.076µm)
ESQT-113-02-L-D-321 Samtec Inc. ESQT-113-02-L-D-321 -
RFQ
 ECAD 9708 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-113 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 2 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 26 0.079" (2.00mm) All Push-Pull 0.529" (13.44mm) 0.321" (8.15mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FTSH-113-01-S-DV-K-A-TR Samtec Inc. FTSH-113-01-S-DV-K-A-TR 5.3813
RFQ
 ECAD 2971 0.00000000 Samtec Inc. FTSH Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount Board Guide, Keying Shroud FTSH-113 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 450 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 26 0.050" (1.27mm) All Shrouded Push-Pull 0.120" (3.05mm) - - 0.099" (2.51mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HTSW-203-22-L-D-RA Samtec Inc. HTSW-203-22-L-D-RA -
RFQ
 ECAD 4942 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - HTSW-203 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 6 0.100" (2.54mm) All Unshrouded Push-Pull 0.230" (5.84mm) 0.190" (4.83mm) - 0.240" (6.10mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
SSW-107-21-F-S Samtec Inc. SSW-107-21-F-S 1.6700
RFQ
 ECAD 4860 0.00000000 Samtec Inc. SSW Bulk Active -55°C ~ 125°C - Through Hole - SSW-107 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 1 4.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 7 - All Push-Pull 0.104" (2.64mm) 0.335" (8.51mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
ISDF-38-D-S Samtec Inc. ISDF-38-D-S -
RFQ
 ECAD 3568 0.00000000 Samtec Inc. Tiger Eye™ ISDF Tube Active -55°C ~ 125°C Free Hanging (In-Line) Mating Flange ISDF-38 Black Contacts Not Included download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.8000 1 Insulator 0.050" (1.27mm) 2 0.050" (1.27mm) Female Socket 76 Latch Lock Liquid Crystal Polymer (LCP) Crimp
FTSH-130-02-FM-DH Samtec Inc. FTSH-130-02-FM-DH -
RFQ
 ECAD 2178 0.00000000 Samtec Inc. FTSH Bulk Active -55°C ~ 125°C - Surface Mount, Right Angle - FTSH-130 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 60 0.050" (1.27mm) All Unshrouded Push-Pull 0.075" (1.90mm) - - 0.135" (3.43mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
ESQT-130-03-F-D-390 Samtec Inc. ESQT-130-03-F-D-390 -
RFQ
 ECAD 8057 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-130 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 2 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 60 0.079" (2.00mm) All Push-Pull 0.068" (1.73mm) 0.390" (9.91mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TST-112-05-L-D-LA Samtec Inc. TST-112-05-L-D-LA 5.4800
RFQ
 ECAD 5043 0.00000000 Samtec Inc. Flex Stack, TST Bulk Active -55°C ~ 125°C - Through Hole, Right Angle Keying Slot TST-112 Kinked Pin, Solder - Board to Cable/Wire - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 24 0.100" (2.54mm) All Shrouded - 4 Wall Push-Pull 0.250" (6.35mm) 0.230" (5.84mm) - 0.365" (9.27mm) Square Gold 10.0µin (0.25µm) Tin Polybutylene Terephthalate (PBT), Glass Filled Black - - -
SSW-132-01-F-Q Samtec Inc. SSW-132-01-F-Q 11.6200
RFQ
 ECAD 3386 0.00000000 Samtec Inc. SSW Bulk Active -55°C ~ 125°C - Through Hole - SSW-132 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 3 4.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 96 0.100" (2.54mm) 64 Push-Pull 0.104" (2.64mm) 0.335" (8.51mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TSM-108-01-T-SV-LC-005 Samtec Inc. TSM-108-01-T-SV-LC-005 2.1300
RFQ
 ECAD 8792 0.00000000 Samtec Inc. TSM Tube Active -55°C ~ 105°C - Surface Mount Board Lock TSM-108 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 8 - 7 Unshrouded Push-Pull 0.230" (5.84mm) - - 0.100" (2.54mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MTMM-108-12-G-D-100 Samtec Inc. MTMM-108-12-G-D-100 -
RFQ
 ECAD 4174 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 125°C - Through Hole - MTMM-108 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 16 0.079" (2.00mm) All Unshrouded Push-Pull 0.100" (2.54mm) 0.614" (15.60mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
MTSW-208-09-T-Q-540 Samtec Inc. MTSW-208-09-T-Q-540 -
RFQ
 ECAD 2394 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 105°C - Through Hole - MTSW-208 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 16 0.200" (5.08mm) All Unshrouded Push-Pull 0.540" (13.72mm) 0.090" (2.29mm) 0.730" (18.54mm) 0.100" (2.54mm) Square Tin - Tin Polyester, Glass Filled Black - - -
BCS-113-L-D-TE-018 Samtec Inc. BCS-113-L-D-TE-018 -
RFQ
 ECAD 9936 0.00000000 Samtec Inc. Tiger Claw™ BCS Tube Active -55°C ~ 125°C - Through Hole - BCS-113 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 Receptacle 2 4.6A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 26 0.100" (2.54mm) 25 Push-Pull 0.122" (3.10mm) 0.290" (7.37mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black 475VAC - -
DW-05-10-F-D-700 Samtec Inc. DW-05-10-F-D-700 -
RFQ
 ECAD 2679 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-05-10 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 10 0.830" (21.082mm) 0.020" (0.508mm) 0.700" (17.780mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
SEAFP-30-05.0-S-06-TR Samtec Inc. SEAFP-30-05.0-S-06-TR 21.5100
RFQ
 ECAD 8000 0.00000000 Samtec Inc. SEARAY™ SEAFP Tape & Reel (TR) Active Through Hole - 0.197" (5.00mm) download ROHS3 Compliant 612-SEAFP-30-05.0-S-06-TR EAR99 8536.69.4040 375 High Density Array, Female 0.050" (1.27mm) 6 Gold 30.0µin (0.76µm) 180 7mm
FTR-132-55-L-D Samtec Inc. FTR-132-55-L-D -
RFQ
 ECAD 6467 0.00000000 Samtec Inc. FTR Tube Active -55°C ~ 125°C - Surface Mount - FTR-132 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.1A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 64 0.100" (2.54mm) All Unshrouded Push-Pull 0.390" (9.91mm) - - 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
DW-12-12-G-S-665 Samtec Inc. DW-12-12-G-S-665 -
RFQ
 ECAD 3311 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-12-12 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 12 1.030" (26.162mm) 0.255" (6.477mm) 0.665" (16.891mm) 0.110" (2.794mm) Gold 10.0µin (0.25µm)
