Rectangular Connectors(819835)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Style Height Above Board DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Contact Finish Contact Finish Thickness Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating)
HTSW-102-22-F-S Samtec Inc. HTSW-102-22-F-S 0.3900
RFQ
 ECAD 2877 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole - HTSW-102 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 1 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 2 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.300" (7.62mm) 0.630" (16.00mm) 0.100" (2.54mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
FW-31-03-L-D-290-100 Samtec Inc. FW-31-03-L-D-290-100 -
RFQ
 ECAD 4146 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Surface Mount FW-31-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 62 0.390" (9.906mm) 0.100" (2.540mm) 0.290" (7.366mm) - Gold 10.0µin (0.25µm)
YTW-26-07-G-Q-200-250 Samtec Inc. YTW-26-07-G-Q-200-250 22.4164
RFQ
 ECAD 2240 0.00000000 Samtec Inc. YTW Tube Active Through Hole Black Solder download ROHS3 Compliant 612-YTW-26-07-G-Q-200-250 11 0.079" (2.00mm) 4 0.079" (2.00mm) 104 0.751" (19.075mm) 0.301" (7.645mm) 0.200" (5.080mm) 0.250" (6.350mm) Gold 20.0µin (0.51µm)
HTSW-140-42-F-T Samtec Inc. HTSW-140-42-F-T -
RFQ
 ECAD 5065 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole - HTSW-140 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 3 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 120 0.100" (2.54mm) All Unshrouded Push-Pull 0.320" (8.13mm) 0.050" (1.27mm) 0.470" (11.94mm) 0.100" (2.54mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
HPF-12-02-TM-S-LC Samtec Inc. HPF-12-02-TM-S-LC -
RFQ
 ECAD 2237 0.00000000 Samtec Inc. HPF Bulk Active - - Surface Mount Board Lock HPF-12 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Receptacle 1 - Beryllium Copper - Female Socket 0.200" (5.08mm) 12 - All Push-Pull - 0.351" (8.92mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
DW-45-19-F-D-1065 Samtec Inc. DW-45-19-F-D-1065 -
RFQ
 ECAD 2622 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-45-19 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 90 1.330" (33.782mm) 0.155" (3.937mm) 1.065" (27.051mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
MTSW-105-22-L-D-295-RA Samtec Inc. MTSW-105-22-L-D-295-RA -
RFQ
 ECAD 6483 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - MTSW-105 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 10 0.100" (2.54mm) All Unshrouded Push-Pull 0.295" (7.49mm) 0.090" (2.29mm) - 0.219" (5.56mm) Square Gold 10.0µin (0.25µm) Tin Polyester, Glass Filled Black - - -

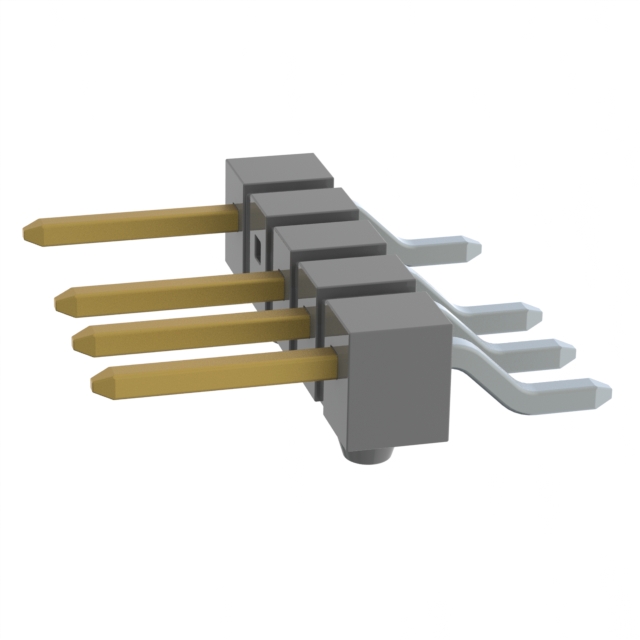

TSM-105-01-S-SH-A-004-TR Samtec Inc. TSM-105-01-S-SH-A-004-TR -
RFQ
 ECAD 9053 0.00000000 Samtec Inc. TSM Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount, Right Angle Board Guide TSM-105 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 5 - 4 Unshrouded Push-Pull 0.230" (5.84mm) - - 0.120" (3.05mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-125-07-T-S-100-RA Samtec Inc. MTSW-125-07-T-S-100-RA -
RFQ
 ECAD 5275 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 105°C - Through Hole, Right Angle - MTSW-125 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 25 - All Unshrouded Push-Pull 0.100" (2.54mm) 0.090" (2.29mm) - 0.119" (3.02mm) Square Tin - Tin Polyester, Glass Filled Black - - -
TMMH-122-01-F-DV-ES-A Samtec Inc. TMMH-122-01-F-DV-ES-A 9.5200
RFQ
 ECAD 6188 0.00000000 Samtec Inc. TMMH Tube Active -55°C ~ 125°C - Surface Mount Board Guide, End Shrouds TMMH-122 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 12 Header, Cuttable 2 - Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 44 0.079" (2.00mm) All Unshrouded Push-Pull 0.126" (3.20mm) - - 0.079" (2.00mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-107-08-G-D-235 Samtec Inc. MTSW-107-08-G-D-235 -
RFQ
 ECAD 4114 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-107 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 14 0.100" (2.54mm) All Unshrouded Push-Pull 0.235" (5.97mm) 0.195" (4.95mm) 0.530" (13.46mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Gold Polyester, Glass Filled Black - - 3.00µin (0.076µm)
TMS-103-01-L-S-RA Samtec Inc. TMS-103-01-L-S-RA 0.8500
RFQ
 ECAD 9725 0.00000000 Samtec Inc. TMS Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - TMS-103 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 5A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 3 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.140" (3.56mm) - 0.098" (2.50mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MMS-119-01-F-SH Samtec Inc. MMS-119-01-F-SH -
RFQ
 ECAD 9954 0.00000000 Samtec Inc. MMS Tube Active -55°C ~ 125°C - Through Hole, Right Angle - MMS-119 Solder - Board to Board or Cable - Not Applicable EAR99 8536.69.4040 1 Receptacle 1 3.9A per Contact Phosphor Bronze - Female Socket 0.079" (2.00mm) 19 - All Push-Pull 0.120" (3.05mm) 0.079" (2.00mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TSM-119-01-S-DV-LC Samtec Inc. TSM-119-01-S-DV-LC -
RFQ
 ECAD 8954 0.00000000 Samtec Inc. TSM Tube Active -55°C ~ 125°C - Surface Mount Board Lock TSM-119 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 38 0.100" (2.54mm) All Unshrouded Push-Pull 0.230" (5.84mm) - - 0.100" (2.54mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TW-10-06-G-D-375-140 Samtec Inc. TW-10-06-G-D-375-140 6.2100
RFQ
 ECAD 7227 0.00000000 Samtec Inc. TW Bulk Active Through Hole TW-10-06 Black Solder - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.079" (2.00mm) 2 0.079" (2.00mm) 20 0.673" (17.094mm) 0.158" (4.013mm) 0.375" (9.525mm) 0.140" (3.556mm) Gold 20.0µin (0.51µm)
MTMM-140-09-T-S-070 Samtec Inc. MTMM-140-09-T-S-070 -
RFQ
 ECAD 9525 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 105°C - Through Hole - MTMM-140 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 40 - All Unshrouded Push-Pull 0.070" (1.78mm) 0.535" (13.59mm) 0.059" (1.50mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-130-08-L-D-430 Samtec Inc. MTSW-130-08-L-D-430 -
RFQ
 ECAD 5778 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-130 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 60 0.100" (2.54mm) All Unshrouded Push-Pull 0.430" (10.92mm) - 0.530" (13.46mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Polyester, Glass Filled Black - - -
SFMC-145-L2-S-D-K Samtec Inc. SFMC-145-L2-S-D-K 27.9100
RFQ
 ECAD 7208 0.00000000 Samtec Inc. Tiger Eye™ SFMC Tube Active -55°C ~ 125°C - Surface Mount Pick and Place SFMC-145 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 10 Receptacle 2 2.9A per Contact Beryllium Copper UL94 V-0 Female Socket 0.050" (1.27mm) 90 0.050" (1.27mm) All Push-Pull - 0.185" (4.70mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TSW-122-10-S-S Samtec Inc. TSW-122-10-S-S 5.2800
RFQ
 ECAD 9858 0.00000000 Samtec Inc. TSW Bulk Active -55°C ~ 125°C - Through Hole - TSW-122 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 22 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.500" (12.70mm) 0.830" (21.08mm) 0.100" (2.54mm) Square Gold 30.0µin (0.76µm) Tin Polybutylene Terephthalate (PBT) Black - - -
HMTSW-210-13-L-D-100-LA Samtec Inc. HMTSW-210-13-L-D-100-LA -
RFQ
 ECAD 5032 0.00000000 Samtec Inc. Flex Stack, HMTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - HMTSW-210 Kinked Pin, Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.200" (5.08mm) 20 0.100" (2.54mm) All Unshrouded Push-Pull 0.100" (2.54mm) - - 0.240" (6.10mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
SOLC-145-02-L-Q-P Samtec Inc. SOLC-145-02-L-Q-P 34.8100
RFQ
 ECAD 3087 0.00000000 Samtec Inc. * Bulk Active download ROHS3 Compliant 612-SOLC-145-02-L-Q-P EAR99 8536.69.4040 1
TSW-101-16-T-D Samtec Inc. TSW-101-16-T-D 0.2600
RFQ
 ECAD 6839 0.00000000 Samtec Inc. TSW Bulk Active -55°C ~ 105°C - Through Hole - TSW-101 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 - Phosphor Bronze UL94 V-0 Male Pin - 2 0.100" (2.54mm) All Unshrouded Push-Pull 0.320" (8.13mm) 0.310" (7.87mm) 0.730" (18.54mm) 0.100" (2.54mm) Square Tin - Tin Polybutylene Terephthalate (PBT) Black - - -
SSW-118-04-S-D Samtec Inc. SSW-118-04-S-D 10.2600
RFQ
 ECAD 2881 0.00000000 Samtec Inc. SSW Bulk Active -55°C ~ 125°C - Through Hole - SSW-118 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 2 4.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 36 0.100" (2.54mm) All Push-Pull 0.584" (14.83mm) 0.335" (8.51mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
ZW-04-08-L-S-280-125 Samtec Inc. ZW-04-08-L-S-280-125 0.7800
RFQ
 ECAD 2856 0.00000000 Samtec Inc. Flex Stack, ZW Bulk Active Through Hole ZW-04-08 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 4 0.530" (13.462mm) 0.125" (3.175mm) 0.280" (7.112mm) 0.125" (3.180mm) Gold 10.0µin (0.25µm)
EJH-105-01-S-D-TH-06 Samtec Inc. EJH-105-01-S-D-TH-06 -
RFQ
 ECAD 9926 0.00000000 Samtec Inc. EJH Tube Active -55°C ~ 125°C - Through Hole Keying Slot EJH-105 Solder - Board to Cable/Wire - ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze - Male Pin 0.100" (2.54mm) 10 0.100" (2.54mm) 9 Shrouded - 4 Wall Latch Lock/Eject Hooks 0.225" (5.72mm) 0.120" (3.05mm) - 0.500" (12.70mm) Square Gold - Tin Liquid Crystal Polymer (LCP) Black - - -
EHT-122-01-S-D-RA-27 Samtec Inc. EHT-122-01-S-D-RA-27 -
RFQ
 ECAD 8309 0.00000000 Samtec Inc. EHT Tube Active -55°C ~ 125°C - Through Hole, Right Angle Keying Slot EHT-122 Solder - Board to Cable/Wire - ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 44 0.079" (2.00mm) 43 Shrouded - 4 Wall Latch Lock/Eject Hooks 0.120" (3.05mm) 0.120" (3.05mm) - 0.300" (7.62mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HTSW-107-25-T-S-LL Samtec Inc. HTSW-107-25-T-S-LL -
RFQ
 ECAD 2931 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 105°C - Through Hole - HTSW-107 Kinked Pin, Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 1 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 7 - All Unshrouded Push-Pull 0.320" (8.13mm) 0.210" (5.33mm) 0.630" (16.00mm) 0.100" (2.54mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Natural - - -
QSS-050-01-L-D-RA-WT-MTI Samtec Inc. QSS-050-01-L-D-RA-WT-MTI 31.3726
RFQ
 ECAD 7949 0.00000000 Samtec Inc. Q Strip® QSS Tray Active Surface Mount, Right Angle Ground Bus (Plane), Solder Retention QSS-050 0.328" (8.33mm) - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 27 Socket, Center Strip Contacts 0.025" (0.64mm) 2 Gold 10.0µin (0.25µm) 100 -
DW-04-14-F-D-885 Samtec Inc. DW-04-14-F-D-885 1.5900
RFQ
 ECAD 2144 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-04-14 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 8 1.430" (36.322mm) 0.435" (11.049mm) 0.885" (22.479mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
MTMM-115-09-G-D-400 Samtec Inc. MTMM-115-09-G-D-400 8.3400
RFQ
 ECAD 2698 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 125°C - Through Hole - MTMM-115 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 30 0.079" (2.00mm) All Unshrouded Push-Pull 0.400" (10.16mm) 0.535" (13.59mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
