Rectangular Connectors(15102)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | Style | Height Above Board | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Pin or Socket | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DF1BZ-4P-2.5DSA | 0.3000 |  |
21 | 0.00000000 | Hirose Electric Co Ltd | DF1B | Bulk | Active | -35°C ~ 85°C | - | Through Hole | Keying Slot | DF1B | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 100 | Header | 1 | - | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 4 | - | All | Shrouded - 4 Wall | Push-Pull | 0.177" (4.50mm) | 0.142" (3.60mm) | 0.417" (10.60mm) | 0.374" (9.50mm) | Square | Tin | 39.4µin (1.00µm) | Tin | Polyamide (PA), Nylon | White | 250V | 14mm | - | ||||||||||||||||
 |
DF16-14DS-0.5V(86) | - | |
7070 | 0.00000000 | Hirose Electric Co Ltd | DF16 | Tape & Reel (TR) | Obsolete | Surface Mount | Solder Retention | 0.077" (1.95mm) | download | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | - | 14 | 2mm, 2.5mm | ||||||||||||||||||||||||||||||||||||||||
|
HIF3BA-64PA-2.54DS(71) | - | |
7172 | 0.00000000 | Hirose Electric Co Ltd | HIF3B | Bulk | Obsolete | -55°C ~ 85°C | - | Through Hole, Right Angle | Keying Slot, Mounting Flange | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 610-0101-4-71 | EAR99 | 8536.69.4040 | 60 | Header | 2 | 1A | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 64 | 0.100" (2.54mm) | All | Shrouded - 4 Wall | Latch Lock/Eject Hooks | 0.236" (6.00mm) | 0.118" (3.00mm) | - | 0.335" (8.51mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Polybutylene Terephthalate (PBT) | Black | 200V | - | 78.7µin (2.00µm) | ||||||||||||||||
|
HIF3B-26PA-2.54DSA(71) | - | |
6447 | 0.00000000 | Hirose Electric Co Ltd | HIF3B | Bulk | Obsolete | -55°C ~ 85°C | - | Through Hole | Keying Slot | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 610-0074-3-71 | EAR99 | 8536.69.4040 | 1 | Header | 2 | 1A | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 26 | 0.100" (2.54mm) | All | Shrouded - 4 Wall | Latch Lock/Eject Hooks | 0.236" (6.00mm) | 0.126" (3.20mm) | 0.657" (16.70mm) | 0.701" (17.80mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Polybutylene Terephthalate (PBT) | Black | 200V | - | 78.7µin (2.00µm) | ||||||||||||||||
|
GT18WB-14DS-HU(A) | - | |
1542 | 0.00000000 | Hirose Electric Co Ltd | * | Bulk | Obsolete | - | RoHS Compliant | Not Applicable | 768-0040-7-00 | EAR99 | 8536.69.8000 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||
 |
BM10NB(0.8)-16DS-0.4V(51) | 0.7900 | |
4 | 0.00000000 | Hirose Electric Co Ltd | BM10 | Tape & Reel (TR) | Active | Surface Mount | Solder Retention | BM10NB | 0.031" (0.80mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 8,000 | Receptacle, Center Strip Contacts | 0.016" (0.40mm) | 2 | Gold | 2.00µin (0.051µm) | 16 | 0.8mm | ||||||||||||||||||||||||||||||||||||||
 |
FX10A-120S/12-SV(91) | 4.0723 | |
3656 | 0.00000000 | Hirose Electric Co Ltd | FunctionMax™ FX10 | Tape & Reel (TR) | Active | Surface Mount | Board Guide, Ground Plate, Solder Retention | FX10 | 0.126" (3.20mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Center Strip Contacts | 0.020" (0.50mm) | 2 | Gold | 4.00µin (0.100µm) | 120 | 4mm, 5mm | ||||||||||||||||||||||||||||||||||||||
 |
DF13B-4P-1.25V(21) | 0.3292 | |
5072 | 0.00000000 | Hirose Electric Co Ltd | DF13 | Tape & Reel (TR) | Active | -35°C ~ 85°C | - | Surface Mount | Board Guide, Solder Retention | DF13B | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.049" (1.25mm) | 4 | - | All | Shrouded - 3 Wall | Detent Lock | - | - | - | 0.189" (4.80mm) | Square | Tin | 39.4µin (1.00µm) | Tin | Polyamide (PA), Nylon | Beige | 150V | 5.8mm | - | ||||||||||||||||
|
HIF3B-26PA-2.54WB(71) | - | |
9954 | 0.00000000 | Hirose Electric Co Ltd | HIF3B | Bulk | Obsolete | -55°C ~ 85°C | - | Through Hole, Right Angle | Keying Slot, Mounting Flange | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | 610-0803-1-71 | EAR99 | 8536.69.4040 | 1 | Header | 2 | 1A | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 26 | 0.100" (2.54mm) | All | Shrouded - 4 Wall | Latch Lock/Eject Hooks | 0.236" (6.00mm) | 0.114" (2.90mm) | - | 0.303" (7.70mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Polybutylene Terephthalate (PBT) | Black | 200V | - | 78.7µin (2.00µm) | ||||||||||||||||
|
FX4C2-40S-1.27DSAL(71) | 4.8930 | |
7596 | 0.00000000 | Hirose Electric Co Ltd | FX4 | Bulk | Active | Through Hole | Board Lock | FX4C | 0.236" (6.00mm) | download | RoHS Compliant | 1 (Unlimited) | 574-0173-6-71 | EAR99 | 8536.69.4040 | 140 | Receptacle, Center Strip Contacts | 0.050" (1.27mm) | 2 | Gold | 8.00µin (0.203µm) | 40 | 7mm, 8mm, 10mm | |||||||||||||||||||||||||||||||||||||
 |
DF3DZ-3P-2H(21) | - | |
7332 | 0.00000000 | Hirose Electric Co Ltd | DF3 | Tape & Reel (TR) | Discontinued at SIC | -55°C ~ 105°C | - | Surface Mount, Right Angle | - | Solder | - | Board to Board or Cable | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 3A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 3 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.220" (5.60mm) | Circular | Tin | - | Tin | Polyamide (PA), Nylon | Beige | - | - | - | |||||||||||||||||
|
FX6-80S-0.8SV2(91) | 5.9015 | |
9910 | 0.00000000 | Hirose Electric Co Ltd | FX6 | Tube | Active | Surface Mount | Board Guide | FX6 | 0.236" (6.00mm) | - | RoHS Compliant | 1 (Unlimited) | 576-0127-1-91 | EAR99 | 8536.69.4040 | 13 | Receptacle, Center Strip Contacts | 0.031" (0.80mm) | 2 | Gold | - | 80 | 7mm, 8mm, 9mm | |||||||||||||||||||||||||||||||||||||
 |
HIF6-20D-1.27R(20) | 3.5600 | |
1 | 0.00000000 | Hirose Electric Co Ltd | HIF6 | Tray | Active | Free Hanging (In-Line) | Feed Through, Strain Relief | HIF6 | Black | download | RoHS Compliant | Not Applicable | EAR99 | 8536.69.4051 | 120 | Receptacle | 0.050" (1.27mm) | 2 | 0.100" (2.54mm) | Gold | - | Female Socket | 20 | - | 28 AWG | IDC | Ribbon Cable | |||||||||||||||||||||||||||||||||
|
GT36-1/1P-DSA(B) | - | |
1293 | 0.00000000 | Hirose Electric Co Ltd | * | Bulk | Obsolete | - | RoHS Compliant | Not Applicable | 786-0036-1-00 | EAR99 | 8536.69.4040 | 120 | ||||||||||||||||||||||||||||||||||||||||||||||||
 |
DF11-12DS-2DSA(06) | 2.1300 | |
14 | 0.00000000 | Hirose Electric Co Ltd | DF11 | Tray | Active | -30°C ~ 85°C | General Purpose | Through Hole | - | DF11 | Press-Fit, Solder | - | Board to Board or Cable | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 100 | Receptacle | 2 | 2A | Brass | UL94 V-0 | Female Socket | 0.079" (2.00mm) | 12 | 0.079" (2.00mm) | All | Friction Lock | 0.118" (3.00mm) | 0.244" (6.20mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Polyamide (PA), Nylon | Black | 250V | 7.8mm, 8.45mm | 78.7µin (2.00µm) | |||||||||||||||||||
 |
DF5A-10DS-5C | 0.4800 | |
200 | 0.00000000 | Hirose Electric Co Ltd | DF5 | Bulk | Active | -35°C ~ 85°C | Free Hanging (In-Line) | - | DF5A | White | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 100 | Receptacle | 0.197" (5.00mm) | 2 | 0.197" (5.00mm) | Female Socket | 10 | Latch Lock | Polyamide (PA), Nylon | Crimp | ||||||||||||||||||||||||||||||||||
 |
FX30B-5S-3.81DS | 6.1400 | |
40 | 0.00000000 | Hirose Electric Co Ltd | FunctionMax™ FX30B | Tray | Active | -55°C ~ 105°C | General Purpose | Through Hole, Right Angle | Board Guide, Board Lock | FX30B | Solder | - | Board to Board | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 25 | Receptacle | 1 | 13A | Copper Alloy | UL94 V-0 | Female Blade Socket | 0.150" (3.81mm) | 5 | - | All | Latch Holder | 0.130" (3.30mm) | 0.433" (11.00mm) | Rectangular | Gold | 3.90µin (0.099µm) | Tin | Polyamide (PA), Nylon | Black | 250V | - | 39.4µin (1.00µm) | |||||||||||||||||||
 |
DF12B(3.0)-50DP-0.5V(86) | - | |
5286 | 0.00000000 | Hirose Electric Co Ltd | DF12 | Tape & Reel (TR) | Obsolete | Surface Mount | Solder Retention | 0.091" (2.30mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header, Outer Shroud Contacts | 0.020" (0.50mm) | 2 | Gold | 8.00µin (0.203µm) | 50 | 3mm | |||||||||||||||||||||||||||||||||||||||
 |

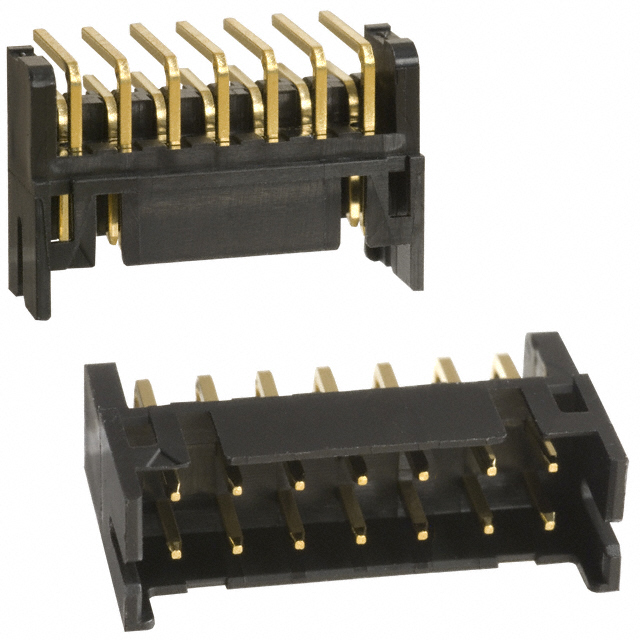

DF11-14DP-2DS(52) | 2.1000 | |
3 | 0.00000000 | Hirose Electric Co Ltd | DF11 | Tube | Active | -40°C ~ 85°C | - | Through Hole, Right Angle | - | DF11 | Solder | - | Board to Board or Cable | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 30 | Header | 2 | 2A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Detent Lock | 0.118" (3.00mm) | 0.118" (3.00mm) | - | 0.197" (5.00mm) | Square | Gold | 8.00µin (0.203µm) | - | Polyamide (PA), Nylon | Black | 250V | - | - | ||||||||||||||||
|
MDF7-30D-2.54DSA(14) | - | |
1440 | 0.00000000 | Hirose Electric Co Ltd | * | Bulk | Obsolete | - | Not Applicable | 5470016514 | OBSOLETE | 0000.00.0000 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
 |
DF13B-10P-1.25V(75) | 0.7300 | |
144 | 0.00000000 | Hirose Electric Co Ltd | DF13 | Tube | Last Time Buy | -35°C ~ 85°C | - | Surface Mount | Board Guide, Solder Retention | DF13B | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 28 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.049" (1.25mm) | 10 | - | All | Shrouded - 3 Wall | Detent Lock | - | - | - | 0.189" (4.80mm) | Square | Tin | 39.4µin (1.00µm) | Tin | Polyamide (PA), Nylon | Beige | 150V | - | 39.4µin (1.00µm) | ||||||||||||||||
|
DF3EA-3P-2H(21) | 0.6900 | |
3 | 0.00000000 | Hirose Electric Co Ltd | DF3 | Tape & Reel (TR) | Active | -55°C ~ 105°C | - | Surface Mount, Right Angle | Solder Retention | DF3E | Solder | - | Board to Board or Cable | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | Varies by Wire Gauge | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 3 | - | All | Shrouded - 4 Wall | Push-Pull | - | - | - | 0.220" (5.60mm) | Circular | Tin | 39.4µin (1.00µm) | Tin | Polyamide (PA), Nylon | Beige | 250VAC | - | - | |||||||||||||||
 |
A3-16PA-2SV(71) | 2.0500 | |
5 | 0.00000000 | Hirose Electric Co Ltd | A3 | Tube | Active | -55°C ~ 85°C | - | Surface Mount | - | A3-16PA | Solder | - | Board to Board or Cable | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 30 | Header | 2 | 1A | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 16 | 0.079" (2.00mm) | All | Unshrouded | Push-Pull | 0.138" (3.50mm) | - | - | 0.071" (1.80mm) | Square | Gold | 8.00µin (0.203µm) | Gold | Polyphenylene Sulfide (PPS) | Brown | 200V | 6mm, 8.8mm | Flash | ||||||||||||||||
 |
MQ172-3SA-CV(31) | 1.4888 | |
9439 | 0.00000000 | Hirose Electric Co Ltd | MQ172 | Tray | Active | Free Hanging (In-Line) | Hood, Cable Clamp | MQ172 | Black | download | RoHS Compliant | Not Applicable | 206-0951-7-31 | EAR99 | 8536.69.8000 | 50 | Plug | - | 1 | - | Gold | - | Male Pin | 3 (1 + 2 Power) | Latch Lock | - | Solder Eyelet | Discrete | ||||||||||||||||||||||||||||||||
 |
DF9B-25P-1V(32) | 1.4500 | |
1 | 0.00000000 | Hirose Electric Co Ltd | DF9 | Tape & Reel (TR) | Active | Surface Mount | Solder Retention | DF9B | 0.130" (3.30mm) | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header, Center Strip Contacts | 0.039" (1.00mm) | 2 | Tin | 39.4µin (1.00µm) | 25 | 4.3mm | ||||||||||||||||||||||||||||||||||||||
 |
ST40X-24S-CV(80) | - | |
3343 | 0.00000000 | Hirose Electric Co Ltd | ST | Tray | Obsolete | Free Hanging (In-Line) | Shielded | Black | download | 1 (Unlimited) | EAR99 | 8536.69.8000 | 100 | Plug | 0.020" (0.50mm) | 1 | - | Gold | 8.00µin (0.203µm) | Non-Gender Specific | 24 | Lever Lock | - | Solder | Discrete | |||||||||||||||||||||||||||||||||||
 |
DF1B-12P-2.5DS(01) | 1.1686 | |
3685 | 0.00000000 | Hirose Electric Co Ltd | DF1B | Bulk | Active | -35°C ~ 85°C | - | Through Hole, Right Angle | Keying Slot | DF1B | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 100 | Header | 1 | - | Brass | UL94 V-0 | Male Pin | 0.098" (2.50mm) | 12 | - | All | Shrouded - 4 Wall | Push-Pull | 0.177" (4.50mm) | 0.142" (3.60mm) | - | 0.224" (5.69mm) | Square | Gold | 8.00µin (0.203µm) | - | Polyamide (PA), Nylon | White | 250V | - | - | ||||||||||||||||
 |
DF11-EP2428PC | 0.1600 | |
34 | 0.00000000 | Hirose Electric Co Ltd | DF11 | Bulk | Active | - | DF11 | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.90.4000 | 100 | Tin | - | 24-28 AWG | Crimp | Pin | ||||||||||||||||||||||||||||||||||||||||||
 |
DF13A-14P-1.25H(51) | 1.7800 | |
6552 | 0.00000000 | Hirose Electric Co Ltd | DF13 | Tape & Reel (TR) | Active | -35°C ~ 85°C | - | Surface Mount, Right Angle | Solder Retention | DF13A | Solder | - | Board to Cable/Wire | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 1A | Brass | UL94 V-0 | Male Pin | 0.049" (1.25mm) | 14 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.142" (3.60mm) | Square | Gold | 8.00µin (0.203µm) | - | Polyamide (PA), Nylon | Beige | 150V | - | - | ||||||||||||||||
|
DF36C-15P-0.4SD | 1.1550 | |
6217 | 0.00000000 | Hirose Electric Co Ltd | DF36 | Tray | Active | Free Hanging (In-Line) | - | DF36 | Natural | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 100 | Plug | 0.016" (0.40mm) | 1 | - | Gold | - | Outer Shroud Contact | 15 | Latch Holder | 42-46 AWG | Solder | Discrete |
