Rectangular Connectors(13835)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Applications | Mounting Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Ingress Protection | Note | Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Row Spacing | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Pitch - Mating | Number of Positions | Row Spacing - Mating | Number of Positions Loaded | Shrouding | Fastening Type | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Insulation Height | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Voltage Rating | Mated Stacking Heights | Contact Finish Thickness - Post | Wire Gauge | Contact Termination | Cable Termination | Wire Type | Cable Pitch | Board-Side Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-2012146 | - |  |
8144 | 0.00000000 | Harwin Inc. | M22 | Bulk | Obsolete | -55°C ~ 105°C | - | Through Hole | - | Solder | - | Board to Board | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 200 | Header, Cuttable | 1 | 1A per Contact | Phosphor Bronze | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 21 | - | All | Unshrouded | Push-Pull | 0.138" (3.50mm) | 0.134" (3.40mm) | 0.331" (8.40mm) | 0.059" (1.50mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Black | - | 5.9mm, 8.6mm | - | |||||||||||||||||
 |
M80-9043802 | 59.9488 | |
4176 | 0.00000000 | Harwin Inc. | Datamate J-Tek | Bag | Active | Right Angle | Backshell | Datamate J-Tek | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | 952-M80-9043802 | EAR99 | 8538.90.8180 | 5 | 38 | ||||||||||||||||||||||||||||||||||||||||||||
 |
M80-4000000F9-04-306-00-000 | - | |
4778 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Bulk | Obsolete | Panel Mount | Jackscrews, Polarizing Key | Black | download | 1 (Unlimited) | REACH Unaffected | OBSOLETE | 0000.00.0000 | 1 | Receptacle | 0.157" (4.00mm) | 1 | - | Gold | - | Female Socket, Coaxial | 4 | Screw Lock | - | Crimp | Coaxial | |||||||||||||||||||||||||||||||||||
 |
G125-FV15005F3P | 80.6100 | |
13 | 0.00000000 | Harwin Inc. | Gecko SL | Strip | Active | -65°C ~ 150°C | - | Through Hole | Jackscrews, Pick and Place, Polarizing Key | G125-FV1 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 952-4131 | EAR99 | 8536.69.4040 | 10 | Receptacle | 2 | 2A | Copper Alloy | UL94 V-0 | Female Socket | 0.049" (1.25mm) | 50 | 0.049" (1.25mm) | All | Screw Lock | 0.118" (3.00mm) | 0.207" (5.25mm) | Circular | Gold | 8.00µin (0.203µm) | Gold | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | Green | 450V | 7.25mm, 7.33mm | 8.00µin (0.203µm) | ||||||||||||||||||
 |
M20-9711946 | - | |
8694 | 0.00000000 | Harwin Inc. | M20 | Bulk | Obsolete | -40°C ~ 105°C | - | Through Hole, Right Angle | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 200 | Header, Cuttable | 1 | 3A per Contact | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 19 | - | All | Unshrouded | Push-Pull | 0.276" (7.00mm) | 0.118" (3.00mm) | - | 0.100" (2.54mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Black | - | - | - | |||||||||||||||||
|
M104794C | - | |
5300 | 0.00000000 | Harwin Inc. | * | Tube | Obsolete | - | ROHS3 Compliant | Not Applicable | REACH Unaffected | OBSOLETE | 0000.00.0000 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||
 |
M80-7882601 | 11.1038 | |
2615 | 0.00000000 | Harwin Inc. | Datamate L-Tek | Bulk | Active | Free Hanging (In-Line) | - | M80-788 | Black | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Gold | 11.8µin (0.30µm) | Female Socket | 26 | Locking Ramp | 28-32 AWG | Crimp | Discrete | |||||||||||||||||||||||||||||||||
|
M30-3010946 | - | |
8184 | 0.00000000 | Harwin Inc. | M30 | Bulk | Obsolete | -25°C ~ 85°C | - | Surface Mount | Solder Retention | Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | Header | 1 | 1A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.049" (1.25mm) | 9 | - | All | Shrouded - 4 Wall | Detent Lock | - | - | - | 0.193" (4.90mm) | Rectangular | Tin | - | Tin | Polyamide (PA9T), Nylon 9T | Natural | 100V | - | - | |||||||||||||||||
 |

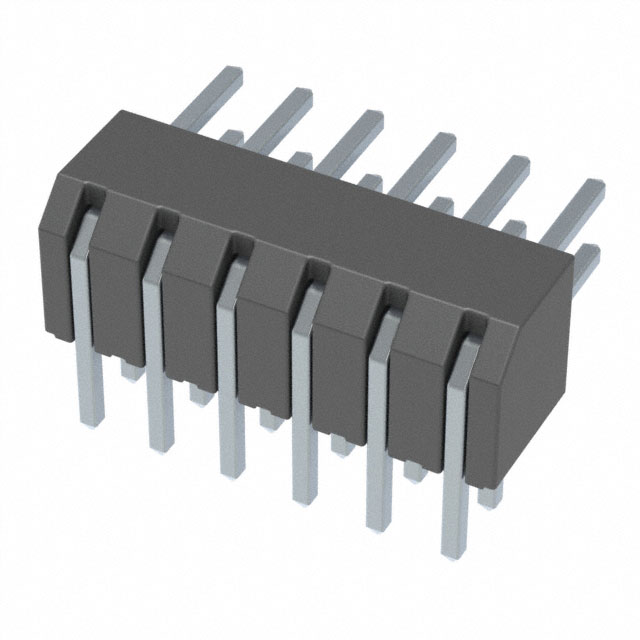

M22-2410646 | - | |
6833 | 0.00000000 | Harwin Inc. | M22 | Tube | Obsolete | -40°C ~ 105°C | - | Through Hole, Right Angle | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 40 | Header | 2 | 2A per Contact | Copper Alloy | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 12 | 0.079" (2.00mm) | All | Unshrouded | Push-Pull | 0.157" (4.00mm) | 0.110" (2.79mm) | - | 0.169" (4.30mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Black | - | - | - | |||||||||||||||||
|
M30-1300800 | - | |
4227 | 0.00000000 | Harwin Inc. | M30 | Bulk | Obsolete | Free Hanging (In-Line) | - | - | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1,000 | Receptacle | 0.049" (1.25mm) | 1 | - | Female Socket | 8 | Friction Lock | Crimp | |||||||||||||||||||||||||||||||||||||
|
M20-7850642 | - | |
8258 | 0.00000000 | Harwin Inc. | M20 | Tube | Obsolete | -40°C ~ 105°C | General Purpose, Industrial, Telecommunications | Through Hole | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 36 | Receptacle, Bottom or Top Entry | 2 | 3A | Phosphor Bronze | UL94 V-0 | Female Socket | 0.100" (2.54mm) | 12 | 0.100" (2.54mm) | All | Push-Pull | 0.118" (3.00mm) | 0.197" (5.00mm) | Square | Gold | - | Tin | Polyamide (PA6T), Nylon 6T | Black | 1000V | - | - | ||||||||||||||||||||
 |
G125-FV12005F1P | 37.6500 | |
261 | 0.00000000 | Harwin Inc. | Gecko SL | Bulk | Active | -65°C ~ 150°C | Automotive, General Purpose | Through Hole | Jackscrews, Pick and Place, Polarizing Key | G125-FV1 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 952-3664 | EAR99 | 8536.69.4040 | 10 | Receptacle | 2 | 2A | Copper Alloy | UL94 V-0 | Female Socket | 0.049" (1.25mm) | 20 | 0.049" (1.25mm) | All | Screw Lock | - | 0.207" (5.25mm) | Circular | Gold | 8.00µin (0.203µm) | Gold | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | Green | - | - | - | ||||||||||||||||||
|
D6724-01 | - | |
8317 | 0.00000000 | Harwin Inc. | - | Tube | Obsolete | Through Hole | - | Black | Solder | - | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 9 | DIP, DIL - Header | 0.100" (2.54mm) | 2 | 0.400" (10.16mm) | Tin | 137.8µin (3.50µm) | Slotted | 24 | |||||||||||||||||||||||||||||||||||||
 |
M80-5021822 | - | |
1753 | 0.00000000 | Harwin Inc. | Datamate J-Tek | Tube | Active | -55°C ~ 125°C | - | Surface Mount | Keying Slot, Mating Flange | M80-502 | Solder | - | Board to Board or Cable | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 9 | Header | 2 | 2.2A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 18 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Threaded | - | - | - | 0.220" (5.60mm) | Circular | Gold | 29.5µin (0.75µm) | Tin-Lead | Polyphenylene Sulfide (PPS), Glass Filled | Black | 800V | 7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm | 118.1µin (3.00µm) | ||||||||||||||||
 |
M20-9972246 | - | |
6609 | 0.00000000 | Harwin Inc. | M20 | Bulk | Obsolete | -40°C ~ 105°C | - | Through Hole | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | Header, Cuttable | 2 | 3A per Contact | Brass | UL94 V-0 | Male Pin | 0.100" (2.54mm) | 45 | 0.100" (2.54mm) | All | Unshrouded | Push-Pull | 0.335" (8.51mm) | 0.116" (2.95mm) | 0.551" (14.00mm) | 0.100" (2.54mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Black | - | - | - | |||||||||||||||||
 |
M80-5301005 | 9.8612 | |
9135 | 0.00000000 | Harwin Inc. | Datamate J-Tek | Tube | Active | -55°C ~ 125°C | - | Through Hole, Right Angle | Keying Slot, Mating Flange | M80-530 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 13 | Header | 2 | 2.2A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 10 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Threaded | - | 0.118" (3.00mm) | - | 0.220" (5.60mm) | Circular | Gold | 10.0µin (0.25µm) | Gold | Polyphenylene Sulfide (PPS), Glass Filled | Black | 800VAC/DC | - | 10.0µin (0.25µm) | ||||||||||||||||
|
M80-4000000FE-04-323-00-000 | - | |
5978 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Tube | Obsolete | -55°C ~ 125°C | Automotive, General Purpose, Military | Through Hole, Right Angle | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | Receptacle | 1 | - | Copper Alloy | UL94 V-0 | Female Socket, Power | 0.157" (4.00mm) | 4 | - | All | Screw Lock | 0.138" (3.50mm) | 0.238" (6.05mm) | Circular | Gold | - | - | Polyphenylene Sulfide (PPS), Glass Filled | Black | 800V | - | - | ||||||||||||||||||||
 |
M50-3800842 | 3.7200 | |
684 | 0.00000000 | Harwin Inc. | Archer M50 | Tube | Active | Through Hole | Feed Through | M50-380 | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 952-2686 | EAR99 | 8536.69.8000 | 40 | Ribbon Cable, DIP Header | 2 | 0.050" (1.27mm) | Gold | - | 16 | All | 30 AWG | IDC | 0.025" (0.64mm) | 0.050" (1.27mm) | |||||||||||||||||||||||||||||||||
 |
M80-4591498 | - | |
7070 | 0.00000000 | Harwin Inc. | Datamate Trio-Tek | Bulk | Obsolete | -55°C ~ 125°C | Free Hanging (In-Line) | Jackscrews | M80-459 | Black | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 100 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Female Socket | 14 | Screw Lock | Crimp | |||||||||||||||||||||||||||||||||||
|
M22-2211446 | - | |
9504 | 0.00000000 | Harwin Inc. | M22 | Tube | Obsolete | -25°C ~ 85°C | - | Through Hole, Right Angle | - | Kinked Pin, Solder | - | Board to Cable/Wire | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1,000 | Header | 1 | 2A per Contact | Brass | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 14 | - | All | Shrouded - 4 Wall | Detent Lock | - | 0.134" (3.40mm) | - | 0.195" (4.95mm) | Square | Tin | - | Tin | Polyamide (PA6T), Nylon 6T | Natural | 100V | - | - | |||||||||||||||||
|
M80-5000000M3-03-331-00-000 | - | |
4480 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Tube | Active | M80-500 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | M80-5000000M30333100000 | EAR99 | 8536.69.4010 | 12 | Plug | Male Pin, Coaxial | 3 | Screw Lock | |||||||||||||||||||||||||||||||||||||||||||
|
M50-3003445 | - | |
6116 | 0.00000000 | Harwin Inc. | Archer M50 | Tube | Obsolete | -40°C ~ 105°C | General Purpose, Medical, Telecommunications | Through Hole | - | Solder | - | Board to Board or Cable | - | ROHS3 Compliant | Not Applicable | REACH Unaffected | OBSOLETE | 0000.00.0000 | 1 | Receptacle | 2 | 1A | Phosphor Bronze | UL94 V-0 | Female Socket | 0.050" (1.27mm) | 68 | 0.050" (1.27mm) | All | Push-Pull | 0.094" (2.40mm) | 0.173" (4.40mm) | Square | Gold | Flash | - | Polyamide (PA6T), Nylon 6T | Black | - | 5.4mm, 6.08mm, 9.37mm | - | ||||||||||||||||||||
 |
M80-5200605 | 3.5958 | |
3828 | 0.00000000 | Harwin Inc. | Datamate J-Tek | Tube | Active | -55°C ~ 125°C | - | Through Hole | Keying Slot, Mating Flange | M80-520 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 16 | Header | 2 | 2.2A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 6 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Push-Pull | - | 0.128" (3.25mm) | 0.348" (8.85mm) | 0.220" (5.60mm) | Circular | Gold | 29.5µin (0.75µm) | Gold | Polyphenylene Sulfide (PPS), Glass Filled | Black | 800VAC/DC | 7.3mm, 7.8mm | 29.5µin (0.75µm) | ||||||||||||||||
|
M20-7871242 | - | |
6515 | 0.00000000 | Harwin Inc. | M20 | Tube | Obsolete | -40°C ~ 105°C | General Purpose, Industrial, Telecommunications | Surface Mount | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 18 | Receptacle, Bottom or Top Entry | 2 | 3A | Phosphor Bronze | UL94 V-0 | Female Socket | 0.100" (2.54mm) | 24 | 0.100" (2.54mm) | All | Push-Pull | - | 0.295" (7.50mm) | Square | Gold | - | Tin | Polyamide (PA6T), Nylon 6T | Black | 1000V | 10.04mm, 11.63mm | - | ||||||||||||||||||||
 |
M80-4C10405F1-02-325-00-000 | 17.1100 | |
86 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Bulk | Active | Free Hanging (In-Line) | Jackscrews | M80-4C1 | Black | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | Receptacle | - | 2 | - | Gold | 11.8µin (0.30µm) | Female Socket | 6 (4 + 2 Power) | Screw Lock | 24-28 AWG | Crimp | Discrete | |||||||||||||||||||||||||||||||||
 |
M80-9422005 | 19.1057 | |
1706 | 0.00000000 | Harwin Inc. | Datamate J-Tek | Bulk | Active | Free Hanging (In-Line) | Cable Hood Kit, Jackscrews | M80-942 | Black | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 1 | Receptacle | 0.079" (2.00mm) | 2 | 0.079" (2.00mm) | Gold | 10.0µin (0.25µm) | Female Socket | 20 | - | 24-28 AWG | Crimp | Discrete | |||||||||||||||||||||||||||||||||
|
M80-4000000FG-11-326-00-000 | - | |
5008 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Bulk | Obsolete | Panel Mount | Jackscrews | Black | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4030 | 1 | Receptacle | 0.157" (4.00mm) | 1 | - | Gold | - | Female Socket, Power | 11 | - | 14 AWG | Solder | Discrete | ||||||||||||||||||||||||||||||||||
|
M20-7843142 | - | |
8491 | 0.00000000 | Harwin Inc. | M20 | Tube | Obsolete | -40°C ~ 105°C | General Purpose, Industrial, Telecommunications | Through Hole | - | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 7 | Receptacle, Bottom or Top Entry | 1 | 3A | Phosphor Bronze | UL94 V-0 | Female Socket | 0.100" (2.54mm) | 31 | - | All | Push-Pull | 0.118" (3.00mm) | 0.197" (5.00mm) | Square | Gold | - | Tin | Polyamide (PA6T), Nylon 6T | Black | 1000V | - | - | ||||||||||||||||||||
 |
M80-8510442 | 6.1200 | |
2 | 0.00000000 | Harwin Inc. | Datamate L-Tek | Tube | Active | -55°C ~ 125°C | - | Through Hole, Right Angle | Strain Relief Clips | M80-851 | Solder | - | Board to Board or Cable | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 32 | Header | 2 | 2.2A | Phosphor Bronze | UL94 V-0 | Male Pin | 0.079" (2.00mm) | 4 | 0.079" (2.00mm) | All | Shrouded - 4 Wall | Latch Lock | - | 0.118" (3.00mm) | - | 0.235" (5.97mm) | Circular | Gold | 29.5µin (0.75µm) | Tin | Polyphenylene Sulfide (PPS), Glass Filled | Black | 800V | - | 118.1µin (3.00µm) | ||||||||||||||||
|
M80-4000000FG-11-32C-00-000 | - | |
5817 | 0.00000000 | Harwin Inc. | Datamate Mix-Tek | Bulk | Obsolete | Panel Mount, Right Angle | Jackscrews | Black | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4030 | 1 | Receptacle | 0.157" (4.00mm) | 1 | - | Gold | - | Female Socket, Power | 11 | - | 16 AWG | Solder | Discrete |
