D-Sub, D-Shaped Connectors(167078)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Material | Features | Base Product Number | Accessory Type | Color | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Cable Type | Shielding | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Plating | Flange Feature | Dielectric Material | Primary Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness | Cable Exit | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M24308/4-9F | 47.5400 |  |
35 | 0.00000000 | ITT Cannon, LLC | Military, MIL-C-24308, M24308 | Bulk | Active | -50°C ~ 150°C | Panel Mount | - | M24308/4 | - | Crimp | - | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 1 | Plug, Male Pins | 2 | Gold | 50.0µin (1.27µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (Unthreaded) | Thermoplastic | Metal | Steel, Yellow Chromate Plated Cadmium | D-Sub | 18-30 AWG | - | 4 (DC, C) | - | ||||||||||||||
 |

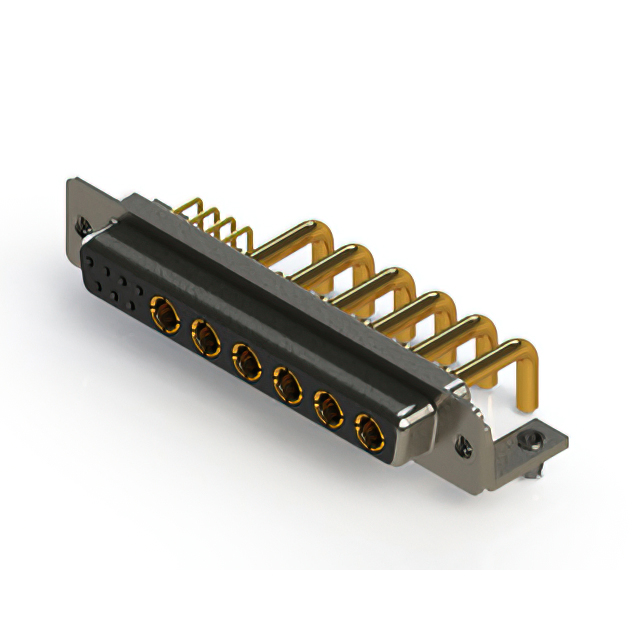

630-13W6650-2T3 | 26.1024 | |
8617 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W6650-2T3 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | 0.370" (9.40mm) | |||||||||||||
 |
629-25W3250-1N6 | 12.5290 | |
5347 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-25W3250-1N6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | 0.370" (9.40mm) | |||||||||||||
|
MWDM2L-31NSM | 939.5500 | |
20 | 0.00000000 | Glenair | * | Bulk | Active | MWDM2L-31 | - | 1 (Unlimited) | REACH Unaffected | 3937-MWDM2L-31NSM | EAR99 | 1 | |||||||||||||||||||||||||||||||||||||||
|
DBM25P1A5NA190K87 | - | |
3713 | 0.00000000 | ITT Cannon, LLC | D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets | DBM2 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | 50.0µin (1.27µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (Unthreaded) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | |||||||||||||||
 |

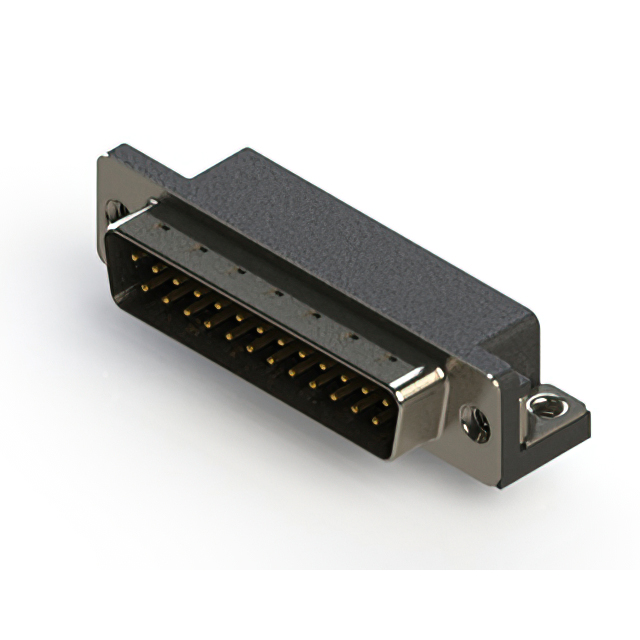

621-025-660-052 | 5.2500 | |
7387 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 621-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-025-660-052 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||||||||||||||
 |

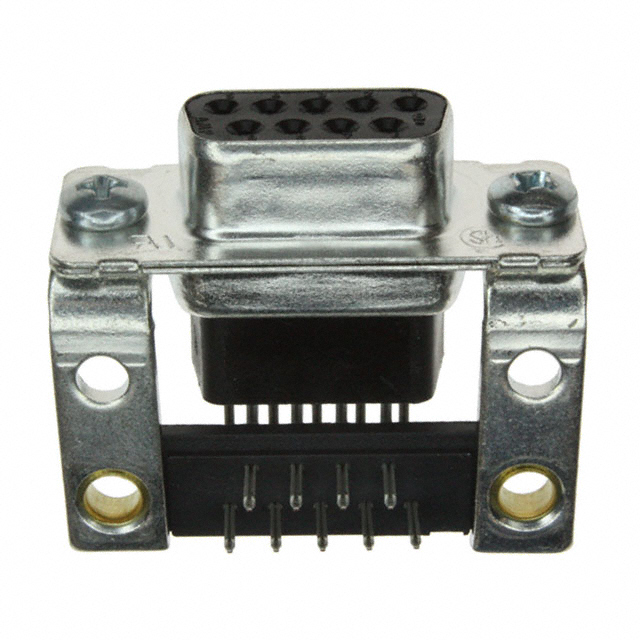

5745112-2 | - | |
4916 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Tray | Active | -55°C ~ 105°C | Through Hole, Right Angle | Mounting Brackets | 5745112 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 140 | Receptacle, Female Sockets | 2 | Gold | - | 6A | Phosphor Bronze | UL94 V-0 | Signal | 9 | 125V | Mating Side, Standard Screws (4-40) | Polyamide (PA), Nylon, Glass Filled | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | 0.545" (13.84mm) | ||||||||||||||
 |

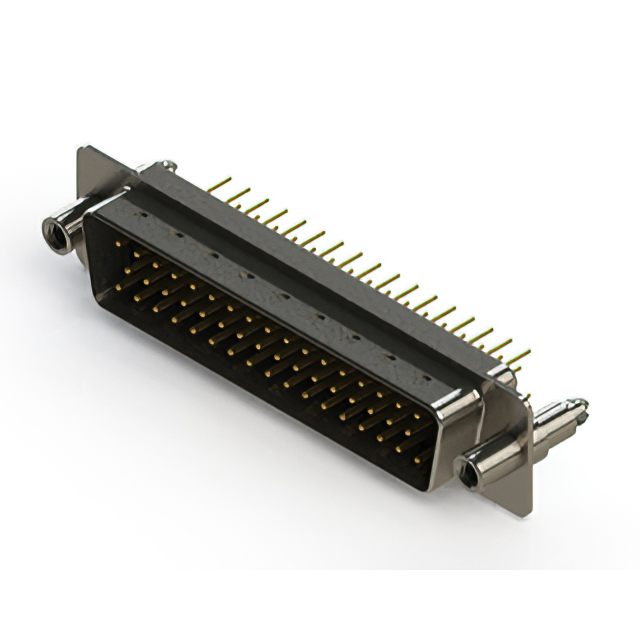

627-M50-220-BT6 | 10.7636 | |
9581 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M50 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M50-220-BT6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||||||||||||||
|
CWR-182-15-0021 | - | |
7899 | 0.00000000 | CW Industries | CWR | Bulk | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Strain Relief | CWR-182 | Blue | IDC, Ribbon Cable | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4051 | 100 | Receptacle, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 1A | Phosphor Bronze | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Thermoplastic | - | D-Sub | 28-30 AWG | - | 2 (DA, A) | - | ||||||||||||||
 |
628-7W2-224-1NA | 6.0640 | |
3179 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-7W2-224-1NA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | |||||||||||||
|
MDM-25SH244LH-A174 | 349.5710 | |
4899 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 125°C | Panel Mount | Shielded | - | Wire Leads | - | download | 1 (Unlimited) | EAR99 | 8536.69.8000 | 1 | Receptacle, Female Sockets | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 25 | - | - | Liquid Crystal Polymer (LCP) | Aluminum, Nickel Plated, Electroless | D-Type, Micro-D | - | - | 0.050 Pitch x 0.043 Row to Row | - | |||||||||||||||||
|
627-21W4224-5NA | 12.2766 | |
5831 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-21W4224-5NA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (17 + 4 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | - | |||||||||||||
|
09694009203 | - | |
2551 | 0.00000000 | HARTING | - | - | Obsolete | - | - | - | - | - | - | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 25 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |||||||||||||||
|
1731091548 | 16.7292 | |
8798 | 0.00000000 | Molex | * | Bulk | Active | 173109 | - | Not Applicable | 25 | ||||||||||||||||||||||||||||||||||||||||||
 |
628-5W1-624-2TE | 9.0815 | |
6890 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W1-624-2TE | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (4 + 1 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | - | |||||||||||||
 |
RD9M00WT20/AA | 20.4200 | |
135 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | RD9M | Green | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-RD9M00WT20/AA | EAR99 | 8536.69.5050 | 1 | Plug for Male Contacts | 2 | Signal | 9 | 1000 | Mating Side, Female Screwlock (4-40) | Diallyl Phthalate (DAP), Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub | 1 (DE, E) | - | ||||||||||||||||||||||
 |
628-3WK3224-3TA | 6.2368 | |
3121 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-3WK3224-3TA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets and Male Pins | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Signal and Power | 3 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | - | |||||||||||||
|
5-175474-3 | - | |
8930 | 0.00000000 | TE Connectivity AMP Connectors | CHAMP .050 I | Bulk | Obsolete | Through Hole, Right Angle | Board to Board | Board Lock | 175474 | Solder | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 150 | Receptacle | 2 | Gold | 30.0µin (0.76µm) | 30 | - | Outer Shroud Contacts | |||||||||||||||||||||||||||
|
241A14270X | - | |
3601 | 0.00000000 | Conec | 241A | Bulk | Active | -25°C ~ 105°C | Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets | Black | Solder | IP20 | - | 626-241A14270X | 1 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25, 25 | 100V | Housing/Shell (4-40) | Polyester, Glass Filled | Metal | Steel, Tin Plated | D-Sub - Stacked | - | Machined | 3 (DB, B); 3 (DB, B) | 0.283" (7.20mm) | ||||||||||||||||||
 |
628-M25-223-WT2 | 13.4684 | |
3234 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M25 | White | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M25-223-WT2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | |||||||||||||
 |
629-2W2-250-2T4 | 4.4970 | |
5287 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2W2-250-2T4 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |||||||||||||
 |
DD26S32S6000 | 29.4200 | |
153 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Through Hole | Board Lock | DD26S | Blue | Solder | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-DD26S32S6000 | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | 300V | Board Side (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | - | |||||||||||||||
|
DDMY24H7PJK87 | 1.0000 | |
6278 | 0.00000000 | ITT Cannon, LLC | Combo D®, D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Shielded | DDMY | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | IDDMY24H7PJK87 | EAR99 | 8536.69.4030 | 1 | Plug, Male Pins | 2 | Gold | Flash | 7.5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | - | Housing/Shell (Unthreaded) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - | ||||||||||||||
|
DD15S200EX | 1.0000 | |
6794 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | DD15S | Blue | Solder Cup | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | Vendor Undefined | 2403-DD15S200EX | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, High Density | 22-30 AWG | Machined | 1 (DE, E) High Density | - | ||||||||||||||
|
SDB-15BFFC-SL7001 | 8.5300 | |
9860 | 0.00000000 | Amphenol LTW | - | Bulk | Active | -40°C ~ 105°C | Free Hanging (In-Line) | Shielded | SDB-15BFFC | Black | IP67 - Dust Tight, Waterproof | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8538.90.8180 | 10 | Receptacle for Female Contacts | 2 | Signal | 15 | Housing/Shell (Unthreaded) | Polybutylene Terephthalate (PBT) | Steel, Nickel Plated | D-Sub | 2 (DA, A) | ||||||||||||||||||||||||
 |
MHDPPK25-Y-K | 1.2874 | |
9421 | 0.00000000 | MH Connectors | MHDPPK | Bag | Active | Polyamide (PA66), Nylon 6/6 | Mating Screws 4-40 | Two Piece Backshell | Yellow | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8538.90.8180 | 100 | Round | Unshielded | 25 | - | Plastic | 180° | Assembly Hardware, Grommets | ||||||||||||||||||||||||||||
|
DCMMY8W8PA101 | 14.2400 | |
100 | 0.00000000 | ITT Cannon, LLC | 24308-Style, Combo D®, D*MM | Bulk | Active | -55°C ~ 150°C | Free Hanging (In-Line) | Shielded | DCMM | Black | - | Contacts Not Included | download | RoHS non-compliant | 1 (Unlimited) | IDCMMY8W8PA101 | EAR99 | 8538.90.8180 | 1 | Plug for Male Contacts | 1 | Coax or Power | 8 (Coax or Power) | - | Housing/Shell (Unthreaded) | Polyester | Steel, Yellow Chromate Plated Cadmium | D-Sub, Combo | 4 (DC, C) - 8W8 | - | |||||||||||||||||||||
 |
630-47W1240-2T6 | 11.6857 | |
1211 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-47W1240-2T6 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | |||||||||||||
 |
627-8W8-224-3T6 | 12.8698 | |
8845 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-8W8-224-3T6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | |||||||||||||
|
L777DFE09P1BUNRM6 | 8.9023 | |
1936 | 0.00000000 | Amphenol ICC (Commercial Products) | DF | Tray | Active | -55°C ~ 155°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | L777DFE09 | Black | Solder | - | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 7.5A | Brass | UL94 V-0 | Signal | 9 | 300V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | 0.406" (10.30mm) |
