D-Sub, D-Shaped Connectors(167078)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Primary Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-13W6650-2NB | 30.7596 |  |
4505 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W6650-2NB | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | 0.370" (9.40mm) | |||||||
 |

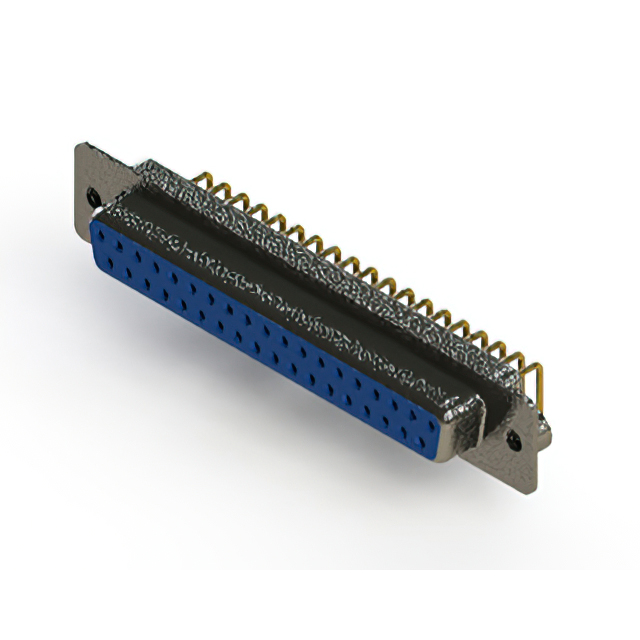

622-M37-660-LN2 | 19.6000 | |
9194 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 622-M37 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M37-660-LN2 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | 0.283" (7.20mm) | ||||||||
 |
09670504702 | 12.9634 | |
4005 | 0.00000000 | HARTING | - | Bulk | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | Black | Crimp | - | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.8000 | 50 | Receptacle, Female Sockets | 3 | Gold | - | - | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Metal | Steel | D-Sub | 18-28 AWG | - | 5 (DD, D) | - | ||||||||
 |
629-36W4240-4N3 | 14.7036 | |
2600 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4240-4N3 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |||||||
 |
630-7W2-640-2N2 | 13.8621 | |
1273 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-7W2-640-2N2 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |||||||
 |
628-24W7224-1N4 | 13.2260 | |
7635 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-24W7224-1N4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - | |||||||
 |
D15S24B6RX09LF | - | |
5007 | 0.00000000 | Amphenol ICC (FCI) | Delta D | Tray | Active | -55°C ~ 125°C | Through Hole | Board Guide | D15S24 | Black | Solder Paste | - | download | 1 (Unlimited) | 609-D15S24B6RX09LF | EAR99 | 8536.69.4040 | 30 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Housing/Shell (4-40) | Liquid Crystal Polymer (LCP), Glass Filled | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | |||||||||
 |
629-2W2-240-3N4 | 7.2872 | |
1956 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2W2-240-3N4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |||||||
 |
629-21W1640-3T1 | 14.6662 | |
1227 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W1640-3T1 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | 0.370" (9.40mm) | |||||||
 |
RD15S10HTX | 1.0000 | |
1409 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | RD15S | Green | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-RD15S10HTX | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Mating Side, Female Screwlock (4-40) | Diallyl Phthalate (DAP), Glass Filled | Steel, Tin Plated | D-Sub | 20-24 AWG | Machined | 2 (DA, A) | - | |||||||||
|
CBC13W6S100TS/AA | 24.0500 | |
50 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-CBC13W6S100TS/AA | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 13 (7 + 6 Coax or Power) | 300V | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, Combo | 20-24 AWG | Machined | 4 (DC, C) - 13W6 | - | ||||||||||
 |
629-7W2-650-3T5 | 11.4362 | |
1057 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-7W2-650-3T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |||||||
 |
662-037-664-05C | 18.5552 | |
7454 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 662-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-662-037-664-05C | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | - | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | |||||||
 |
663-015-364-049 | 8.4082 | |
4802 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 663-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-015-364-049 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 15, 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 2 (DA, A); 2 (DA, A) | 0.318" (8.08mm) | ||||||||
 |
630-037-240-042 | 4.8290 | |
6590 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-037-240-042 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.409" (10.40mm) | ||||||||
|
628-050-620-543 | - | |
7165 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-050 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-050-620-543 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 3 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 5 (DD, D) | - | |||||||
 |
MDM-25SCBRM7 | 324.5700 | |
20 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Shielded | MDM-2 | - | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 3 | Gold | - | 3A | Copper Alloy | - | Signal | 25 | - | Mating Side, Female Screwlock (2-56) | Liquid Crystal Polymer (LCP) | Aluminum, Yellow Chromate Plated Cadmium | D-Type, Micro-D | - | - | 0.050 Pitch x 0.100 Row to Row | - | |||||||||
 |
633-062-363-552 | 12.3040 | |
4149 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-062 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-062-363-552 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | 0.350" (8.89mm) | ||||||||
|
24-502923 | - | |
9254 | 0.00000000 | Conec | - | Bulk | Active | - | 626-24-502923 | 1 | |||||||||||||||||||||||||||||||||||||
 |
MK-232-031-133-0000 | 248.1300 | |
10 | 0.00000000 | AirBorn, Inc. | M | Bulk | Active | -55°C ~ 125°C | Through Hole | - | - | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | 4134-MK-232-031-133-0000 | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | 50.0µin (1.27µm) | 3A | Beryllium Copper | - | Signal | 31 | - | Housing/Shell (Unthreaded) | Polyphenylene Sulfide (PPS) | Metal | Aluminum Alloy, Nickel Plated, Electroless | D-Type, Micro-D | - | - | 0.050 Pitch x 0.050 Row to Row | - | ||||||||
 |
629-17W5640-5N6 | 31.4168 | |
8660 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W5640-5N6 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (12 + 5 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | 0.370" (9.40mm) | |||||||
|
RD15M000T2X | 1.0000 | |
4531 | 0.00000000 | Positronic | RD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | RD15M | Green | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | RoHS non-compliant | 2403-RD15M000T2X | EAR99 | 8536.69.5050 | 1 | Plug for Male Contacts | 2 | Signal | 15 | 1000 | Mating Side, Female Screwlock (4-40) | Diallyl Phthalate (DAP), Glass Filled | Steel, Tin Plated | D-Sub | 2 (DA, A) | - | ||||||||||||||||
 |
625-009-662-041 | 5.2500 | |
4764 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 625-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-009-662-041 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) | ||||||||
|
A-DF37PP-TAXL-B-R | - | |
6127 | 0.00000000 | Assmann WSW Components | - | Tray | Obsolete | - | Through Hole | - | - | Solder | - | - | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 40 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A | - | - | Signal | 37 | - | Board Side (4-40) | Polybutylene Terephthalate (PBT) | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | ||||||||||
 |
628-13W3624-2NB | 18.6811 | |
9844 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W3624-2NB | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | |||||||
 |
B57-014-222I423 | - | |
2965 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-222I423 | EAR99 | 8536.69.8000 | 1 | |||||||||||||||||||||||||||||||||
|
L777HRC62PVFM | 2.6369 | |
8009 | 0.00000000 | Amphenol ICC (Commercial Products) | HR | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents | L777HRC62 | Black | - | Contacts Not Included | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8538.90.8180 | 40 | Plug for Male Contacts | 3 | Signal | 62 | - | Mating Side, Female Screwlock (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Tin Plated | D-Sub, High Density | 4 (DC, C) High Density | 100µin (2.54µm) | ||||||||||||||||
 |
629-M25-240-WN5 | 7.0318 | |
5900 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M25-240-WN5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, Combo | - | Machined | 3 (DB, B) | 0.370" (9.40mm) | ||||||||
 |
621-M15-260-LT1 | 3.1080 | |
2379 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 621-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M15-260-LT1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) | ||||||||
 |
CIB24C | 24.1600 | |
10 | 0.00000000 | L-com | - | Bag | Active | - | Cap (Cover), Dust | D-Sub Connectors | download | ROHS3 Compliant | 1 (Unlimited) | 5073-CIB24C | 1 | - |
