D-Sub, D-Shaped Connectors(166763)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
629-2WK2240-4TB | 4.7046 |  |
7165 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2WK2240-4TB | EAR99 | 8536.69.4040 | 2,000 | Plug, Female Sockets and Male Pins | 2 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |||||||
 |
628W2WK2324-2N5 | 11.7716 | |
5127 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount | Board Lock, Shielded | 628W2W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W2WK2324-2N5 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 1 | Gold | 15.0µin (0.38µm) | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Board Side (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |||||||
 |

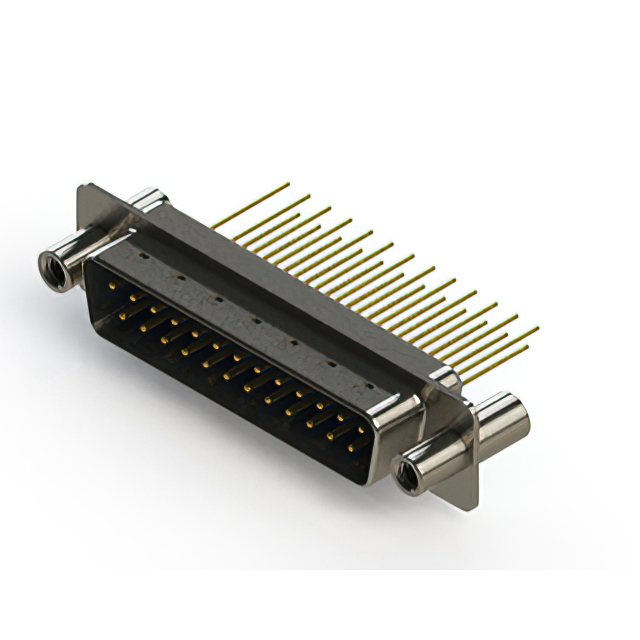

627-M25-223-LN4 | 14.4900 | |
5545 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M25 | Blue | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M25-223-LN4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | |||||||
 |
550T003NF3R4M0F06 | 1.0000 | |
20 | 0.00000000 | Glenair | * | Bulk | Active | - | 1 (Unlimited) | REACH Unaffected | 3937-550T003NF3R4M0F06 | EAR99 | 8536.69.4020 | 1 | |||||||||||||||||||||||||||||||||
|
M24308/1-26Z | - | |
6023 | 0.00000000 | Positronic | * | Bulk | Active | - | Vendor Undefined | 2403-M24308/1-26Z | 1 | ||||||||||||||||||||||||||||||||||||
 |
D9/370000V50 | 6.4200 | |
80 | 0.00000000 | Amphenol Positronic | D | Bag | Active | - | Lock | D-Sub Connectors | download | RoHS non-compliant | Not Applicable | REACH Unaffected | EAR99 | 8538.90.8180 | 1 | 9 | |||||||||||||||||||||||||||||
|
CBC47W1S10GVLS/AA | 114.3200 | |
32 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware, Shielded | CBC47W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-CBC47W1S10GVLS/AA | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 47 (46 + 1 Coax or Power) | 300V | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, Combo | 20-24 AWG | Machined | 5 (DD, D) - 47W1 | - | |||||||||
 |
DD44M20WTS/AA | 1.0000 | |
5564 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | DD44M | Blue | Solder Cup | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-DD44M20WTS/AA | EAR99 | 8536.69.5050 | 1 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 44 | 300V | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, High Density | 22-30 AWG | Machined | 3 (DB, B) High Density | - | |||||||||
 |
630-36W4240-3N3 | 14.9672 | |
9589 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-36W4240-3N3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |||||||
|
CBC46W4S1000S | 42.2600 | |
2 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | CBC46W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-CBC46W4S1000S | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 4 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 46 (42 + 4 Coax or Power) | 300V | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, Combo | 20-24 AWG | Machined | 6 | - | |||||||||
|
09663147502110 | - | |
6571 | 0.00000000 | HARTING | - | Bulk | Obsolete | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | OBSOLETE | 100 | ||||||||||||||||||||||||||||||||||
|
DSS3XPFAA50X | 16.2428 | |
4622 | 0.00000000 | Conec | - | Box | Active | -55°C ~ 125°C | Through Hole | Grounding Indents | DSS3XPF | Black | Press-Fit | IP20 | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | - | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | 125V | Board Side (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||||||||
|
DAMT3W3S0L4A190 | - | |
8255 | 0.00000000 | ITT Cannon, LLC | Combo D®, D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount | Board Lock | DAMT | Black | - | Contacts Not Included | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8538.90.8180 | 1 | Receptacle for Female Contacts | 1 | Coax or Power | 3 (Coax or Power) | - | Cable Side (M3) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Yellow Chromate Plated Zinc | D-Sub, Combo | 2 (DA, A) - 3W3 | - | ||||||||||||||||
 |
630-17W2240-1TD | 6.6175 | |
4630 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-1TD | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |||||||
 |
628W11W1122-1N2 | 11.6372 | |
5127 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Shielded | 628W11W | Black | Solder Cup | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W11W1122-1N2 | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 5.00µin (0.127µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | - | |||||||
 |
FX2-68P-1.27SV(71) | 5.6280 | |
8622 | 0.00000000 | Hirose Electric Co Ltd | FX2 | Tray | Active | Surface Mount | - | - | FX2 | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 40 | Plug | 2 | Gold | 7.87µin (0.200µm) | 68 | - | Center Strip Contacts | ||||||||||||||||||||||
|
MWDM1L-15PCBSR5U-.110 | 1.0000 | |
50 | 0.00000000 | Glenair | * | Bulk | Active | MWDM1L-15 | - | 1 (Unlimited) | REACH Unaffected | 3937-MWDM1L-15PCBSR5U-.110 | EAR99 | 1 | |||||||||||||||||||||||||||||||||
 |
637-044-230-263 | 6.0398 | |
4304 | 0.00000000 | EDAC Inc. | 637 | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-044 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-637-044-230-263 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 44 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | - | |||||||
|
DDME50SH | 1.0000 | |
3074 | 0.00000000 | ITT Cannon, LLC | D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | - | DDME | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 3 | Gold | - | 7.5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Yellow Chromate Plated Zinc | D-Sub | - | Machined | 5 (DD, D) | - | |||||||||
|
C115366-8803C | 357.1300 | |
7183 | 0.00000000 | C&K | - | Bulk | Active | - | ROHS3 Compliant | REACH Unaffected | 108-C115366-8803C | 1 | |||||||||||||||||||||||||||||||||||
|
HDB-C(50) | 5.8955 | |
3604 | 0.00000000 | Hirose Electric Co Ltd | * | Bulk | Active | HDB | - | RoHS Compliant | Not Applicable | 211-0011-7-50 | 0000.00.0000 | 20 | |||||||||||||||||||||||||||||||||
|
1731130302 | - | |
4089 | 0.00000000 | Molex | * | Bulk | Obsolete | 173113 | - | 1 (Unlimited) | 50 | ||||||||||||||||||||||||||||||||||||
|
DBMMD5H5PJ | 12.4900 | |
28 | 0.00000000 | ITT Cannon, LLC | 24308-Style, Combo D®, D*MM | Bulk | Active | -55°C ~ 150°C | Panel Mount, Through Hole, Right Angle | Mounting Brackets, Shielded | DBMM | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 1 | Gold | 50.0µin (1.27µm) | 40A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | - | Mating Side, Female Screwlock (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Yellow Chromate Plated Zinc | D-Sub, Combo | - | Machined | 3 (DB, B) - 5W5 | - | |||||||||
|
627-17W2624-3ND | 18.6431 | |
5109 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-17W2624-3ND | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |||||||
 |
DBMN-25P-N-K87 | 27.9000 | |
541 | 0.00000000 | ITT Cannon, LLC | D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents | Black | Solder | - | - | RoHS Compliant | Not Applicable | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | - | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||||||||||
|
1757845-1 | - | |
3387 | 0.00000000 | TE Connectivity AMP Connectors | Military, MIL-DTL-24308, AMPLIMITE 109 | - | Active | - | Through Hole, Right Angle | - | 1757845 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 5,000 | Plug, Male Pins | 2 | Gold | - | - | - | - | Signal | 9 | - | Housing/Shell (Unthreaded) | - | Steel, Yellow Chromate Plated Zinc | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||||||||
|
550T025M6F0B0F05 | 854.6500 | |
52 | 0.00000000 | Glenair | * | Bulk | Active | - | 1 (Unlimited) | REACH Unaffected | 3937-550T025M6F0B0F05 | EAR99 | 8536.69.4020 | 1 | |||||||||||||||||||||||||||||||||
 |
621-M50-660-GT5 | 25.5360 | |
5316 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 621-M50 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M50-660-GT5 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.283" (7.20mm) | ||||||||
|
C115371-7250 | - | |
9453 | 0.00000000 | C&K | * | Bulk | Obsolete | - | Vendor Undefined | DEMME9PNMBOL3-FR023 | OBSOLETE | 0000.00.0000 | 1 | ||||||||||||||||||||||||||||||||||
|
DD15S1S5WT0/AA | 1.0000 | |
1158 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | DD15S | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-DD15S1S5WT0/AA | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | 22-30 AWG | Machined | 1 (DE, E) High Density | - |
