D-Sub, D-Shaped Connectors(166763)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Primary Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-47W1640-5N3 | 43.9394 |  |
2786 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-47W1640-5N3 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 47 (46 + 1 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | ||
 |
747909-8 | - | |
9209 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tray | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | - | 747909 | Black | Solder Cup | - | download | Not applicable | 1 (Unlimited) | Vendor Undefined | A31898 | EAR99 | 8536.69.4051 | 50 | Receptacle, Female Sockets | 2 | Gold | 8.00µin (0.203µm) | 3A | Brass | UL94 V-0 | Signal | 15 | 250V | Housing/Shell (Unthreaded) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | ||
 |
627-025-322-043 | 2.3432 | |
2513 | 0.00000000 | EDAC Inc. | 627 (Metal) | - | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-025 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4030 | 25 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | - | |||
|
1-1589514-3 | 55.2096 | |
6440 | 0.00000000 | TE Connectivity Aerospace, Defense and Marine | - | Bulk | Active | - | - | - | 1589514 | - | - | - | - | ROHS3 Compliant | 1 (Unlimited) | Vendor Undefined | STL05110412PCQ | EAR99 | 8538.90.8180 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 |

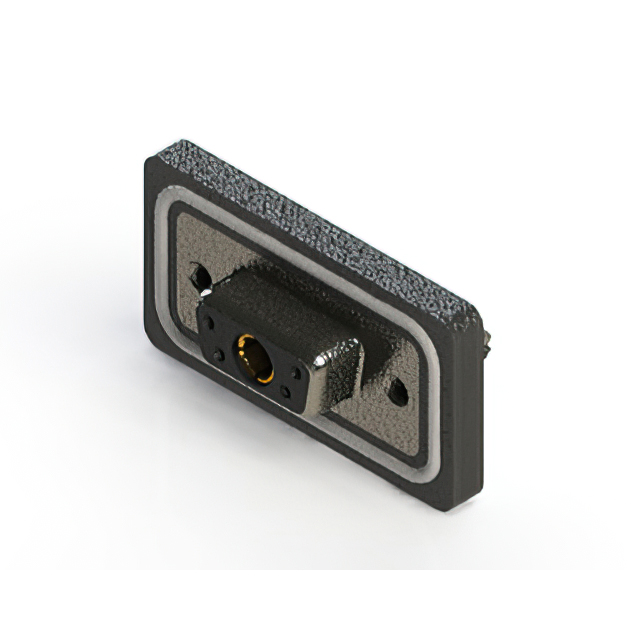

628W5W1-224-3ND | 11.3526 | |
5181 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Board Lock, Shielded | 628W5W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W5W1-224-3ND | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (4 + 1 Power) | 125V | Board Side (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | - | ||
 |

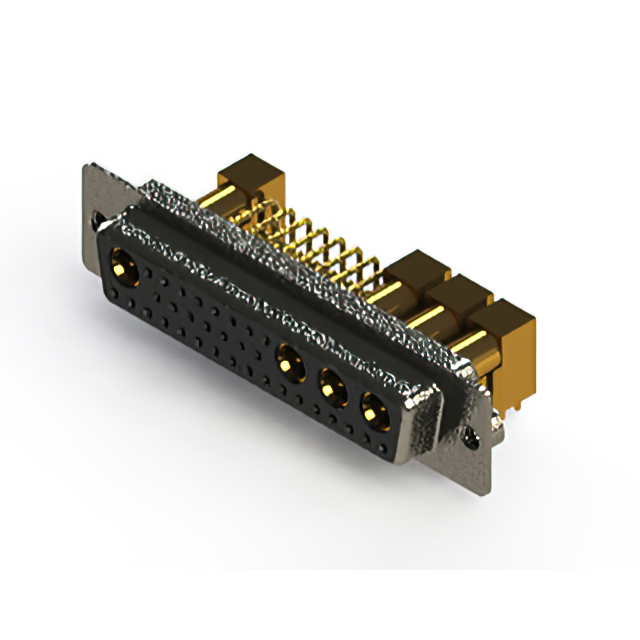

630-36W4240-7TA | 16.8983 | |
4849 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-36W4240-7TA | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 36 (32 + 4 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | ||
|
MDM-9SBS-A174 | 144.8820 | |
1895 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Shielded | - | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 9 | - | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Aluminum, Nickel Plated, Electroless | D-Type, Micro-D | - | - | 0.050 Pitch x 0.100 Row to Row | - | |||||
 |
625-037-362-533 | 11.1700 | |
7770 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 625-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-037-362-533 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.584" (14.84mm) | |||
|
CBC36W4M10HT0/AA | 89.5100 | |
9 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | CBC36W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | Not applicable | Vendor Undefined | 2403-CBC36W4M10HT0/AA | EAR99 | 1 | Plug, Male Pins | 3 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 36 (32 + 4 Coax or Power) | 300V | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, Combo | 20-24 AWG | Machined | 5 (DD, D) - 36W4 | - | ||||
 |
629-17W2250-1T5 | 6.5687 | |
6294 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W2250-1T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | ||
|
749234-3 | - | |
2785 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-22 | Tray | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 749234 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 4 | Gold | 15.0µin (0.38µm) | 2A | Brass | UL94 V-0 | Signal | 78 | 125V | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 5 (DD, D) High Density | 0.350" (8.89mm) | |||
|
L717DAG15PT | 4.5941 | |
5341 | 0.00000000 | Amphenol ICC (Commercial Products) | D | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents | L717DAG15 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 8.00µin (0.203µm) | 7.5A | Brass | UL94 V-0 | Signal | 15 | 300V | Board Side (M3) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||||
|
ZDA-15-S-0L2 | - | |
9408 | 0.00000000 | ITT Cannon, LLC | ZD | - | Active | -55°C ~ 105°C | Panel Mount, Through Hole | - | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 5A | Phosphor Bronze | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Steel | D-Sub | - | Stamped | 2 (DA, A) | - | |||||
|
MWDM2L-15P-6K5-36M | 794.5200 | |
9 | 0.00000000 | Glenair | * | Bulk | Active | MWDM2L-15 | - | 1 (Unlimited) | REACH Unaffected | 3937-MWDM2L-15P-6K5-36M | EAR99 | 1 | ||||||||||||||||||||||||||||
|
MK-4C2-100-235-6900 | 777.0800 | |
5 | 0.00000000 | AirBorn, Inc. | M | Bulk | Active | -55°C ~ 125°C | Through Hole | - | - | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | 4134-MK-4C2-100-235-6900 | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 4 | Gold | 50.0µin (1.27µm) | 3A | Brass | - | Signal | 100 | - | Mating Side, Female Screwlock (4-40) | Polyphenylene Sulfide (PPS) | Metal | Aluminum Alloy, Nickel Plated, Electroless | D-Type, Micro-D | - | - | 0.050 Pitch x 0.050 Row to Row | - | |||
|
C115371-7173 | - | |
3897 | 0.00000000 | C&K | * | Bulk | Obsolete | - | Vendor Undefined | DBMM17W2SNMB-FR023 | OBSOLETE | 0000.00.0000 | 1 | |||||||||||||||||||||||||||||
 |
628-11W1624-2N4 | 12.3442 | |
8112 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-11W1624-2N4 | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | - | ||
 |
629-M25-340-WN3 | 10.6764 | |
6936 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M25-340-WN3 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, Combo | - | Machined | 3 (DB, B) | 0.370" (9.40mm) | |||
 |
626-015-262-042 | 2.1088 | |
1023 | 0.00000000 | EDAC Inc. | 626 | Bulk | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.584" (14.84mm) | |||
 |
745967-2 | 9.5400 | |
509 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745967 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 10 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 25 | 125V | Housing/Shell (Unthreaded) | Polyester | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | |||
|
ZMDE9P | - | |
1919 | 0.00000000 | ITT Cannon, LLC | ZD | - | Active | - | - | - | - | - | - | - | 1 (Unlimited) | 119998-2830M | EAR99 | 8536.69.8000 | 50 | Plug, Male Pins | 2 | Gold | - | - | - | UL94 V-0 | Signal | 9 | - | - | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Steel | D-Sub | - | Stamped | 1 (DE, E) | - | |||||
|
DA15PUK87 | 15.4700 | |
33 | 0.00000000 | ITT Cannon, LLC | Original D | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents | DA15 | Black | Solder | - | download | RoHS non-compliant | Not Applicable | IDA15PUK87 | EAR99 | 8536.69.4030 | 1 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | - | |||
 |
633-062-363-041 | 11.8504 | |
6149 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-062 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-062-363-041 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | 0.350" (8.89mm) | |||
|
L177DFBH25SOL2RM5 | 13.9960 | |
7467 | 0.00000000 | Amphenol ICC (Commercial Products) | DF | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock | L177DFBH25 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | 300V | Board Side (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | |||
|
1731071824 | - | |
3413 | 0.00000000 | Molex | * | Bulk | Active | 173107 | - | Not Applicable | 25 | |||||||||||||||||||||||||||||||
 |
627-13W6624-4TE | 27.1518 | |
9775 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W6624-4TE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | ||
|
L17DAFRCA15PC309 | 3.4671 | |
8480 | 0.00000000 | Amphenol ICC (Commercial Products) | DFR | Tray | Active | -55°C ~ 105°C | Free Hanging (In-Line) | Feed Through, Grounding Indents, Strain Relief | L17DAFRC | Black | IDC, Ribbon Cable | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.8000 | 72 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A | Brass | UL94 V-0 | Signal | 15 | 250V | Mating Side, Female Screwlock (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | 26 AWG | - | 2 (DA, A) | - | ||||
 |
627-015-228-069 | 2.3725 | |
7397 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-228-069 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||
|
DCMT25W3S0L4A191A197 | - | |
3012 | 0.00000000 | ITT Cannon, LLC | Combo D®, D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Shielded | DCMT | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 25 (22 + 3 Coax or Power) | - | Board Side (M3) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Tin-Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | ||||
|
M83513/16-B03NP | 816.0500 | |
91 | 0.00000000 | Glenair | * | Bulk | Active | - | 1 (Unlimited) | REACH Unaffected | 3937-M83513/16-B03NP | EAR99 | 8536.69.8000 | 1 |
