D-Sub, D-Shaped Connectors(166763)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Features | Base Product Number | Color | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
634-M26-263-WN3 | 9.2820 |  |
8421 | 0.00000000 | EDAC Inc. | 634-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-M26 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-M26-263-WN3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | 0.350" (8.89mm) | ||||||
 |
627-47W1624-7N3 | 38.8214 | |
7877 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-47W1624-7N3 | EAR99 | 8536.69.4040 | 400 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 47 (46 + 1 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | - | |||||
 |
625-009-362-510 | 5.1156 | |
6425 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 625-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-009-362-510 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) | ||||||
 |
M24308/4-309F | - | |
6361 | 0.00000000 | Amphenol Aerospace Operations | * | Bulk | Active | - | 2899-M24308/4-309F | 1 | |||||||||||||||||||||||||||||||||||
 |
DD26S10LV3X | 1.0000 | |
1563 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | DD26S | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-DD26S10LV3X | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | 300V | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, High Density | 22-30 AWG | Machined | 2 (DA, A) High Density | - | |||||||
 |
629-025-240-032 | 3.3724 | |
8858 | 0.00000000 | EDAC Inc. | 629 | - | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.409" (10.40mm) | ||||||
 |
630-17W2240-4N3 | 9.7354 | |
8459 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-4N3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |||||
|
24-005463 | - | |
6938 | 0.00000000 | Conec | - | Bulk | Active | - | 626-24-005463 | 1 | |||||||||||||||||||||||||||||||||||
|
6STD09PAT99S20X | 20.7253 | |
5815 | 0.00000000 | Conec | - | Box | Active | -25°C ~ 105°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 6STD09P | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.8000 | 20 | Plug, Male Pins | 2 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal | 9 | 125V | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Copper Alloy, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | 0.189" (4.80mm) | ||||||
 |
MDM-9PCBR-F222 | 173.4800 | |
22 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 200°C | Panel Mount, Through Hole, Right Angle | Shielded | - | Solder | - | download | RoHS non-compliant | Not Applicable | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 9 | - | Housing/Shell (Unthreaded) | Liquid Crystal Polymer (LCP) | Aluminum, Yellow Chromate Plated Cadmium | D-Type, Micro-D | - | - | 0.050 Pitch x 0.100 Row to Row | - | ||||||||
 |
628-015-320-013 | 5.5020 | |
8334 | 0.00000000 | EDAC Inc. | 628 (Plastic) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-015-320-013 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||||||
|
DD44S0S5WV3S/AA | 1.0000 | |
6032 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware | DD44S | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-DD44S0S5WV3S/AA | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 3 | Signal | 44 | 1000 | Board Side (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, High Density | 3 (DB, B) High Density | - | ||||||||||||||
|
L717DE09POL2R063 | 3.6465 | |
6137 | 0.00000000 | Amphenol ICC (Commercial Products) | D | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents | L717DE09 | Black | Solder | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 8.00µin (0.203µm) | 7.5A | Brass | UL94 V-0 | Signal | 9 | 300V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | |||||||
|
DBMX21W1P0L4A191 | - | |
1226 | 0.00000000 | ITT Cannon, LLC | Combo D®, D*M | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Shielded | DBMX | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 21 (20 + 1 Coax or Power) | - | Board Side (M3) | Polycyclohexylenedimethylene Terephthalate (PCT) | - | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |||||||
 |

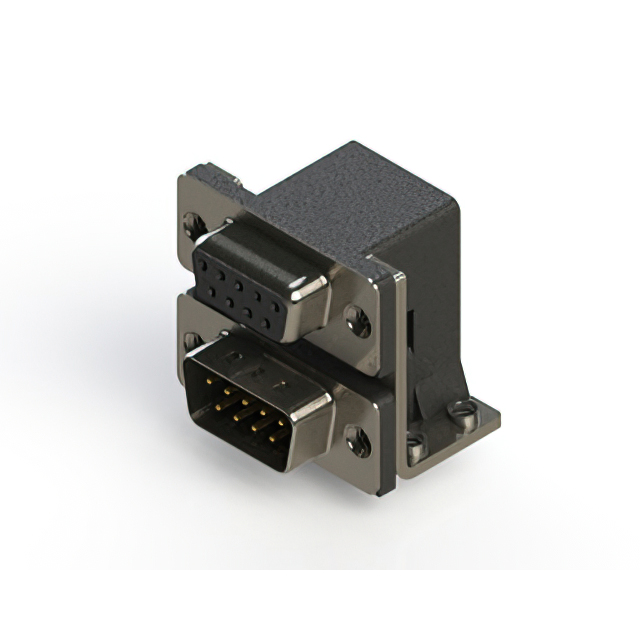

664-009-664-052 | 6.9695 | |
8951 | 0.00000000 | EDAC Inc. | 664 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 664-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-664-009-664-052 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Socket ; Plug, Male Pins | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 9, 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||||||
|
DBE25S0L4A190-161 | - | |
3792 | 0.00000000 | ITT Cannon, LLC | Original D | Bulk | Active | -55°C ~ 125°C | Panel Mount, Through Hole | - | DBE2 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 2 | Gold | 50.0µin (1.27µm) | 7.5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polycyclohexylenedimethylene Terephthalate (PCT) | Steel, Yellow Chromate Plated Zinc | D-Sub | - | Machined | 3 (DB, B) | - | |||||||
 |
625-015-262-533 | 4.7628 | |
9562 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 625-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-015-262-533 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.584" (14.84mm) | ||||||
|
161A10669X | 7.1386 | |
3993 | 0.00000000 | Conec | 161A | Bulk | Active | - | Through Hole, Right Angle | Mounting Brackets | 161A106 | - | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | - | - | - | - | - | Signal | 9 | - | Housing/Shell (Unthreaded) | - | Steel, Yellow Chromate Plated Zinc | D-Sub | - | - | 1 (DE, E) | - | ||||||
 |
DD15M32000Z/AA | 13.0900 | |
202 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Through Hole | - | DD15M | Blue | Solder | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | ROHS3 Compliant | 2403-DD15M32000Z/AA | EAR99 | 8536.69.5050 | 1 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | - | |||||||
 |
622-025-260-043 | 4.0900 | |
503 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||||||
|
1571656-1 | - | |
4858 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Backshell, Cover, Mounting Hardware, Shielded | 1571656 | Black | Solder Cup | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.8000 | 100 | Receptacle, Female Sockets | 2 | Gold | 8.00µin (0.203µm) | 3A | Brass | UL94 V-0 | Signal | 25 | 250V | Cable Side, Male Jackscrew | Polybutylene Terephthalate (PBT) | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | ||||||
|
1731090354 | 6.6447 | |
8501 | 0.00000000 | Molex | F, FCT 173109 | Bulk | Active | -55°C ~ 125°C | Through Hole | Grounding Indents | 173109 | White | Solder | - | - | Not Applicable | EAR99 | 8536.69.4040 | 1 | Plug, Male Pins | 2 | Gold | - | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||||||||
|
DD26S32S000 | 28.6200 | |
113 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Through Hole | - | DD26S | Blue | Solder | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-DD26S32S000 | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | 300V | Board Side (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | - | |||||||
 |

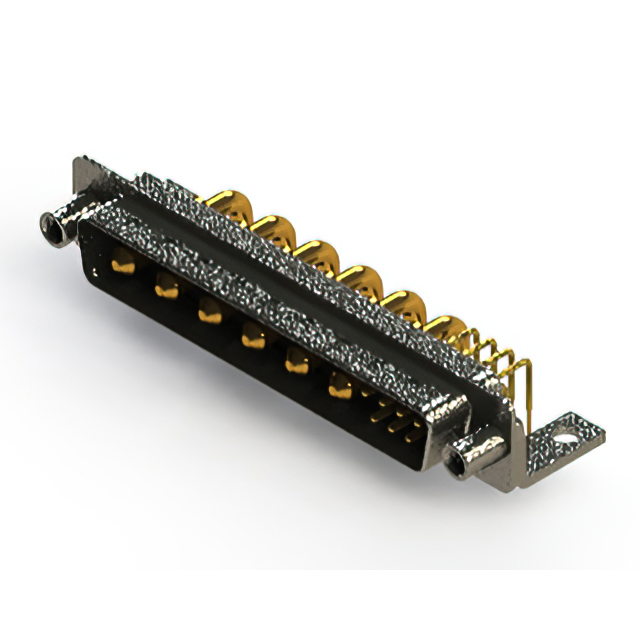

629-13W6240-2T6 | 11.9877 | |
6579 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-13W6240-2T6 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | 0.370" (9.40mm) | |||||
|
627-037-322-241 | 3.1194 | |
9402 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-037 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-037-322-241 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | |||||
 |

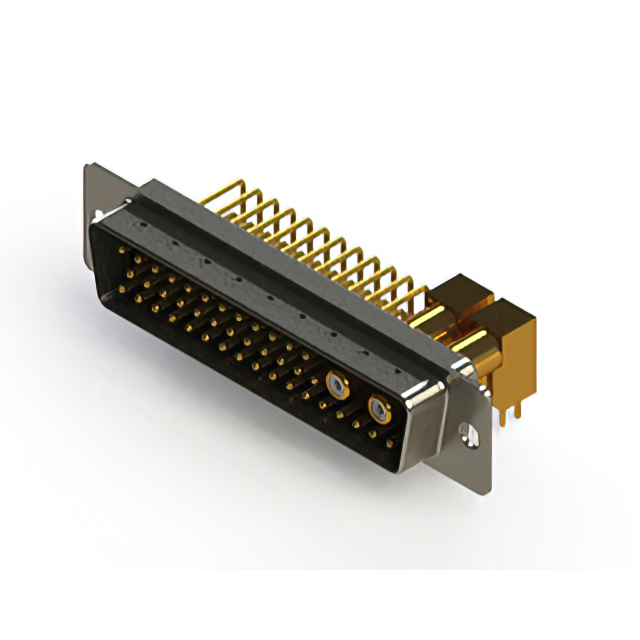

629-43W2240-5T1 | 15.0732 | |
3342 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-43W2240-5T1 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 3 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 43 (41 + 2 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) | |||||
 |
628-M15-621-BN5 | 9.9876 | |
4003 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M15-621-BN5 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||||||
 |
5745077-4 | 12.9900 | |
321 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 5745077 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 13 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 15 | 125V | Mating Side, Female Screwlock (4-40) | Polyester | - | D-Sub | - | - | 2 (DA, A) | - | ||||||
 |
630-2W2-240-4NC | 7.4553 | |
6302 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2W2-240-4NC | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |||||
|
60130205100 | - | |
1015 | 0.00000000 | HARTING | har-mik® | Bulk | Obsolete | Free Hanging (In-Line) | - | - | IDC | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4051 | 100 | Receptacle | 2 | - | - | 20 | - | Outer Shroud Contacts |
