D-Sub, D-Shaped Connectors(166763)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Includes | Accessory Type | Color | For Use With/Related Products | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Shielding | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Flange Feature | Dielectric Material | Primary Material | Housing Color | Convert From (Adapter End) | Convert To (Adapter End) | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DD15M200V30 | 1.0000 |  |
6987 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | DD15M | Blue | Solder Cup | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-DD15M200V30 | EAR99 | 8536.69.5050 | 1 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | 300V | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | 22-30 AWG | Machined | 1 (DE, E) High Density | - | ||||||||||||||
 |
629-5W5-240-4TA | 6.6090 | |
8857 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-5W5-240-4TA | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | ||||||||||||
 |
1731091158 | 7.4416 | |
7612 | 0.00000000 | Molex | * | Bulk | Active | 173109 | download | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | |||||||||||||||||||||||||||||||||||||||
|
L77HDAG26SOL2RM5 | 2.6460 | |
4913 | 0.00000000 | Amphenol ICC (Commercial Products) | HD | Tray | Active | -55°C ~ 105°C | Through Hole | Board Lock | L77HDAG26 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 70 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A | Brass | UL94 V-0 | Signal | 26 | 250V | Board Side (M3) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub, High Density | - | Stamped | 2 (DA, A) High Density | - | |||||||||||||
|
L177SDE09S1ACH4R | 1.4570 | |
3802 | 0.00000000 | Amphenol ICC (Commercial Products) | SD | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | L177SDE09 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | 2266-L177SDE09S1ACH4R | EAR99 | 8536.69.4040 | 90 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A | Phosphor Bronze | UL94 V-0 | Signal | 9 | 250V | Board Side (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Stamped | 1 (DE, E) | 0.406" (10.30mm) | |||||||||||||
 |
627-7W2-224-1N5 | 5.8913 | |
3976 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-7W2-224-1N5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | ||||||||||||
 |
09651697711 | 5.0470 | |
9716 | 0.00000000 | HARTING | - | Bulk | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents | - | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | - | 6.5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (M3) | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Steel | D-Sub | - | Stamped | 1 (DE, E) | - | ||||||||||||||
 |
627-M09-222-BN1 | 2.7930 | |
8063 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M09 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-222-BN1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | |||||||||||||
|
CBC11W1S0000X/AA | 1.0000 | |
6175 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | CBC11W | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-CBC11W1S0000X/AA | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal and Coax or Power | 11 (10 + 1 Coax or Power) | 1000 | Housing/Shell (Unthreaded) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, Combo | 2 (DA, A) - 11C1, 11W1 | - | |||||||||||||||||||||
 |
1731091922 | - | |
4749 | 0.00000000 | Molex | F, FCT 173109 | Bulk | Obsolete | -55°C ~ 150°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 173109 | Natural | Solder | IP20 | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | - | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | - | |||||||||||||||
 |
5747459-1 | 3.7300 | |
408 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Bulk | Active | -55°C ~ 105°C | Through Hole, Right Angle | - | 5747459 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 140 | Receptacle, Female Sockets | 2 | Gold | Flash | 6A | Phosphor Bronze | UL94 V-0 | Signal | 9 | 125V | Housing/Shell (Unthreaded) | - | - | D-Sub | - | - | 1 (DE, E) | 0.590" (14.99mm) | |||||||||||||
 |
629-47W1240-5T5 | 15.6641 | |
9428 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-47W1240-5T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 3 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 47 (46 + 1 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | ||||||||||||
 |
630-13W3240-3N4 | 10.5252 | |
7609 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W3240-3N4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | ||||||||||||
 |
633-026-663-035 | 9.4564 | |
4254 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-026-663-035 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | |||||||||||||
|
D37S24B6RI09LF | - | |
6246 | 0.00000000 | Amphenol ICC (FCI) | * | Tray | Obsolete | D37S24 | - | 1 (Unlimited) | 609-D37S24B6RI09LF | OBSOLETE | 90 | |||||||||||||||||||||||||||||||||||||||
|
L77DEH09SAJ4VF2 | - | |
1385 | 0.00000000 | Amphenol ICC (Commercial Products) | D | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | L77DEH09 | Black | Solder | - | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 8.00µin (0.203µm) | 7.5A | Brass | UL94 V-0 | Signal | 9 | 300V | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | 0.319" (8.10mm) | ||||||||||||||
|
DD78S32S0V50 | 85.1800 | |
13 | 0.00000000 | Positronic | DD | Box | Active | -55°C ~ 125°C | Through Hole | - | DD78S | Blue | Solder | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | RoHS non-compliant | 2403-DD78S32S0V50 | EAR99 | 8536.69.5050 | 1 | Receptacle, Female Sockets | 4 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 78 | 300V | Board Side (4-40) | Polyester, Glass Filled | Steel, Clear Chromate Plated Zinc | D-Sub, High Density | - | Machined | 5 (DD, D) High Density | - | ||||||||||||||
|
1731120116 | 3.2982 | |
4022 | 0.00000000 | Molex | F1042, FCT 173112 | Bulk | Active | Shielded | 173112 | Cap (Cover), Dust | D-Sub Connectors, Male | - | Not applicable | 1 (Unlimited) | EAR99 | 8538.90.8180 | 200 | 37 | ||||||||||||||||||||||||||||||||||
 |
630-17W2240-2N5 | 10.3707 | |
8197 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-2N5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | ||||||||||||
|
243A13190X | - | |
7747 | 0.00000000 | Conec | 243A | Bulk | Active | -25°C ~ 105°C | Free Hanging (In-Line) | Filter | 3 pcs - 1 Connector, 2 Jack Screws | IP20 | download | 626-243A13190X | 1 | 2 | Gold | Flash | 7.5 A | Unshielded | UL94 V-0 | 100 V | Silver | D-Sub, 37 Pin Female | D-Sub, 37 Pin Male | Steel, Tin Plated | Connector Saver | |||||||||||||||||||||||||
|
D15S90C6GV00LF | 2.1411 | |
5405 | 0.00000000 | Amphenol ICC (FCI) | Delta D | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock | D15S90 | Black | Press-Fit | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Phosphor Bronze | UL94 V-0 | Signal | 15 | 300V | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT) | Steel, Tin-Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | |||||||||||||
|
D25P91C6GX00LF | 2.5595 | |
3334 | 0.00000000 | Amphenol ICC (FCI) | Delta D | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents | D25P91 | Black | Press-Fit | - | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 20 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Phosphor Bronze | UL94 V-0 | Signal | 25 | 300V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) | Steel, Tin-Nickel Plated | D-Sub | - | - | 3 (DB, B) | - | |||||||||||||
 |
L717SDB25PA4CH4FC309 | 3.0501 | |
6190 | 0.00000000 | Amphenol ICC (Commercial Products) | SD | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | L717SDB25 | Black | Solder | - | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A | Brass | UL94 V-0 | Signal | 25 | 250V | Mating Side, Female Screwlock (4-40) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | - | Stamped | 3 (DB, B) | 0.318" (8.08mm) | ||||||||||||||
 |
661-037-664-058 | 23.2563 | |
5780 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 661-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-037-664-058 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | |||||||||||||
 |
178-037-612-571 | - | |
1589 | 0.00000000 | NorComp Inc. | 178 | Tray | Obsolete | -55°C ~ 105°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Shielded | 178-037 | Black | Solder | - | download | RoHS non-compliant | Not Applicable | REACH Unaffected | 1137MM | EAR99 | 8536.69.4040 | 40 | Plug, Male Pins | 2, 2 | Gold | Flash | 5A | Brass | UL94 V-0 | Signal | 37, 37 | - | Mating Side, Female Screwlock (4-40) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub - Stacked | - | Stamped | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||||||||||||
|
CBC21W1S0S50V3X/AA | 1.0000 | |
2664 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | - | CBC21W | Blue | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Contacts Not Included | download | ROHS3 Compliant | 2403-CBC21W1S0S50V3X/AA | EAR99 | 8536.69.5050 | 1 | Receptacle for Female Contacts | 2 | Signal and Coax or Power | 21 (20 + 1 Coax or Power) | 1000 | Board Side (4-40) | Polyester, Glass Filled | Steel, Tin Plated | D-Sub, Combo | 3 (DB, B) - 21W1 | - | |||||||||||||||||||||
 |
626-009-262-041 | 16.0964 | |
8077 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-009-262-041 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) | |||||||||||||
|
CBC36W4M10GES/AA | 85.4100 | |
11 | 0.00000000 | Positronic | CBC | Box | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Backshell, Cable Clamp, Mounting Hardware, Shielded | CBC36W | Blue | Crimp | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | download | Not applicable | Vendor Undefined | 2403-CBC36W4M10GES/AA | EAR99 | 1 | Plug, Male Pins | 3 | Gold | Flash | 7.5A | Copper Alloy | UL94 V-0 | Signal and Coax or Power (Not Included) | 36 (32 + 4 Coax or Power) | 300V | Cable Side, Male Jackscrew (4-40) | Polyester, Glass Filled | Stainless Steel, Passivated | D-Sub, Combo | 20-24 AWG | Machined | 5 (DD, D) - 36W4 | - | ||||||||||||||
 |
628-M25-323-LN1 | 24.1316 | |
4205 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M25 | Blue | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M25-323-LN1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||||||||||||
 |

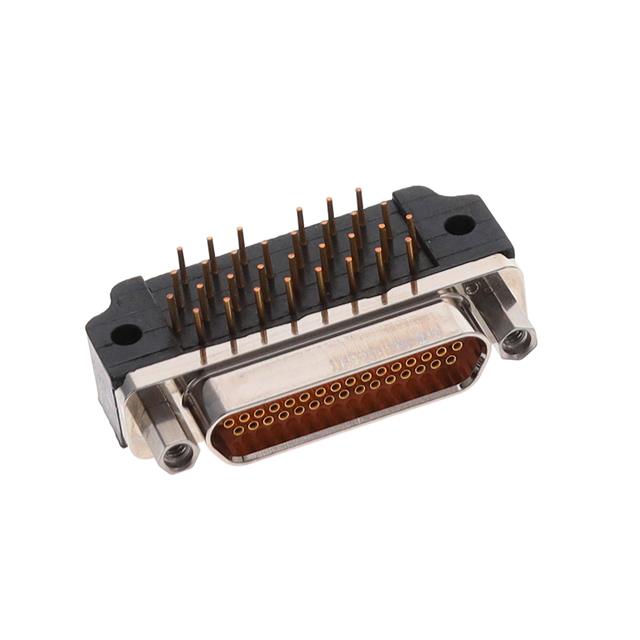

MDM-31SCBRM7-A174-F222 | 574.1700 | |
10 | 0.00000000 | ITT Cannon, LLC | 83513-Style Micro D Metal Shell (MDM) | Bulk | Active | -55°C ~ 200°C | Panel Mount, Through Hole, Right Angle | - | - | Solder | - | download | ROHS3 Compliant | Not Applicable | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 2 | Gold | - | 3A | Copper Alloy | - | Signal | 31 | - | Mating Side, Female Screwlock (2-56) | Liquid Crystal Polymer (LCP) | Metal | Aluminum, Nickel Plated, Electroless | D-Type, Micro-D | - | - | 0.050 Pitch x 0.100 Row to Row | - |
