D-Sub, D-Shaped Connectors(166763)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Type | Material | Features | Base Product Number | Accessory Type | Color | Termination | Ingress Protection | Note | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Cable Type | Shielding | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Mating Cycles | Plating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing | Shell Finish Thickness | Cable Exit | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
174684-7 | - |  |
2801 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE .050 I | Bulk | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | - | 174684 | Black | Kinked Pin | - | - | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 72 | Cap, Male Pins | 2 | Gold | 8.00µin (0.203µm) | 1A | Phosphor Bronze | UL94 V-0 | Signal | 68 | 100V | - | Thermoplastic | - | D-Type, Board to Board | - | - | 0.050 Pitch x 0.100 Row to Row | - | |||||||||||||
|
749814-3 | - | |
4626 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Shielded | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4051 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 25 | 250V | Cable Side, Male Short Screw (4-40) | - | Steel, Tin Plated | D-Sub | 22-26 AWG | - | 3 (DB, B) | - | ||||||||||||||
|
745113-2 | - | |
3954 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Bulk | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | Mounting Brackets | 745113 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23399 | EAR99 | 8536.69.4040 | 112 | Receptacle, Female Sockets | 2 | Gold | - | 6A | Copper Alloy | UL94 V-0 | Signal | 15 | 125V | Mating Side, Standard Screws (4-40) | Polyamide (PA), Nylon, Glass Filled | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | 0.545" (13.84mm) | ||||||||||||
 |
745073-1 | 10.0160 | |
8204 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745073 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | A23233 | EAR99 | 8536.69.4040 | 630 | Plug, Male Pins | 2 | Gold | Flash | 6A | Brass | UL94 V-0 | Signal | 25 | 125V | Mating Side, Female Screwlock (4-40) | Polyester | - | D-Sub | - | - | 3 (DB, B) | - | ||||||||||||
|
745018-1 | - | |
5169 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDJ-20 | Bulk | Obsolete | - | Free Hanging (In-Line) | - | 745018 | Black | - | Contacts Not Included | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23472 | EAR99 | 8538.90.8180 | 800 | Plug for Male Contacts | 2 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyamide (PA), Nylon, Glass Filled | Steel, Yellow Chromate Plated Zinc | D-Sub | 1 (DE, E) | - | |||||||||||||||||||
|
555983-1 | - | |
4707 | 0.00000000 | TE Connectivity AMP Connectors | CHAMP .085 | Tray | Obsolete | Panel Mount | - | Bail Lock, Shielded | 555983 | IDC | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4051 | 100 | Receptacle | 2 | Gold | 30.0µin (0.76µm) | 36 | Board Side (4-40) | Outer Shroud Contacts | ||||||||||||||||||||||||||
 |
745079-6 | 20.4096 | |
3447 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745079 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | A23266 | EAR99 | 8536.69.4040 | 441 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 37 | 125V | Mating Side, Female Screwlock (4-40) | Polyester | - | D-Sub | - | - | 4 (DC, C) | - | ||||||||||||
 |
745175-6 | - | |
6498 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE | Bulk | Obsolete | Metal, Zinc Alloy | Mating Screws 4-40 | 745175 | Two Piece Backshell | Silver | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23648 | EAR99 | 8538.90.8180 | 1 | Round | Shielded | 50 | Nickel over Copper | 180° | Assembly Hardware, Strain Relief | ||||||||||||||||||||||||||
 |
745183-2 | 16.0100 | |
44 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745183 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 17 | Receptacle, Female Sockets | 2 | Gold | Flash | 6A | Phosphor Bronze | UL94 V-0 | Signal | 9 | 125V | Housing/Shell (Unthreaded) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | - | |||||||||||||
|
745439-4 | - | |
7894 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Tray | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | Mounting Brackets | 745439 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23390 | EAR99 | 8536.69.4040 | 112 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 15 | 125V | Mating Side, Standard Screws | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | 0.454" (11.53mm) | ||||||||||||
|
745441-4 | - | |
1970 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Bulk | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | Mounting Brackets | 745441 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23392 | EAR99 | 8536.69.4040 | 56 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 37 | 125V | Mating Side, Standard Screws | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | 0.454" (11.53mm) | ||||||||||||
|
745495-3 | - | |
9380 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | - | 745495 | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23102 | EAR99 | 8536.69.8000 | 336 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 25 | 250V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | 20-22 AWG | - | 3 (DB, B) | - | ||||||||||||
|
745498-1 | - | |
8211 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Grounding Indents | 745498 | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | A23093 | EAR99 | 8536.69.8000 | 56 | Plug, Male Pins | 2 | Gold | - | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 37 | 250V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | 26-30 AWG | - | 4 (DC, C) | - | ||||||||||||
 |
745820-1 | 12.2500 | |
182 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745820 | Black | Solder | - | download | Not applicable | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 13 | Receptacle, Female Sockets | 2 | Gold | - | 6A | Phosphor Bronze | UL94 V-0 | Signal | 15 | 125V | Board Side (4-40) | Polyamide (PA), Nylon | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |||||||||||||
 |
745886-2 | 13.2564 | |
6601 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | - | 745886 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23162 | EAR99 | 8536.69.4040 | 270 | Receptacle, Female Sockets | 2 | Gold | Flash | 6A | Phosphor Bronze | UL94 V-0 | Signal | 25 | 125V | Board Side (4-40) | Polyamide (PA), Nylon | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | ||||||||||||
|
747531-2 | - | |
3978 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Backshell, Grounding Indents, Shielded | 747531 | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23519 | EAR99 | 8536.69.4051 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 15 | 250V | Housing/Shell (Unthreaded) | Thermoplastic | Steel, Tin Plated | D-Sub | 22-26 AWG | - | 2 (DA, A) | - | ||||||||||||
|
747547-5 | - | |
7810 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Backshell, Grounding Indents, Shielded | 747547 | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23521 | EAR99 | 8536.69.4051 | 100 | Plug, Male Pins | 2 | Gold | Flash | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 25 | 250V | Housing/Shell (Unthreaded) | Thermoplastic | Steel, Tin Plated | D-Sub | 22-26 AWG | - | 3 (DB, B) | - | ||||||||||||
|
747830-4 | - | |
9318 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Obsolete | -55°C ~ 105°C | Through Hole, Right Angle | Board Lock | 747830 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 10 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 25 | 125V | Housing/Shell (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | 0.590" (14.99mm) | |||||||||||||
 |
748027-1 | 8.3979 | |
7756 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole | Board Lock, Grounding Indents | 748027 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | A23187 | EAR99 | 8536.69.4040 | 630 | Plug, Male Pins | 2 | Gold | Flash | 6A | Brass | UL94 V-0 | Signal | 25 | 125V | Mating Side, Female Screwlock (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | ||||||||||||
|
748441-2 | - | |
7464 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-20 | Tray | Obsolete | -55°C ~ 105°C | Through Hole | Shielded | 748441 | Black | Press-Fit | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | EAR99 | 8536.69.4040 | 84 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | - | Steel, Tin-Lead Plated | D-Sub | - | - | 3 (DB, B) | - | |||||||||||||
|
748472-1 | - | |
8242 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-22 | Bulk | Obsolete | - | Free Hanging (In-Line) | Grounding Indents, Shielded | 748472 | Black | - | Contacts Not Included | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23502 | EAR99 | 8538.90.8180 | 100 | Plug for Male Contacts | 4 | Signal | 78 | - | Housing/Shell (Unthreaded) | Polyamide (PA), Nylon, Glass Filled | Steel, Tin Plated | D-Sub, High Density | 5 (DD, D) High Density | - | |||||||||||||||||||
 |
745174-2 | - | |
3762 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE | Bulk | Obsolete | Metal, Zinc Alloy | Mating Screws 4-40 | 745174 | Two Piece Backshell | Silver | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | A23642 | EAR99 | 8538.90.8180 | 1 | Round | Shielded | 37 | Nickel over Copper | 180° | Assembly Hardware | ||||||||||||||||||||||||||
|
745496-5 | - | |
5875 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDE-20 | Bulk | Obsolete | -55°C ~ 105°C | Free Hanging (In-Line) | Grounding Indents | 745496 | Black | IDC, Discrete Wire | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23091 | EAR99 | 8536.69.8000 | 84 | Plug, Male Pins | 2 | Gold | 1.00µin (0.025µm) | Varies by Wire Gauge | Phosphor Bronze | UL94 V-0 | Signal | 25 | 250V | Housing/Shell (Unthreaded) | Thermoplastic, Glass Filled | Steel, Tin Plated | D-Sub | 22-26 AWG | - | 3 (DB, B) | - | ||||||||||||
 |
749798-1 | - | |
7388 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-22 | Tray | Obsolete | -55°C ~ 105°C | Through Hole | Grounding Indents | 749798 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23071 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 1.5A | Brass | UL94 V-0 | Signal | 15 | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | - | ||||||||||||
 |
749374-3 | - | |
1793 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-22 | Tray | Obsolete | -55°C ~ 105°C | Through Hole | Board Lock | 749374 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 1,500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 1.5A | Phosphor Bronze | UL94 V-0 | Signal | 15 | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | - | |||||||||||||
 |
747836-4 | 5.3395 | |
5344 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Tube | Active | -55°C ~ 105°C | Through Hole, Right Angle | Board Lock, Ground Strap | 747836 | Black | Solder | - | download | Not applicable | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 595 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 6A | Phosphor Bronze | UL94 V-0 | Signal | 9 | 125V | Housing/Shell (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | 0.590" (14.99mm) | |||||||||||||
 |
747786-6 | - | |
3722 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-22 | Tray | Obsolete | -55°C ~ 105°C | Through Hole | - | 747786 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23072 | EAR99 | 8536.69.4040 | 40 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 1.5A | Phosphor Bronze | UL94 V-0 | Signal | 62 | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | - | ||||||||||||
 |

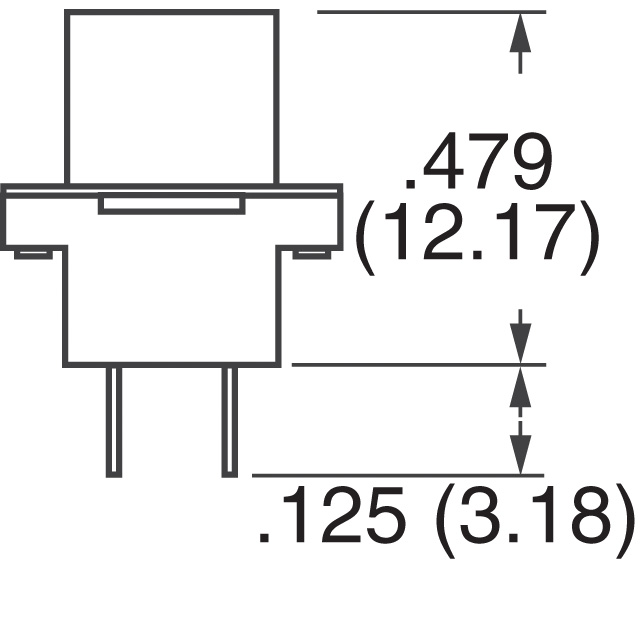

749030-1 | - | |
7269 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-22 | Tray | Obsolete | -55°C ~ 105°C | Through Hole | - | 749030 | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23073 | EAR99 | 8536.69.4040 | 1,200 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 1.5A | Phosphor Bronze | UL94 V-0 | Signal | 26 | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | ||||||||||||
|
748474-1 | - | |
3004 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HDP-22 | Bulk | Obsolete | - | Free Hanging (In-Line) | Backshell, Grounding Indents, Shielded | 748474 | Black | - | Contacts Not Included | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23507 | EAR99 | 8538.90.8180 | 100 | Plug for Male Contacts | 3 | Signal | 26 | - | Cable Side (4-40) | Polyamide (PA), Nylon, Glass Filled | Steel, Tin Plated | D-Sub, High Density | 2 (DA, A) High Density | - | |||||||||||||||||||
 |
1-747871-3 | - | |
2656 | 0.00000000 | TE Connectivity AMP Connectors | AMPLIMITE HD-20 | Bulk | Obsolete | -55°C ~ 105°C | Through Hole | Grounding Indents | Black | Solder | - | download | RoHS non-compliant | 1 (Unlimited) | Vendor Undefined | A23171 | EAR99 | 8536.69.4040 | 17 | Plug, Male Pins | 2 | Gold | Flash | 6A | Brass | UL94 V-0 | Signal | 9 | 125V | Mating Side, Female Screwlock (4-40) | Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | - |
