D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-5W5-224-4TC | 9.0314 |  |
9398 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W5-224-4TC | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
630-M15-640-LT6 | 10.0485 | |
9806 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-640-LT6 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |

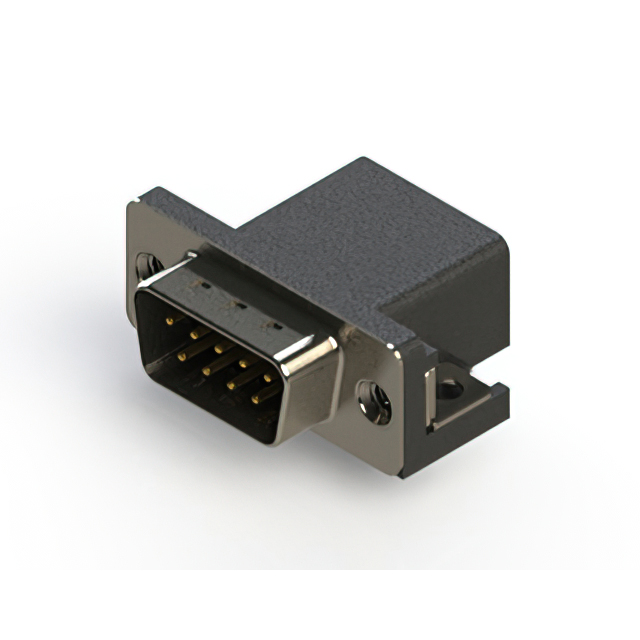

625-009-262-512 | 2.5136 | |
1885 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 625-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-009-262-512 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) | ||
 |
622-025-268-050 | 4.0132 | |
4848 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Filter, Mounting Brackets, Shielded | 622-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-025-268-050 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
661-037-264-003 | 13.4664 | |
2607 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 661-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-037-264-003 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 37, 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||
 |
623-015-661-033 | 5.1752 | |
7910 | 0.00000000 | EDAC Inc. | 623 | - | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 623-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.197" (5.00mm) | ||
 |
628-050-222-268 | 2.4897 | |
5413 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Shielded | 628-050 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-050-222-268 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 50 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 5 (DD, D) | - | |
 |
B57-014-560I822 | - | |
5579 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-560I822 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-9W4-250-3T1 | 6.5687 | |
7417 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-9W4-250-3T1 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | 0.370" (9.40mm) | |
 |
630-9W4-650-3NA | 19.3995 | |
1955 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-9W4-650-3NA | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | 0.370" (9.40mm) | |
 |
629-009-240-045 | 2.2932 | |
6750 | 0.00000000 | EDAC Inc. | 629 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-009-240-045 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.409" (10.40mm) | ||
 |
627-36W4624-5NC | 41.4432 | |
2448 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4624-5NC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 36 (32 + 4 Coax) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - | |
|
628-015-321-556 | - | |
6865 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | Board Lock | 628-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-321-556 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 2 (DA, A) | - | |
 |
634-015-663-043 | 6.3152 | |
3565 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-015 | - | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
|
628-025-620-542 | - | |
6855 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-025-620-542 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 3 (DB, B) | - | |
 |
B57-036-561I203 | - | |
1999 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-561I203 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
627-3W3-624-4T1 | 12.4483 | |
4694 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-3W3-624-4T1 | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |
 |
627-015-322-041 | 1.2726 | |
2665 | 0.00000000 | EDAC Inc. | 627 (Metal) | - | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-015 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4030 | 25 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||
 |
629-25W3650-4N3 | 27.3558 | |
2662 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-25W3650-4N3 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | 0.370" (9.40mm) | |
 |

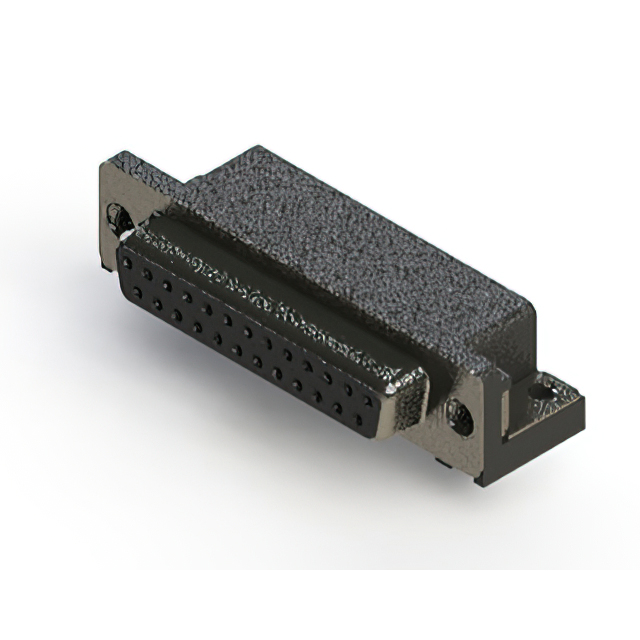

630-025-240-515 | 1.8306 | |
1211 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 630-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-025-240-515 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.409" (10.40mm) | ||
 |
627W5W5-624-3N2 | 24.5011 | |
9364 | 0.00000000 | EDAC Inc. | 627-WC | Tray | Active | -25°C ~ 85°C | Panel Mount | Grounding Indents, Shielded | 627W5W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627W5W5-624-3N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
634-015-363-513 | 4.9612 | |
6917 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 634-015 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-015-363-513 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
622-M15-360-GN1 | 6.7914 | |
9165 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 622-M15 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M15-360-GN1 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) | ||
 |

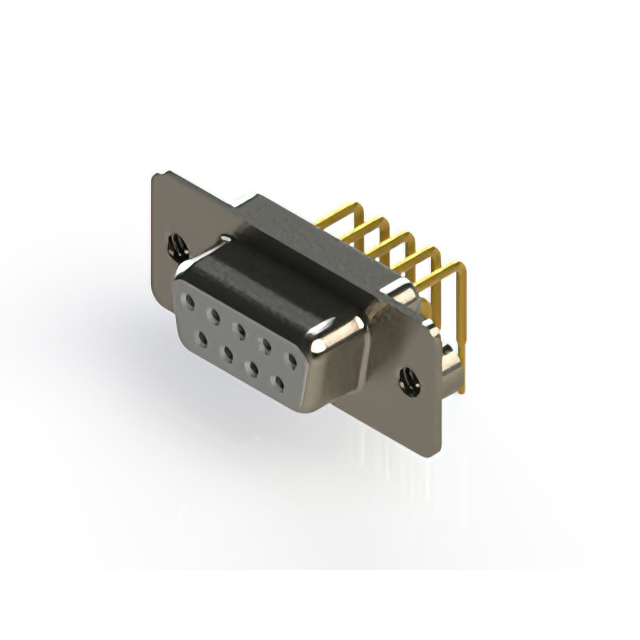

630-M09-340-WT2 | 5.1765 | |
1921 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M09 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M09-340-WT2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | 0.370" (9.40mm) | ||
 |

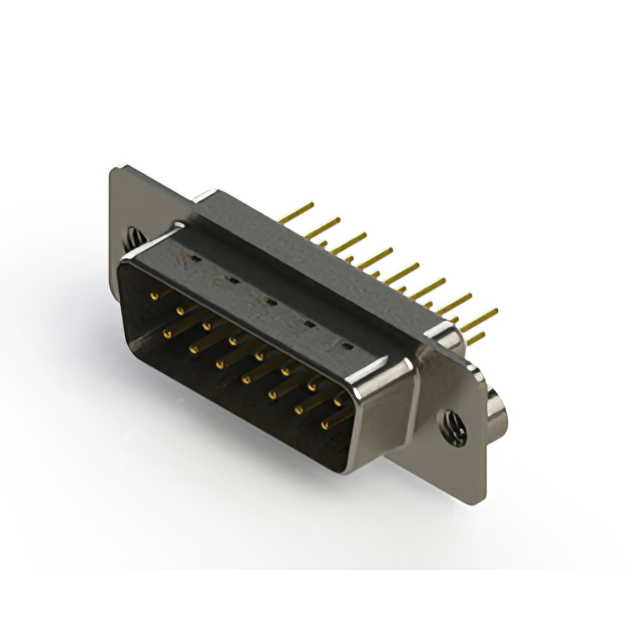

627-M15-620-WT2 | 8.8914 | |
5428 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M15 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M15-620-WT2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||
 |
628-43W2624-7T5 | 41.9035 | |
8533 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-43W2624-7T5 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 43 (41 + 2 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
 |
637-M62-230-BN1 | 9.0326 | |
5384 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 637-M62 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M62-230-BN1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | - | ||
 |
628-17W5624-1T4 | 27.4154 | |
5572 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W5624-1T4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |
630-21W4250-1T2 | 9.0466 | |
5197 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W4250-1T2 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
621-M15-660-BN4 | 8.2672 | |
4078 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 621-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M15-660-BN4 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) |
