D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

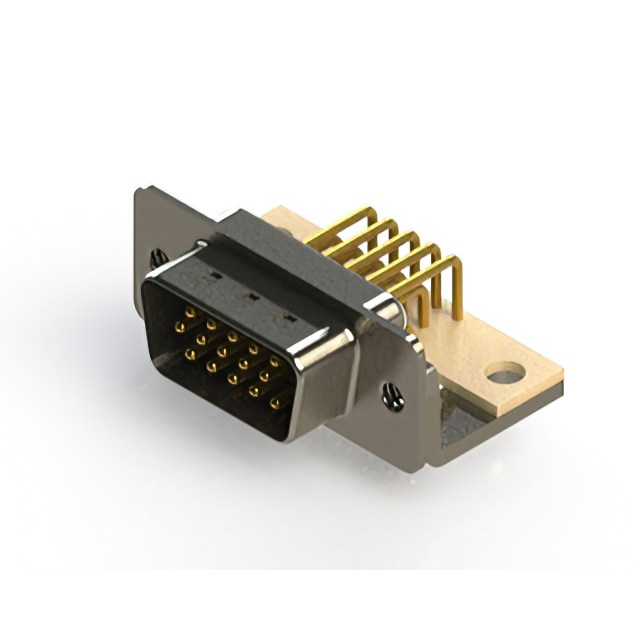

633-M15-363-BT4 | 8.2640 |  |
7599 | 0.00000000 | EDAC Inc. | 633-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 633-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-M15-363-BT4 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
630-2W2-650-2T6 | 8.7446 | |
1146 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2W2-650-2T6 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
634-026-663-032 | 7.7804 | |
9873 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-026-663-032 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
628-M09-321-LN2 | 6.8607 | |
7848 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M09 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M09-321-LN2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
637-M44-330-BT3 | 11.5064 | |
2339 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 637-M44 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M44-330-BT3 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 3 (DB, B) High Density | - | ||
 |

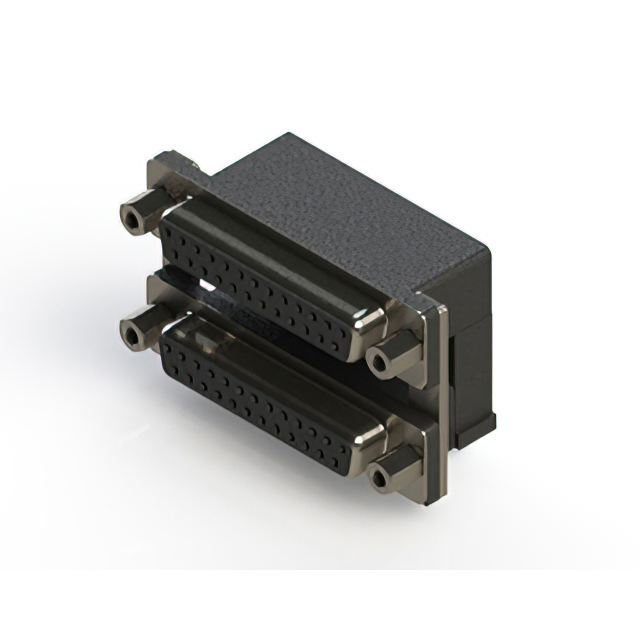

662-025-664-006 | 12.7714 | |
7144 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 662-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-025-664-006 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | - | UL94 V-0 | Signal | 25, 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |

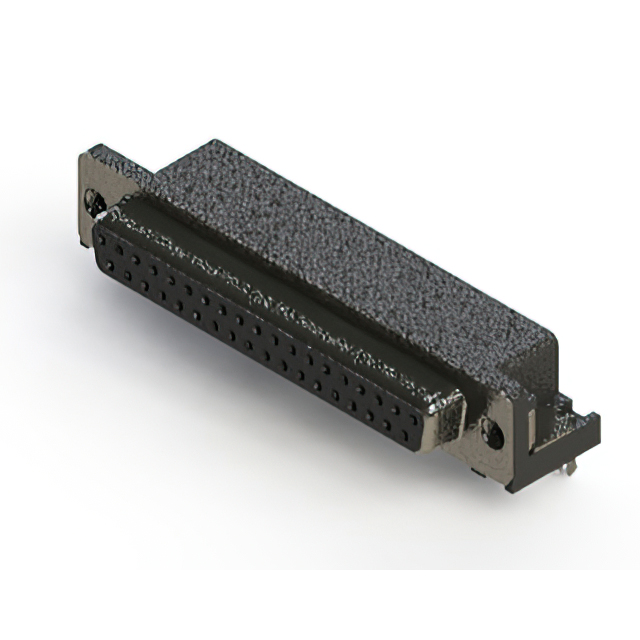

630-037-340-035 | 3.5491 | |
8534 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-037-340-035 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.409" (10.40mm) | ||
 |

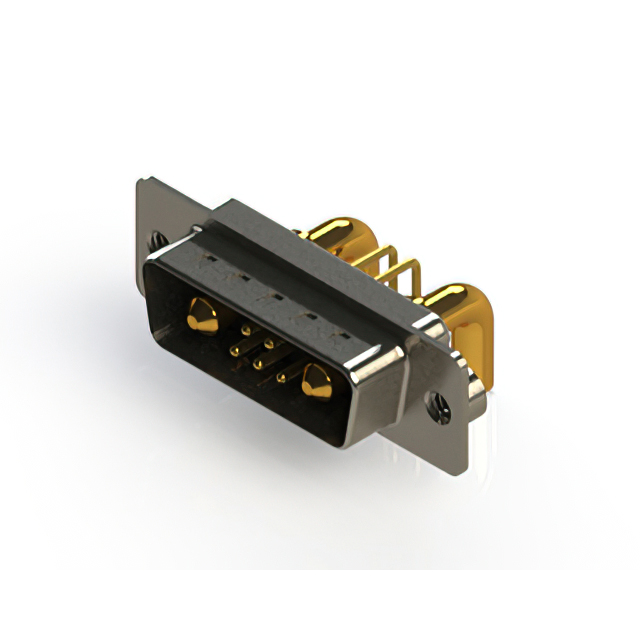

629-7W2-240-4N2 | 8.0420 | |
9063 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-7W2-240-4N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
B57-024-660I523 | - | |
9490 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-660I523 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
634-044-263-011 | 5.2258 | |
9225 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 634-044 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-044-263-011 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | 0.350" (8.89mm) | ||
 |
629-7W2-240-2N6 | 9.1930 | |
5175 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-7W2-240-2N6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
B57-036-667I802 | - | |
1414 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-667I802 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629W17W2140-2NA | 16.9150 | |
2313 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Shielded | 629W17W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W17W2140-2NA | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 5.00µin (0.127µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
628-5W5-624-7N3 | 23.6140 | |
1670 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W5-624-7N3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
B57-150-565I702 | - | |
5158 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-565I702 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-47W1640-4NA | 38.5124 | |
1920 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-47W1640-4NA | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | |
 |
626-015-262-533 | 4.7628 | |
7843 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-015-262-533 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.584" (14.84mm) | ||
 |

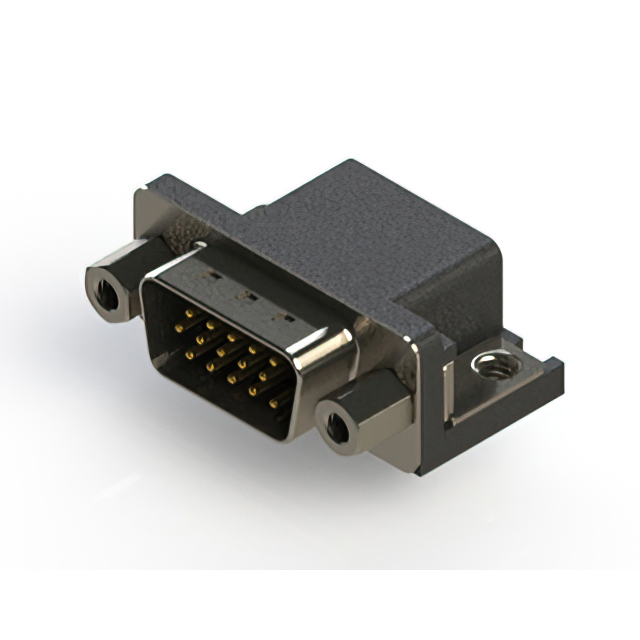

633-015-363-053 | 5.2258 | |
3586 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-015 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-015-363-053 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
627-36W4224-1N5 | 12.5290 | |
7483 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4224-1N5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - | |
 |
622-M37-660-GT3 | 20.2580 | |
2200 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-M37 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M37-660-GT3 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | 0.283" (7.20mm) | ||
 |
B57-124-221I802 | - | |
6423 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-221I802 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
622-M15-260-BT2 | 4.4940 | |
6048 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 622-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M15-260-BT2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) | ||
 |
630-M15-240-LT6 | 5.7456 | |
7715 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-240-LT6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |

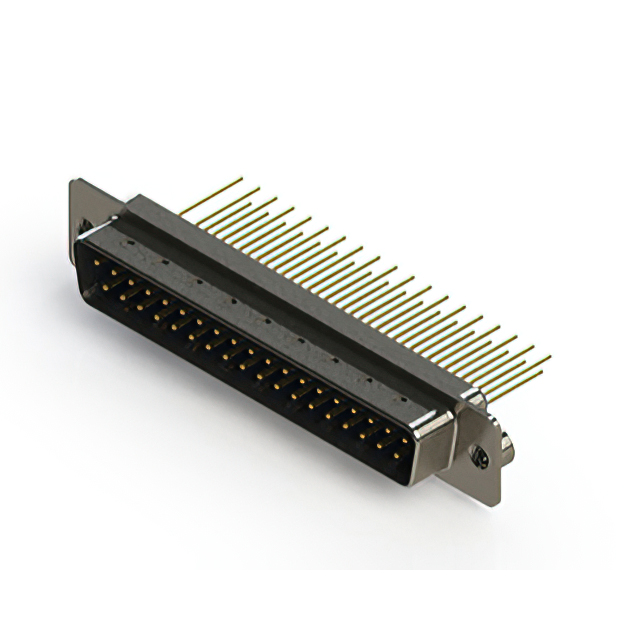

627-M37-323-LT2 | 34.2410 | |
3487 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M37 | Blue | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M37-323-LT2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
627-11W1224-4TA | 6.0640 | |
4819 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-11W1224-4TA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | - | |
 |
628-037-221-256 | 3.8885 | |
4043 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-221-256 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |

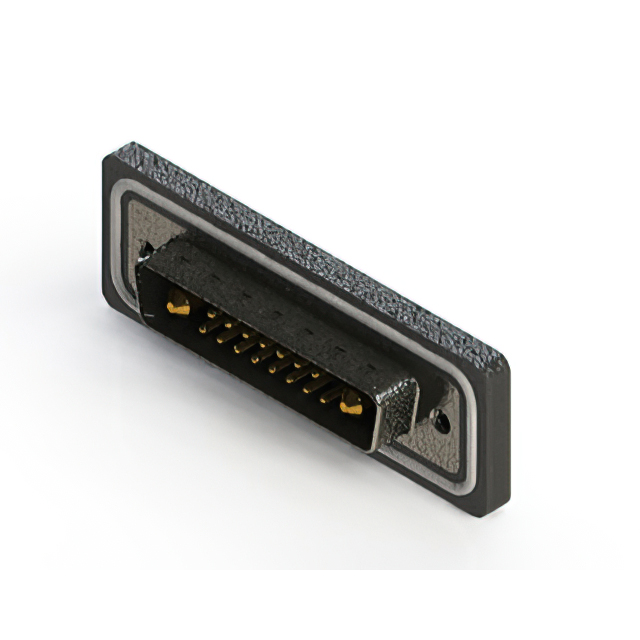

629W17W2340-1N2 | 22.4873 | |
9041 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Shielded | 629W17W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W17W2340-1N2 | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
630-17W2240-1N5 | 10.3707 | |
2735 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-1N5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
628-M25-222-GN2 | 6.5236 | |
2780 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-M25 | Green | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M25-222-GN2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
626-009-662-015 | 5.2500 | |
7960 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 626-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-009-662-015 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) |
