D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-M15-623-GT1 | 17.0614 |  |
6266 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M15 | Green | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M15-623-GT1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | - | |
 |

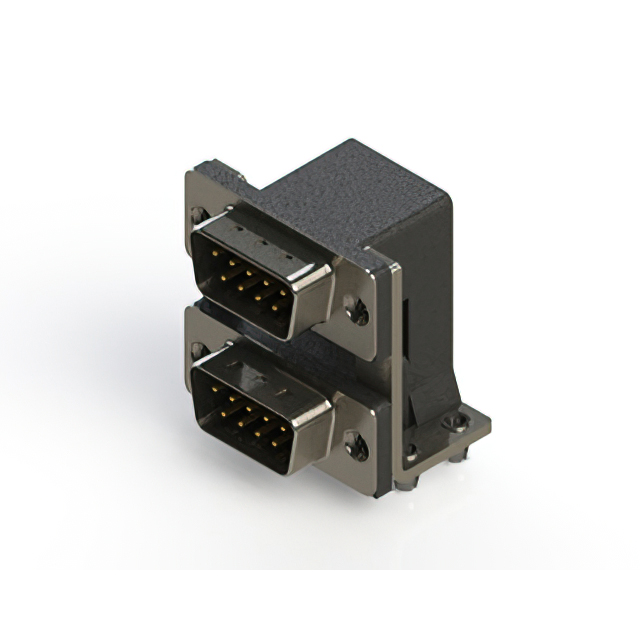

661-009-264-045 | 5.5536 | |
8918 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 661-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-009-264-045 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 9, 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||
 |
627-025-228-543 | - | |
4132 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Obsolete | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-025-228-543 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 3 (DB, B) | - | |
 |
627-M37-620-WT4 | 19.7400 | |
8276 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M37 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M37-620-WT4 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | ||
 |
622-025-368-040 | 5.2500 | |
1183 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Mounting Brackets, Shielded | 622-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-025-368-040 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
638-026-332-043 | 7.0822 | |
6786 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Shielded | 638-026 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-026-332-043 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | ||
 |
661-025-264-008 | 8.1284 | |
9876 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 661-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-025-264-008 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 25, 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
621-009-260-532 | 1.9625 | |
2761 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 621-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-009-260-532 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
B57-050-261I302 | - | |
8142 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-261I302 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |

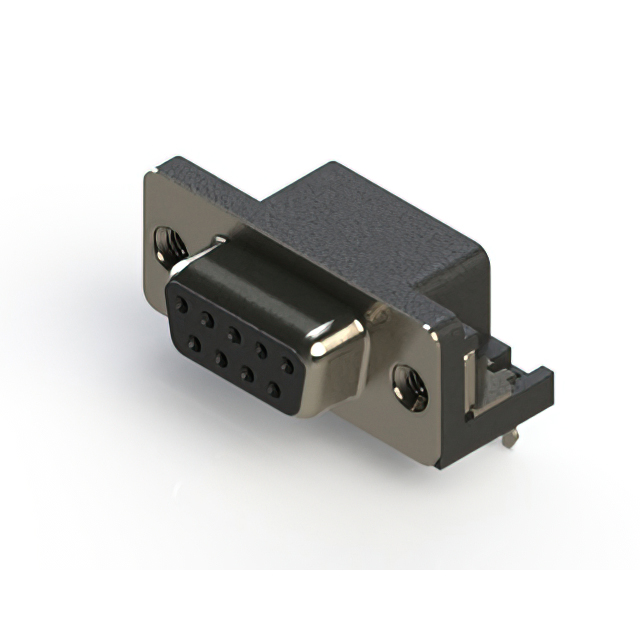

622-009-360-036 | 2.9610 | |
1882 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-009-360-036 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side, Female Screwlock (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
663-009-264-009 | 5.5964 | |
3291 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Shielded | 663-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-009-264-009 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | Flash | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 9, 9 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||
 |
622-M15-260-GN1 | 3.6960 | |
8004 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 622-M15 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M15-260-GN1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) | ||
 |
638-M15-230-BT3 | 4.3050 | |
8466 | 0.00000000 | EDAC Inc. | 638-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 638-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-M15-230-BT3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | - | ||
 |
629-21W4240-5N3 | 14.6318 | |
4466 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W4240-5N3 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (17 + 4 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
627-050-228-041 | 16.9784 | |
6964 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-050 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-050-228-041 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 5 (DD, D) | - | ||
 |
629-36W4240-2N2 | 14.2864 | |
4005 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4240-2N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |
 |
621-009-268-030 | 2.5620 | |
2451 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets, Shielded | 621-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-009-268-030 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
627-M25-620-GT6 | 14.2412 | |
9406 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M25 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-620-GT6 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
629-025-340-032 | 2.7386 | |
7144 | 0.00000000 | EDAC Inc. | 629 | - | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.409" (10.40mm) | ||
 |
629-17W2650-1TB | 13.7734 | |
2194 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W2650-1TB | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
629-8W8-640-1T3 | 24.4218 | |
7395 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-640-1T3 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.520" (13.20mm) | |
 |
B57-036-566I403 | - | |
4545 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-566I403 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
638-M26-330-BN1 | 8.2640 | |
9603 | 0.00000000 | EDAC Inc. | 638-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 638-M26 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-M26-330-BN1 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (Unthreaded) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | - | ||
 |
627W17W2122-4N2 | 15.7028 | |
6066 | 0.00000000 | EDAC Inc. | 627-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627W17W | Black | Solder Cup | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627W17W2122-4N2 | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 5.00µin (0.127µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
B57-014-665I202 | - | |
7472 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-665I202 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-025-620-267 | 4.1430 | |
2131 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 628-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-025-620-267 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | |
 |
629-8W8-640-5T6 | 24.6188 | |
9494 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-640-5T6 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax | 8 (Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.370" (9.40mm) | |
|
628-025-221-552 | - | |
4868 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-025-221-552 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 3 (DB, B) | - | |
 |
629-25W3640-1NB | 30.4818 | |
4176 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-25W3640-1NB | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | 0.370" (9.40mm) | |
 |
626-025-662-013 | 8.5984 | |
7482 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 626-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-025-662-013 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.584" (14.84mm) |
