D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-M15-223-BN5 | 10.0317 |  |
4994 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M15 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M15-223-BN5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | - | |
 |
628-21W1224-7N4 | 9.2820 | |
9730 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-21W1224-7N4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (20 + 1 Coax) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
630-M15-340-WN2 | 7.3805 | |
8719 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M15 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-340-WN2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |

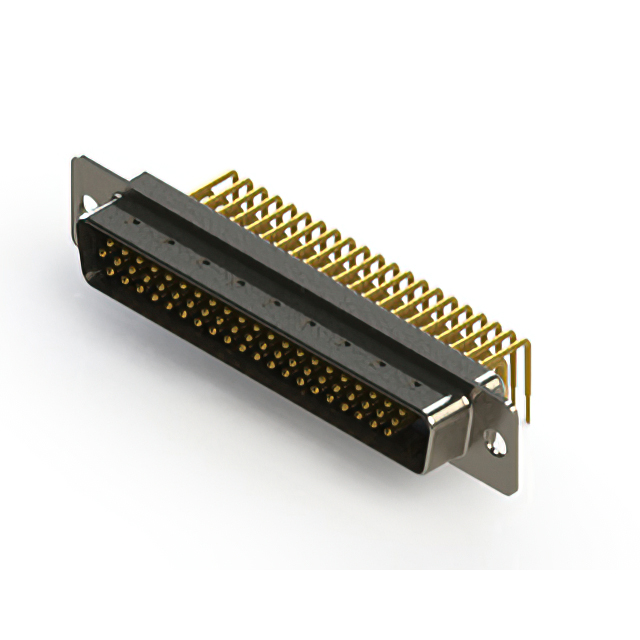

633-M62-263-BN1 | 12.9412 | |
2515 | 0.00000000 | EDAC Inc. | 633-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 633-M62 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-M62-263-BN1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | 0.350" (8.89mm) | ||
 |

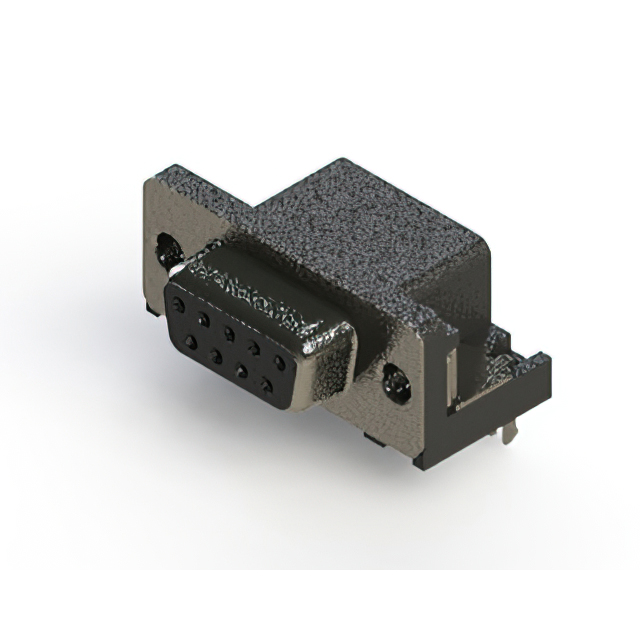

630-009-240-031 | 2.2932 | |
8907 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-009-240-031 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.409" (10.40mm) | ||
 |

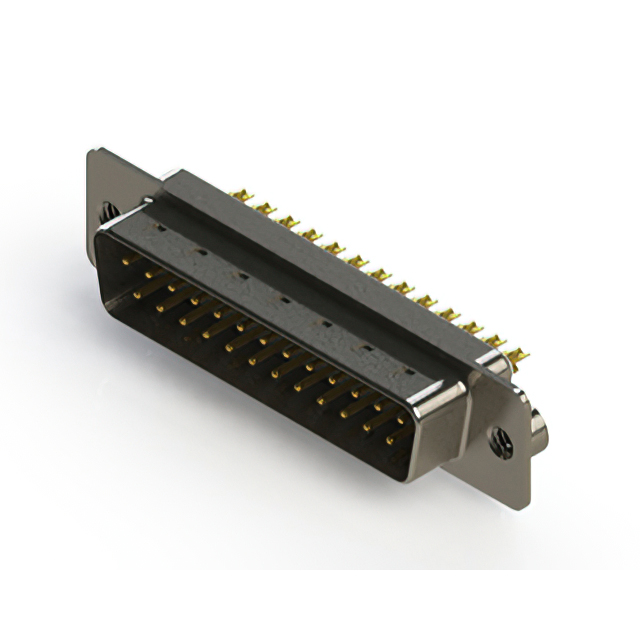

627-M25-622-WN2 | 17.2620 | |
8260 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M25 | White | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-622-WN2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
629-27W2640-2NB | 28.5974 | |
2190 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-27W2640-2NB | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 27 (25 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | 0.370" (9.40mm) | |
 |
629-7W2-240-5NB | 9.1392 | |
3482 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-7W2-240-5NB | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 7 (5 + 2 Coax) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
629-21W1650-4NE | 18.7491 | |
1208 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W1650-4NE | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | 0.370" (9.40mm) | |
 |
627-8W8-222-1N2 | 12.4414 | |
8647 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-8W8 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-8W8-222-1N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | |
 |
628-5W5-224-5TB | 12.0533 | |
5748 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W5-224-5TB | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
630-M37-240-GN5 | 9.6212 | |
7936 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M37 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M37-240-GN5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | 0.370" (9.40mm) | ||
 |
630-9W4-640-4N2 | 21.4624 | |
3433 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-9W4-640-4N2 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | 0.370" (9.40mm) | |
 |
627-M09-620-GN6 | 7.8608 | |
3601 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M09 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-620-GN6 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
630-17W5640-7T1 | 22.8199 | |
4307 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W5640-7T1 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (15 + 2 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
B57-124-562I522 | - | |
2664 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-562I522 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
626-037-262-013 | 5.0056 | |
8772 | 0.00000000 | EDAC Inc. | 626 | - | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 626-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.584" (14.84mm) | ||
 |
629-3WK3650-1N1 | 12.1604 | |
4571 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3WK3650-1N1 | EAR99 | 8536.69.4040 | 250 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.520" (13.20mm) | |
 |
630-5W5-650-2ND | 20.3957 | |
4349 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-5W5-650-2ND | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | |
 |
634-M15-663-WT1 | 8.8610 | |
5862 | 0.00000000 | EDAC Inc. | 634-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 634-M15 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-M15-663-WT1 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA9T), Nylon 9T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
622-037-668-046 | 11.0564 | |
1274 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Mounting Brackets, Shielded | 622-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-037-668-046 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.318" (8.08mm) | ||
 |
628-015-321-051 | 2.3432 | |
6026 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-015-321-051 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||
 |
B57-124-561I822 | - | |
5700 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-561I822 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-037-621-079 | 6.9046 | |
3962 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-621-079 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
630-037-240-042 | 4.8290 | |
6590 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-037-240-042 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.409" (10.40mm) | ||
 |
662-009-264-056 | 5.8980 | |
3670 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 662-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-009-264-056 | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2, 2 | Gold | Flash | 3A per Contact | - | UL94 V-0 | Signal | 9, 9 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||
 |
627-M50-220-WT2 | 9.6747 | |
1544 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M50-220-WT2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||
 |
629-009-340-035 | 1.4791 | |
4109 | 0.00000000 | EDAC Inc. | 629 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-009-340-035 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.409" (10.40mm) | ||
 |
628-037-220-546 | - | |
6261 | 0.00000000 | EDAC Inc. | 628 (Plastic) | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-220-546 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 4 (DC, C) | - | |
 |
630-43W2650-3NA | 35.3019 | |
6943 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-43W2650-3NA | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) |
