Card Edge Connectors(668067)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
395-028-523-658 EDAC Inc. 395-028-523-658 13.7812
RFQ
 ECAD 3450 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-028 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-028-523-658 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
333-030-556-208 EDAC Inc. 333-030-556-208 11.8520
RFQ
 ECAD 6082 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-030 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-030-556-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
346-036-541-103 EDAC Inc. 346-036-541-103 10.8132
RFQ
 ECAD 9413 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-036 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-036-541-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
396-039-521-108 EDAC Inc. 396-039-521-108 13.7116
RFQ
 ECAD 7686 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-039 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-039-521-108 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
837-023-521-608 EDAC Inc. 837-023-521-608 55.9912
RFQ
 ECAD 4141 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-023 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-023-521-608 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
395-016-540-107 EDAC Inc. 395-016-540-107 12.1388
RFQ
 ECAD 7821 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-016 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-016-540-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
842-010-540-102 EDAC Inc. 842-010-540-102 59.0624
RFQ
 ECAD 3931 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-010 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-010-540-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 10 Female Non Specified - Single Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
345-019-541-678 EDAC Inc. 345-019-541-678 13.5648
RFQ
 ECAD 2782 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-019 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-019-541-678 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-017-559-112 EDAC Inc. 345-017-559-112 14.0568
RFQ
 ECAD 3499 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-017 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-017-559-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 17 Female Non Specified - Single Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
396-046-521-207 EDAC Inc. 396-046-521-207 11.4952
RFQ
 ECAD 3086 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-046 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-046-521-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
846-015-541-102 EDAC Inc. 846-015-541-102 39.3040
RFQ
 ECAD 5178 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-015 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-846-015-541-102 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 15 Female Non Specified - Single Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
345-014-500-603 EDAC Inc. 345-014-500-603 17.3516
RFQ
 ECAD 9405 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-014 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-345-014-500-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
837-039-542-604 EDAC Inc. 837-039-542-604 58.4796
RFQ
 ECAD 5057 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-039 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-039-542-604 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 1
395-034-520-607 EDAC Inc. 395-034-520-607 13.7812
RFQ
 ECAD 3241 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-034 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-034-520-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Single Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
392-038-559-101 EDAC Inc. 392-038-559-101 19.0364
RFQ
 ECAD 1040 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole, Right Angle - 392-038 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-038-559-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Single Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
833-056-500-803 EDAC Inc. 833-056-500-803 78.3248
RFQ
 ECAD 7934 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-056 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-833-056-500-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2

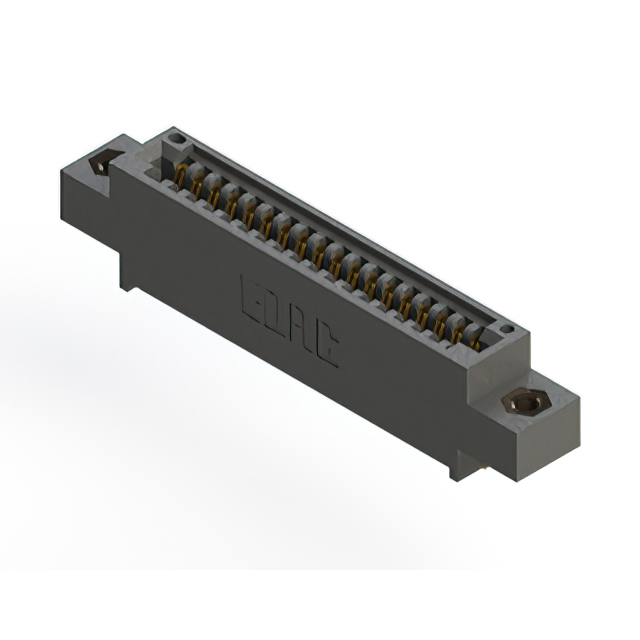

395-018-521-607 EDAC Inc. 395-018-521-607 12.4608
RFQ
 ECAD 9658 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-018 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-018-521-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
837-086-524-808 EDAC Inc. 837-086-524-808 110.5648
RFQ
 ECAD 2934 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-086 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-086-524-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

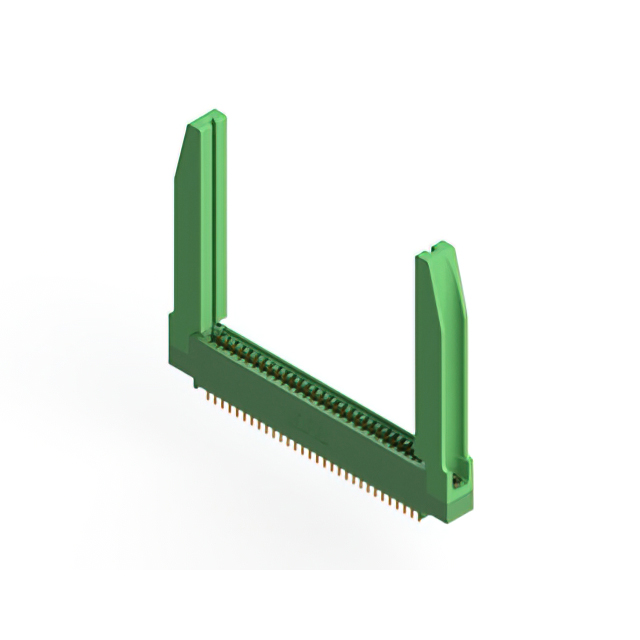

345-060-521-578 EDAC Inc. 345-060-521-578 14.6080
RFQ
 ECAD 8835 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-060 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-060-521-578 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
392-053-542-104 EDAC Inc. 392-053-542-104 21.5100
RFQ
 ECAD 4085 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-053 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-053-542-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 53 Female Non Specified - Single Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
845-025-544-478 EDAC Inc. 845-025-544-478 -
RFQ
 ECAD 8272 0.00000000 EDAC Inc. 845 Box Obsolete 845-025 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-025-544-478 EAR99 8536.69.4040 25
345-064-524-812 EDAC Inc. 345-064-524-812 13.6828
RFQ
 ECAD 2738 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-064 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-064-524-812 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

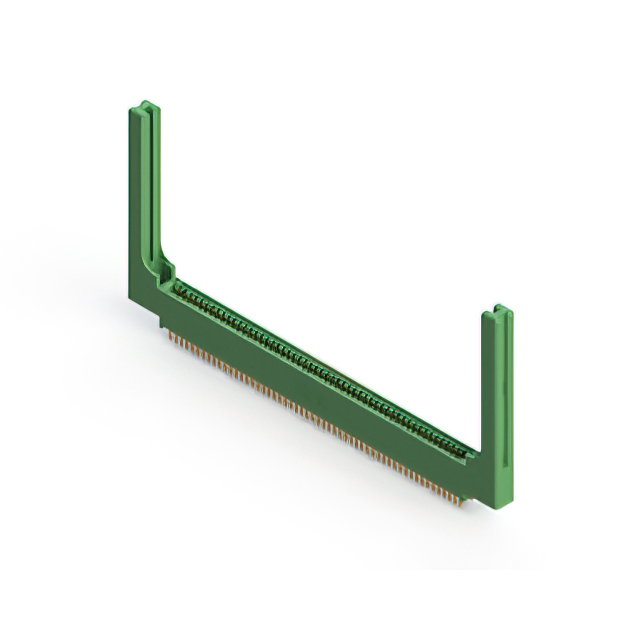

345-108-523-858 EDAC Inc. 345-108-523-858 17.8044
RFQ
 ECAD 3749 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-108 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-108-523-858 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 108 Female Non Specified - Dual Edge 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
345-068-556-504 EDAC Inc. 345-068-556-504 13.6388
RFQ
 ECAD 4812 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 345-068 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-068-556-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
833-021-541-101 EDAC Inc. 833-021-541-101 39.3040
RFQ
 ECAD 5811 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-021 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-021-541-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
345-068-521-812 EDAC Inc. 345-068-521-812 13.8796
RFQ
 ECAD 1368 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-068 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-068-521-812 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
396-030-558-158 EDAC Inc. 396-030-558-158 15.6628
RFQ
 ECAD 1117 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 396-030 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-030-558-158 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

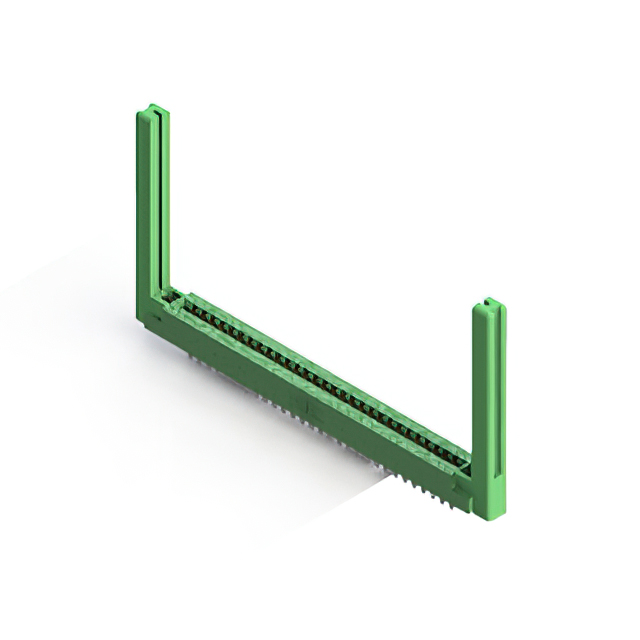

316-029-500-158 EDAC Inc. 316-029-500-158 19.2372
RFQ
 ECAD 8909 0.00000000 EDAC Inc. 316 Box Active -40°C ~ 105°C Panel Mount Card Guides 316-029 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-316-029-500-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Dual Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

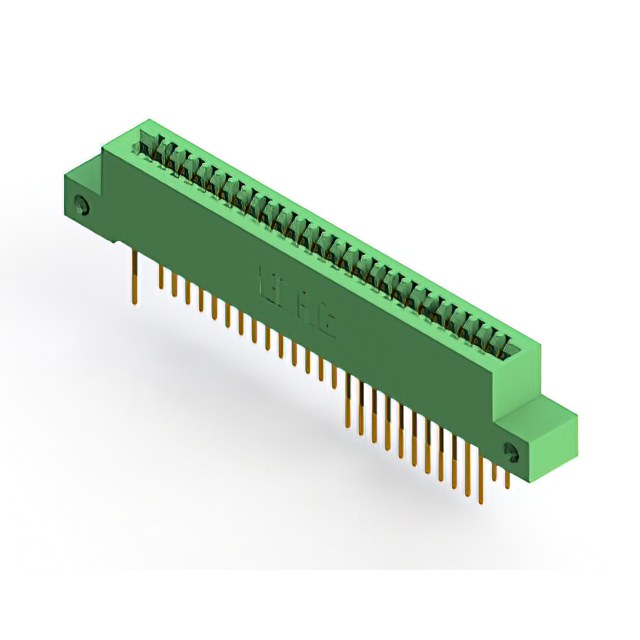

842-054-523-212 EDAC Inc. 842-054-523-212 80.3248
RFQ
 ECAD 4362 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-054 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-054-523-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
345-066-559-507 EDAC Inc. 345-066-559-507 16.1020
RFQ
 ECAD 7291 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-066 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-066-559-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
