Card Edge Connectors(668078)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Material | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ABB56DHNR | - |  |
9875 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 150°C | Through Hole | Board Lock | ABB56 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.050" (1.27mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Hairpin Bellows | 112 | Female | Non Specified - Dual Edge | 56 | 0.062" (1.57mm) | Dual | - | Polyphenylene Sulfide (PPS) | ||||||
|
EBC31DRXS-S734 | 8.3600 | |
6306 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | EBC31 | Blue | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Full Bellows | 62 | Female | Non Specified - Dual Edge | 31 | 0.031" (0.79mm) | Dual | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||
 |
857-052-556-212 | 114.6552 | |
4597 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | 857-052 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-052-556-212 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 52 | Female | Non Specified - Dual Edge | 26 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyphenylene Sulfide (PPS) | 2 | ||||
 |

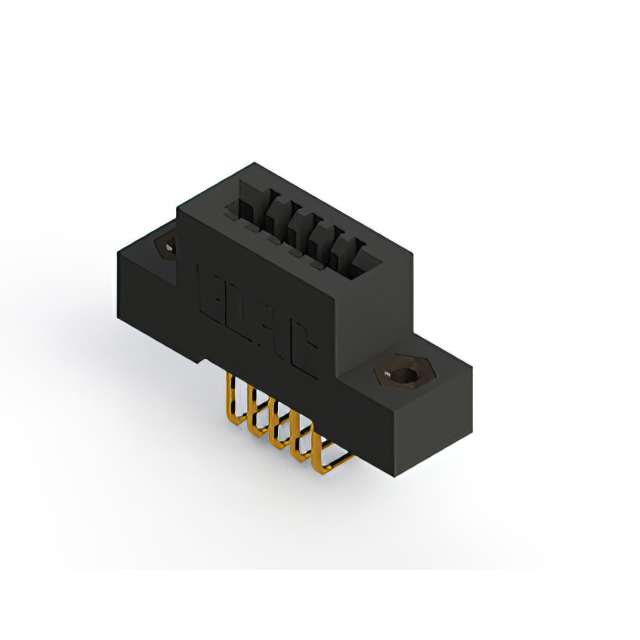

392-005-558-108 | 13.4076 | |
8848 | 0.00000000 | EDAC Inc. | 392 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | - | 392-005 | Black | Solder, Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-392-005-558-108 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 5 | Female | Non Specified - Single Edge | 5 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |||||
|
RBM36DTBD | 12.3860 | |
1125 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | RBM36 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Loop Bellows | 72 | Female | Non Specified - Dual Edge | 36 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyphenylene Sulfide (PPS) | ||||||
|
GCM28DTAH-S189 | 8.7360 | |
2697 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | GCM28 | Black | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Loop Bellows | 56 | Female | Non Specified - Dual Edge | 28 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyamide (PA9T), Nylon 9T | ||||||
|
846-042-556-858 | - | |
5040 | 0.00000000 | EDAC Inc. | 846 | Box | Obsolete | 846-042 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-846-042-556-858 | EAR99 | 8536.69.4040 | 25 | ||||||||||||||||||||||||
|
GCB21DHLD | - | |
4037 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 125°C | Through Hole | - | GCB21 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 10 | 0.050" (1.27mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Hairpin Bellows | 42 | Female | Non Specified - Dual Edge | 21 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyamide (PA9T), Nylon 9T | ||||||
|
NT5P08CC5E2L10J | - | |
1734 | 0.00000000 | JAE Electronics | - | Bulk | Obsolete | - | 1 (Unlimited) | 670-NT5P08CC5E2L10J | OBSOLETE | 1 | ||||||||||||||||||||||||||||
 |
895-034-525-404 | 58.2436 | |
9611 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 895-034 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-034-525-404 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 34 | Female | Non Specified - Single Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 1 | ||||
|
ESM02DSXN | 2.5730 | |
3729 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | ESM02 | Blue | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Full Bellows | 4 | Female | Non Specified - Dual Edge | 2 | 0.062" (1.57mm) | Single | - | Polybutylene Terephthalate (PBT) | ||||||
 |
837-019-544-602 | 36.9932 | |
2525 | 0.00000000 | EDAC Inc. | 837 | Box | Active | -40°C ~ 125°C | Through Hole | - | 837-019 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-837-019-544-602 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 19 | Female | Non Specified - Single Edge | 19 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 1 | |||||
|
EEC50DRYS-S734 | 9.0400 | |
7489 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | EEC50 | Blue | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Tin | 100.0µin (2.54µm) | Phosphor Bronze | Full Bellows | 100 | Female | Non Specified - Dual Edge | 50 | 0.031" (0.79mm) | Dual | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||
|
KIT,JACKSCREW,LOW | 8.2600 | |
3029 | 0.00000000 | ITT Cannon, LLC | - | Bulk | Active | - | - | Jackscrew | - | - | - | RoHS Compliant | 1 (Unlimited) | 1 | ||||||||||||||||||||||||
|
RBC13DCMT-S288 | 9.0860 | |
3956 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | RBC13 | Green | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Hairpin Bellows | 26 | Female | Non Specified - Dual Edge | 13 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyphenylene Sulfide (PPS) | ||||||
|
ECM12DKAI-S189 | 5.6550 | |
2408 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole, Right Angle | - | ECM12 | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Cantilever | 24 | Female | Non Specified - Dual Edge | 12 | 0.062" (1.57mm) | Dual | Top Mount Opening, Threaded Insert, 4-40 | Polybutylene Terephthalate (PBT) | ||||||
|
ABC49DSXN | 22.9120 | |
8748 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 150°C | Through Hole | - | ABC49 | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Beryllium Copper | Full Bellows | 98 | Female | Non Specified - Dual Edge | 49 | 0.062" (1.57mm) | Single | - | Polyphenylene Sulfide (PPS) | ||||||
 |
387-030-523-158 | 12.6312 | |
8661 | 0.00000000 | EDAC Inc. | 387 | Box | Active | -40°C ~ 105°C | Through Hole | - | 387-030 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-387-030-523-158 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 30 | Female | Non Specified - Single Edge | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |||||
|
837-036-558-868 | - | |
3748 | 0.00000000 | EDAC Inc. | 837 | Box | Obsolete | 837-036 | - | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-837-036-558-868 | EAR99 | 8536.69.4040 | 25 | ||||||||||||||||||||||||
|
AMM28DRMH | 38.9110 | |
8064 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 150°C | Through Hole | - | AMM28 | Green | Wire Wrap | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.156" (3.96mm) | 2 | Gold | 30.0µin (0.76µm) | Beryllium Copper | Loop Bellows | 56 | Female | Non Specified - Dual Edge | 28 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyphenylene Sulfide (PPS) | ||||||
|
GSC08DREH | 4.4350 | |
3215 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 125°C | Panel Mount | - | GSC08 | Black | Solder Eyelet(s) | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Full Bellows | 16 | Female | Non Specified - Dual Edge | 8 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polyamide (PA9T), Nylon 9T | ||||||
 |

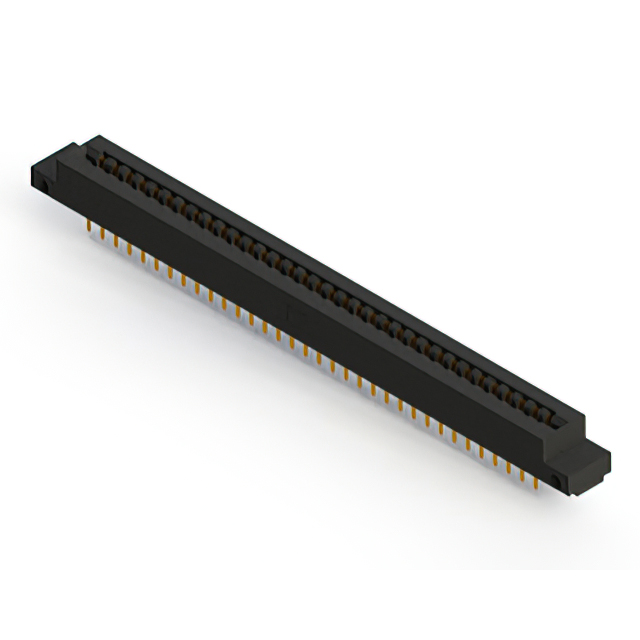

857-068-520-212 | 117.6524 | |
7968 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-068 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-068-520-212 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 68 | Female | Non Specified - Dual Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyphenylene Sulfide (PPS) | 2 | ||||
|
ESC22DRTH | 11.0080 | |
5333 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 125°C | Through Hole | - | ESC22 | Blue | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Full Bellows | 44 | Female | Non Specified - Dual Edge | 22 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||
|
GCB56DHHN | - | |
3140 | 0.00000000 | Sullins Connector Solutions | - | Tube | Active | -65°C ~ 125°C | Through Hole | - | GCB56 | Black | Solder, Staggered | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 10 | 0.050" (1.27mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Hairpin Bellows | 112 | Female | Non Specified - Dual Edge | 56 | 0.062" (1.57mm) | Dual | - | Polyamide (PA9T), Nylon 9T | ||||||
|
ECC60DTKH-S288 | 11.7310 | |
9447 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | ECC60 | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.100" (2.54mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Loop Bellows | 120 | Female | Non Specified - Dual Edge | 60 | 0.062" (1.57mm) | Dual | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||
 |
307-040-458-258 | 17.0568 | |
2503 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole, Right Angle | Card Guides | 307-040 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-040-458-258 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 40 | Female | Non Specified - Dual Edge | 20 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 | ||||
 |
345-036-540-812 | 10.1784 | |
7969 | 0.00000000 | EDAC Inc. | 345 | Box | Active | -40°C ~ 105°C | Through Hole | - | 345-036 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-345-036-540-812 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 36 | Female | Non Specified - Dual Edge | 18 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 | |||||
|
ECA22DCWD | 6.4420 | |
1202 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Through Hole | - | ECA22 | - | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.125" (3.18mm) | 2 | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Hairpin Bellows | 44 | Female | Non Specified - Dual Edge | 22 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Polybutylene Terephthalate (PBT) | ||||||
 |
357-042-459-101 | 22.8408 | |
4817 | 0.00000000 | EDAC Inc. | 357 | Bulk | Active | -40°C ~ 105°C | Through Hole, Right Angle | - | 357-042 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-357-042-459-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Tin | - | Copper Alloy | Semi Bellows | 42 | Female | Non Specified - Single Edge | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | ||||
|
EBA43DCMT-S288 | 10.0320 | |
6033 | 0.00000000 | Sullins Connector Solutions | - | Tray | Active | -65°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | EBA43 | - | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 1 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Phosphor Bronze | Hairpin Bellows | 86 | Female | Non Specified - Dual Edge | 43 | 0.062" (1.57mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polybutylene Terephthalate (PBT) |
