Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
395-015-520-603 EDAC Inc. 395-015-520-603 11.9876
RFQ
 ECAD 9042 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-015 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-015-520-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 15 Female Non Specified - Single Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
837-082-559-201 EDAC Inc. 837-082-559-201 107.2576
RFQ
 ECAD 7799 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole, Right Angle - 837-082 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-082-559-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2

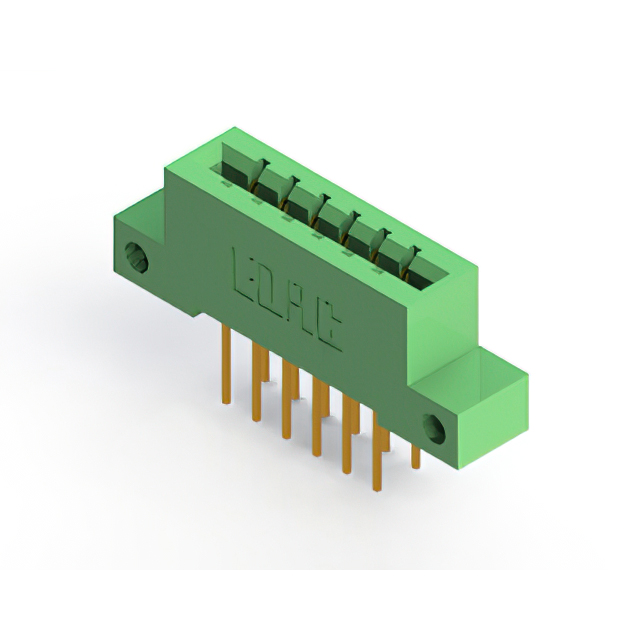

833-012-523-212 EDAC Inc. 833-012-523-212 37.3512
RFQ
 ECAD 6734 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-012 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-012-523-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

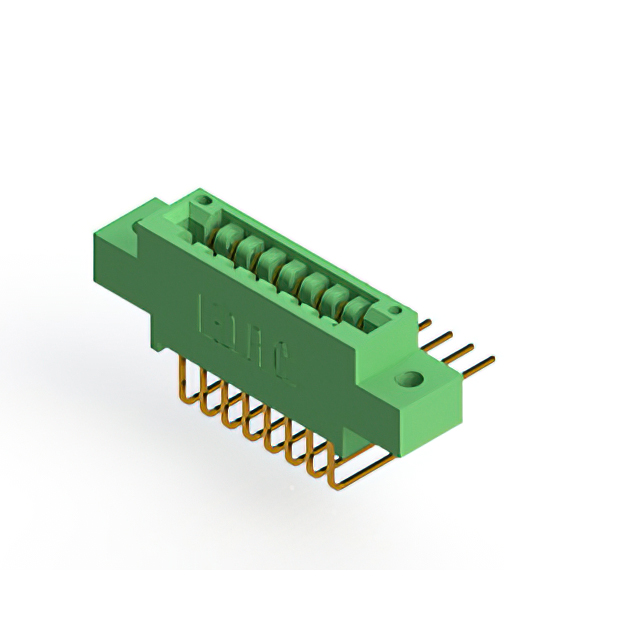

846-016-558-802 EDAC Inc. 846-016-558-802 53.0460
RFQ
 ECAD 4458 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole, Right Angle - 846-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-016-558-802 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

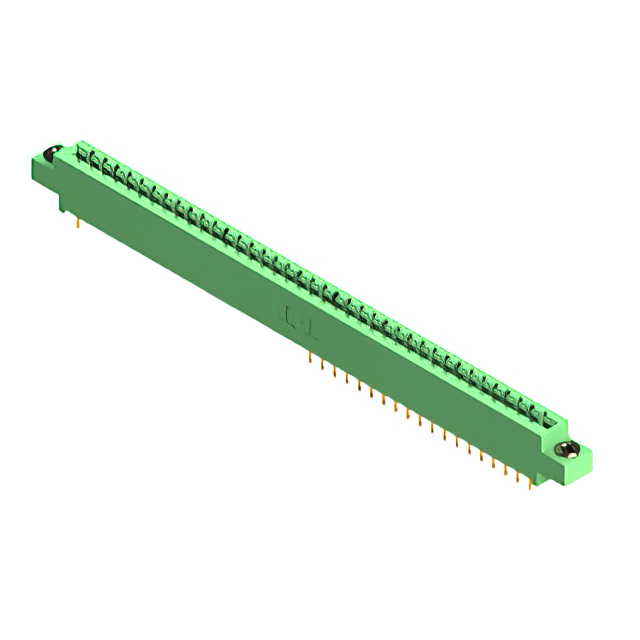

837-038-558-603 EDAC Inc. 837-038-558-603 88.1212
RFQ
 ECAD 9593 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole, Right Angle - 837-038 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-038-558-603 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Single Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1

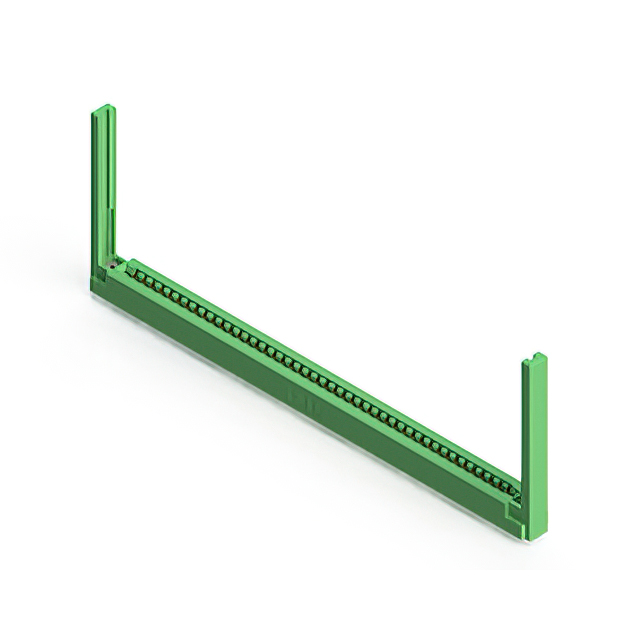

307-044-554-168 EDAC Inc. 307-044-554-168 47.4076
RFQ
 ECAD 3758 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Surface Mount Card Guides 307-044 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-044-554-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 88 Female Non Specified - Dual Edge 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
807-046-559-278 EDAC Inc. 807-046-559-278 -
RFQ
 ECAD 3091 0.00000000 EDAC Inc. 807 Box Obsolete 807-046 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-046-559-278 EAR99 8536.69.4040 25
307-052-522-204 EDAC Inc. 307-052-522-204 14.3324
RFQ
 ECAD 7638 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-052 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-052-522-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

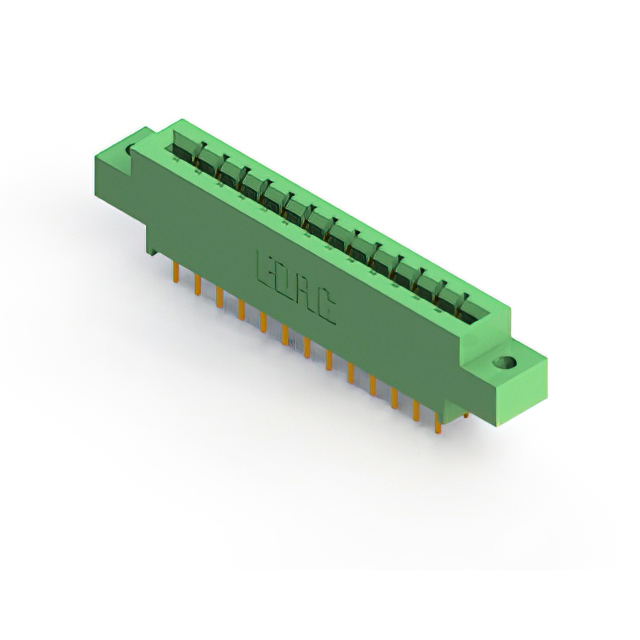

833-026-540-802 EDAC Inc. 833-026-540-802 35.1540
RFQ
 ECAD 2934 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-026 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-026-540-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

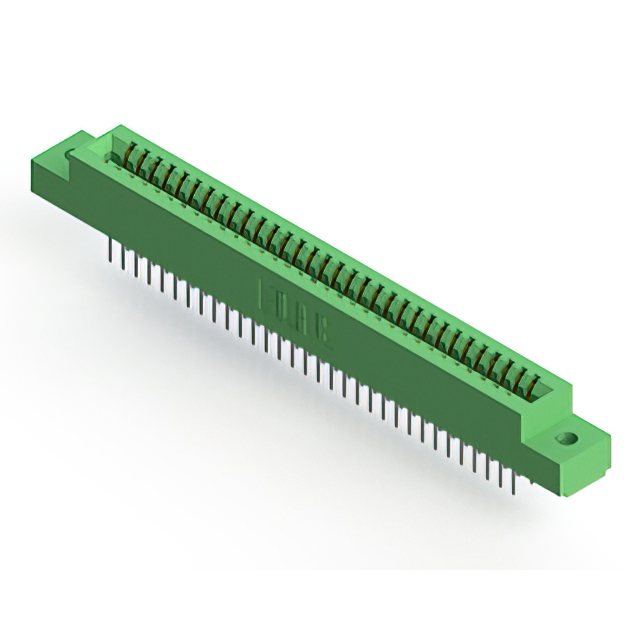

341-064-521-202 EDAC Inc. 341-064-521-202 14.3632
RFQ
 ECAD 1852 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-064 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-064-521-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

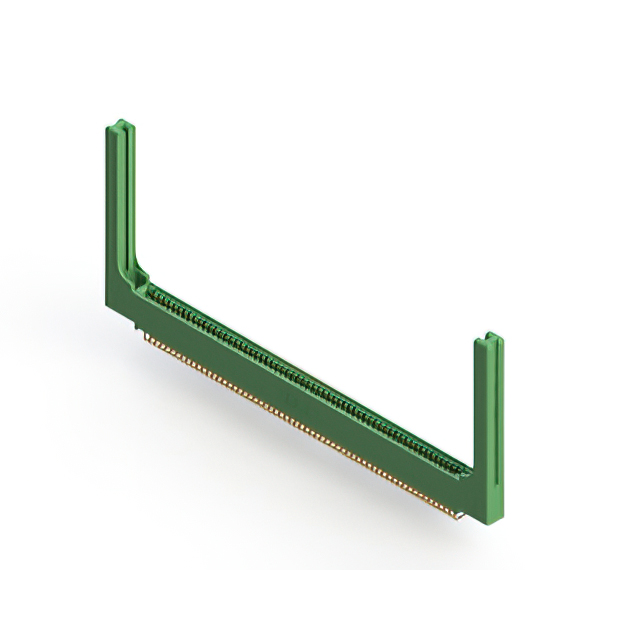

345-122-559-558 EDAC Inc. 345-122-559-558 20.5716
RFQ
 ECAD 3545 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 345-122 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-122-559-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 122 Female Non Specified - Dual Edge 61 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

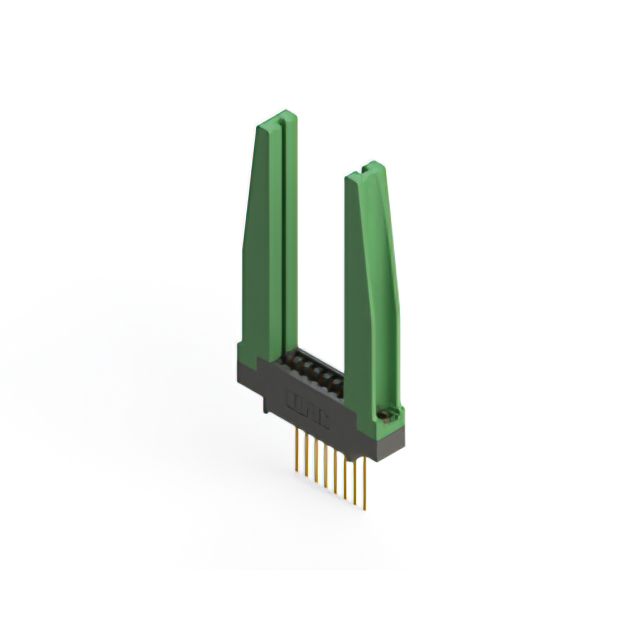

396-008-541-678 EDAC Inc. 396-008-541-678 11.0972
RFQ
 ECAD 7110 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-008 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-008-541-678 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 8 Female Non Specified - Single Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

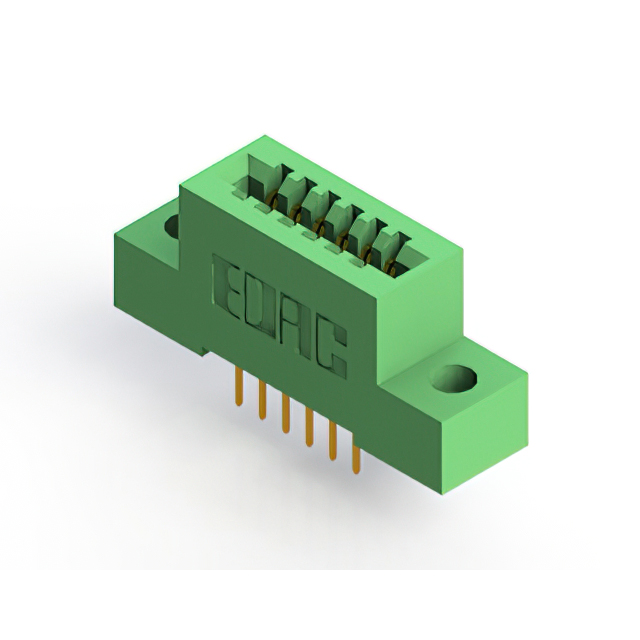

842-012-524-204 EDAC Inc. 842-012-524-204 39.5796
RFQ
 ECAD 1929 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-012 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-012-524-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2

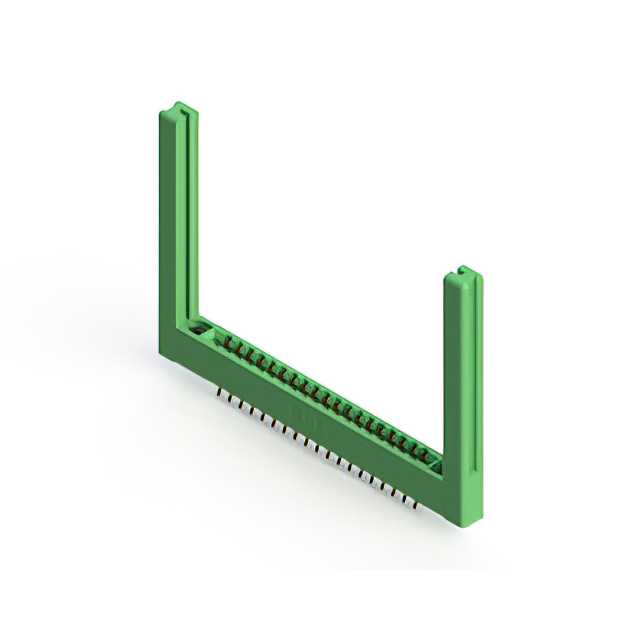

305-038-556-558 EDAC Inc. 305-038-556-558 14.0552
RFQ
 ECAD 9377 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 305-038 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-038-556-558 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

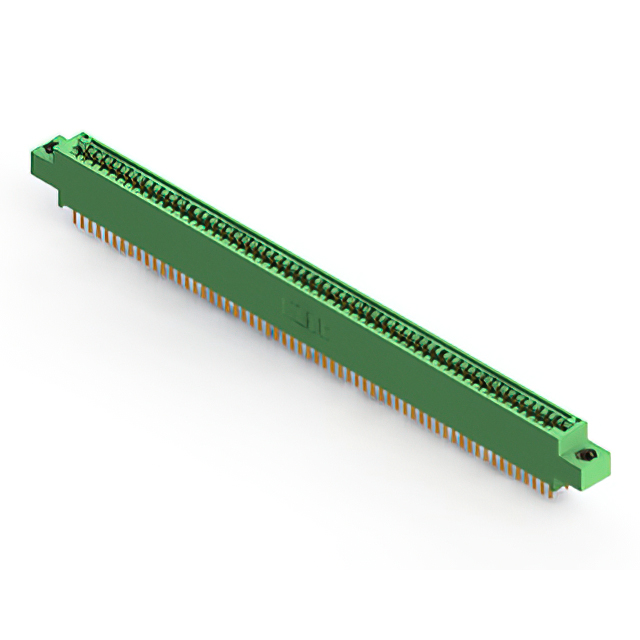

845-120-520-808 EDAC Inc. 845-120-520-808 111.5100
RFQ
 ECAD 6543 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-120 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-120-520-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 120 Female Non Specified - Dual Edge 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
346-040-559-803 EDAC Inc. 346-040-559-803 13.4456
RFQ
 ECAD 1553 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-040 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-040-559-803 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

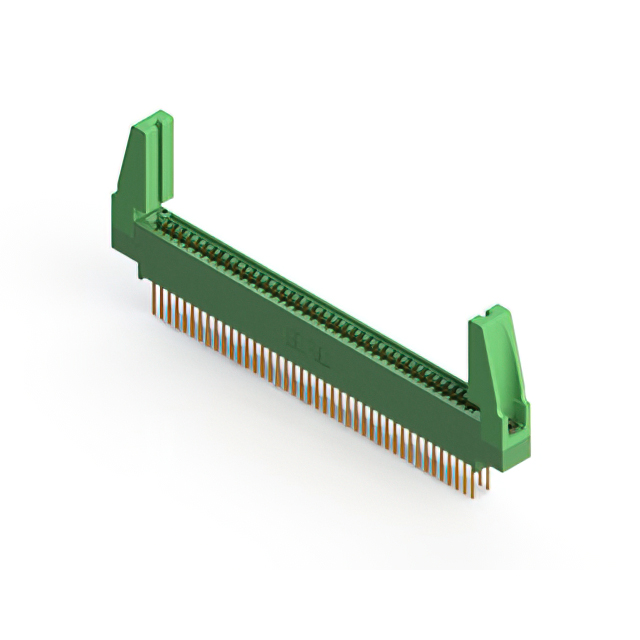

345-084-542-888 EDAC Inc. 345-084-542-888 15.8664
RFQ
 ECAD 2870 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-084 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-084-542-888 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

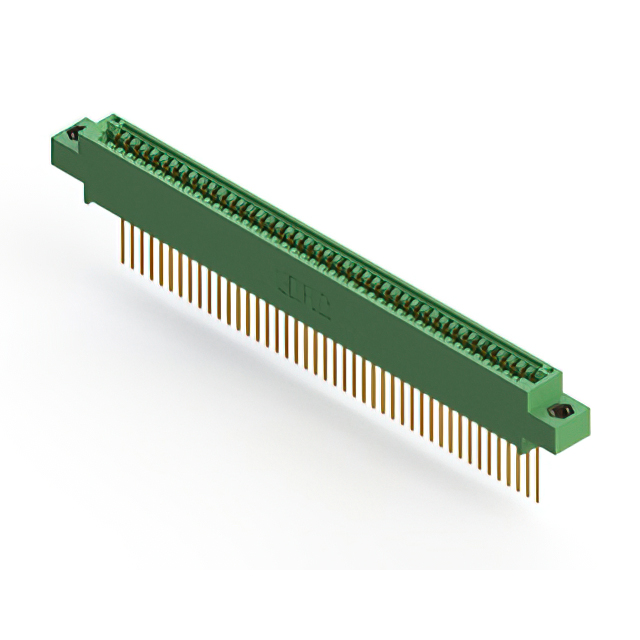

345-044-542-607 EDAC Inc. 345-044-542-607 16.1924
RFQ
 ECAD 3665 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-044 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-044-542-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Single Edge 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
396-039-521-602 EDAC Inc. 396-039-521-602 12.2336
RFQ
 ECAD 4553 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-039 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-039-521-602 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

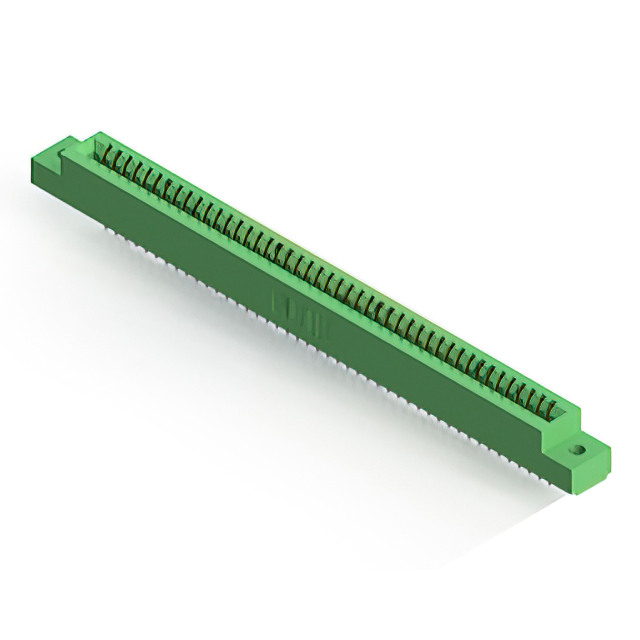

341-045-521-102 EDAC Inc. 341-045-521-102 19.6600
RFQ
 ECAD 8935 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-045 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-045-521-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 45 Female Non Specified - Single Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
341-072-524-204 EDAC Inc. 341-072-524-204 16.7360
RFQ
 ECAD 7983 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-072 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-072-524-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

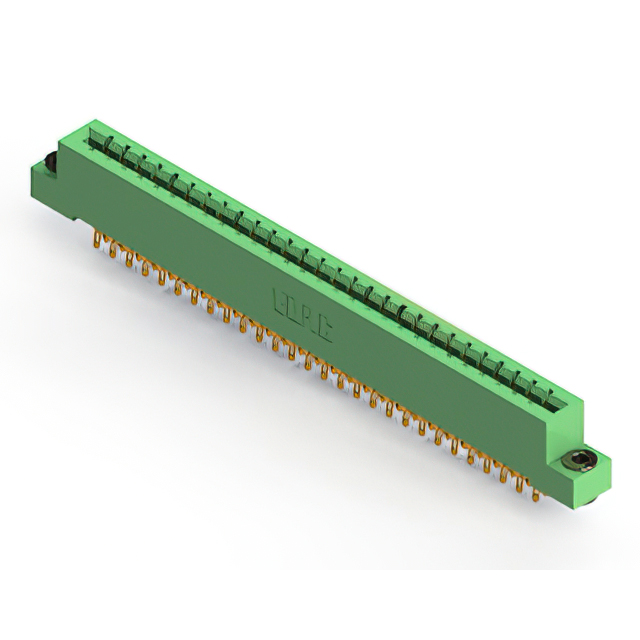

833-056-555-203 EDAC Inc. 833-056-555-203 80.0888
RFQ
 ECAD 7102 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 833-056 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-056-555-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2

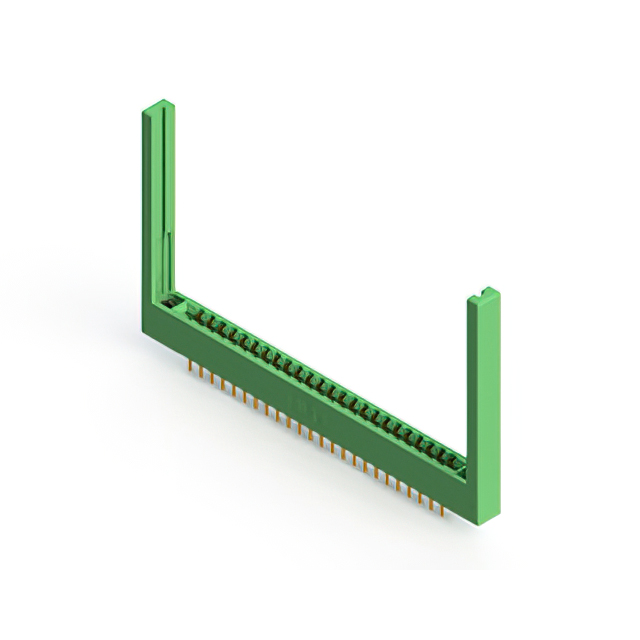

305-048-520-268 EDAC Inc. 305-048-520-268 14.3128
RFQ
 ECAD 1906 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 305-048 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-048-520-268 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
395-044-540-578 EDAC Inc. 395-044-540-578 12.7072
RFQ
 ECAD 9034 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-044 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-044-540-578 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

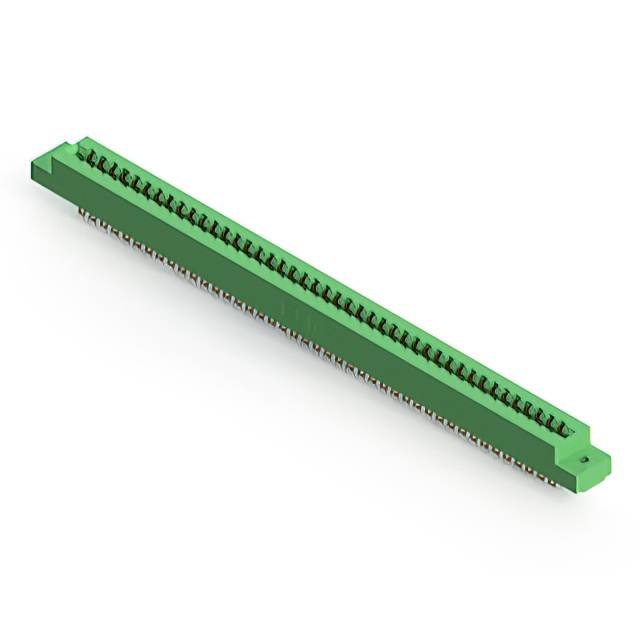

305-086-555-502 EDAC Inc. 305-086-555-502 17.6236
RFQ
 ECAD 1456 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 305-086 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-086-555-502 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
387-018-520-678 EDAC Inc. 387-018-520-678 10.0748
RFQ
 ECAD 6866 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-018 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-018-520-678 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
342-049-541-104 EDAC Inc. 342-049-541-104 21.0760
RFQ
 ECAD 5734 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-049 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-342-049-541-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 49 Female Non Specified - Single Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

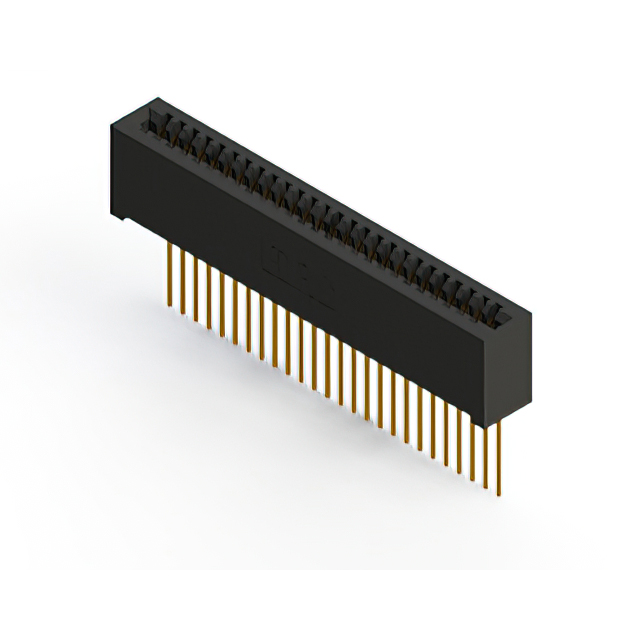

392-026-541-101 EDAC Inc. 392-026-541-101 14.7044
RFQ
 ECAD 1665 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-026 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-026-541-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Single Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
845-096-540-288 EDAC Inc. 845-096-540-288 -
RFQ
 ECAD 5410 0.00000000 EDAC Inc. 845 Box Obsolete 845-096 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-096-540-288 EAR99 8536.69.4040 25

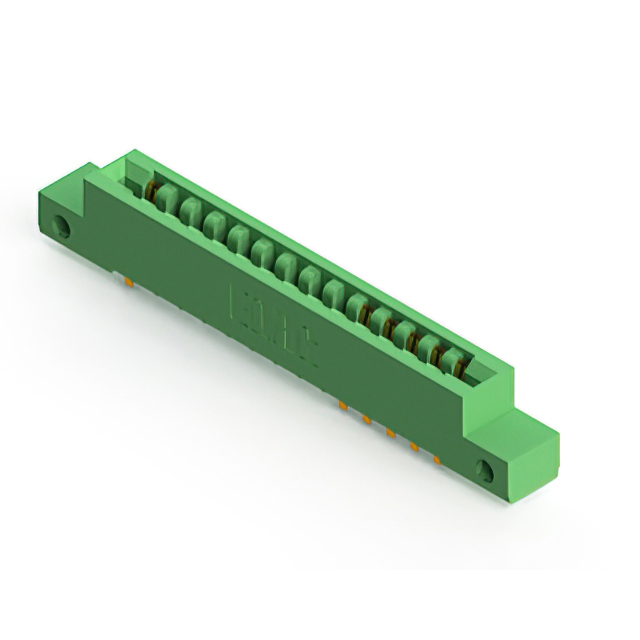

307-028-559-212 EDAC Inc. 307-028-559-212 13.8380
RFQ
 ECAD 8226 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole, Right Angle - 307-028 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-028-559-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
