Card Edge Connectors(468861)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
807-014-458-112 | 82.4916 |  |
9619 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 807-014 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-014-458-112 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Tin | - | Copper Alloy | Semi Bellows | 14 | Female | Non Specified - Single Edge | 14 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 1 | |
 |
807-054-422-207 | 94.5360 | |
1379 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-054 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-054-422-207 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 54 | Female | Non Specified - Dual Edge | 27 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Diallyl Phthalate (DAP) | 2 | |
 |
746-030-553-101 | 9.5444 | |
2376 | 0.00000000 | EDAC Inc. | 746 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 746-030 | Black | Press-Fit, Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-746-030-553-101 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 30 | Female | Non Specified - Single Edge | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
746-030-545-106 | 9.5444 | |
9997 | 0.00000000 | EDAC Inc. | 746 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 746-030 | Black | Press-Fit, Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-746-030-545-106 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 30 | Female | Non Specified - Single Edge | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
746-014-541-106 | 6.4392 | |
2497 | 0.00000000 | EDAC Inc. | 746 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 746-014 | Black | Press-Fit, Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-746-014-541-106 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 14 | Female | Non Specified - Single Edge | 14 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
745-032-541-101 | 10.7188 | |
8877 | 0.00000000 | EDAC Inc. | 745 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 745-032 | Black | Press-Fit, Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-745-032-541-101 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 32 | Female | Non Specified - Single Edge | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
807-040-442-201 | 69.9928 | |
7252 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-040 | Green | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-040-442-201 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 40 | Female | Non Specified - Dual Edge | 20 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Diallyl Phthalate (DAP) | 2 | |
 |
857-021-557-104 | 161.0952 | |
4168 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 857-021 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-021-557-104 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 42 | Female | Non Specified - Dual Edge | 21 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
807-044-401-108 | 270.5176 | |
3685 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-044 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-044-401-108 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 88 | Female | Non Specified - Dual Edge | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Diallyl Phthalate (DAP) | 1 | |
 |
746-015-525-506 | 6.0460 | |
6840 | 0.00000000 | EDAC Inc. | 746 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 746-015 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-746-015-525-506 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 15 | Female | Non Specified - Single Edge | 15 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
857-012-545-108 | 68.0688 | |
9773 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-012 | Black | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-012-545-108 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 12 | Female | Non Specified - Single Edge | 12 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyphenylene Sulfide (PPS) | 1 | |
 |
807-029-454-101 | 194.3888 | |
3040 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 807-029 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-029-454-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 58 | Female | Non Specified - Dual Edge | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Diallyl Phthalate (DAP) | 1 | |
 |
807-018-457-103 | 157.7388 | |
4318 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 807-018 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-018-457-103 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 36 | Female | Non Specified - Dual Edge | 18 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 1 | |
 |
726-056-553-101 | 16.6212 | |
4956 | 0.00000000 | EDAC Inc. | 726 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 726-056 | Black | Press-Fit, Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-726-056-553-101 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 56 | Female | Non Specified - Single Edge | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
857-016-459-203 | 91.0212 | |
9854 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 857-016 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-016-459-203 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 16 | Female | Non Specified - Dual Edge | 8 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Polyphenylene Sulfide (PPS) | 2 | |
 |

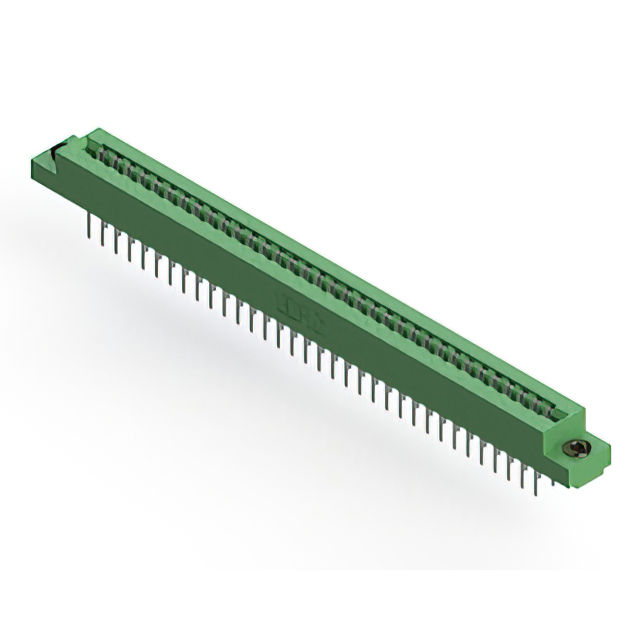

807-068-422-203 | 111.0192 | |
1201 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-068 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-068-422-203 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 68 | Female | Non Specified - Dual Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 2 | |
 |
807-022-441-101 | 152.0544 | |
5161 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-022 | Green | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-022-441-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 44 | Female | Non Specified - Dual Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Diallyl Phthalate (DAP) | 1 | |
 |
807-029-454-103 | 207.8824 | |
3436 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 807-029 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-029-454-103 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 58 | Female | Non Specified - Dual Edge | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 1 | |
 |
857-023-541-102 | 156.9268 | |
8018 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-023 | Black | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-023-541-102 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 46 | Female | Non Specified - Dual Edge | 23 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
395-128-525-804 | 16.1680 | |
7102 | 0.00000000 | EDAC Inc. | 395 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 395-128 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-395-128-525-804 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 128 | Female | Non Specified - Dual Edge | 64 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester Thermoplastic | 2 | |
 |
395-057-525-158 | 16.1404 | |
8251 | 0.00000000 | EDAC Inc. | 395 | Bulk | Active | -40°C ~ 105°C | Through Hole | Card Guides | 395-057 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-395-057-525-158 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 57 | Female | Non Specified - Single Edge | 57 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |
 |
395-058-525-588 | 13.9000 | |
9511 | 0.00000000 | EDAC Inc. | 395 | Bulk | Active | -40°C ~ 105°C | Through Hole | Card Guides | 395-058 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-395-058-525-588 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 58 | Female | Non Specified - Dual Edge | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 | |
 |
395-058-525-807 | 12.9532 | |
2996 | 0.00000000 | EDAC Inc. | 395 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 395-058 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-395-058-525-807 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 58 | Female | Non Specified - Dual Edge | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Threaded Insert, M3 | Polyester Thermoplastic | 2 | |
 |

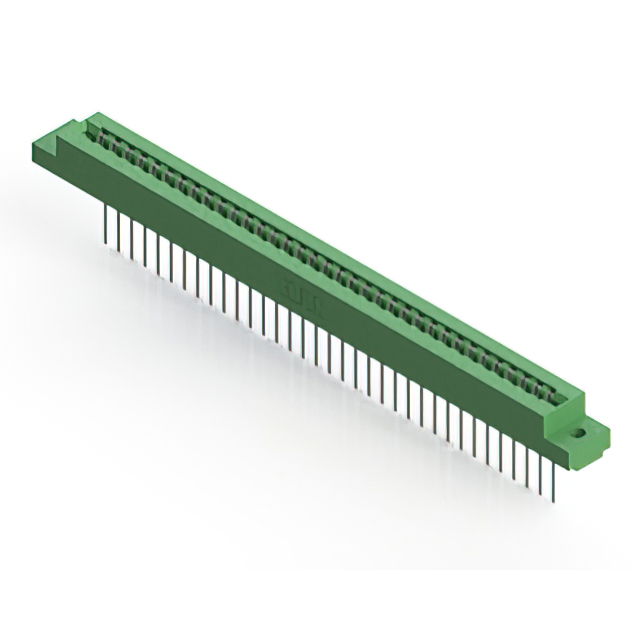

307-035-445-102 | 17.3612 | |
2845 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 307-035 | Green | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-035-445-102 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Tin | - | Copper Alloy | Semi Bellows | 35 | Female | Non Specified - Single Edge | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 | |
 |
307-017-447-112 | 14.6080 | |
2175 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 307-017 | Green | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-017-447-112 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Tin | - | Copper Alloy | Semi Bellows | 17 | Female | Non Specified - Single Edge | 17 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 | |
 |

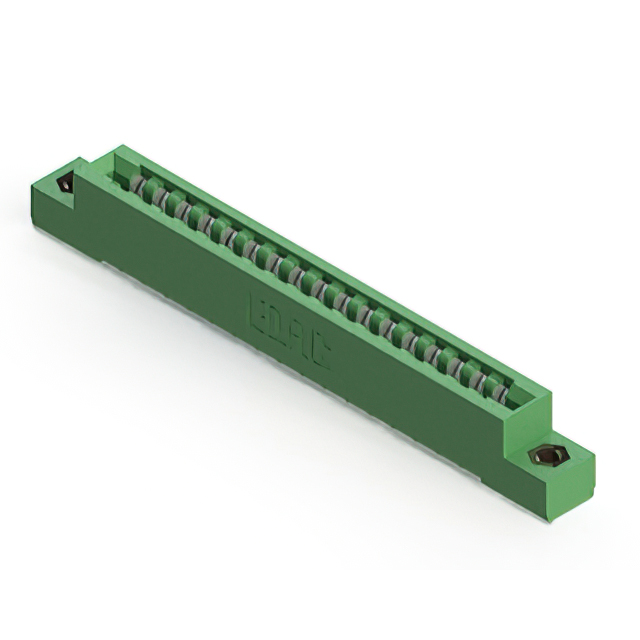

307-017-453-107 | 25.7796 | |
8019 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole, Right Angle | - | 307-017 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-017-453-107 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 34 | Female | Non Specified - Dual Edge | 17 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 1 | |
 |

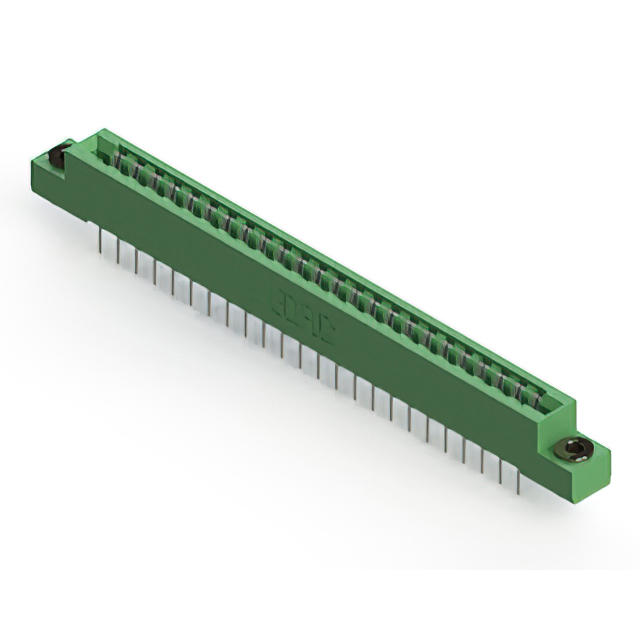

307-048-424-203 | 14.5884 | |
2364 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 307-048 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-048-424-203 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 48 | Female | Non Specified - Dual Edge | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Polyester Thermoplastic | 2 | |
 |

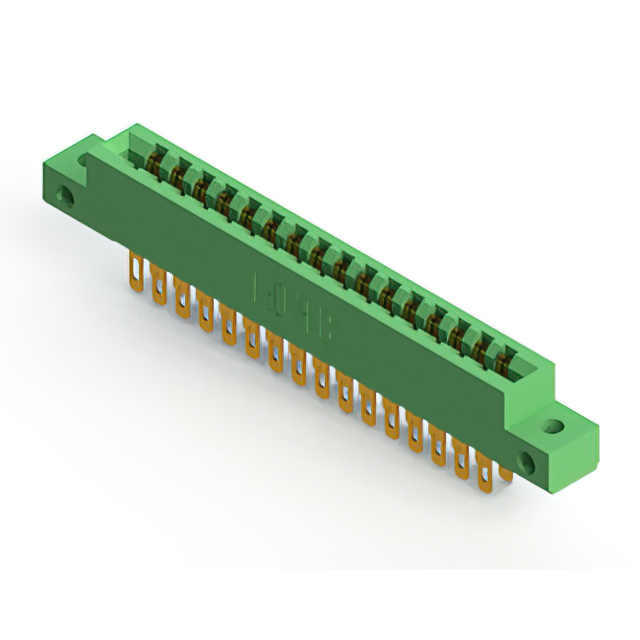

305-032-500-512 | 9.9816 | |
5147 | 0.00000000 | EDAC Inc. | 305 | Bulk | Active | -40°C ~ 105°C | Panel Mount | - | Green | Solder Eyelet(s) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-305-032-500-512 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 32 | Female | Non Specified - Dual Edge | 16 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 | ||
 |

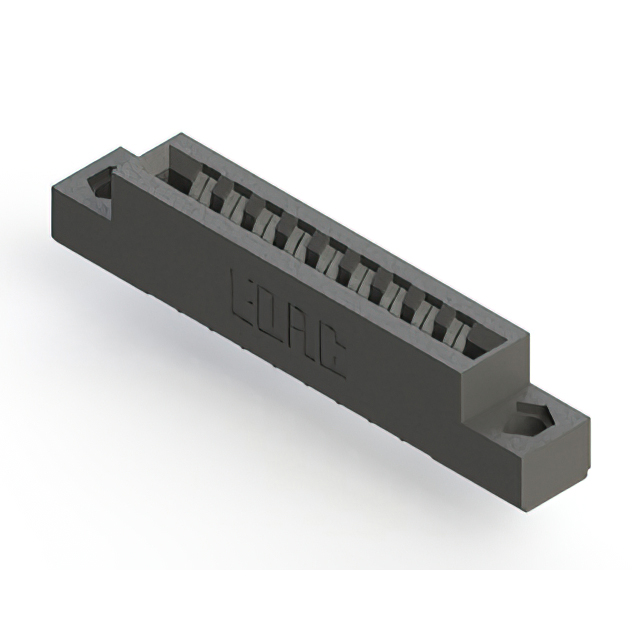

356-009-421-104 | 8.4840 | |
5726 | 0.00000000 | EDAC Inc. | 356 | Bulk | Active | -40°C ~ 105°C | Panel Mount, Through Hole | - | 356-009 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-356-009-421-104 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Cantilever | 18 | Female | Non Specified - Dual Edge | 9 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester Thermoplastic | 1 | |
 |

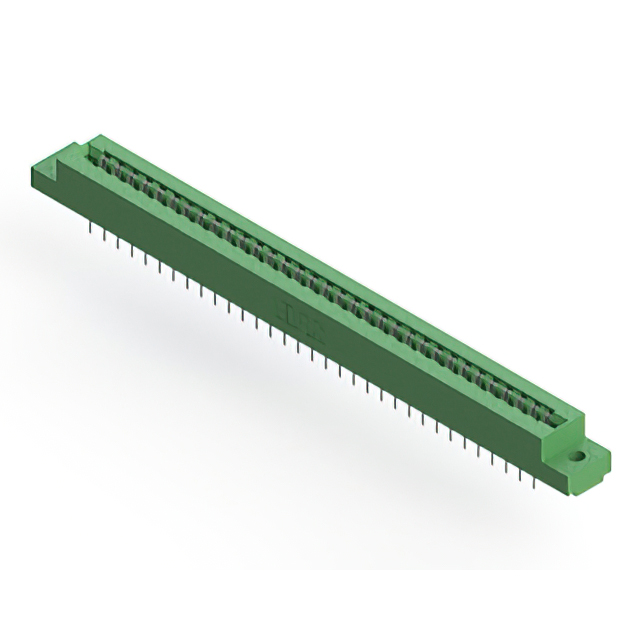

307-066-424-202 | 15.7760 | |
6918 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 307-066 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-307-066-424-202 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 66 | Female | Non Specified - Dual Edge | 33 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 |
