Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
346-016-522-658 EDAC Inc. 346-016-522-658 10.5524
RFQ
 ECAD 5081 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole Card Guides 346-016 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-016-522-658 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
842-020-541-102 EDAC Inc. 842-020-541-102 80.9236
RFQ
 ECAD 8230 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-020 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-020-541-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Single Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
396-050-541-807 EDAC Inc. 396-050-541-807 12.0252
RFQ
 ECAD 1654 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-050 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-050-541-807 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
845-092-523-201 EDAC Inc. 845-092-523-201 81.6324
RFQ
 ECAD 4105 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-092 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-092-523-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 92 Female Non Specified - Dual Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
346-014-520-607 EDAC Inc. 346-014-520-607 9.8280
RFQ
 ECAD 8408 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-014 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-014-520-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
837-006-559-112 EDAC Inc. 837-006-559-112 45.9584
RFQ
 ECAD 3715 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole, Right Angle - 837-006 Green Solder download ROHS3 Compliant REACH Unaffected 151-837-006-559-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
346-033-522-603 EDAC Inc. 346-033-522-603 10.5860
RFQ
 ECAD 2772 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-033 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-033-522-603 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 33 Female Non Specified - Single Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
846-042-500-858 EDAC Inc. 846-042-500-858 -
RFQ
 ECAD 6064 0.00000000 EDAC Inc. 846 Box Obsolete -40°C ~ 125°C Panel Mount Card Guides 846-042 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-042-500-858 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold - Copper Alloy - 42 Female Non Specified - Dual Edge 21 0.062" (1.57mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP)
845-078-541-578 EDAC Inc. 845-078-541-578 -
RFQ
 ECAD 1338 0.00000000 EDAC Inc. 845 Box Obsolete 845-078 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-078-541-578 EAR99 8536.69.4040 25
395-130-541-502 EDAC Inc. 395-130-541-502 16.4296
RFQ
 ECAD 4949 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-130 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-130-541-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 130 Female Non Specified - Dual Edge 65 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
845-086-555-807 EDAC Inc. 845-086-555-807 108.8008
RFQ
 ECAD 3713 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-086 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-086-555-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
395-047-542-602 EDAC Inc. 395-047-542-602 13.2064
RFQ
 ECAD 1003 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-047 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-047-542-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 47 Female Non Specified - Single Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
346-038-521-812 EDAC Inc. 346-038-521-812 9.7528
RFQ
 ECAD 2722 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-038 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-038-521-812 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
333-034-555-208 EDAC Inc. 333-034-555-208 12.0880
RFQ
 ECAD 9364 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-034 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-034-555-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Dual Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
333-040-500-602 EDAC Inc. 333-040-500-602 26.1052
RFQ
 ECAD 2392 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-040 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-040-500-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Single Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
833-030-544-102 EDAC Inc. 833-030-544-102 48.1952
RFQ
 ECAD 3527 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-030 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-030-544-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
833-032-556-812 EDAC Inc. 833-032-556-812 61.7872
RFQ
 ECAD 5502 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 833-032 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-032-556-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
842-090-556-201 EDAC Inc. 842-090-556-201 110.9272
RFQ
 ECAD 8469 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 842-090 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-090-556-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 90 Female Non Specified - Dual Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
833-042-523-602 EDAC Inc. 833-042-523-602 61.7872
RFQ
 ECAD 2582 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-042 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-042-523-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Single Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
333-036-524-602 EDAC Inc. 333-036-524-602 10.1148
RFQ
 ECAD 7004 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-036 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-036-524-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
396-028-520-604 EDAC Inc. 396-028-520-604 10.5480
RFQ
 ECAD 6928 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-028 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-028-520-604 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
346-047-500-101 EDAC Inc. 346-047-500-101 14.2340
RFQ
 ECAD 7848 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-047 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-346-047-500-101 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 47 Female Non Specified - Single Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
846-040-522-802 EDAC Inc. 846-040-522-802 48.3208
RFQ
 ECAD 2400 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-040 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-040-522-802 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

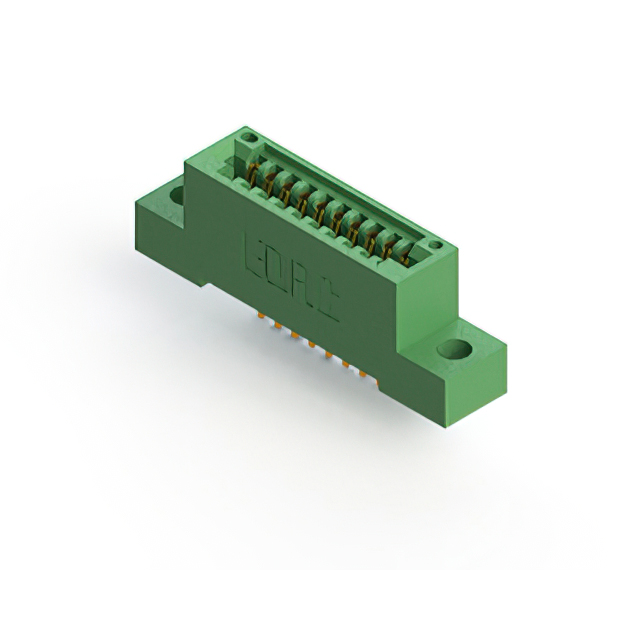

845-010-544-503 EDAC Inc. 845-010-544-503 58.7160
RFQ
 ECAD 4811 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-010 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-010-544-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 10 Female Non Specified - Dual Edge 5 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
395-044-542-488 EDAC Inc. 395-044-542-488 16.0808
RFQ
 ECAD 5045 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-044 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-044-542-488 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Single Edge 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
846-035-520-678 EDAC Inc. 846-035-520-678 -
RFQ
 ECAD 6189 0.00000000 EDAC Inc. 846 Box Obsolete -40°C ~ 125°C Through Hole Card Guides 846-035 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-035-520-678 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold - Copper Alloy - 35 Female Non Specified - Single Edge 35 0.062" (1.57mm) Single Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP)
395-138-559-807 EDAC Inc. 395-138-559-807 20.1948
RFQ
 ECAD 2372 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-138 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-138-559-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 138 Female Non Specified - Dual Edge 69 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
833-006-524-101 EDAC Inc. 833-006-524-101 21.7272
RFQ
 ECAD 8595 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-006 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-006-524-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
807-018-540-258 EDAC Inc. 807-018-540-258 -
RFQ
 ECAD 6462 0.00000000 EDAC Inc. 807 Box Obsolete 807-018 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-018-540-258 EAR99 8536.69.4040 25
842-116-540-208 EDAC Inc. 842-116-540-208 130.2996
RFQ
 ECAD 8893 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-116 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-116-540-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
