Card Edge Connectors(468861)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
857-023-521-103 | 170.4336 |  |
2992 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-023 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-023-521-103 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 46 | Female | Non Specified - Dual Edge | 23 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
396-022-559-102 | 12.6640 | |
9022 | 0.00000000 | EDAC Inc. | 396 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | - | 396-022 | Black | Solder, Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-396-022-559-102 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 22 | Female | Non Specified - Single Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 | ||
 |
346-025-521-612 | 9.2960 | |
6141 | 0.00000000 | EDAC Inc. | 346 | Box | Active | -40°C ~ 105°C | Through Hole | - | 346-025 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-346-025-521-612 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 25 | Female | Non Specified - Single Edge | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 | ||
 |
737-086-560-206 | 14.0772 | |
5794 | 0.00000000 | EDAC Inc. | 737 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 737-086 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-737-086-560-206 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever, Make Before Break | 86 | Female | Non Specified - Dual Edge | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester Thermoplastic | 2 | |
 |
345-096-500-204 | 28.8392 | |
9106 | 0.00000000 | EDAC Inc. | 345 | Box | Active | -40°C ~ 105°C | Through Hole | - | 345-096 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | REACH Unaffected | 151-345-096-500-204 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 96 | Female | Non Specified - Dual Edge | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester Thermoplastic | 2 | ||
 |
895-062-540-102 | 138.2064 | |
3589 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 895-062 | Black | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-062-540-102 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 62 | Female | Non Specified - Single Edge | 62 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
845-040-542-403 | 93.6808 | |
3429 | 0.00000000 | EDAC Inc. | 845 | Box | Active | -40°C ~ 125°C | Through Hole | - | 845-040 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-845-040-542-403 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 40 | Female | Non Specified - Single Edge | 40 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 1 | ||
 |
846-010-558-678 | - | |
5737 | 0.00000000 | EDAC Inc. | 846 | Box | Obsolete | 846-010 | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-846-010-558-678 | EAR99 | 8536.69.4040 | 25 | |||||||||||||||||||||
 |
845-062-542-207 | 80.0888 | |
8397 | 0.00000000 | EDAC Inc. | 845 | Box | Active | -40°C ~ 125°C | Through Hole | - | 845-062 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-845-062-542-207 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 62 | Female | Non Specified - Dual Edge | 31 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Diallyl Phthalate (DAP) | 2 | ||
|
345-040-527-801 | - | |
2193 | 0.00000000 | EDAC Inc. | 345 | Bulk | Obsolete | -65°C ~ 105°C | Through Hole | - | 345-040 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | - | Copper, Nickel, Tin Alloy | - | 40 | Female | Non Specified - Dual Edge | 20 | 0.062" (1.57mm) | Dual | - | Polyester Thermoplastic | |||
 |
307-064-560-208 | 18.3092 | |
4090 | 0.00000000 | EDAC Inc. | 307 | Box | Active | -40°C ~ 105°C | Board Edge, Straddle Mount | Card Extender | 307-064 | Green | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-307-064-560-208 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 64 | Female | Non Specified - Dual Edge | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 | |
 |
857-076-458-201 | 124.7604 | |
3711 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 857-076 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-076-458-201 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 76 | Female | Non Specified - Dual Edge | 38 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyphenylene Sulfide (PPS) | 2 | |
 |
717-013-520-101 | 6.7912 | |
2882 | 0.00000000 | EDAC Inc. | 717 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 717-013 | Black | Press-Fit | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-717-013-520-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 30.0µin (0.76µm) | Copper Alloy | Cantilever | 13 | Female | Non Specified - Single Edge | 13 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | |
 |
307-025-558-158 | 18.4232 | |
4001 | 0.00000000 | EDAC Inc. | 307 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | Card Guides | 307-025 | Green | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-307-025-558-158 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 25 | Female | Non Specified - Single Edge | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |
 |
342-055-541-107 | 25.2912 | |
6688 | 0.00000000 | EDAC Inc. | 342 | Box | Active | -40°C ~ 105°C | Through Hole | - | 342-055 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-342-055-541-107 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 55 | Female | Non Specified - Single Edge | 55 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 1 | ||
 |
896-098-500-207 | 137.6236 | |
6485 | 0.00000000 | EDAC Inc. | 896 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 896-098 | Black | Solder Eyelet(s) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-896-098-500-207 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 98 | Female | Non Specified - Dual Edge | 49 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Polyphenylene Sulfide (PPS) | 2 | |
 |
845-126-540-804 | 107.3836 | |
2136 | 0.00000000 | EDAC Inc. | 845 | Box | Active | -40°C ~ 125°C | Through Hole | - | 845-126 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-845-126-540-804 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 126 | Female | Non Specified - Dual Edge | 63 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Diallyl Phthalate (DAP) | 2 | ||
 |
346-088-541-802 | 13.2236 | |
1267 | 0.00000000 | EDAC Inc. | 346 | Box | Active | -40°C ~ 105°C | Through Hole | - | 346-088 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-346-088-541-802 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 88 | Female | Non Specified - Dual Edge | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 | ||
 |
342-050-523-201 | 11.8912 | |
2811 | 0.00000000 | EDAC Inc. | 342 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 342-050 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 50 | Female | Non Specified - Dual Edge | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester Thermoplastic | 2 | ||
 |
307-072-524-204 | 17.0440 | |
5442 | 0.00000000 | EDAC Inc. | 307 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 307-072 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 72 | Female | Non Specified - Dual Edge | 36 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester Thermoplastic | 2 | ||
 |
306-006-400-108 | 9.7052 | |
1916 | 0.00000000 | EDAC Inc. | 306 | Bulk | Active | -40°C ~ 105°C | Panel Mount | - | 306-006 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-306-006-400-108 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Cantilever | 12 | Female | Non Specified - Dual Edge | 6 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |
 |
895-096-559-804 | 99.1148 | |
6945 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 895-096 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-096-559-804 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 96 | Female | Non Specified - Dual Edge | 48 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 2 | |
 |
845-024-525-203 | 57.2984 | |
5509 | 0.00000000 | EDAC Inc. | 845 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 845-024 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-845-024-525-203 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 24 | Female | Non Specified - Dual Edge | 12 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 2 | |
 |
357-025-421-178 | 29.2336 | |
9923 | 0.00000000 | EDAC Inc. | 357 | Bulk | Active | -40°C ~ 105°C | Through Hole | Card Guides | 357-025 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-357-025-421-178 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 50 | Female | Non Specified - Dual Edge | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |
 |
857-042-527-103 | 145.7372 | |
9776 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-042 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-042-527-103 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 42 | Female | Non Specified - Single Edge | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
896-094-560-203 | 120.0152 | |
3378 | 0.00000000 | EDAC Inc. | 896 | Bulk | Active | -40°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | 896-094 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-896-094-560-203 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 94 | Female | Non Specified - Dual Edge | 47 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Polyphenylene Sulfide (PPS) | 2 | |
 |
845-058-525-404 | 122.5036 | |
9018 | 0.00000000 | EDAC Inc. | 845 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 845-058 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-845-058-525-404 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 58 | Female | Non Specified - Single Edge | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Diallyl Phthalate (DAP) | 1 | |
 |

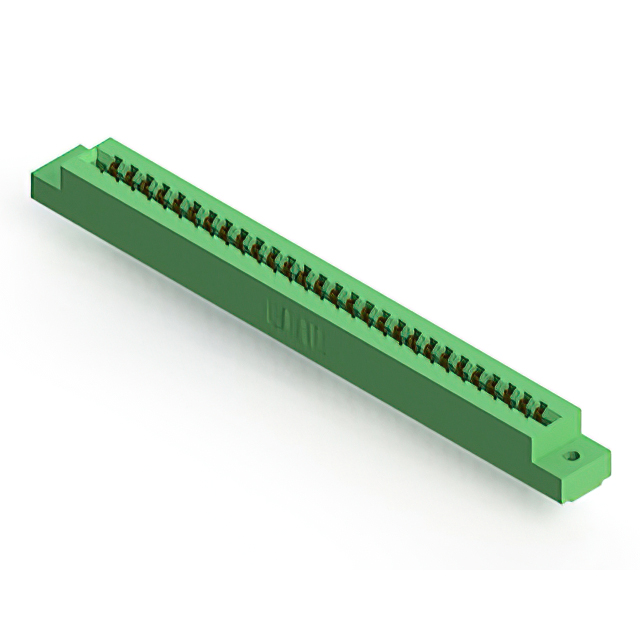

305-056-521-202 | 12.5608 | |
2007 | 0.00000000 | EDAC Inc. | 305 | Bulk | Active | -40°C ~ 105°C | Panel Mount, Through Hole | - | 305-056 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 56 | Female | Non Specified - Dual Edge | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 | ||
 |

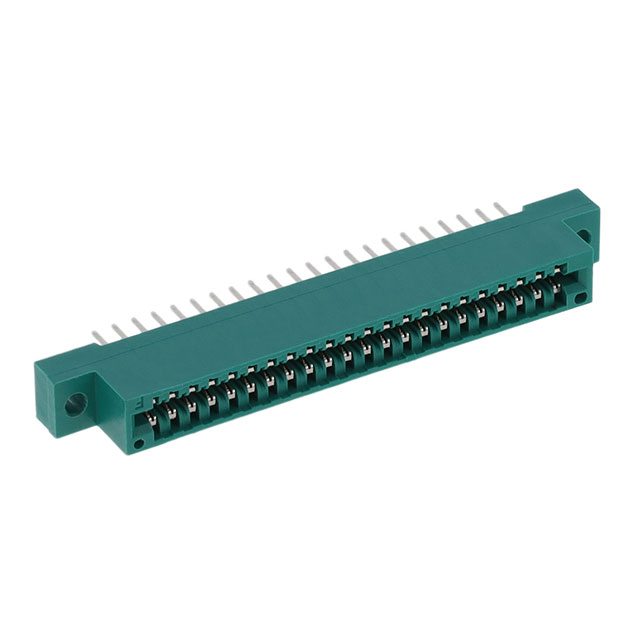

346-044-520-202 | 10.6600 | |
3 | 0.00000000 | EDAC Inc. | 346 | Bulk | Active | -40°C ~ 105°C | Through Hole | - | 346-044 | Green | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 44 | Female | Non Specified - Dual Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 2 | ||
 |

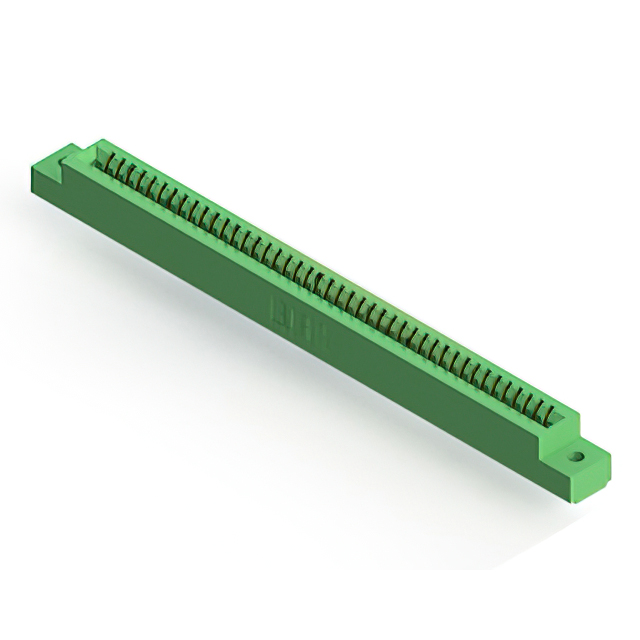

341-043-520-102 | 18.7976 | |
9955 | 0.00000000 | EDAC Inc. | 341 | Box | Active | -40°C ~ 105°C | Through Hole | - | 341-043 | Green | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-341-043-520-102 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 43 | Female | Non Specified - Single Edge | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 |
